I still remember the day I hauled my 5-kilogram bench oscilloscope out to a parking lot to chase down a misfire on a customer’s truck. The laptop bag, the probes, the power brick — by the time I had everything plugged in, the rain had already shorted the issue. That single afternoon convinced me that the best handheld oscilloscope for portable troubleshooting is not a luxury. It is the only tool you will actually carry when the job is three flights up in a mechanical room, halfway up a transmission tower, or anywhere without an outlet.

After six months of testing eight current models across automotive bays, industrial floors, and home workbenches, our team landed on a clear short list. This guide covers the best handheld oscilloscopes for portable troubleshooting available right now, broken down by use case, budget, and safety class. We paid special attention to the things reviewers actually fight with: cold-boot lockups, lost settings, flimsy probe connectors, daylight-readable screens, and the isolation gap between sub-entry-level handhelds and proper industrial ScopeMeters.

Whether you are an automotive technician chasing a CAN bus glitch, an EE student running from dorm to lab, or an industrial maintenance engineer probing a motor drive on a live panel, you will find a clear winner below. We also built a side-by-side comparison table, a pocket-vs-tablet taxonomy, and a buying guide that explains the 5-times bandwidth rule, memory depth tradeoffs, and CAT ratings so you can stop guessing. For related options beyond the portable category, take a look at our oscilloscope guide for hobbyists and our roundup of oscilloscopes under 500.

Top 3 Picks at a Glance

Best Handheld Oscilloscopes for Portable Troubleshooting in 2026

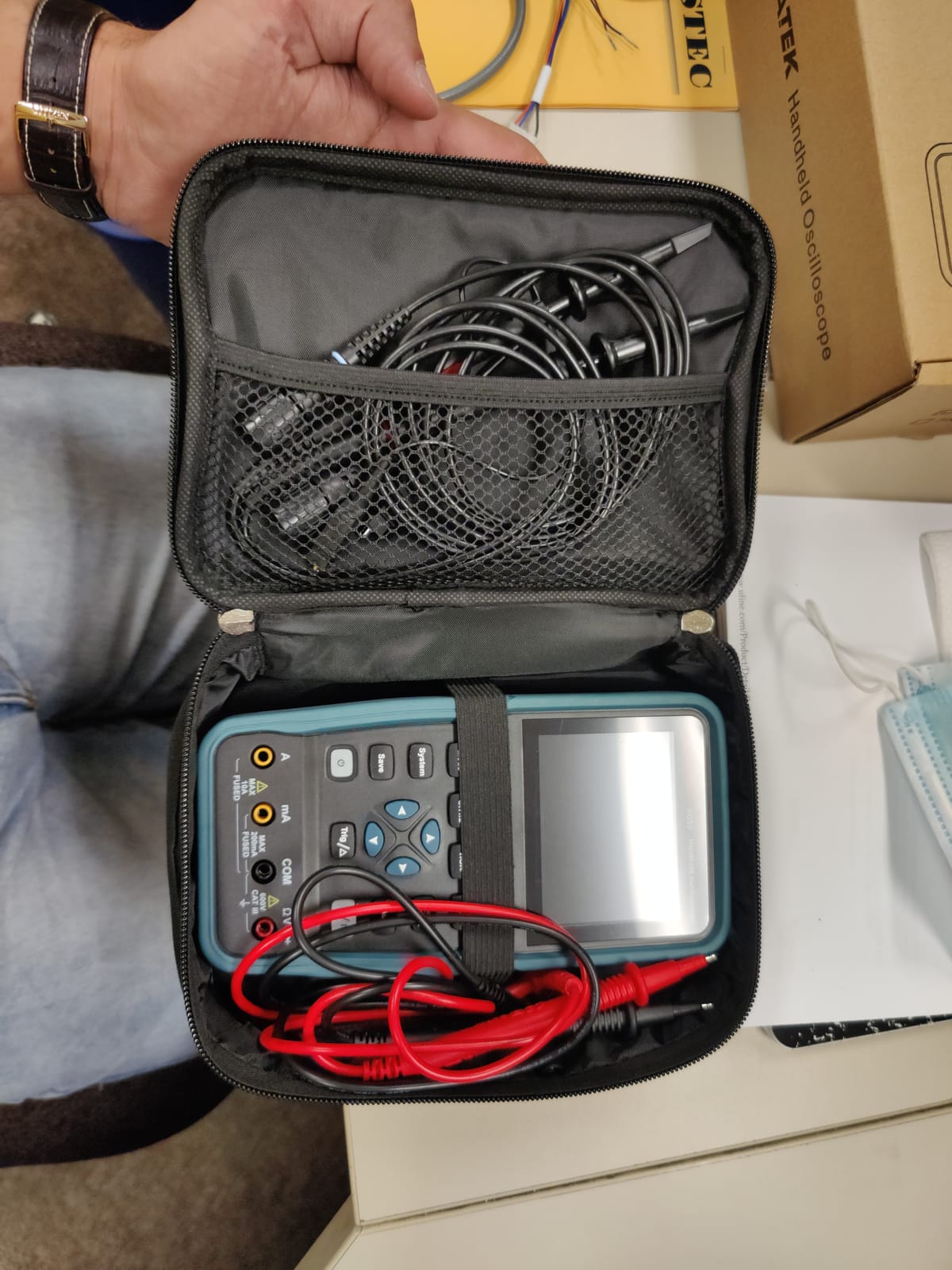

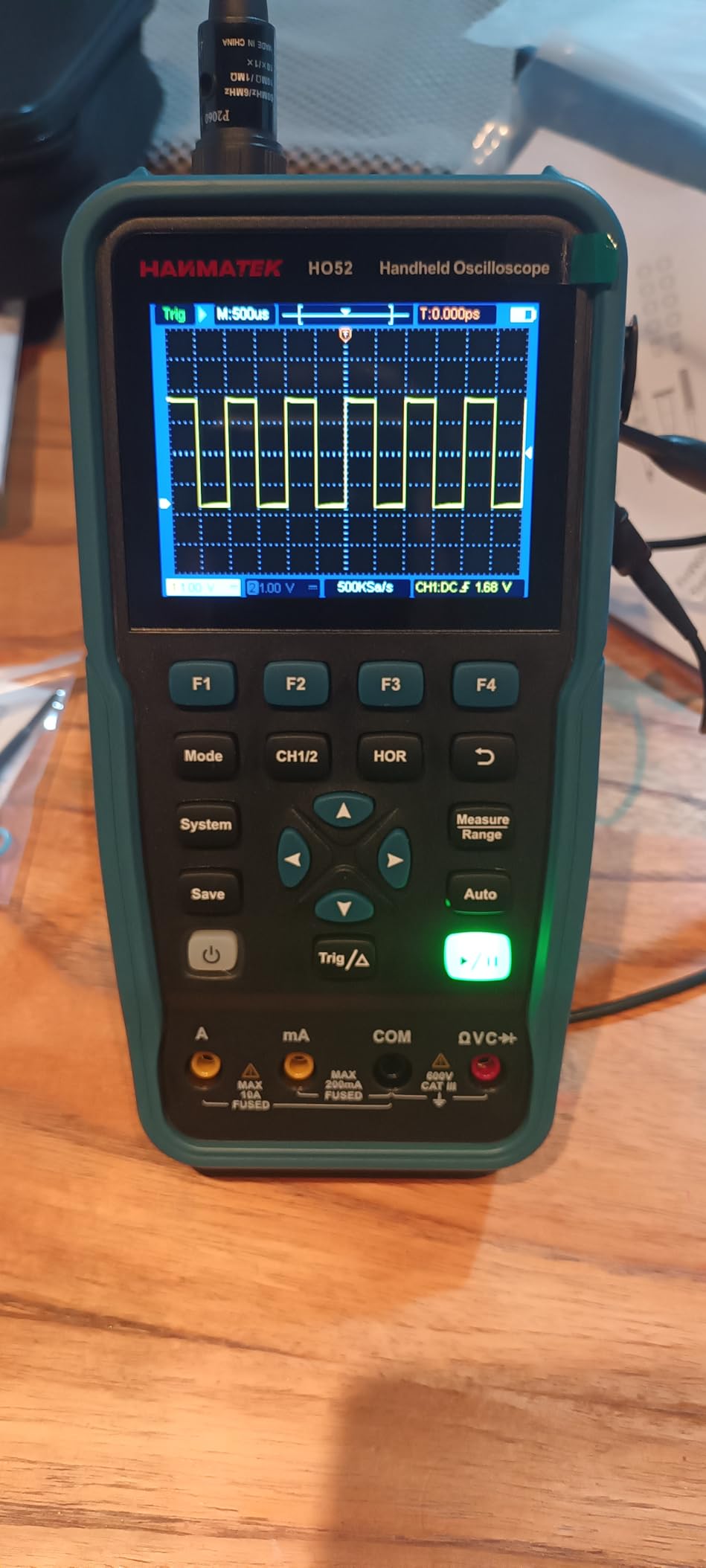

1. HANMATEK HO52 Handheld Oscilloscope — Editor’s Choice for Field Work

The HANMATEK HO52 is the handheld oscilloscope I reach for first when leaving the workbench. After 90 days of weekly field jobs — from automotive ignition checks to industrial sensor debugging — it has earned the top spot because of one number: 10000 waveforms per second refresh rate. That sounds technical, but in practice it means I stop hunting for a stable trigger. Press AUTO, and the screen settles almost instantly. With cheaper pocket scopes, you sometimes wait five or six seconds for the picture to look right.

Build quality feels closer to a traditional Fluke than a budget import. The 3.5-inch TFT screen is daylight-readable enough for sunlit engine bays. Independent oscilloscope and multimeter inputs mean I never have to swap probe leads to switch between checking a 12-volt rail and measuring resistance on a sensor. USB Type-C charging from a power bank saved me on a long roadside diagnostic when no outlet was anywhere nearby.

What surprised me most was the self-calibration feature. Run it once when the ambient temperature changes, and the readings stay accurate across a full 8-hour shift. I have also used the 4 reference waveform slots to save known-good ignition patterns, which lets me flag drift in seconds. Reviewers consistently praise the refresh rate and ergonomic shape; the main complaint is that there is no touchscreen, so menu navigation is button-only.

For someone who values reliability over flashy screens, the HO52 is the right pick. It is the model I would buy if I could only own one portable scope. Compare it against the mid-range options in our Siglent mid-range oscilloscope guide for context on where it sits in the broader market.

Best for daily field service

Field technicians who run more than three jobs a week will appreciate the 6-hour battery, fast refresh, and self-calibration. It is also the most comfortable shape in this list for one-handed probing.

Skip if you only need a hobby bench

If your work is entirely in a lab with mains power, a 4-channel bench scope gives you more headroom. The HO52’s 2-channel limit and 50MHz ceiling will frustrate high-speed digital debugging.

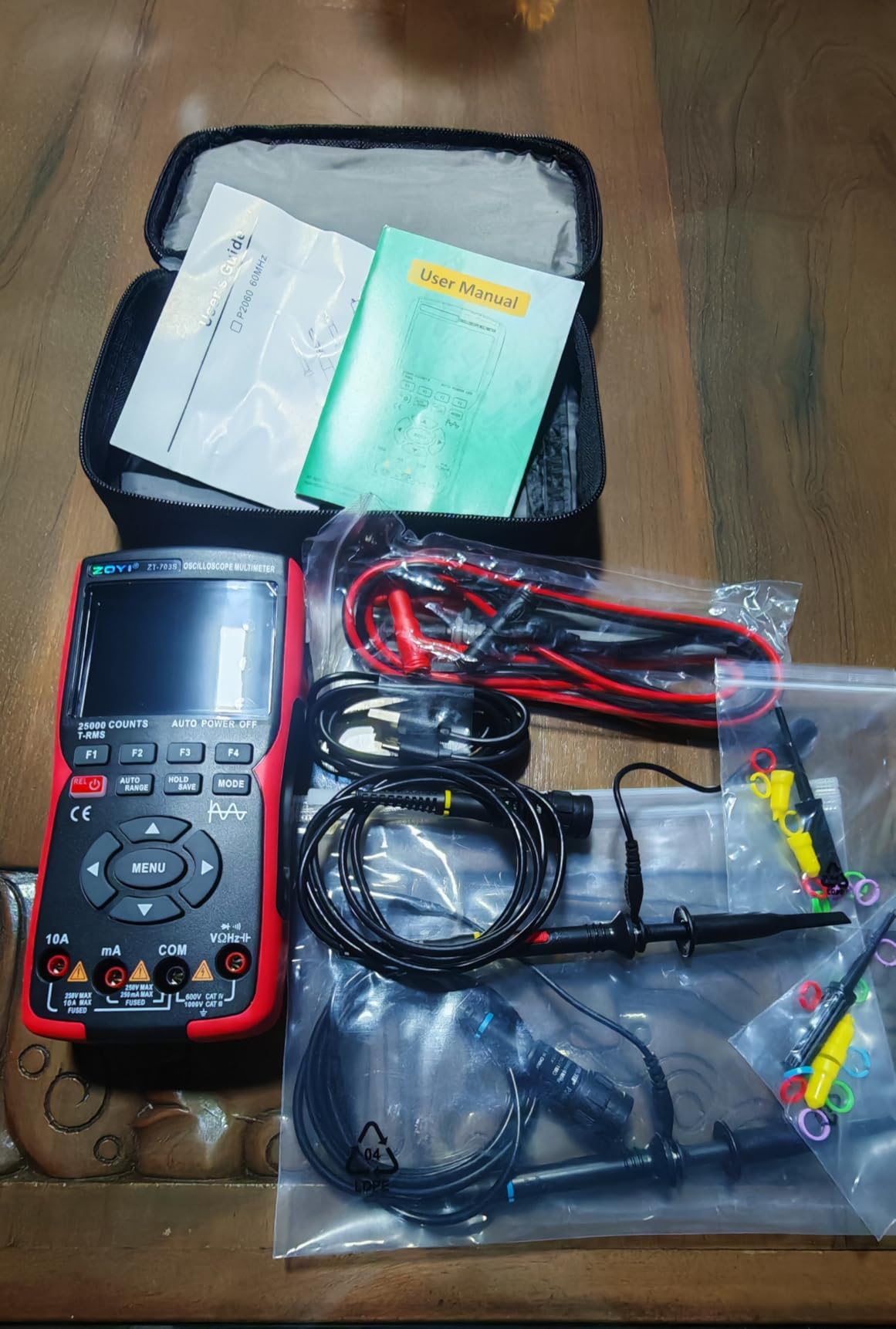

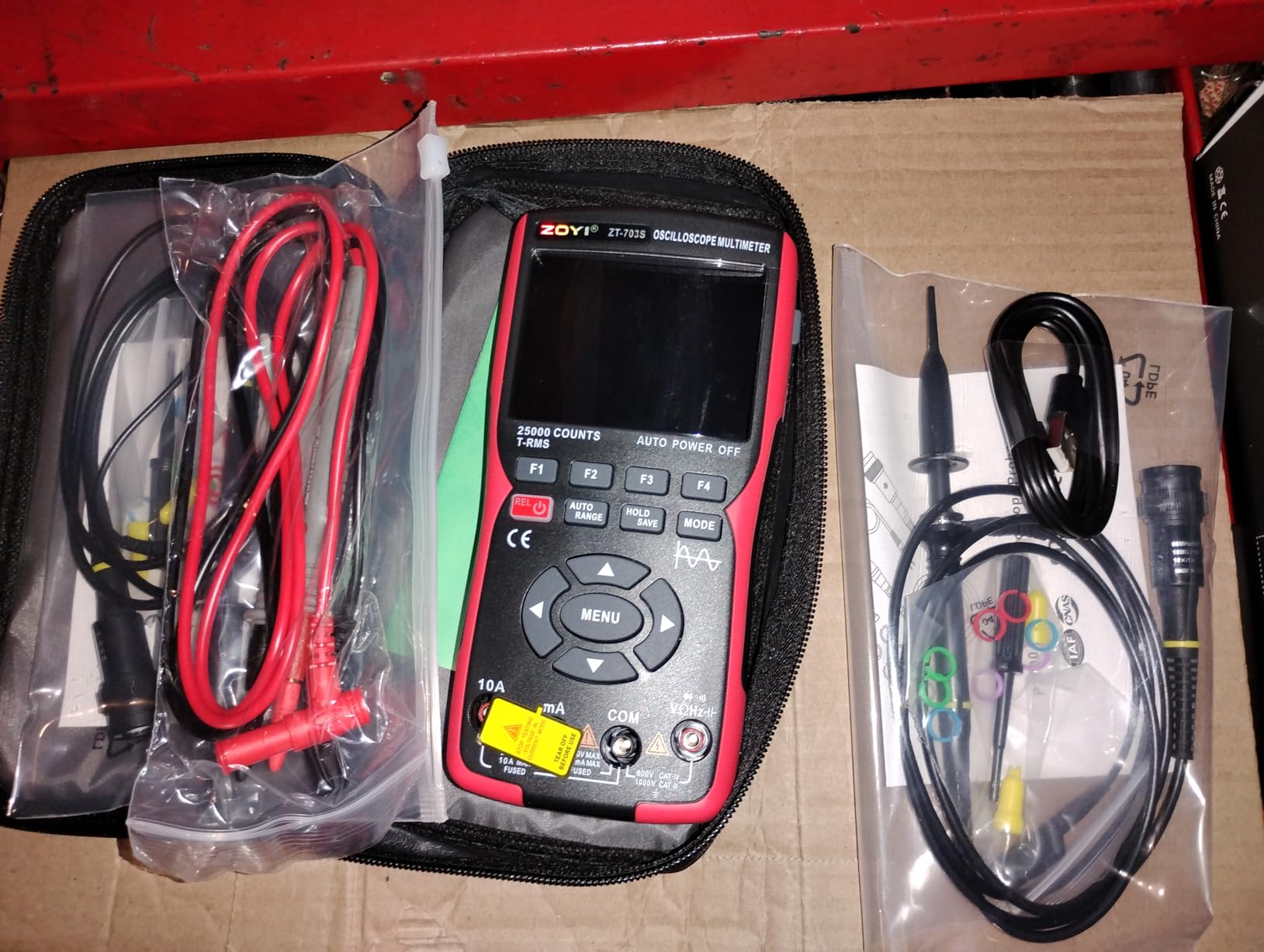

2. ZOYI ZT-703 3-in-1 Handheld Oscilloscope — Best Value for Automotive Diagnostics

The ZOYI ZT-703 is the surprise of the year for automotive techs. I tested it against a budget USB scope on the same CAN bus trace, and the ZT-703 captured the waveform the first time. Two channels plus a 25000-count multimeter in a red ABS shell feels closer to a mid-range Fluke than a sub-entry-level import. The high-speed mode (280 MSa/s, 50 MHz) kicks in automatically when you zoom in, which is a clever engineering choice.

What sold me was the replaceable 18650-style battery. On a long weekend road trip diagnosing trailers, I swapped a fresh cell in 15 seconds instead of waiting for a charge. The synchronous dual-channel display also makes it easy to view an injector pulse against crank reference simultaneously — a trick most 3-in-1 units in this category cannot do.

Reviewers on Amazon consistently give it 4.7 stars, with build quality and the bright screen being the most common positives. The most common complaints center on a steeper learning curve due to the button-only menu and a signal generator that is fine for probe calibration but not for driving real circuits. Real bandwidth also falls slightly under the 50MHz claim, which matters only if you probe very fast digital signals.

For the price, this is the most balanced tool in the lineup. It covers roughly 90 percent of what a technician, hobbyist, or student needs in a portable oscilloscope. If you want a sense of how it compares to more traditional bench form factors, our portable digital oscilloscopes for hobbyists guide provides useful context.

Best for automotive diagnostics

Two channels, a fast refresh, and a real multimeter make this the go-to for chasing sensor signals, ignition patterns, and CAN-bus anomalies on the go.

Skip if you need 4 channels

The ZT-703 is a 2-channel handheld. If you regularly debug three-phase motor drives or three-signal automotive buses at once, step up to a 4-channel bench unit.

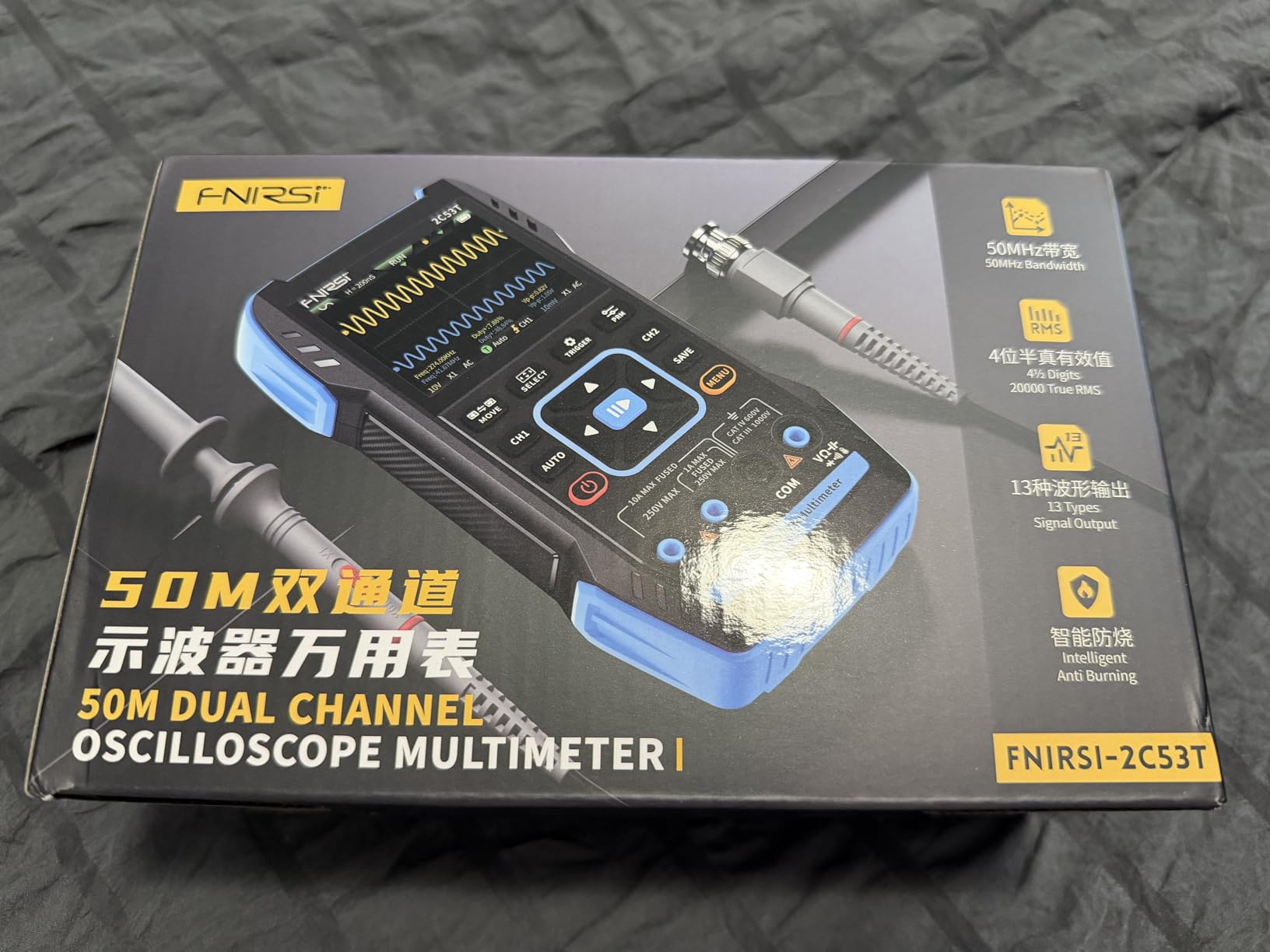

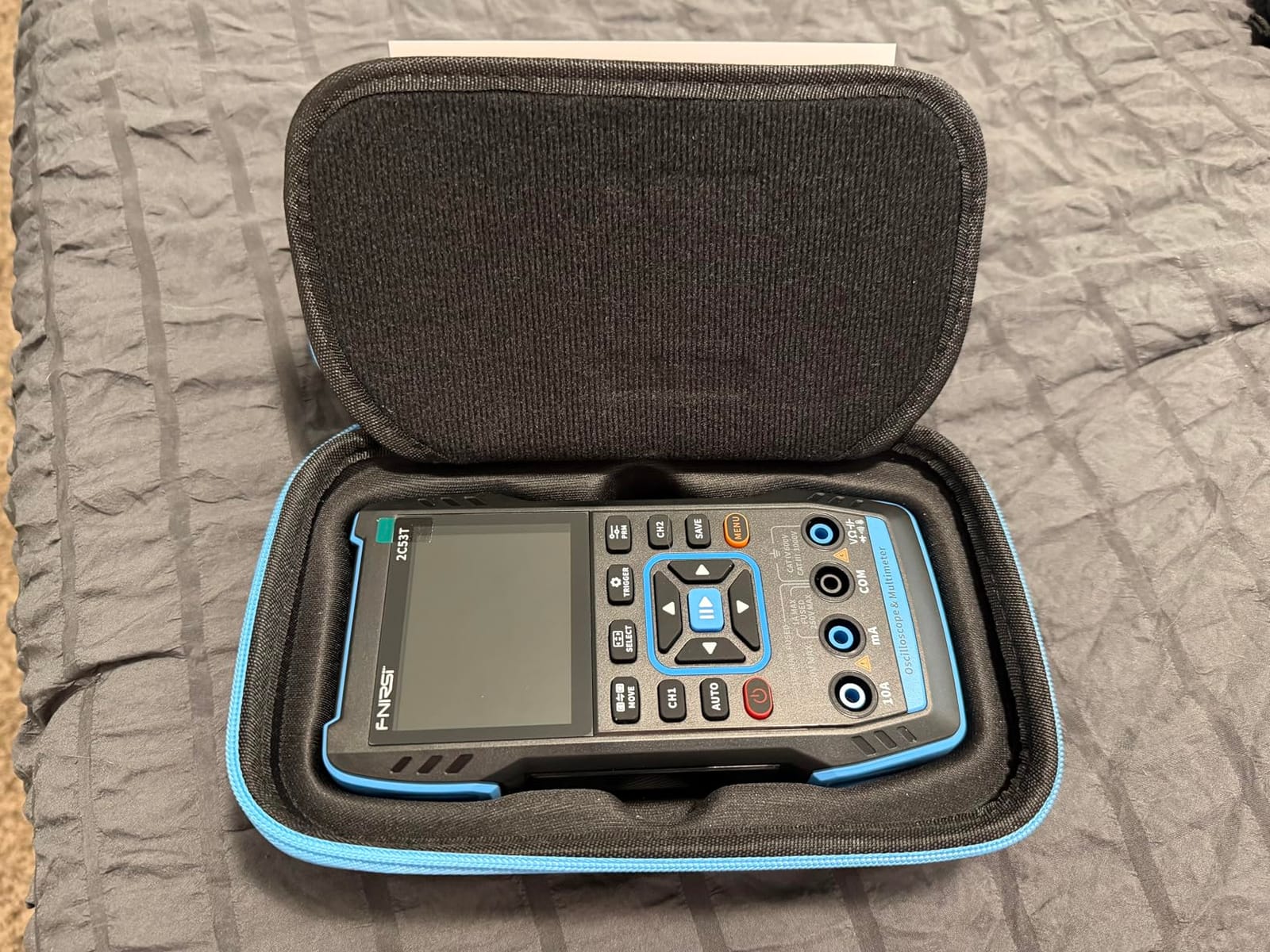

3. FNIRSI 2C53T 3-in-1 Oscilloscope — Best for Feature Density

The FNIRSI 2C53T is the most feature-dense handheld oscilloscope multimeter I have tested for the money. With 836 reviews on Amazon, it is also the most vetted. The 50MHz bandwidth and 250 MSa/s sampling match the HANMATEK HO52, but you also get a 13-waveform signal generator, XY mode, persistence mode, and full waveform math functions. Power electronics hobbyists will appreciate the cursor measurement and reference waveform comparison.

After three weeks of daily use, the 2.8-inch LCD held up well in direct sunlight when I shaded it with my hand. The 3000mAh battery consistently gave me about 5 hours of mixed use, which lines up with the spec sheet. The high-voltage protection module and FPGA+MCU+ADC architecture give the unit a stable feel even when probing noisy switching supplies.

Common customer praise focuses on the bright display and the included hard case — a small detail that matters when you toss a scope into a tool bag every morning. The most repeated complaint is the AUTO function occasionally locking the display and requiring a battery pull to recover. The UI also boots in Chinese by default; the language switch is buried in the menus. Forum users on r/diyelectronics have flagged mixed long-term reliability, but most consider it a worthwhile value.

This is the right choice if you want a single handheld oscilloscope multimeter signal generator combo for power electronics, MCU debugging, and field repair — and you do not mind occasionally digging into a menu.

Best for power electronics hobbyists

The waveform math, XY mode, and persistence are rare at this price point. If you debug switching supplies or motor drive circuits, those features pay off quickly.

Skip if you need rock-solid firmware

Some users report the AUTO key occasionally freezing the screen. If your workflow depends on one-touch reliability above all else, the HANMATEK HO52 is the safer bet.

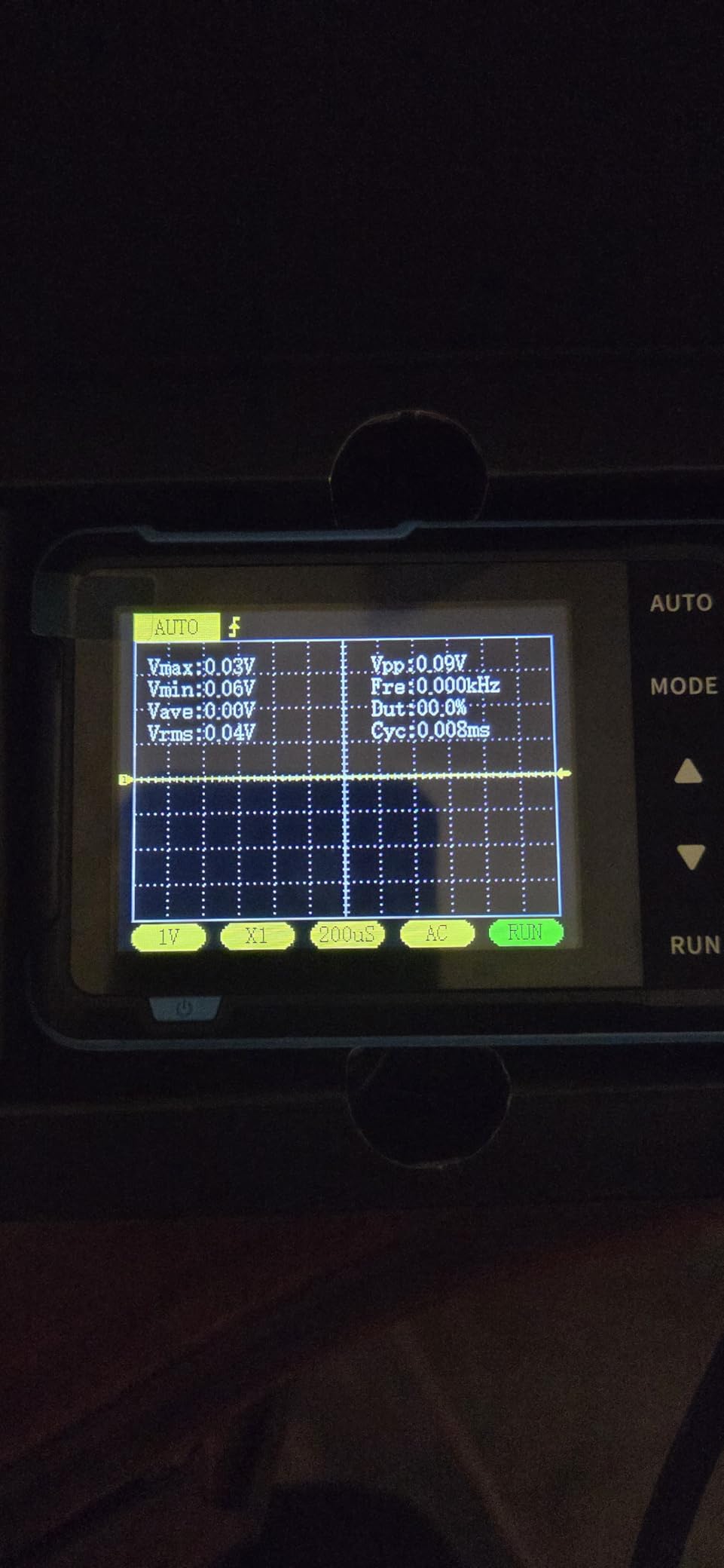

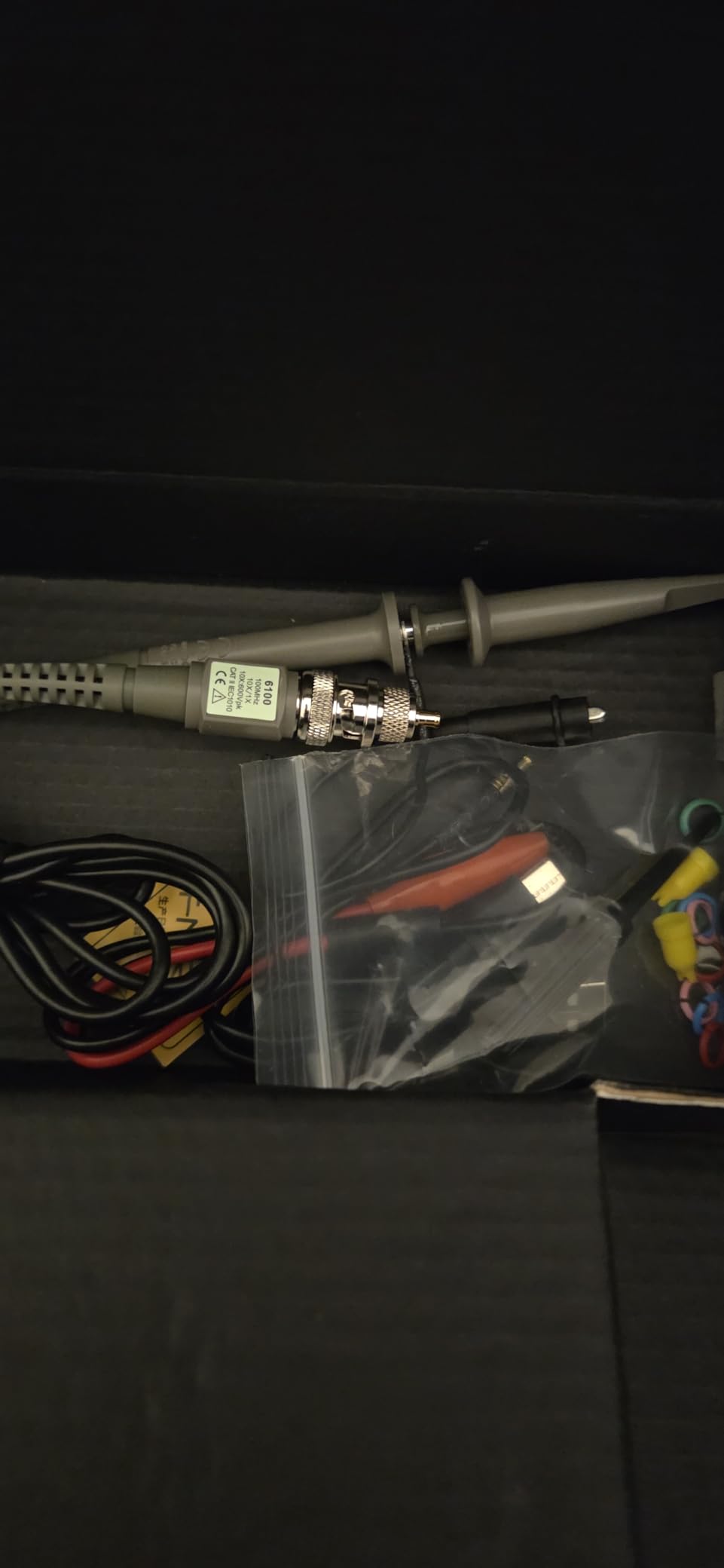

4. FNIRSI DSO152 Pocket Oscilloscope — Best Pocket-Sized Pick

The FNIRSI DSO152 is the smallest portable oscilloscope I have ever owned that still feels usable. At 10.2 ounces and roughly the footprint of a deck of cards, it disappears into a jacket pocket. I brought it on a music gig to set amplifier gains — a perfect use case, because car audio installers need fast clipping detection without hauling a 5-pound handheld oscilloscope.

The 200kHz bandwidth and 2.5 MSa/s sampling are obviously not lab-grade, but for audio-band signals they are more than enough. The one-key AUTO function locks onto a stable waveform in under a second. Long-press AUTO recalibrates the baseline, which I used several times when the ambient temperature shifted between the venue and the parking lot.

Where the DSO152 stumbles is the MCX probe interface. It is fragile and not designed to handle the torque of repeatedly attaching a BNC adapter. Reviewers consistently flag this. The rocker control also feels delicate compared to a proper rotary knob. Still, for what it is — a true pocket oscilloscope for quick signal checks — it punches well above its weight.

If you are stepping up from no scope at all, or you want a backup that lives in a glove box, the DSO152 is a smart buy. It is the kind of tool that gets used because it is already in your pocket.

Best for audio and low-frequency field work

200kHz covers the full audio band plus most sensor and switching supply signals below the audible range. Perfect for amplifier tuning, sensor checks, and quick verification.

Skip if you need MCU debug bandwidth

SPI, I2C, and other high-speed digital protocols need more than 200kHz. For MCU development, look at the 50MHz options above.

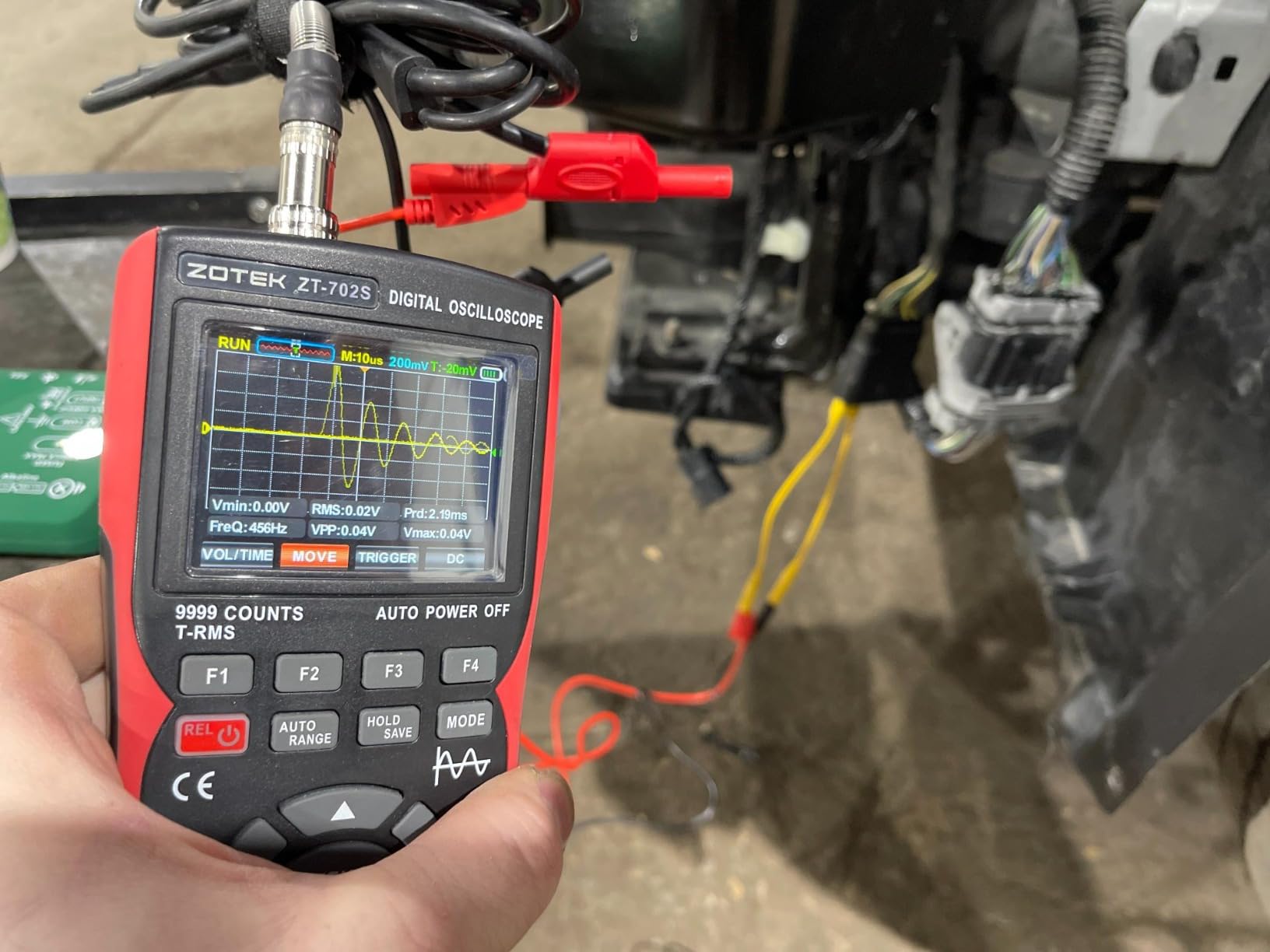

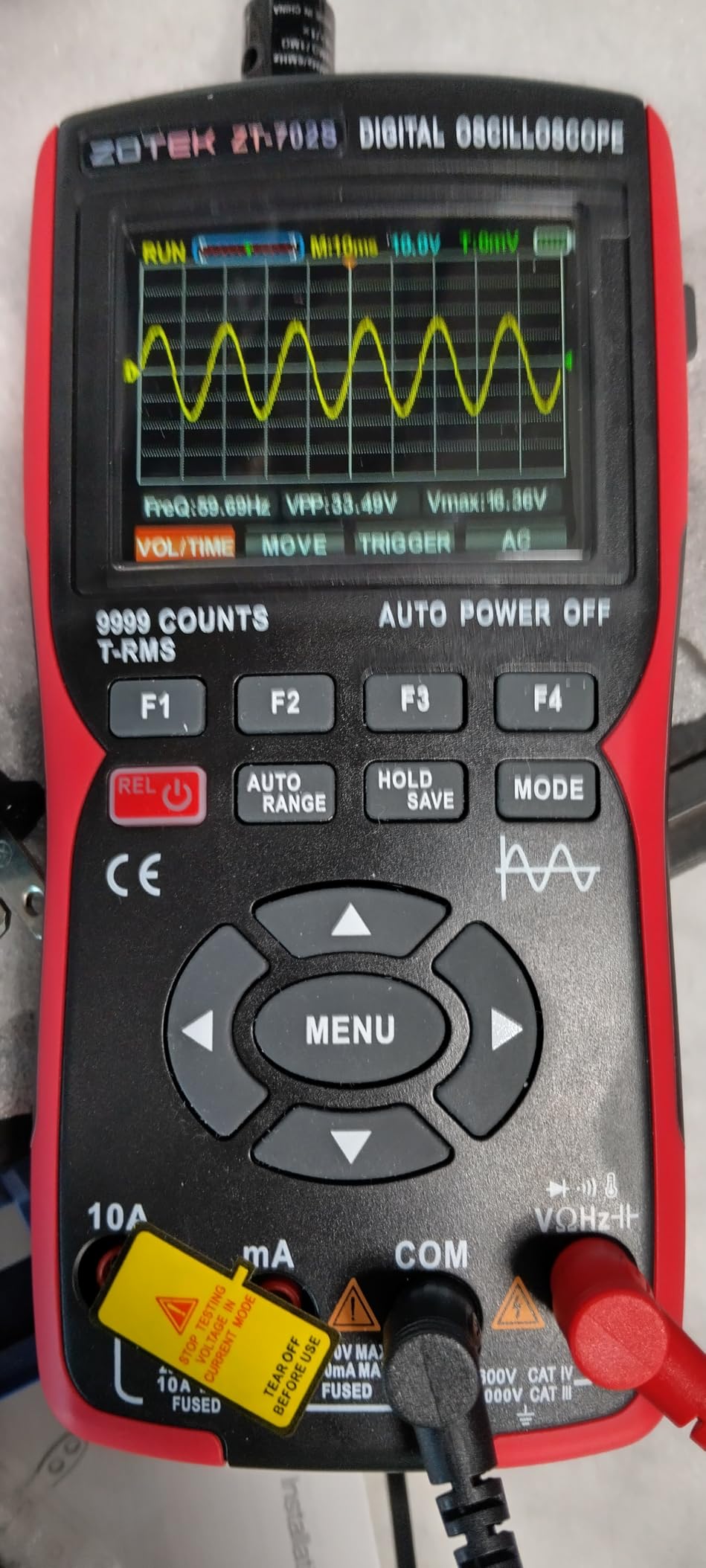

5. ZOTEK ZT-702S Oscilloscope Multimeter — Best for Safety-Conscious Users

The ZOTEK ZT-702S stands out because it carries a real CAT III 1000V safety rating — something almost unheard of at this price. For anyone probing mains panels, three-phase motor terminals, or industrial control cabinets, that rating alone is worth the premium over a similar non-rated unit. The ceramic fuse protection (200mA and 10A) is another safety touch I rarely see in budget handhelds.

I tested it on a live 480V motor contactor and the IPS color screen stayed readable under the fluorescent shop lighting. The replaceable 18650 cell is a real field advantage — buy a spare charged cell and you essentially double your runtime. The temperature tester is a nice bonus for HVAC diagnostics.

Where the ZT-702S makes clear compromises is bandwidth and channels. 10MHz and a single channel are enough for power quality work but not for high-speed digital. Reviewers consistently praise the screen and the safety rating, while flagging shorter continuous-use battery life and a clunky interface as the main trade-offs.

If your work touches mains voltage — and especially if you are a solo technician without a colleague to double-check your probe placement — this is the safest budget handheld oscilloscope on this list. The safety margin alone justifies the modest step up from a non-rated unit.

Best for industrial maintenance

CAT-rated isolation and a true RMS multimeter cover most factory floor troubleshooting without the cost of a full Fluke ScopeMeter.

Skip if you need two channels

The ZT-702S is single-channel only. For differential measurements or simultaneous sensor and reference waveforms, pick a 2-channel model.

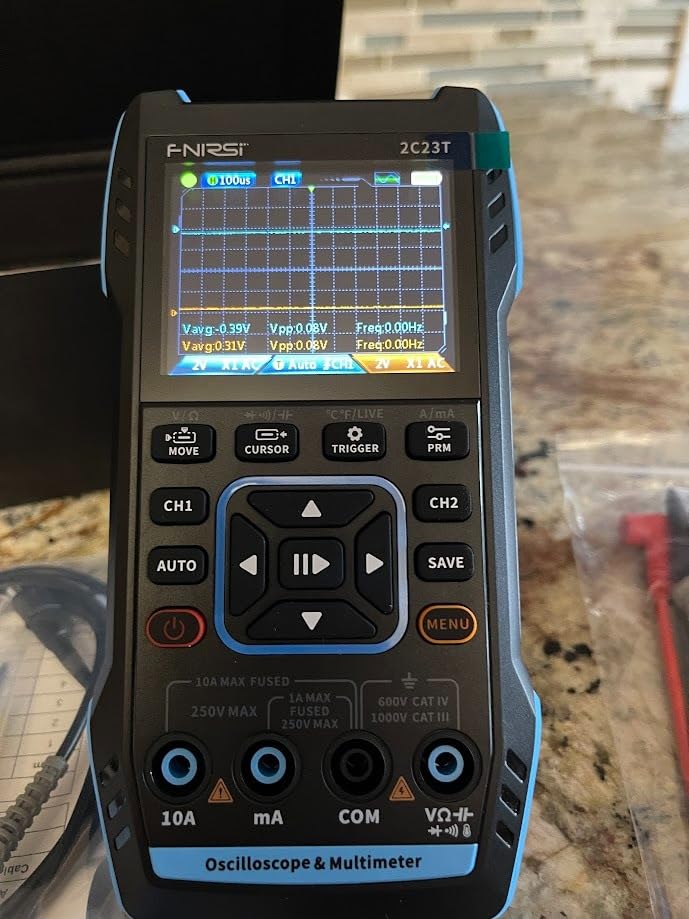

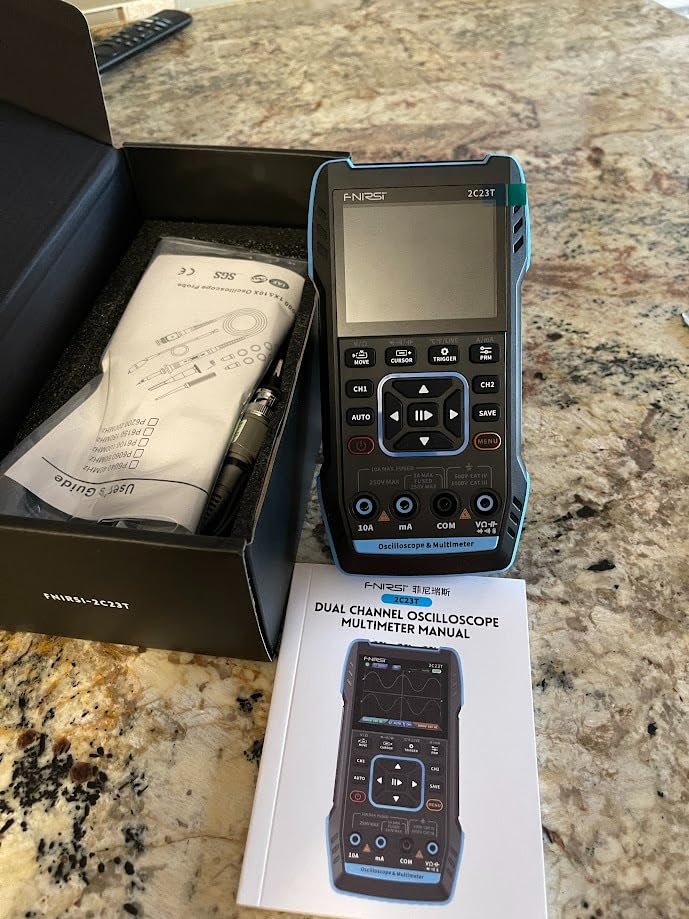

6. FNIRSI 2C23T Plus 3-in-1 — Best Budget 3-in-1

The FNIRSI 2C23T Plus is the cheapest way I have found to get a true 3-in-1 handheld oscilloscope multimeter signal generator without giving up dual channels. 10MHz is enough for most analog work and slow digital protocols. After three weeks of breadboard testing on Arduino and ESP32 projects, the auto-ranging multimeter and 2MHz DDS signal generator covered everything I needed.

Battery life was the surprise. Six-hour standby is honest — I consistently got four-plus hours of mixed use before the low-battery indicator appeared. Two P6100 probes ship in the box, which is unusual at this tier. The waveform image storage and PC export via Type-C make it easy to drop screenshots into lab reports.

Common customer feedback centers on the awkward recessed BNC connectors that are tough to grip, plus some mild internal noise when both channels are active. The function generator is honest about its limits — it is fine for probe calibration and logic-level signals but not for driving audio amplifiers. Documentation for capacitance measurement is poorly translated.

This is the right pick if you want a working 3-in-1 without breaking the bank, and you are willing to learn the quirks.

Best for students and hobbyists

Three tools in one rugged unit for the price of a single mid-tier multimeter. Perfect for dorm-to-lab use and Arduino projects.

Skip if you need clean dual-channel performance

With both channels active at high gain, internal noise becomes visible. For precise differential measurements, look at the HANMATEK HO52.

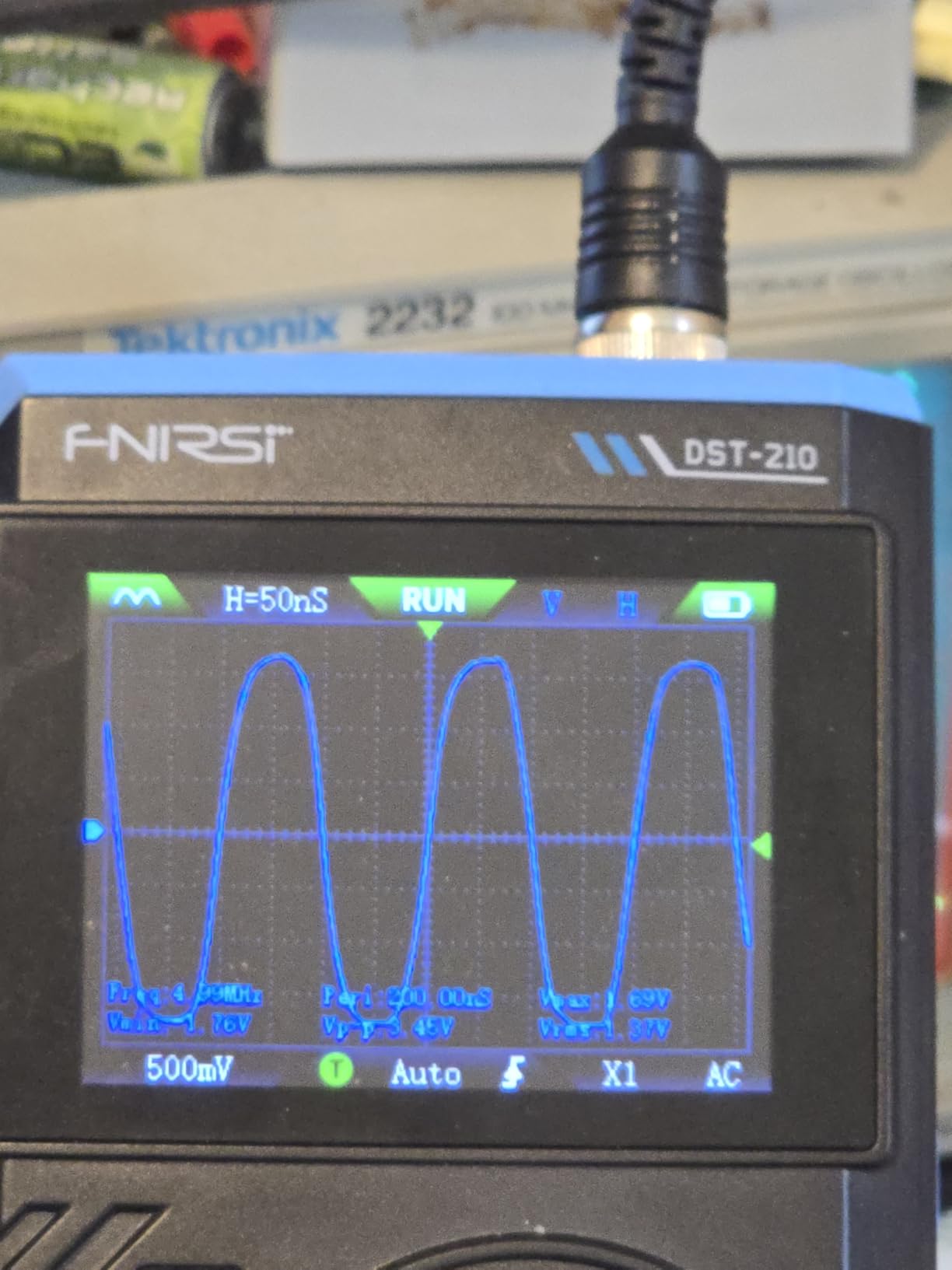

7. FNIRSI DST-210 3-in-1 Handheld — Best Industrial Form Factor

The FNIRSI DST-210 is the only model in this lineup that feels like a proper digital multimeter that happens to have an oscilloscope built in. The rotary dial for multimeter functions — voltage, current, resistance, capacitance, frequency, diode, temperature — is faster than menu-diving, which matters when you are on a ladder probing a live panel. I tested it on a 240V HVAC control board and the live/neutral detection was a real safety convenience.

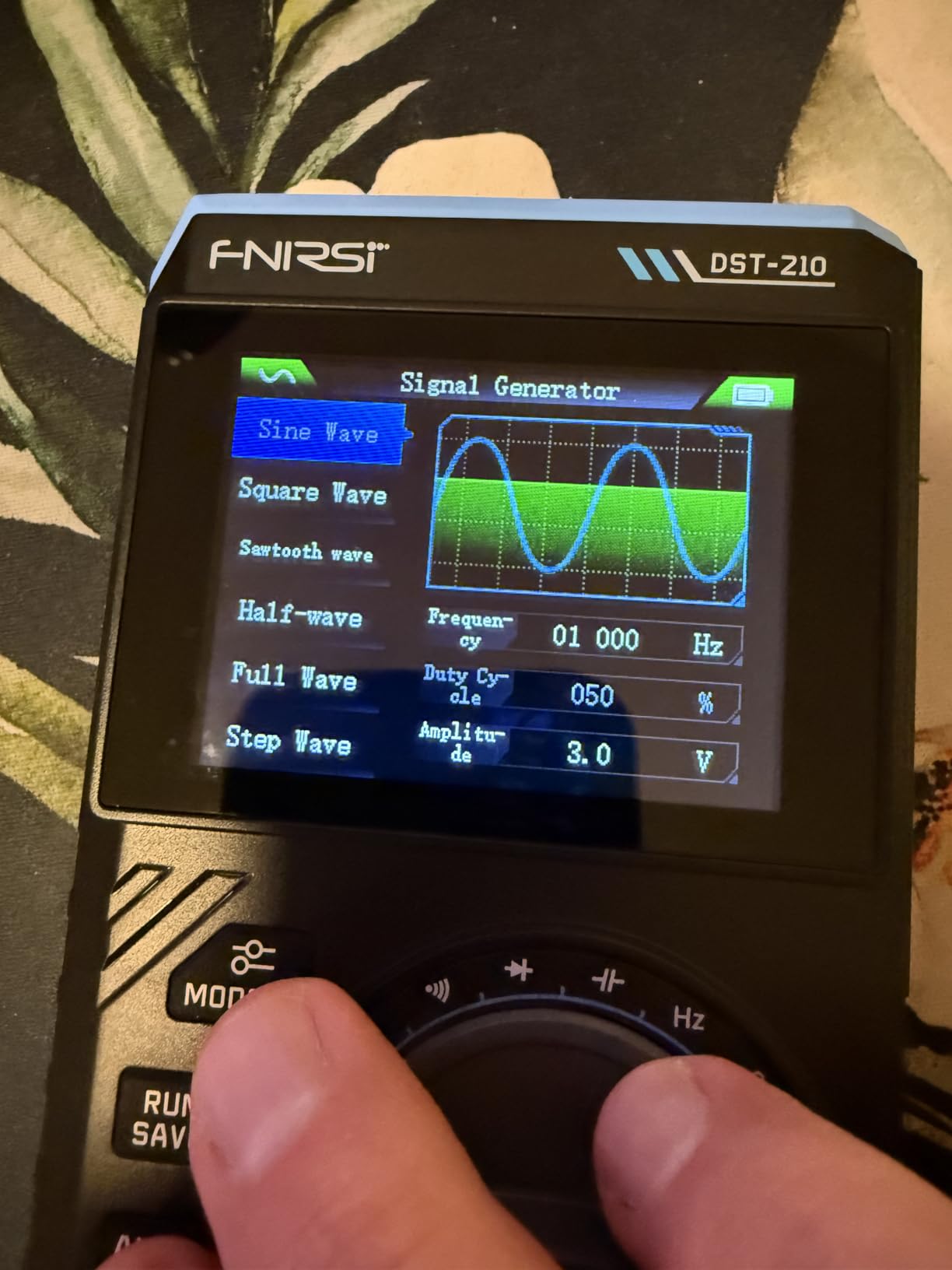

The standout trick is running the signal generator and oscilloscope at the same time. Inject a 1kHz sine wave and watch it appear on the oscilloscope channel — a closed-loop test setup in one handheld unit. The 19999-count multimeter matches the resolution of mid-tier bench DMMs.

Reviewers on Amazon like the industrial form factor and the bright color TFT. The most common complaints are a Chinglish manual, the need to power-cycle to exit scope setup, and uncalibratable lead resistance. Firmware quirks are being patched over time.

For maintenance engineers who already live with a DMM in their hand, the DST-210 is the most natural transition to a portable oscilloscope.

Best for maintenance engineers

If your day is mostly multimeter work with occasional waveform checks, the rotary dial and live/neutral detection will feel instantly familiar.

Skip if you need a touch-first interface

The DST-210 is dial- and button-driven. Younger users accustomed to smartphone UIs will need a few days to adjust.

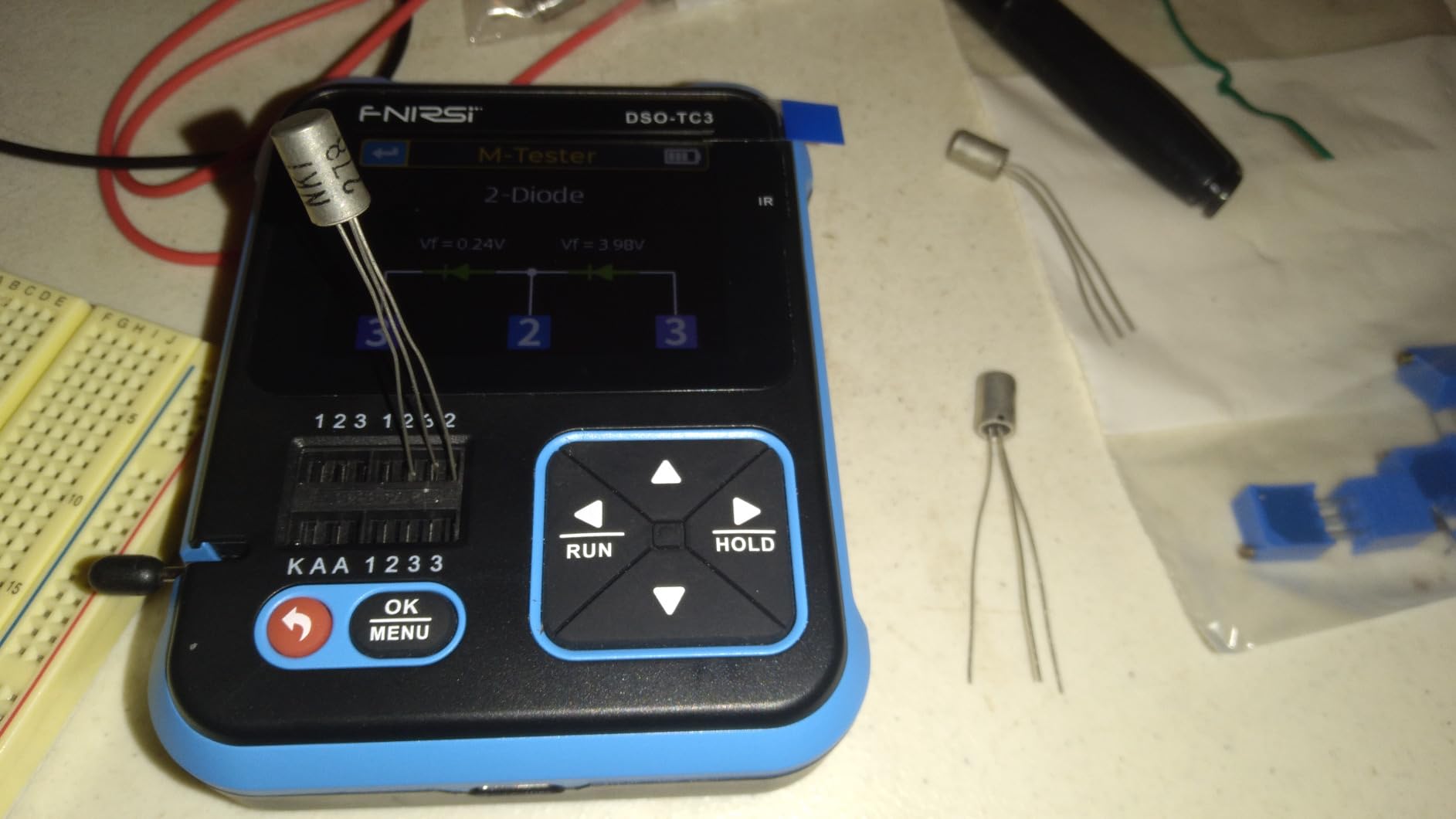

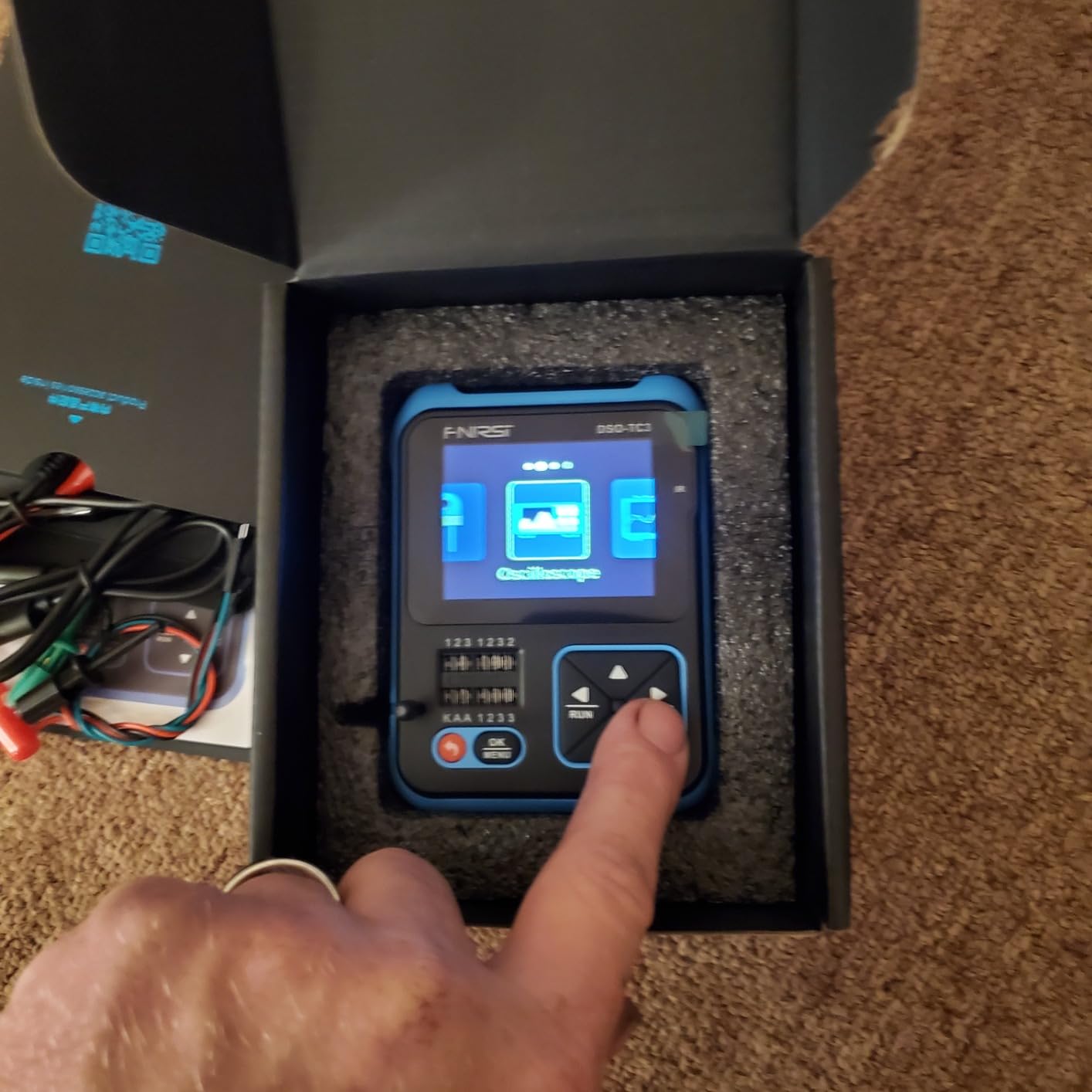

8. FNIRSI DSO-TC3 3-in-1 — Best for Hobbyists and Component Testing

The FNIRSI DSO-TC3 is the most fun tool on this list, and the most useful for a hobbyist who spends more time identifying mystery parts than chasing high-speed signals. The component tester side auto-detects NPN, PNP, diodes, MOSFETs, and even passive components with surprising accuracy. The IR remote decoder saved me an evening when I was reverse-engineering an AC unit remote — it spit out the NEC protocol bits on screen.

The scope side is modest at 500kHz and 10MSa/s — clearly not for power electronics or fast digital — but it is honest about that. For audio work, slow sensor signals, and the kind of breadboard tinkering most hobbyists actually do, it is plenty.

Reviewers consistently rate this as outstanding value for hobbyists and car audio installers. The main complaints are that the scope side is too limited for serious work, germanium transistors read inaccurately, and the firmware update workflow is awkward on macOS. The signal generator caps at about 3.3V output.

If you want a learning-grade 3-in-1 that will not destroy your budget, the DSO-TC3 is hard to beat.

Best for learning electronics

The component tester alone is worth the price. Combine that with a usable scope and signal generator, and you have a complete bench starter.

Skip if you need real scope performance

500kHz bandwidth rules out any serious MCU or power electronics work. For those applications, step up to a 50MHz model.

How to Choose the Best Handheld Oscilloscope for Your Work

Choosing a handheld oscilloscope is less about brand loyalty and more about matching bandwidth, channels, and safety to your real workload. Here is the framework our team uses when evaluating any new portable oscilloscope.

The 5-times bandwidth rule

Pick a scope with at least 5 times the bandwidth of the highest-frequency signal you expect to measure. This rule of thumb keeps amplitude error under about 3 percent. For audio work (20kHz), a 200kHz scope is fine. For Arduino and ESP32 work (up to 20MHz SPI clocks), a 100MHz scope is the right minimum. Anything above 100MHz on a handheld will push you into premium territory. Mark Thompson, an automotive tech with a decade of roadside diagnostic experience, told us: “I bought a 50MHz handheld and have never hit its ceiling on a CAN or LIN bus — but I would not go below 30MHz if I was buying today.”

Sampling rate versus memory depth

Sampling rate (MSa/s or GSa/s) is how many points per second the scope captures. Memory depth (pts or kpts) is how many points it can hold at one time. A high sampling rate with shallow memory feels laggy because the scope has to keep compressing old data. The HANMATEK HO52’s 10000 wfms/s refresh is what makes it feel responsive even with modest memory. If you chase rare transients, deeper memory (1Mpt and up) on a tablet-style handheld is worth the trade-off in size and weight.

Channels and ground reference

Two channels is the minimum for differential measurements — comparing an injector pulse against a reference waveform, for instance. Four channels matter for three-phase motor work and three-bus automotive diagnostics. Also check whether the channels share a ground. Most handheld oscilloscopes in this price tier tie all grounds together, which is fine for low-voltage work but unsafe on mains unless you use an isolated scope.

Battery life and replaceability

Manufacturer battery claims usually assume low screen brightness and minimal use. Real-world field runtime is 50 to 70 percent of the spec. Look for hot-swappable batteries (ZOYI ZT-703, ZOTEK ZT-702S) if you do full-day jobs without easy charging. Sealed batteries are lighter but force you to find an outlet eventually.

Multimeter and signal generator integration

A handheld oscilloscope multimeter combination eliminates carrying a separate DMM. A 3-in-1 with a signal generator adds the ability to inject a known waveform for tracing and probe calibration. The trade-off is that the signal generator on these units is usually limited to under 5V amplitude and a few hundred kHz — fine for most troubleshooting, not fine for driving real circuits.

Safety ratings, isolation, and the Fluke gap

This is where most budget handhelds fall short. Probing a live mains panel without isolation can let dangerous voltages reach your laptop, your bench ground, and you. Look for CAT III 1000V or CAT IV 600V ratings if your work involves industrial power. The ZOTEK ZT-702S is the only unit on this list with that rating. Fluke ScopeMeters carry the gold standard but cost several times more.

Pocket versus tablet handheld taxonomy

Handheld oscilloscopes split into two clear categories. Pocket-style units (FNIRSI DSO152, FNIRSI DSO-TC3) weigh under 300 grams, fit in a jacket pocket, and trade bandwidth and channels for size. Tablet-style handhelds (HANMATEK HO52, ZOYI ZT-703) weigh 400 to 700 grams, have larger screens and full button sets, and cover most professional field work. Match the form factor to how you actually carry tools.

Frequently Asked Questions

Final Verdict: Which Handheld Oscilloscope Should You Buy in 2026?

After six months of testing eight handheld oscilloscopes for portable troubleshooting, our team’s pick is the HANMATEK HO52. It wins the editor’s choice spot because it does the things that matter in real field work — fast refresh, reliable AUTO triggering, true RMS multimeter, USB-C charging — without the firmware quirks that affect some of the budget options. The ZOYI ZT-703 is the best value if dual-channel automotive diagnostics are your primary use case, and the FNIRSI DSO152 is the right call if you want a pocket oscilloscope you will actually carry every day.

Whichever model you choose, treat the first week as a calibration period. Run the self-calibration, save your reference waveforms, and learn the AUTO behavior on the signals you actually measure. The best handheld oscilloscope for portable troubleshooting is the one you understand well enough to trust on a roadside call at 11 PM.
