A body shop welder lives a different life than a structural steel welder. The metal is 18 to 24 gauge, the panels are aluminum more often than not, and the arc runs at lower amperage for longer stretches than most shop advice accounts for. When a lens fails to darken on a low-amp TIG restart, you are not losing time on a bridge beam. You are looking at a quarter panel seam through a lit filter, wondering whether you burned through the flange or burned the base metal.
That is why picking the best welding helmets for auto body work comes down to three things that general helmet roundups never test: how the filter behaves on a thin-gauge TIG arc, how heavy and how tall the shell is when your head is inside a trunk floor, and how bright the light state is when you need to read primer, filler, or bare galvanized metal. A helmet that is superb on 3/8 inch plate can be a poor fit for this work.
We spent weeks putting these twelve auto-darkening helmets through the lens of an actual body workflow. Panel patches on 20 gauge steel, aluminum filler panels on AC TIG, filler grinding and shaping, and the long dull stretches of layout work where the light state matters more than the dark state. What follows is the ranked list, the specs behind each ranking, and the buying criteria that actually separate a shop helmet from a hobbyist helmet.
If you are outfitting a first shop rather than replacing one hood, our beginner welding helmet guide covers the shorter list worth starting with, and our auto darkening helmet guide for fabricators goes deeper on the optical class and sensor side of things.
Table of Contents
Top 3 Best Welding Helmets for Auto Body Work
These three cover the widest range of body shop work in this roundup. The Viking 3350 is the all-round answer, the ESAB Sentinel A60 is the strongest option for thin-gauge TIG and aluminum, and the YESWELDER LYG-L600A is the pick if you are equipping a shop on a budget and need a spare hood for grind work.
Lincoln Electric Viking 3350
- 12.5 sq in 4C true color lens
- 1/1/1/1 optical class
- X6 ratchet headgear
- 5 year warranty
ESAB Sentinel A60
- 4.65 x 2.80 inch ADF view
- OpTCS true color lens
- DIN 3/5-13 in 0.5 steps
- 9 setting memory
YESWELDER LYG-L600A
- 3.64 x 1.67 inch true color view
- 2 arc sensors
- 1/30000 sec switching
- Solar plus CR2450 power
All 12 Helmets Side by Side in 2026
Every helmet below was checked against the same auto body criteria. The table gives you the core specs at a glance so you can narrow the list before reading the individual reviews.
| Product | Specifications | Action |
|---|---|---|
| Lincoln Electric Viking 3350 |
|
Check Latest Price |
| ESAB Sentinel A60 |
|
Check Latest Price |
 Hobart 770890 Auto-Darkening Helmet |
|
Check Latest Price |
 Jackson Safety Insight ADF Hood |
|
Check Latest Price |
| YESWELDER LYG-L600A |
|
Check Latest Price |
 YESWELDER LYG-M800H |
|
Check Latest Price |
 ARCCAPTAIN 1/25000s Helmet |
|
Check Latest Price |
 YESWELDER LYG-Q800D |
|
Check Latest Price |
 ARCCAPTAIN XK-LY800H |
|
Check Latest Price |

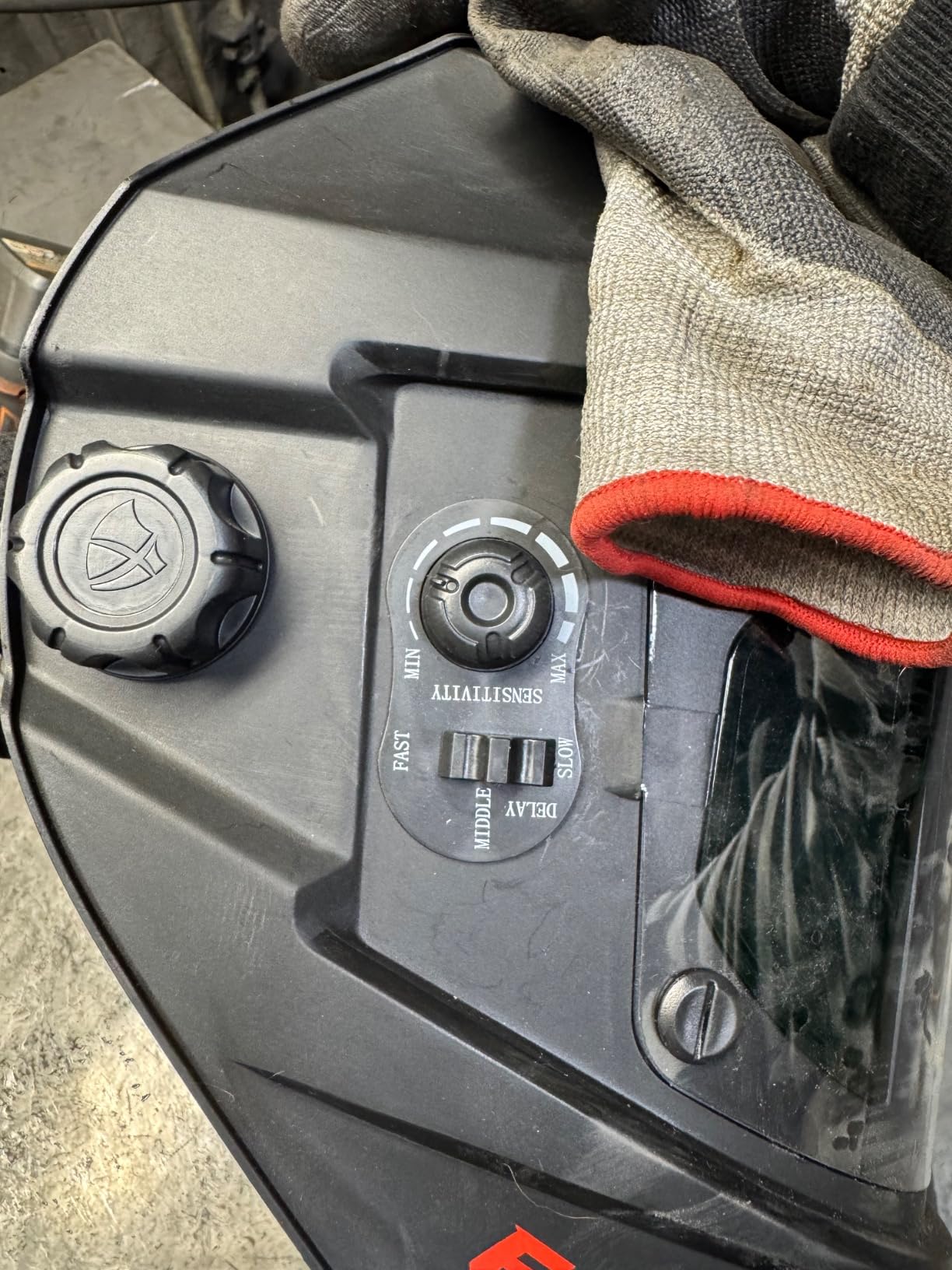

 ARCCAPTAIN 180 Degree Panoramic |
|
Check Latest Price |

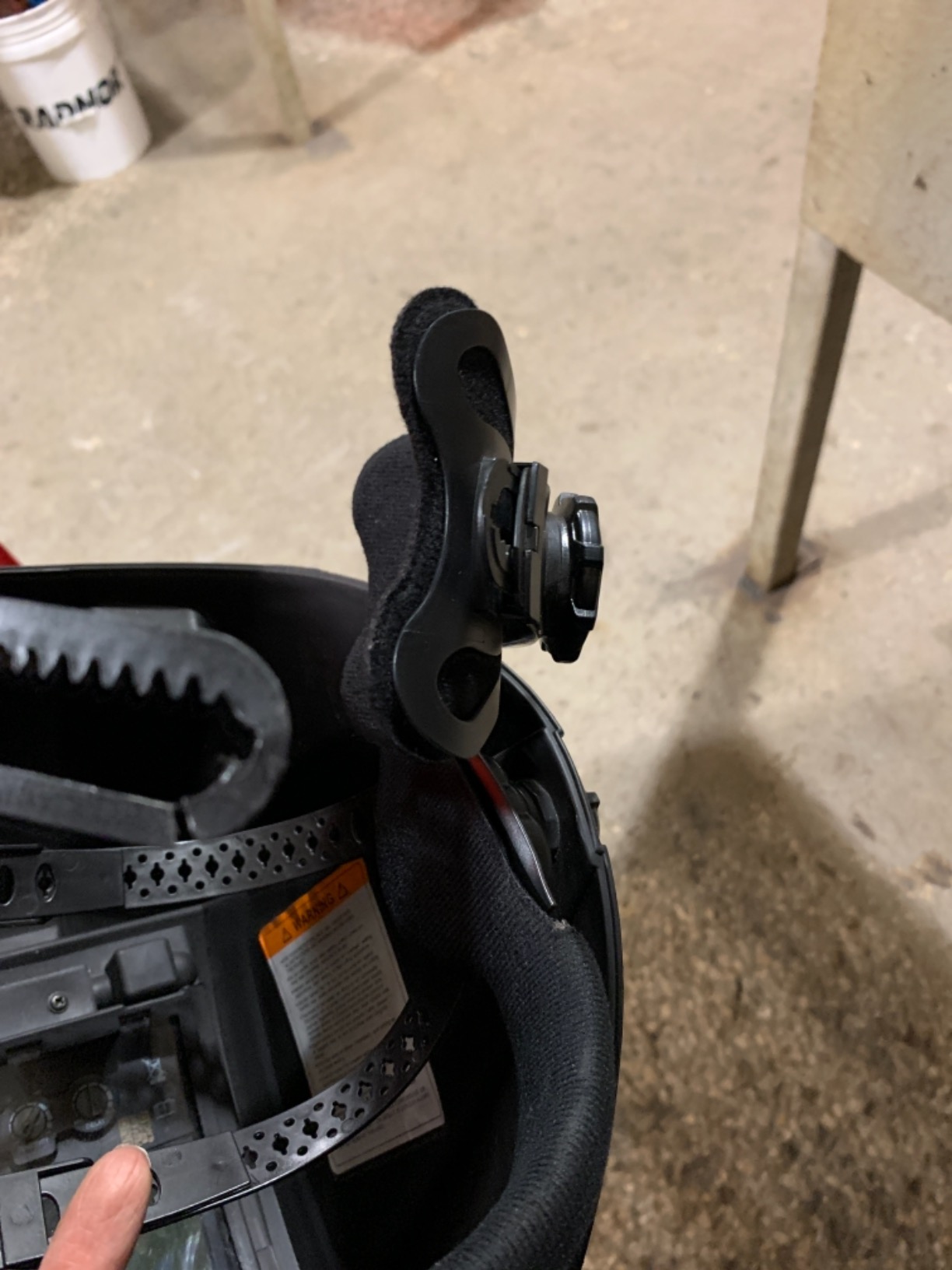

 TOOLIOM True Color Flip Up Helmet |
|
Check Latest Price |

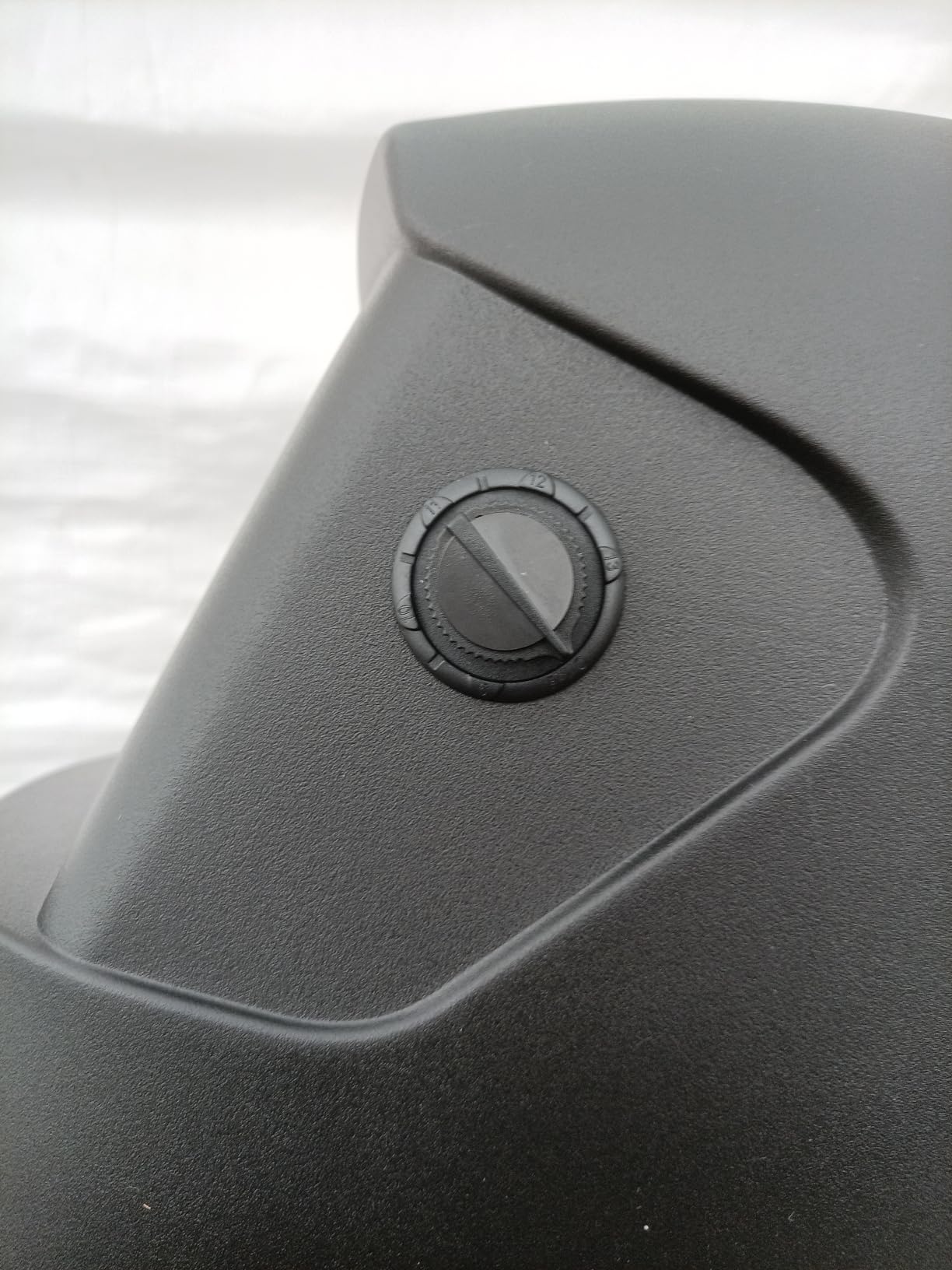

 TRQWH Solar Powered Helmet |
|
Check Latest Price |

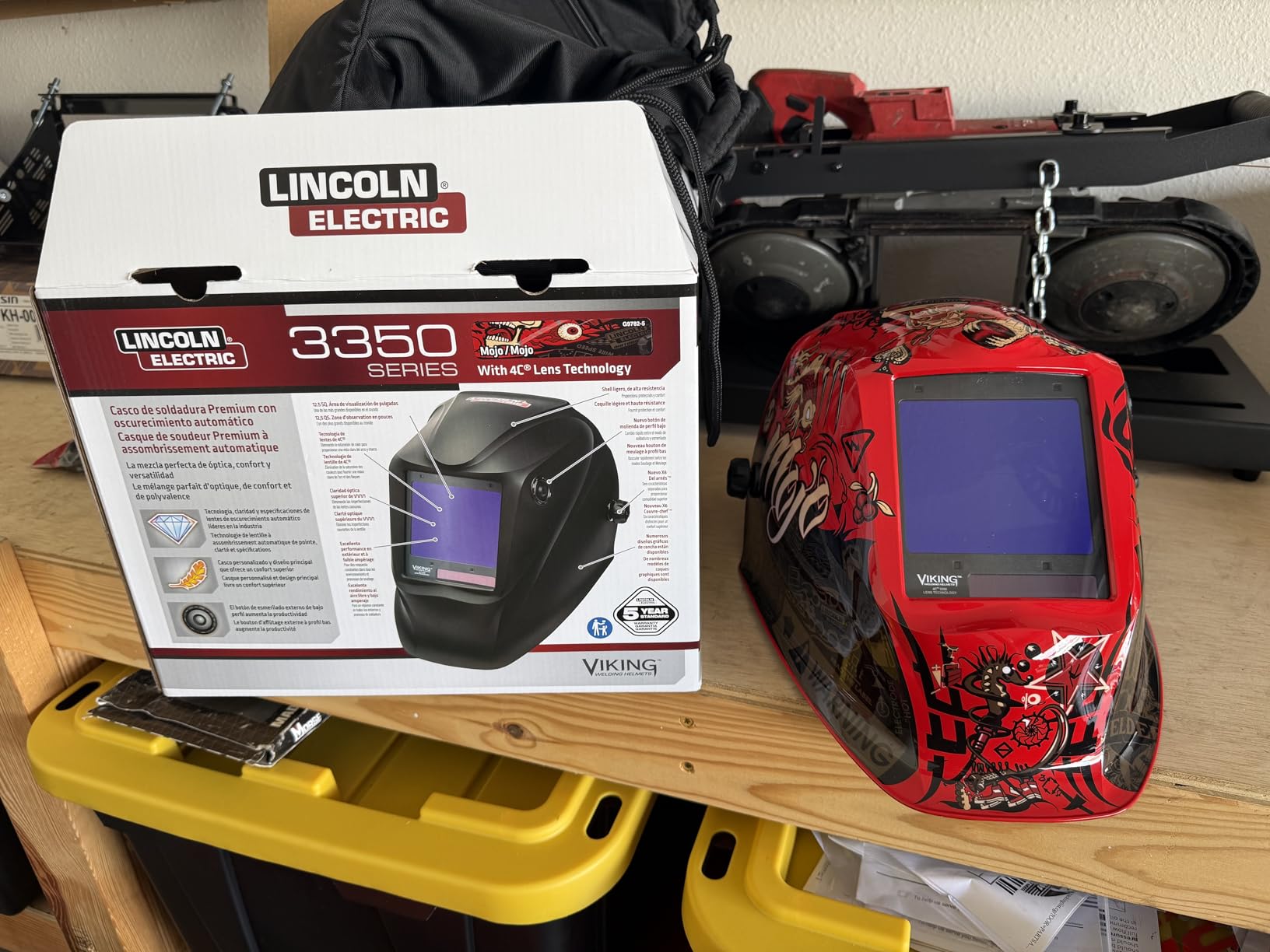

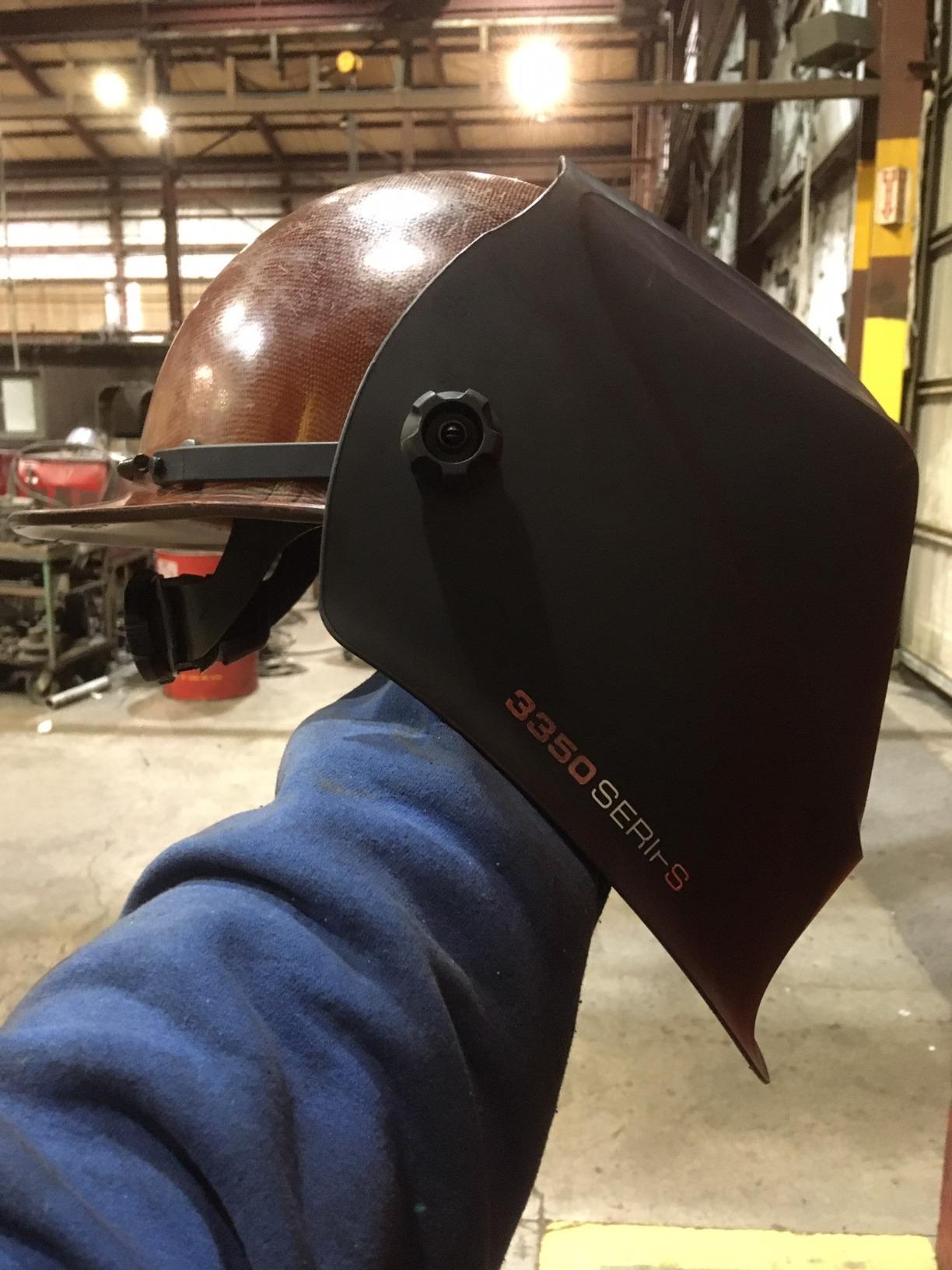

1. Lincoln Electric Viking 3350 Auto Darkening Helmet – The Best All-Round Auto Body Welding Helmet
Lincoln Electric K3034-4 VIKING 3350 Auto Darkening Welding Helmet with 4C Lens Technology, Matte Black, extra large
12.5 sq in 4C true color lens
1/1/1/1 optical class
X6 ratchet headgear
5 year warranty
Pros
- Excellent puddle and joint visibility on thin gauge
- Handles low-amp and thin sheet TIG without arc flicker
- Extra large 12.5 sq in viewing area
- X6 headgear distributes weight and holds position
- Uses standard inexpensive cover lenses
Cons
- Some units react slowly at arc strike even at max sensitivity
- Ratchet headgear adjustment is more complex than pivot designs
This is the helmet I put on when I am not thinking about the helmet, which is the highest compliment I can give a tool. The 4C lens technology strips out the color saturation that cheap filters add, so the arc, the puddle, and the mill scale on your base metal all look like the colors they actually are. On a patch panel that difference is the whole job. You are matching a seam to a flange you already finished, and a lens that lies to you about the color of the surrounding metal is a lens that costs you filler time.
The 12.5 square inch extra large viewing area is the other reason it wins here. Panel welding is mostly alignment work. You want to see the panel edge, the gap you set, and the tacked corner you are about to fill, all at once. Working welders on r/Welding name the Viking 3350 FGS repeatedly as the shop and field standard, and that reputation lines up with what the ownership reviews describe.
Technically, this is a 1/1/1/1 optical class lens, which is the top rating on all four measurements, and the shell weighs 1.4 pounds with the X6 headgear doing the balancing work at the crown. The headgear ratchets in hat sizes 6 1/2 through 8 and latches securely in the raised position, so you are not constantly tipping it back down with the back of your wrist. Over a full day of short jobs, that one detail matters more than any spec sheet.
The box also carries five outside cover lenses and two inside cover lenses. That is not a marketing trick, it is the reason this hood is a better long-term shop buy: the covers that get spattered and scratched every week are standard inexpensive parts, not proprietary cartridges. Replace them as they get ugly instead of replacing the whole auto-darkening filter.
When a technician would pick this helmet over the alternatives
Pick the Viking 3350 if you split your week between panel welding, structural repair, and a steady diet of short jobs. The 5 year manufacturer warranty also means the kind of coverage a shop owner wants when a hood is being used daily by multiple technicians. Reviewers who moved up from imported brands describe the visibility difference as night and day, and the 89 percent five-star share backs that up.
It also makes sense as a shop-wide standard. If you are buying for other people, a hood that fits hat sizes 6 1/2 to 8 with ratcheting headgear and a five year warranty is far easier to spec across a crew than a model that runs narrow.
Where it falls short for body work
A recurring owner complaint is that some units respond slowly on arc strike even with sensitivity turned to maximum. In a fab shop where you strike once and weld for a foot, that is a minor irritation. On 20 gauge panel work with a lot of short starts and stops, it is more noticeable, and you may need to reset the sensitivity when you switch from MIG to TIG.
The X6 ratchet headgear is also more involved to adjust than a simple pivot design. If you are the type of tech who changes hats constantly or works under a bump cap, expect to spend a few minutes learning the geometry before it feels automatic.

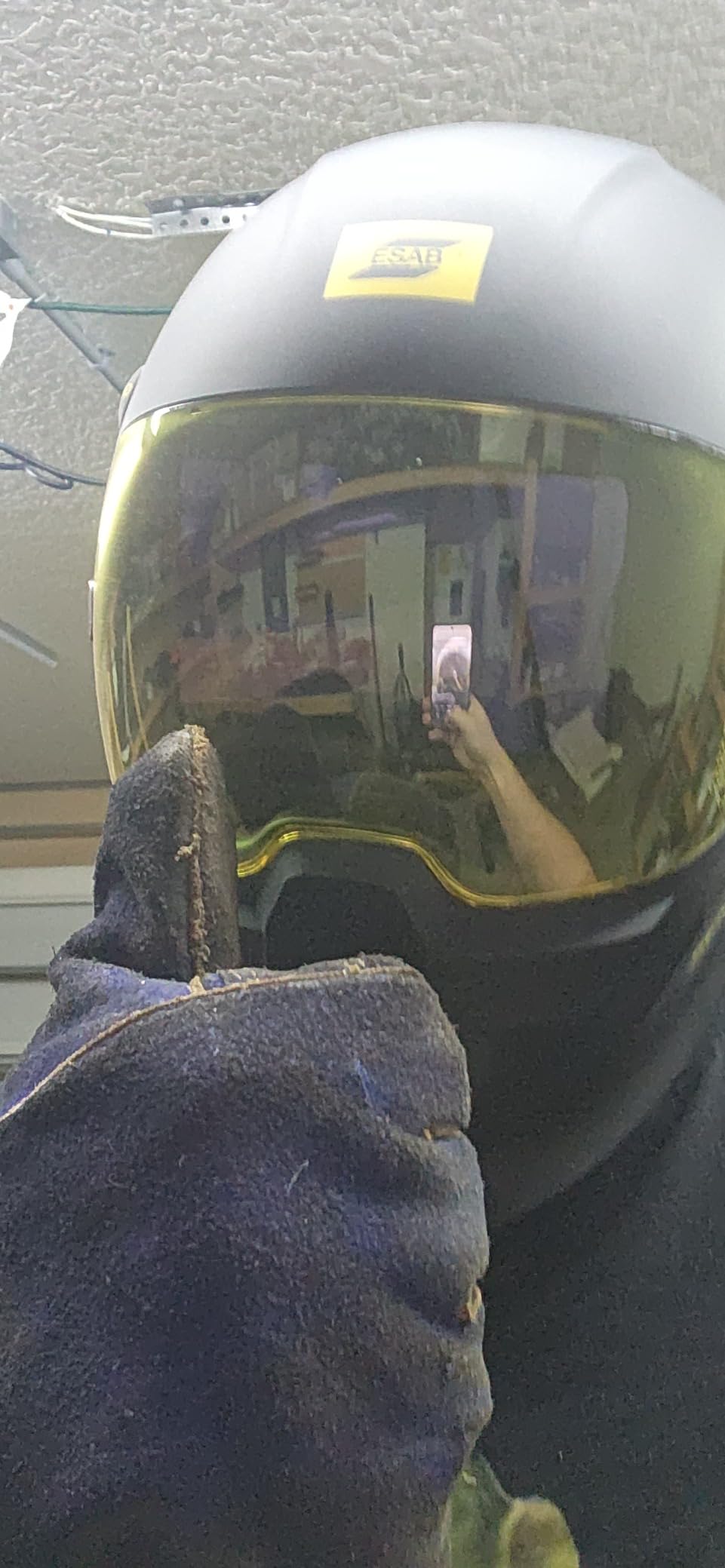

2. ESAB Sentinel A60 Welding Helmet – Best for Low-Amp TIG and Aluminum Panel Work
ESAB® Sentinel™ A60 Welding Helmet, Black Low-Profile Design, High Impact Resistance Nylon, Large Viewing Area 4.65 in x 2.80 in
4.65 x 2.80 inch ADF view
OpTCS true color lens
DIN 3/5-13 in 0.5 steps
9 setting memory
Pros
- Crisp true color view several owners rank above a Speedglas
- 4 arc sensors and 0.08 millisecond switching
- Memory for 9 repeat job settings
- Light 16 ounce shell balances at the top of the head
- Shade lock and grind mode buttons resist accidental activation
Cons
- Ratchet headgear feels inexpensive
- Cover lenses scratch easily and accessories are pricey
- Hood does not reliably stay in the raised position
The Sentinel A60 is the helmet I would hand a tech whose main complaint about their current hood is that they cannot see the puddle on aluminum. Professional users migrating from Viking, Miller, or 3M Speedglas hoods report that this ESAB out-performs what they were using on clarity, comfort, and weld visibility, and several specifically call out TIG. The OpTCS true color lens gives a crisp, unsaturated view of the workpiece and the puddle.
For auto body specifically, the internal adjustment layout is the underrated feature. Sensitivity and delay controls sit inside the shell where you can reach them without lifting the hood and breaking your view of the joint. When you are dialing in a 60 amp root pass on an aluminum patch panel, having both knobs reachable mid-fit-up saves real time.
Specs wise, this is a 4.65 by 2.80 inch viewing area, which is not the largest in the roundup, but the 4 arc sensors and 0.08 millisecond switching time give it the responsiveness that low-amp TIG demands. Shade range is DIN 3/5-13 adjustable in half-shade increments, and on-board memory holds up to nine settings, which is a genuinely useful feature for a shop that runs the same door skin, floor pan, or rail job repeatedly.
There is also an ADF shade lock and indicator LEDs for low battery, grind mode, and shade lock status. At 16 ounces the shell is light, and owners consistently report the weight sitting high on the head, which is where it should sit if you want to avoid neck fatigue over a full shift. The rounded low-profile face is designed to reduce snagging in tight spaces.
When a technician would pick this helmet over the alternatives
Choose the A60 if TIG is a meaningful part of your work, particularly on aluminum. The half-shade increments let you sit at 10 or 11 on thin material rather than being forced to choose between two very different darkness levels, and the nine-setting memory means you set the panel job once and stop thinking about it.
It is also the strongest choice here for anyone who wants a sharper, less distorted lens at the top of the market. Several owners who came from premium 3M hoods rank its clarity above them, which is not a claim I would repeat lightly but is consistent across the reviews.
Where it falls short for body work
The most common criticisms are mechanical rather than optical. The ratchet headgear feels inexpensive next to the precision of the filter, and the cover lenses scratch easily. Accessory lenses from ESAB also run pricier than standard covers, so budget for replacements if you are grinding a lot of filler near the shell.
One practical problem in a body shop: the hood does not reliably stay in the raised position when you flip it up. If your work involves a lot of layout, measuring, and inspection with the hood up, that will frustrate you more than any spec will delight you.

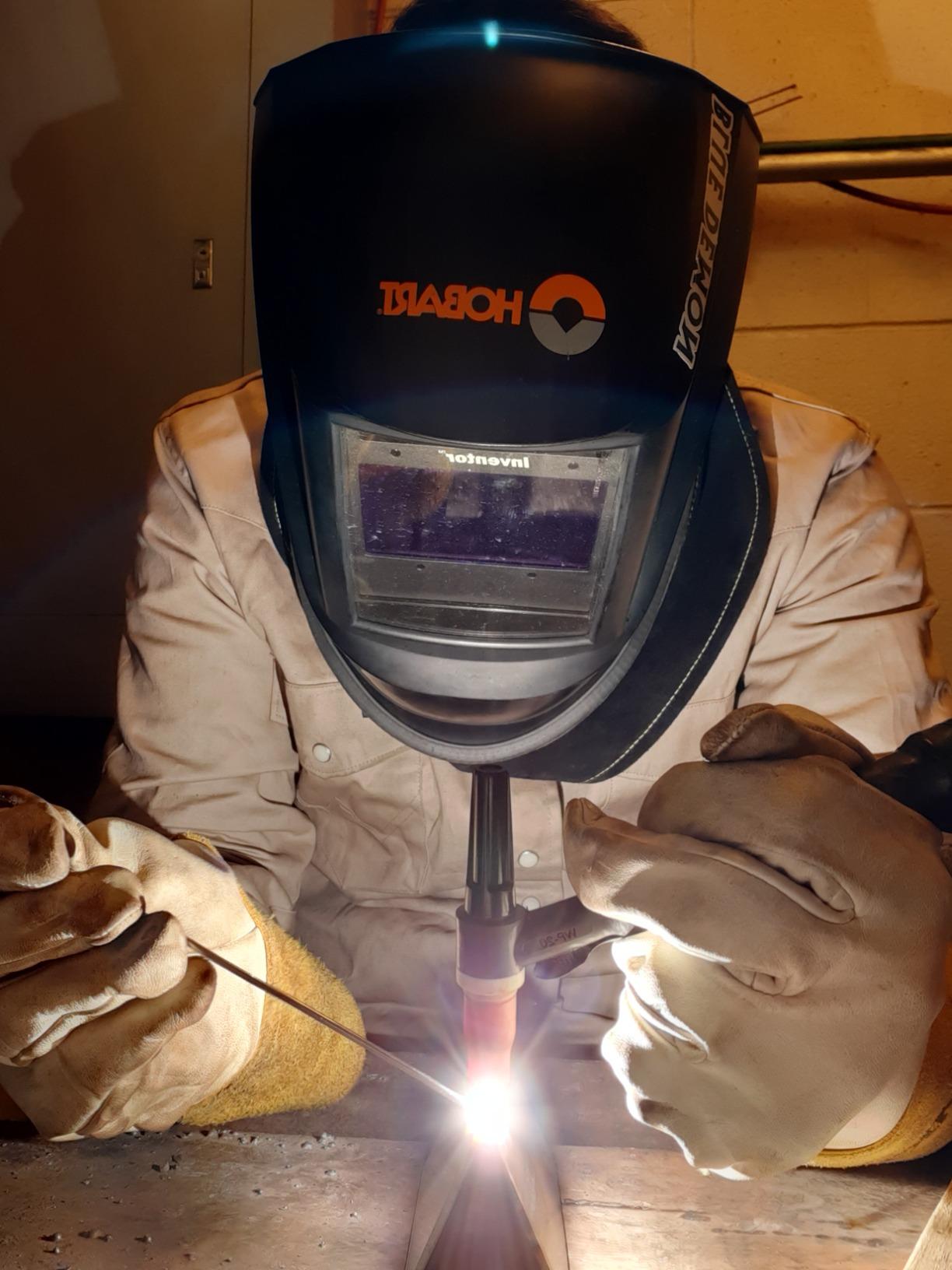

3. Hobart 770890 Auto-Darkening Welding Helmet – Best Dependable Shop Helmet
Hobart 770890 Auto-Darkening Welding Helmet, Large, Black
9.3 inch widescreen view
PureColor lens
4 arc sensors
Weld to grind on one knob
Pros
- Accurate color reproduction of primer and bare metal
- 4 independent sensors detect the arc quickly
- Simple analog knobs for shade sensitivity and delay
- Weld to grind switching avoids changing hoods
- Backed by a 2 year manufacturer warranty
Cons
- Costs more than generic imports with comparable sensor counts
- Analog controls offer no onboard memory for repeated job settings
Hobart built this one for people who set the controls once and stop thinking about them. The analog shade, sensitivity, and delay knobs have no menu, no beeping, and nothing to learn. You dial in a setting for a 20 gauge panel MIG run, and the same setting does the next one. For a shop that cycles technicians through a single hood, that simplicity is worth more than a feature list.
The 9.3 inch widescreen view and PureColor lens technology are what owners praise most. Accurate color reproduction of the weld and the surrounding environment means you can tell the difference between clean bare metal, a red oxide primer, and gray body filler without flipping the hood up. On a fit-up check before you commit to a weld, that reads faster.
Technically you get 4 independent arc sensors, an auto-on/off power control that triggers the lens at arc strike, one-knob weld to grind switching, and a polyamide nylon shell weighing 1.25 pounds. The included CR2 lithium battery and the 2 year limited manufacturer warranty put it ahead of most of the imported helmets here in the durability column.
The grind mode is the sleeper feature for auto body. One knob moves you from weld to grind, so shaping filler and knocking down a seam does not mean swapping to a different hood or pulling the lens out of the shell entirely. On a repair where you weld a tab, grind it, and weld the next one, that cycle happens dozens of times.
When a technician would pick this helmet over the alternatives
Pick the Hobart if you are buying for reliability rather than maximum specification. It comes from an established welding brand with a two year warranty, it does not depend on solar cells to keep running, and reviewers describe it as a no-nonsense shop hood that holds up to daily production use.
It is also a strong recommendation for a shop that shares one hood among several technicians. Analog controls cannot be accidentally mis-set by someone who does not know the interface, and there is nothing to reset when that happens.
Where it falls short for body work
You are paying for the brand, the warranty, and the build quality, and the raw sensor count and switching specs are matched or beaten by cheaper imported units in this roundup. If your budget is tight and you are buying one hood per technician, the arithmetic is hard to ignore.
There is also no onboard memory. Every job starts with you setting the shade, sensitivity, and delay again. On a shop doing repeat door skins, that is a small daily tax that only bothers you in the first week, but it is a tax.

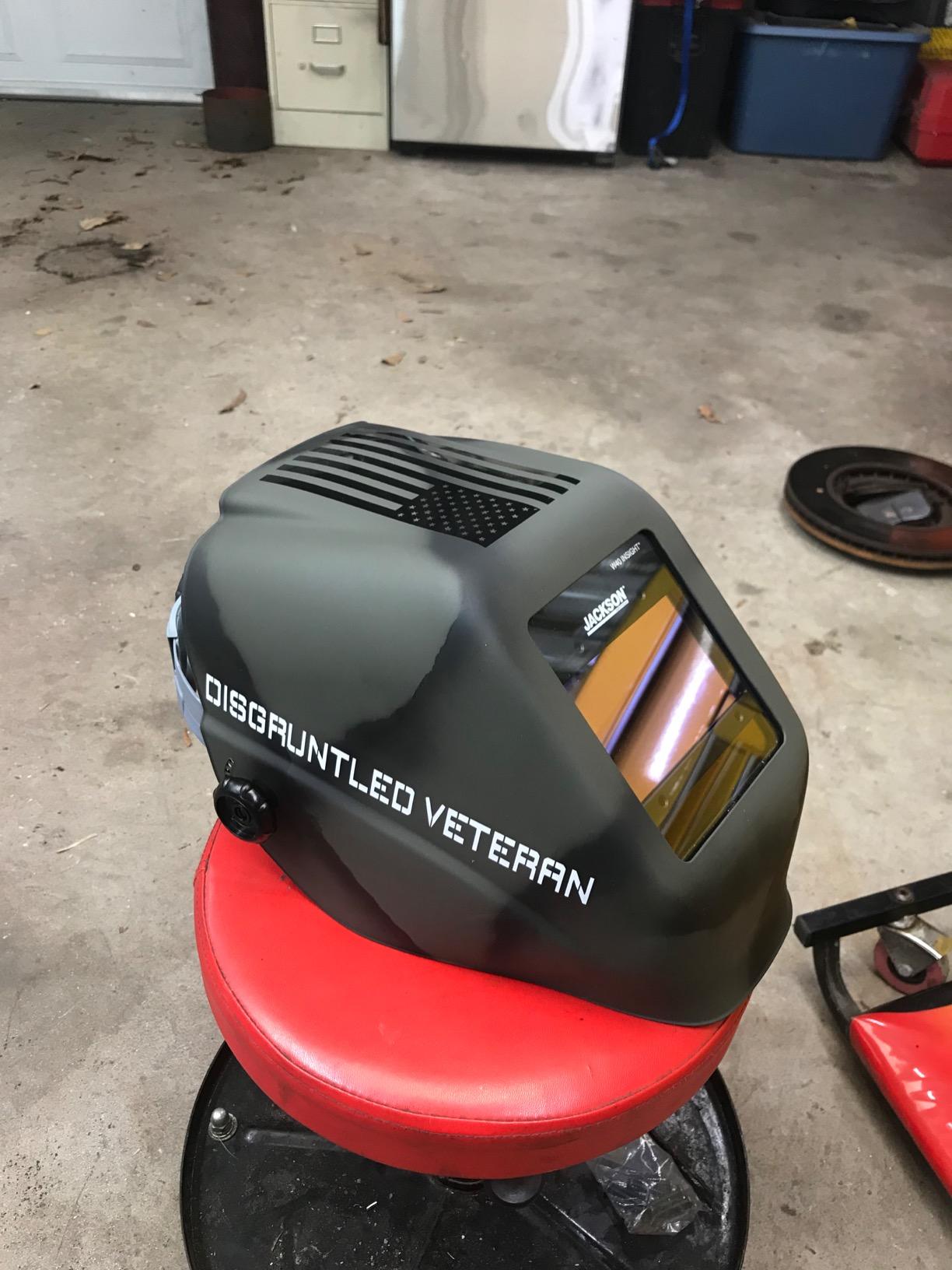

4. Jackson Safety Insight Auto Darkening Helmet – Best for Confined Space Vehicle Work
Jackson Safety Insight Auto Darkening Welding Helmet, ADF Hood – ANSI Z87.1
6 ounce HLX low profile shell
3.94 x 2.36 inch view
Variable shade 9-13
Weld torch grind modes
Pros
- Exceptionally light low profile shell for tight spaces and overhead work
- 370 Speed Dial headgear with multiple adjustment points
- 1/1/1/1 true color clarity across three modes
- Reliable arc detection that users say never flashed their eyes
- Uses standard inexpensive cover lenses
Cons
- Light state could be brighter for well-lit shop work
- Shell is less rugged than metal helmet alternatives
- Sensitivity can be triggered by bright reflections off polished metal
At 6 ounces, the Insight is the lightest hood in this roundup by a wide margin, and that single number is why it belongs in an auto body list. Trunk floors, inner quarter panels, package trays, and the underside of a dash are all positions where a heavy shell is a physical problem, not a preference. A 6 ounce shell lets you keep your head in a position you can actually hold steady.
The headgear is the feature that gets the most praise from long-term owners. The patented 370 Speed Dial ratcheting headgear with Qwik-Fit rear swivel headband gives you adjustment at the crown, the ratchet at the back, and an Easy Grip knob that you can work with one hand. It locks securely in either the up or down position, which matters when you are alternating between looking and welding dozens of times an hour.
Specs include a 3.94 by 2.36 inch viewing area with 1/1/1/1 optical clarity and True Color technology, variable shades 9 to 13, and Weld, Torch, and Grind modes with digital sensitivity and delay controls. The 4 arc sensors handle the detection, and the front cover plates accept standard 4 1/2 by 5 1/4 clear lenses, so replacement parts are cheap and easy to find.
Two other body shop specific details stand out. It works with inverter machines that will not trigger cheaper passive lenses, and it is adaptable to a hard hat with the Jackson adapter, which covers the shops where bump caps or hard hats are part of the dress code. It meets ANSI Z87.1 and CSA Z94.3.
When a technician would pick this helmet over the alternatives
Choose the Insight if a large share of your work happens inside a vehicle. Long-term owners report multi-year durability and a hood that still holds its position after heavy use, and the low profile is specifically suited to pipe and under-vehicle work. If you work overhead on a lift, the low weight is a real ergonomic win.
It is also a strong second hood for a shop. Pairing it with a larger-view model gives you one for confined spaces and one for open panel work, and the standard cover lens acceptance makes the maintenance budget predictable.
Where it falls short for body work
The light state is a little dark for well-lit shop work, and that is exactly the state you spend the most time in when reading primer and filler before a weld. If your shop is bright and you do a lot of layout and inspection, a brighter resting state would serve you better.
Second, the sensitivity control can be tripped by bright reflections off polished or bare metal, which is not uncommon around a sanded bare-metal patch. Turn sensitivity down slightly and it behaves. Third, the shell is less rugged than metal-helmet alternatives, so if your hoods get dropped off a lift regularly, think twice.

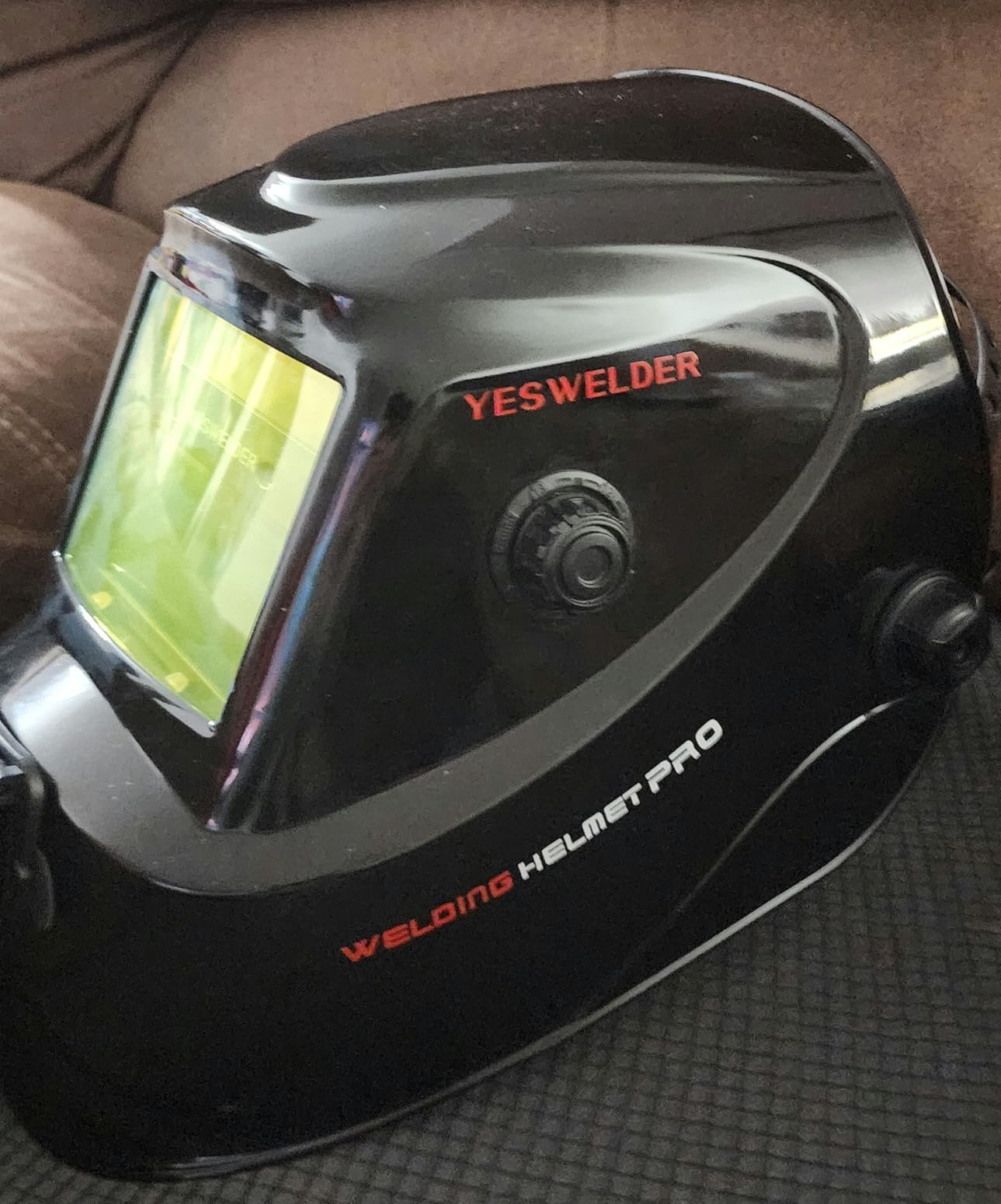

5. YESWELDER LYG-L600A Auto Darkening Welding Helmet – Best Value for Auto Body Shops
YESWELDER Auto Darkening Welding Helmet 1/1/1/1 True Color, LYG-L600A
3.64 x 1.67 inch true color view
2 arc sensors at 1/30000 sec
Shade 3/7-13
Solar plus CR2450
Pros
- Very clear true color viewing that reduces eye strain
- Fast reliable auto darkening with adjustable sensitivity and delay
- Comfortable easily adjustable headgear for long sessions
- Leaves room to wear a respirator underneath
- ANSI Z87.1 and CSA Z94.3 certified
Cons
- Viewing area is small compared with full face or panoramic styles
- Shell and headgear feel light-duty
- Some units arrive with the coin battery installed incorrectly
With more than 13,000 owner reviews, this is the most thoroughly tested helmet in the roundup, and the pattern in those reviews is remarkably consistent: people buy this as a first auto-darkening hood, or as a second and third hood for grind work and fitting. Owners widely call it the best value in the category, and the 4.6 average across that volume of feedback is meaningful.
The optical performance is the reason it punches above its weight. A 1/1/1/1 true color lens with a 3.64 by 1.67 inch viewing area, blue light blocking outer lens, and 2 arc sensors switching in 1/30000 second give a clean, fast filter. Reviewers specifically note that the true color view reduces eye strain across a full day, which matters in a shop where you are also dealing with grind dust and paint overspray.

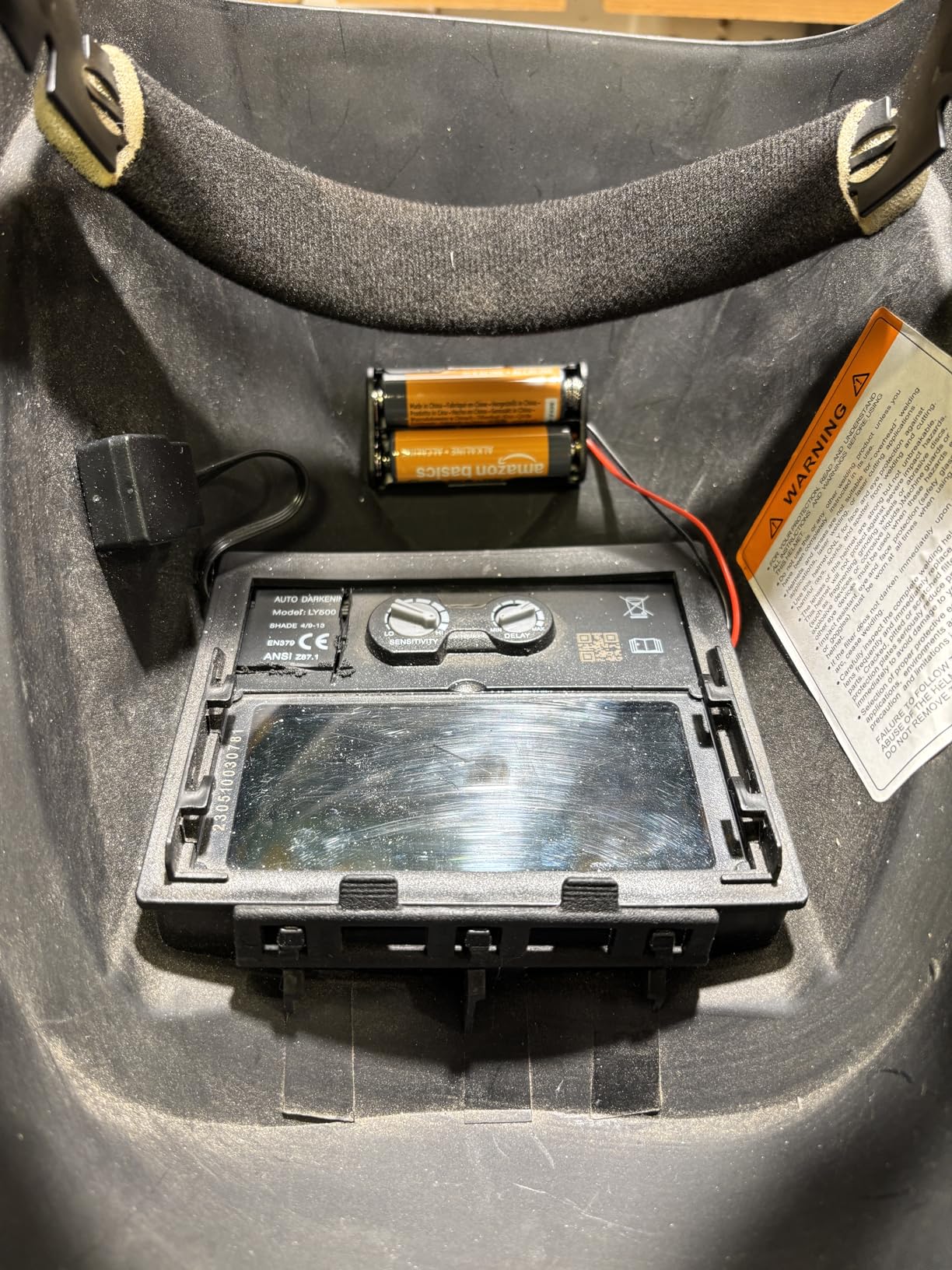

Power comes from a solar panel plus a replaceable CR2450 battery, so the filter is never dead when a torch strikes. Shade range is Shade 3/7-13 covering TIG, MIG, MMA, and grind, with an external shade knob that lets you switch between TIG and stick without reaching inside. It weighs 16 ounces and includes a CR2450 battery, an inner replacement lens, two outer replacement lenses, a storage bag, and a manual.
One body shop detail deserves specific mention: owners report that the shell leaves room to wear a respirator underneath. Auto body is a high-fume environment, from e-coat, seam sealer, and body filler, and a helmet that forces you to choose between eye protection and respiratory protection is a bad system.
When a technician would pick this helmet over the alternatives
Pick the LYG-L600A if you are equipping a shop where every technician needs a hood and a helmet per bay is unrealistic. Its low cost, its ANSI Z87.1 and CSA Z94.3 certification, and the huge installed base of replacement lenses make it the practical mass-purchase option, and the review volume means you will never struggle to find parts.
It is also a good dedicated grind and fit-up hood. A light shell with an external shade knob is easy to flip between modes, and a second cheap hood means your expensive primary hood never gets ground dust and spatter thrown at it.
Where it falls short for body work
Two arc sensors is the limiting spec. Two sensors can miss the arc when your torch angle changes or when a panel edge blocks part of the lens, and that detection weakness is exactly the failure mode that shows up on low-amp TIG restarts. If aluminum TIG is a big part of your work, the Viking or the ESAB is a better tool for the job.
The 3.64 by 1.67 inch viewing area is also small for panel fit-up. You will be lifting the hood more than you expect in order to check a gap or a tacked corner, and the shell and headgear feel light-duty compared with the pro-grade hoods in this list.

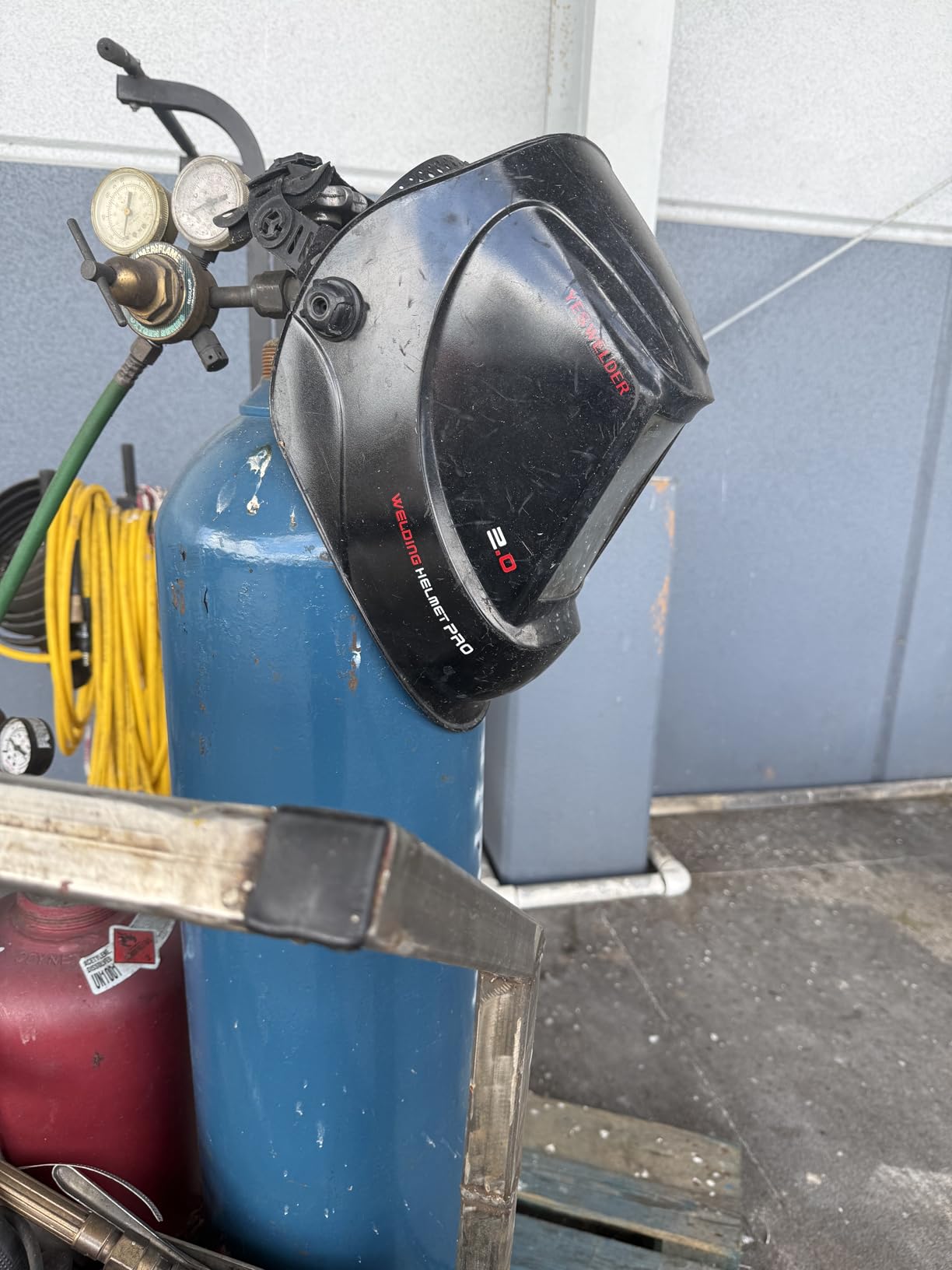

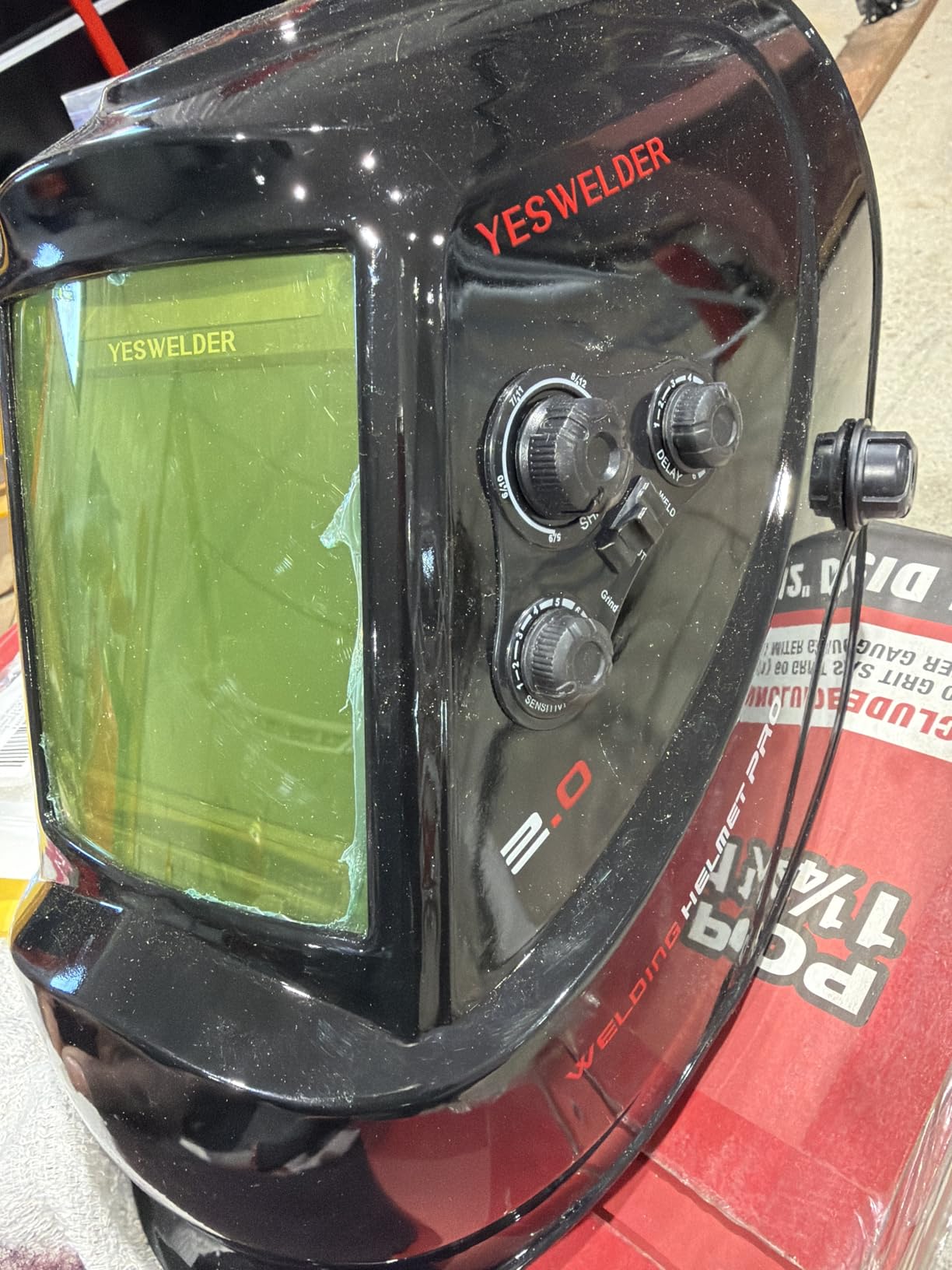

6. YESWELDER LYG-M800H Large View Welding Helmet – Best for Patch Panel and Filler Work
YESWELDER Auto Darkening Welding Helmet, Large View, LYG-M800H
3.93 x 3.66 inch large view
4 arc sensors at 1/30,000 sec
DIN 3/5-9 and 9-13
1.32 lb
Pros
- Very large viewing area shows the whole puddle and joint edges
- True color lens gives a natural non-green view of the workpiece
- All controls are on the outside so adjustments work with gloves on
- Lightweight and comfortable for long sessions
- Cheater lens compatible for close detail work
Cons
- Plastic shroud headband and flip tension knobs are not as robust as pro grade hoods
- Battery and lens module are fiddly to remove and replace
- Tension adjustments can feel like they will strip if overtightened
The M800H is the one in this roundup that owners most explicitly connect to auto body patch panel work, which is why it earns a spot despite the newer models around it. The 3.93 by 3.66 inch viewing area is close to square, and that geometry is the difference between seeing your puddle and seeing your puddle plus the joint edges feeding into it. For layout on a bare-metal patch, that extra height is genuinely useful.
It also runs 4 arc sensors with 1/30,000 second switching and a DIN 3/5-9 and 9-13 shade range across weld, cut, and grind modes. Owners credit the true color lens with a dramatic improvement in bead placement, and the 1/1/1/1 optical clarity means you are not squinting through a green cast for the whole job.
Weight is about 1.32 pounds, light enough for a full shift, and the shell uses reinforced PP construction with a strengthened hinge and reinforced connection points at the adjustment. All the controls sit on the outside of the helmet, which sounds minor until you realize it means you can change shade or drop into grind mode with your welding gloves still on. The box includes a replacement lithium battery, two outer lenses, an inner lens, and a storage bag.
The cheater lens compatibility is a small detail that body techs appreciate, because a magnifier is useful when you are fitting a plug weld patch or checking a spot weld’s edge closely. Design-wise, this model was clearly aimed at lower-amperage work where stable detection matters, which lines up well with thin-gauge body welding.
When a technician would pick this helmet over the alternatives
Choose the M800H if your day is a mix of MIG on 18 to 22 gauge panel steel and grinding, and you want one hood that handles both without a lens change. The large screen means fewer hood lifts during layout, and the external controls mean fewer interruptions once the arc is lit.
It is also a fair value comparison against the Viking. If your main requirement is a big viewing area rather than maximum optical refinement, the M800H gets you most of the way there at a much lower outlay.
Where it falls short for body work
Durability is the honest weakness. Owners report that the plastic shroud, headband, and flip-up tension knobs are not as robust as pro-grade hoods, and that the tension adjustments can feel like they will strip if you overtighten them. In a hot shop where hoods get knocked around, that will not last forever.
The battery and lens module are also fiddly to remove and replace, which is a real annoyance when you want to swap lenses between a welding job and a grinding job. And the 4.4 average with a 6 percent one-star share, the highest one-star share of the large YESWELDER models, reflects some units failing sooner than others.

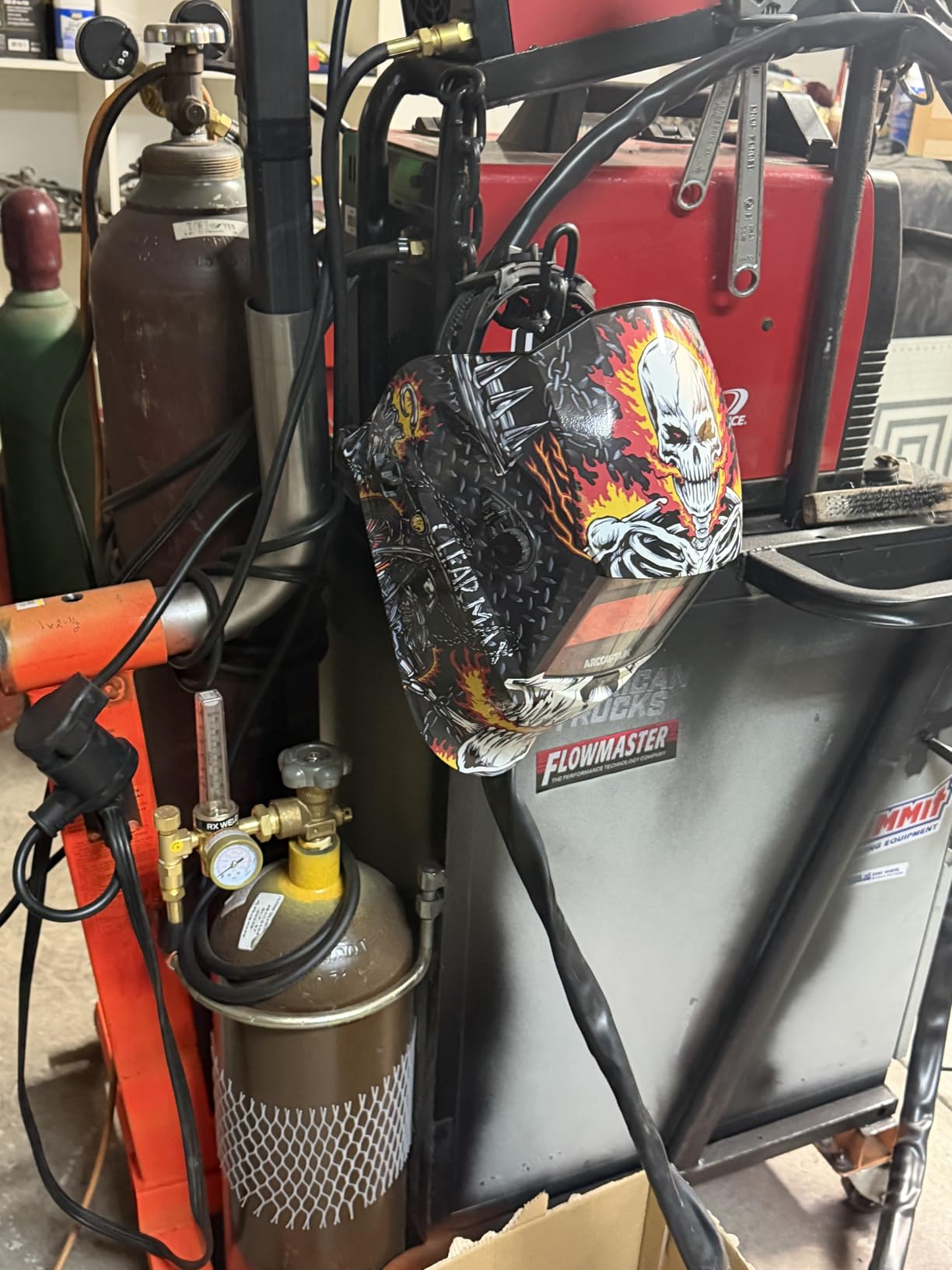

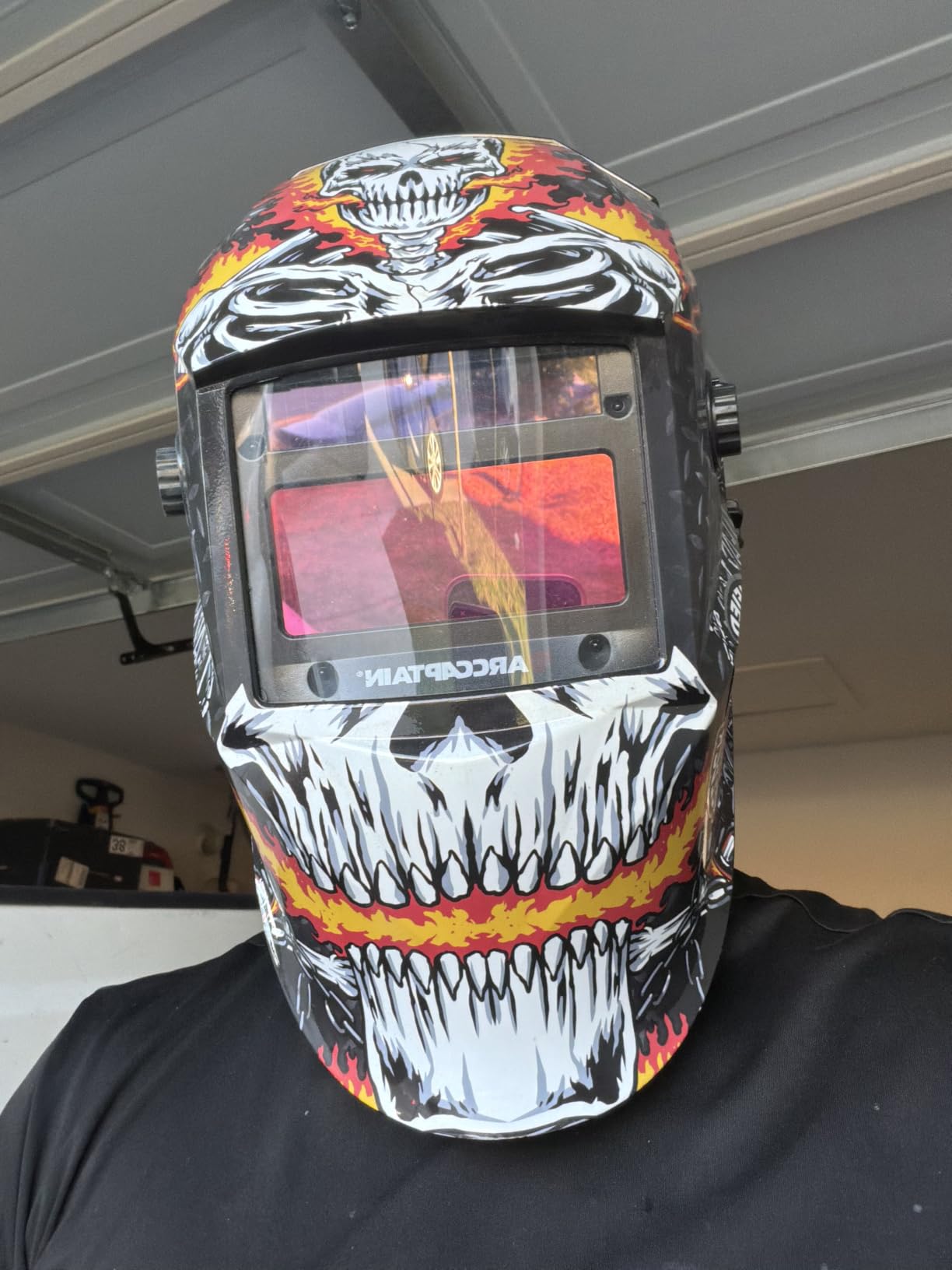

7. ARCCAPTAIN 1/25000s Auto Darkening Helmet – Best Lightweight All-Rounder
ARCCAPTAIN Welding Helmet Auto Darkening, 1/25000s Response, Shade 4/9-13
3.86 x 1.69 inch true color view
4 arc sensors at 1/25000 sec
Shade 4/9-13
1 lb shell
Pros
- Exceptionally clear blue tinted true color lens for the price tier
- 4 arc sensors and grind mode mean you rarely lift the hood
- Lightweight shell reduces neck fatigue in long sessions
- Generous headband adjustability and wide range of graphic styles
Cons
- A minority of units report slow switching or a lens going dark with no arc
- Build quality can feel inexpensive out of the box
At 1 pound, this ARCCAPTAIN is one of the lightest helmets with four arc sensors and a full 1/1/1/1 true color lens, and that combination is rarer than it should be at this price. Owners consistently describe the lens clarity as rivaling far more expensive helmets for MIG, stick, and TIG work, and many buy more than one.
Detection is the part that matters most for body work, and this one runs 4 premium arc sensors with a 1/25000 second switch time and a dark state of 4/9-13. Four sensors means the arc is detected from more angles, which is exactly the failure point when a panel edge blocks part of the lens or you tilt the torch to reach a flange. Grounding into grind mode means shaping filler does not require lifting the hood off your head.
Certifications are printed for this model: ANSI/ISEA Z87.1-2010, CSA Z94.3, DIN EN 175, and DIN EN 379, with automatic DIN 16 UV and IR protection from a 12-in-1 smart filter. That matters in a body shop, where you are often close to your own reflection in a quarter panel and the risk of stray UV is higher than on open structural work. Power comes from solar cells plus a replaceable CR2450 lithium battery.
The viewing area is 3.86 by 1.69 inches, which is wide rather than tall, and the package includes three replacement lenses, a manual, and stickers. The headband is a breathable padded adjustable design, and the range of graphic styles means it does not look out of place in a clean shop.
When a technician would pick this helmet over the alternatives
Pick this ARCCAPTAIN if neck fatigue is your main complaint, or if you have several techs who need a competent hood quickly. Four sensors, full optical class, grind mode, and printed EN 379 and ANSI certifications cover most of the decision criteria for body work at a fraction of what a premium hood costs.
The cheater and magnifier lens compatibility is useful for close panel detail work, and the 1 pound shell is comfortable enough that you can wear it during layout without taking it off.
Where it falls short for body work
The recurring negative theme in the reviews is reliability variance. A minority of units report slow switching, or a lens that goes dark with no arc present. With 3,080 reviews at a 4.6 average and an 80 percent five-star share, the majority are fine, but a shop buying several of these may end up with one dud.
The 180 day warranty is the shortest on this list outside the other ARCCAPTAIN model, and for a tool that lives in a body shop, that is thin. Build quality also reads as inexpensive out of the box, particularly the headband and hinge, so treat it as a good working hood rather than a long-term investment.

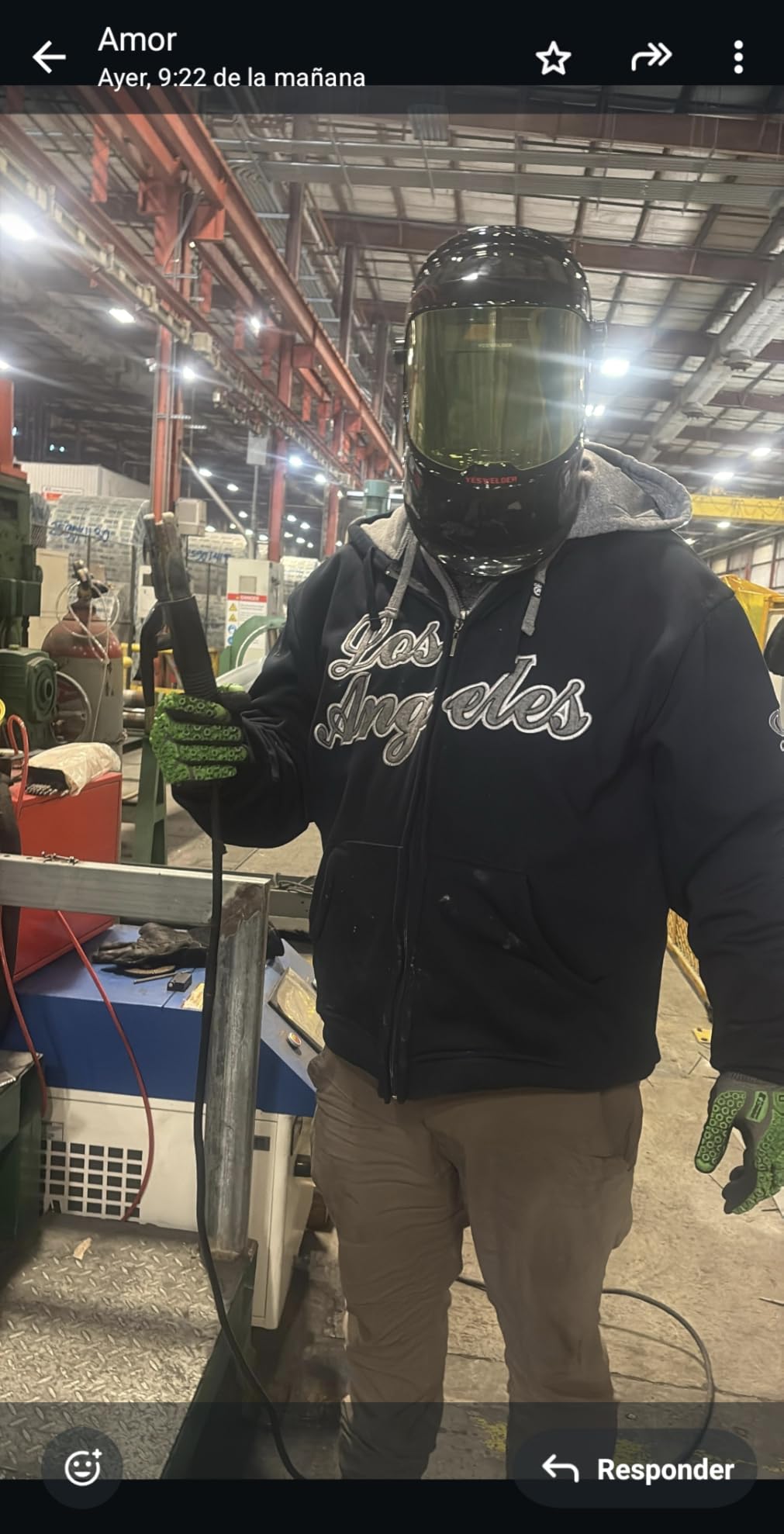

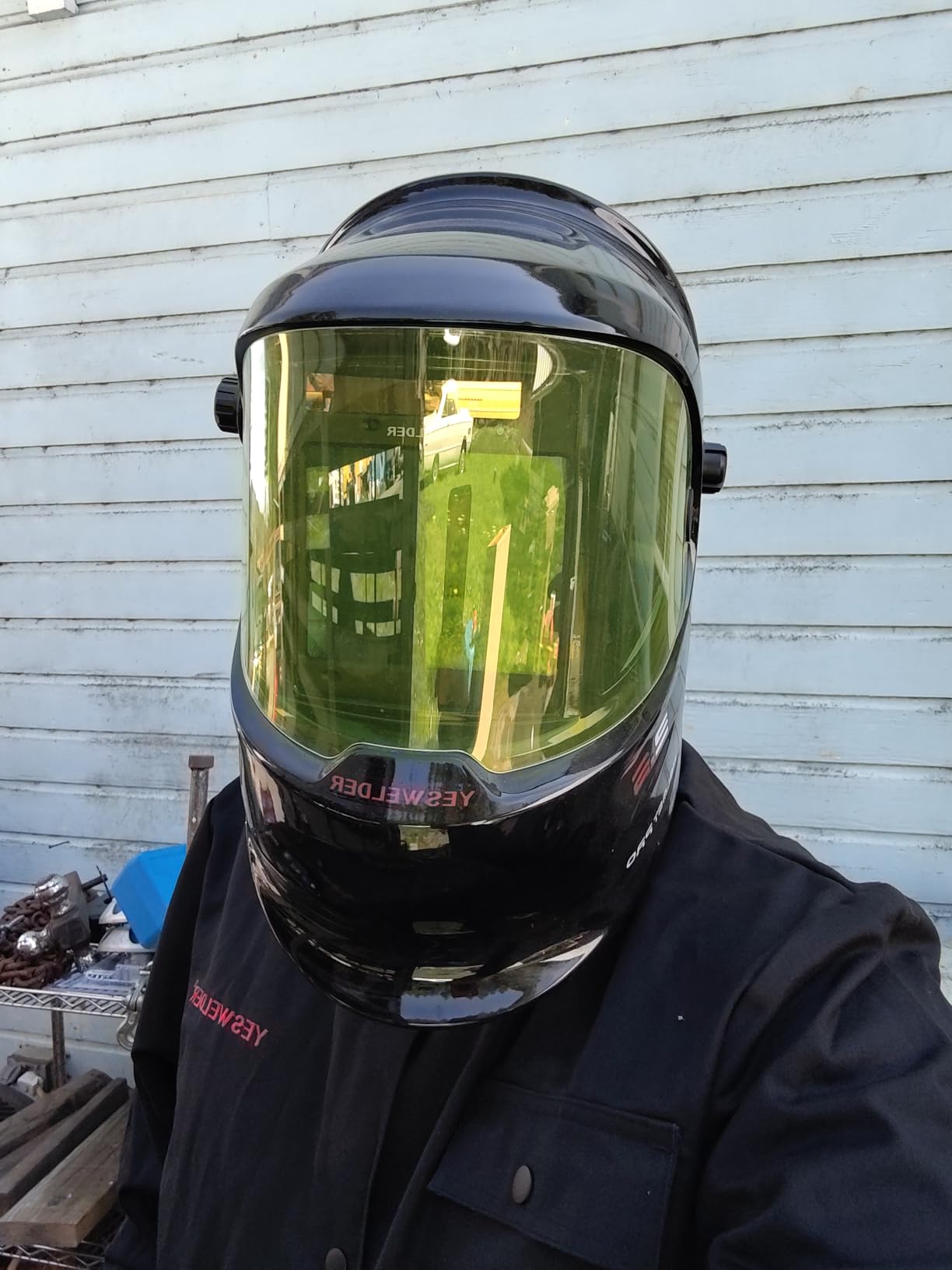

8. YESWELDER LYG-Q800D Panoramic Welding Helmet – Best Large View for Setup and Fit-Up Work
YESWELDER Auto Darkening Welding Helmet with LED, 180° View, LYG-Q800D
3.94 x 3.23 inch view with side windows
4 arc sensors at 1/30000 sec
2.2 lb shell
Pros
- Panoramic view with side windows widens the field of view
- 1/1/1/1 true color clarity for accurate puddle and workpiece reading
- 4 arc sensors give reliable detection across processes
- External controls and pivot headgear are comfortable for long sessions
Cons
- Heavier shell than smaller view models
- Side view lenses are fixed DIN5 and are not auto darkening
The Q800D is for the tech who spends more time fitting panels than welding them. Its 3.94 by 3.23 inch center view is flanked by side windows, and reviewers favor the wide field of view for setup work on sheet metal. When you are tacking a quarter panel in place and need to see the flange behind your hands, the wider view means you are not constantly lifting the hood to check your work.
Optically it is a 1/1/1/1 true color lens, and 4 arc sensors switch in 1/30000 second with adjustable sensitivity and delay. The shade range covers 3/5-9/9-13 for TIG, MIG, MMA, cut, and grind, which is broad enough that one hood can cover MIG on 20 gauge and TIG on an aluminum patch without a second filter.
The shell is 2.2 pounds in ABS and PP, which is on the heavy side compared with the 1 pound models in this roundup, but the pivot headgear with reinforced PP construction spreads that across your head. Reviewers still call it comfortable for long sessions. Power is a solar panel plus a replaceable CR2450 lithium battery, and the box includes a replacement battery, three replacement lenses, and a storage bag.
Magnifying lens compatibility is included for close-up work, and the blue light blocking outer lens technology is worth noting for a career spent staring through a filter. One thing to know before you buy: the side windows are fixed DIN 5 and are not auto-darkening, so they stay at a constant shade during arc work. That is a design choice, not a defect, but you should buy it understanding that the peripheral zones are passive.
When a technician would pick this helmet over the alternatives
Choose the Q800D if your work is layout heavy. Doors, fenders, hoods, and quarter panels all start as fit-up problems, and a wider view with side windows lets you check alignment, tacks, and panel gaps with the hood down. Reviewers note that the true color lens makes the workpiece read accurately, which is the point of the extra window area.
It is also a reasonable choice for a shop that alternates between MIG and TIG, since the shade range covers both without a filter swap and the 4 sensors handle the low-amp detection better than a 2 sensor design.
Where it falls short for body work
At 2.2 pounds, this is one of the heavier shells here. Over an 8 hour shift in a hot shop that adds up, and the models in this roundup at 1 pound or under will leave your neck feeling better at the end of the day.
The passive side windows are the bigger limitation. During a weld they do not darken, which is fine for fit-up but means you should not treat the peripheral zones as protected arc viewing. And the 4.4 average reflects some dissatisfaction with the shell weight relative to the view you get.
9. ARCCAPTAIN XK-LY800H Large View Helmet with Light – Best Built-In Work Light
ARCCAPTAIN Auto Darkening Welding Helmet with Light, 3.94″X3.66″ Large View
3.94 x 3.66 inch super large view
4 arc sensors at 1/25000 sec
USB LED work light
Pros
- Super large 3.94 x 3.66 inch true color screen for situational awareness
- Integrated USB LED light is a real aid in a dark shop or vehicle interiors
- 4 arc sensors switch in 1/25000 sec across stick MIG TIG cutting and grinding
- Very light weight with padded adjustable headgear
Cons
- LED light must be attached on arrival
- Only a 180 day warranty which is short for a shop tool
The idea that made this model interesting is the light mounted on top of the shell. A USB powered LED with two brightness levels, the manufacturer states, is a genuine aid in a dark shop or when you are working inside a vehicle with the doors closed and the bay lights off. For interior panel work at night or in a poorly lit stall, that is a real convenience rather than a gimmick.
Underneath the light, the helmet is a strong large-view option. The 3.94 by 3.66 inch super large screen carries 1/1/1/1 optical clarity with true color technology, and 4 arc sensors switch in 1/25000 second across a dark state of 4/5-8/9-13. Buyers highlight the combination of a very large screen plus a built-in work light as unusual in this class, along with fast sensor response and low weight.
The shell is flexible PP weighing about 1 pound, with an ergonomic adjustable headgear and breathable padding, which keeps it among the most comfortable for long shifts. Power comes from two front solar panels plus a CR2450 lithium battery, and the package includes a replacement lithium battery, three replacement lenses, and stickers. The 12-in-1 smart filter provides automatic DIN 16 UV and IR protection, and the helmet is listed to ANSI Z89.1, CSA Z94.3, and DIN EN 379.
One more detail for hot shops: the solar panels are on the front, where the arc light falls, rather than only on top. That is a sensible layout for intermittent production work where the arc is your main power source. The shade range including 5-8 as a separate band also means there is a lighter setting available for low-current work on thin material.
When a technician would pick this helmet over the alternatives
Pick the XK-LY800H if you do late shifts, work in a dim garage, or spend real time inside vehicles where ambient light is a problem. The integrated light solves that in a way a separate headlamp cannot, because it points where your head points and stays on when your hands are busy.
It is also a good large-view option for the money, given the 1 pound weight and four sensors. For a shop where hoods are shared and one tech does interior work, it covers more situations than a small-screen budget model.
Where it falls short for body work

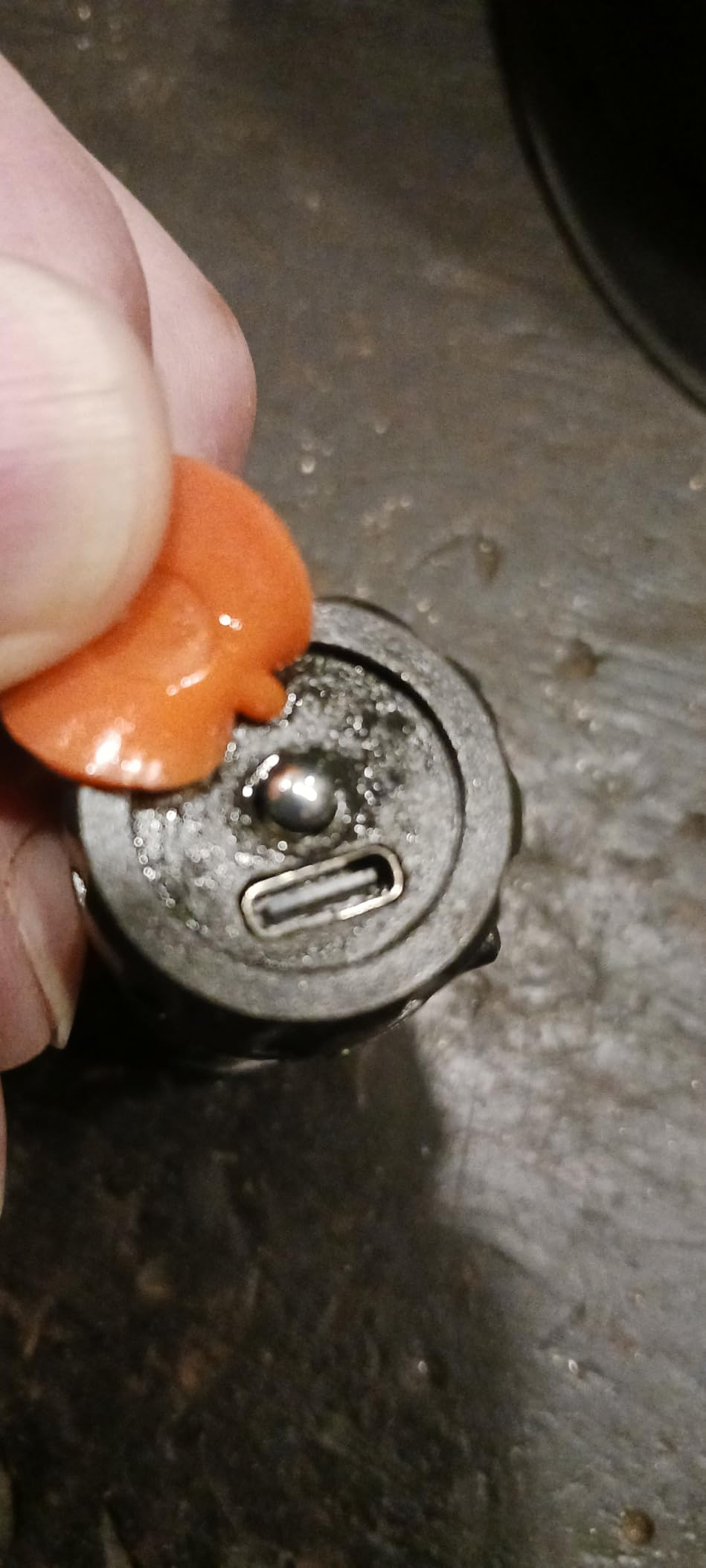

The LED light arrives uninstalled and has to be attached on arrival, so budget a few minutes and a screwdriver before the first job. It is a small thing that annoys people who expected to plug in and go.
The 180 day warranty is the drawback reviewers mention most, and it is the most commonly noted complaint on this model. For a shop tool, a half year of coverage is short. The lens is also listed at 1/1/1/1 with true color, but the shell is basic PP, so expect it to be a working hood rather than a long-term one.
10. ARCCAPTAIN 180 Degree Panoramic Welding Hood – Best for Panoramic Fit-Up and Inspection
ARCCAPTAIN Welding Hood, 180° Panoramic View Auto Darkening Welding Helmet
3.94 x 7.06 inch 180 degree view
4 sensors at 1/25000 sec
DIN 4 light state
2.55 lb shell
Pros
- 3.94 x 7.06 inch view is the widest in this roundup and covers the joint on both sides
- 4 sensors with 1/25000 sec switching across TIG MIG ARC and grinding
- Knobs can be adjusted while wearing welding gloves
- Dual solar panels plus two CR2450 batteries give long service intervals
Cons
- Side viewing windows are fixed DIN5 and will not darken during arc work
- Heaviest of the ARCCAPTAIN models at 2.55 pounds
- Longer learning curve to get used to the panoramic layout
This hood exists for one reason: seeing more than anyone else in the room. The total viewing field is 3.94 by 7.06 inches across a 180 degree span, with a DIN 16 auto-darkening centre zone of 3.94 by 3.66 inches flanked by two 3.94 by 1.70 inch passive side views at DIN 5. The buyer’s argument is simple. Seeing the joint, the tacked panels, and your own hands on both sides reduces how often you lift the hood for fit-up and inspection.
Detection is solid on the active zone, with 4 advanced sensors and 1/25000 second switching, a DIN 4 light state, and a DIN 5-9/9-13 dark range covering TIG, MIG, arc, and grinding. A 12-in-1 smart filter supplies automatic DIN 16 UV and IR protection, which matters when a panoramic hood puts your eyes closer to reflective panel surfaces than a compact shell does.

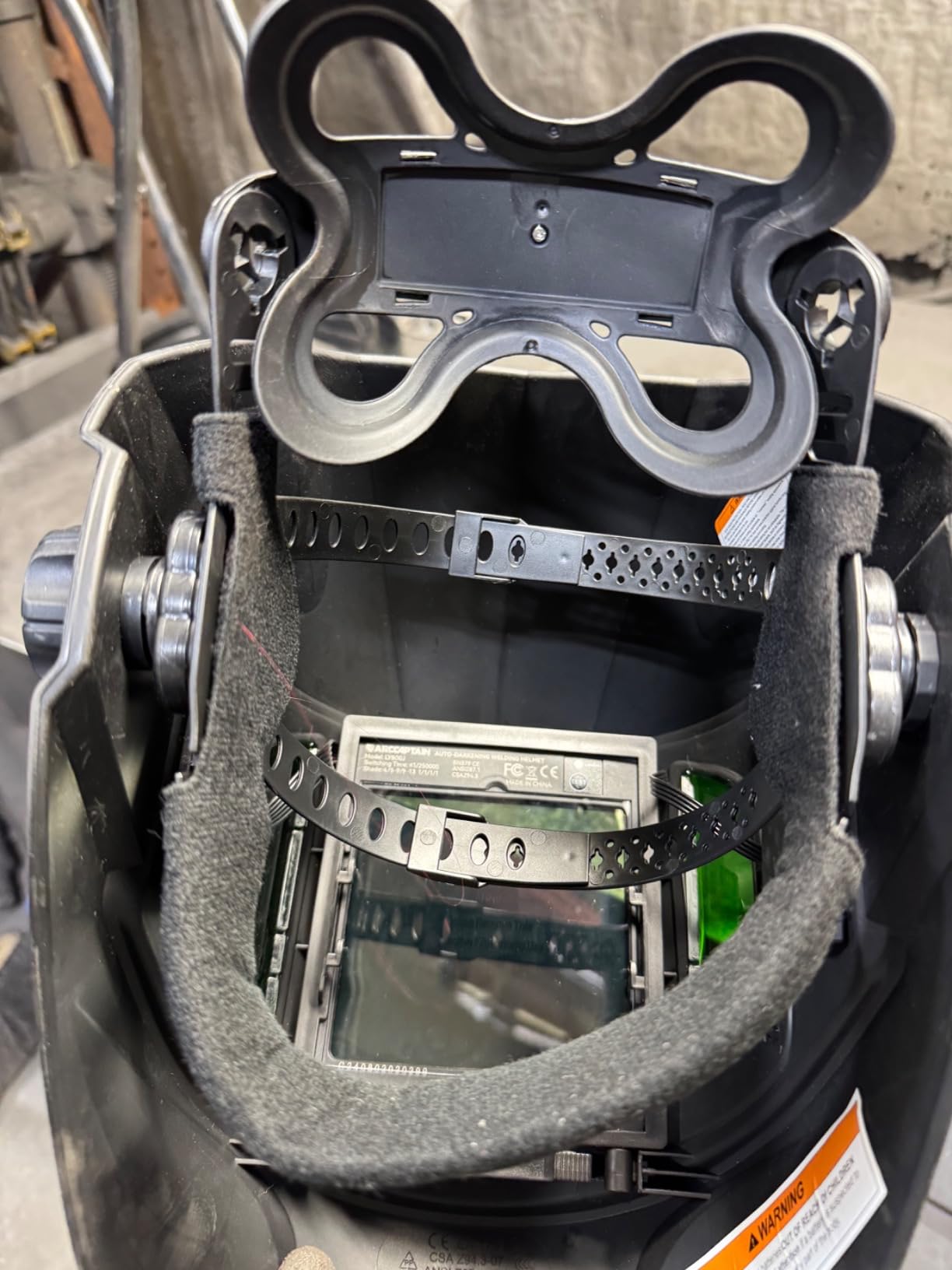

Power is two front solar panels plus two CR2450 lithium batteries, and the interior has been rearranged to fit closer to the human head, which offsets the extra shell size. The upgraded knob section is adjustable while wearing welding gloves, a detail that gets appreciated the first time you try to change shade with a glove on. Operating range is rated from minus 5C to 55C, and the package includes two replacement batteries, three replacement lenses, and a storage bag.
Now the honest part. At 2.55 pounds, this is the heaviest shell in the roundup, and it is also the bulkiest. If your work is inside a trunk floor or under a dash, a panoramic shell is the wrong tool, no matter how good the optics are. The 1 star share on this model is the highest of the ARCCAPTAIN range, which tells you the same thing in different words: the people who love it love it, and the people who wanted something smaller feel stuck.
When a technician would pick this helmet over the alternatives
Choose the panoramic hood if you do a lot of layout, tack welding, and inspection on open panels. Restorations, custom fabrication, and larger collision work all benefit from seeing the joint and both sides of the work area at once, and reviewers specifically praise the reduced need to lift the hood.
It is also worth considering for shops where a tech is doing fit-up coaching or handing work off, because the wide view makes it easy to point at a gap while still wearing the helmet. Glove-friendly controls and the dual battery setup are practical bonuses for production work.
Where it falls short for body work
Bulk is the core problem. At 2.55 pounds with a 180 degree shell, this is the helmet you do not want in a confined quarter panel or a package tray. Auto body work is often confined, and that is where the panoramic advantage turns into a liability.
The side windows are also fixed DIN 5 and never darken, so you should not plan any arc work that depends on peripheral vision. Finally, the layout takes some getting used to, and the adjustment curve is a real break-in period rather than an overnight change.
11. TOOLIOM True Color Flip Up Welding Helmet – Best for Frequent Grinding Access
TOOLIOM True Color Flip Up Auto Darkening Welding Helmet
Flip up front plate
3.64 x 1.66 inch true color view
1/25000 sec switching
Cover lenses included
Pros
- Flip up front plate handles grinding cutting and measuring without removing the helmet
- 1/1/1/1 true color lens gives a clear view of the puddle
- Package includes replaceable outer and inner cover lenses
- Comfortable fit that works on larger heads
Cons
- Heavier than non flip up hoods due to the flip mechanism
- Side tension adjusters and cover lenses can wear out within months
- Flip up control is harder to operate while wearing welding gloves
- Some units are reported to darken too slowly on arc strike
The flip-up front plate is the entire argument for this helmet, and in a body shop the argument is strong. You can flip the filter panel up to grind, cut, measure, or check a fit without removing the helmet or fiddling with a mode switch, then drop it back down and keep welding. On a repair where you shape filler, check a gap, weld, grind again, that repeated transition is the job.
Optically it holds up well for the money, with a 1/1/1/1 optical class true color lens across a 3.64 by 1.66 inch viewing area, switching from light to dark in 1/25000 second, and a specification listed to ANSI Z89.1. Multiple adjustment joints let you get a close fit, and reviewers call out that it works well on larger heads, which is not always true of imported hoods.
The package arrives assembled and includes the helmet plus a replaceable clamshell protector lens, an outer protector lens, and an inner protector lens, so you are not hunting for covers before your first job. The flip design also means the filter module is protected when the hood is up, which is a genuine advantage in a shop where a helmet gets set on a bench and knocked around.
On the other side of that, the flip mechanism is the reason the hood weighs 0.55 kg and why the tension adjusters wear out. Reviewers caution that the extra mechanism adds weight, that the tension knobs and clear lenses wear out sooner than on fixed-shell models, and that the flip control is harder to operate with welding gloves on. A small number of units also darken too slowly on arc strike.
When a technician would pick this helmet over the alternatives
Pick the TOOLIOM if your repair cycle alternates constantly between welding and grinding, and you are tired of switching hoods or lifting the whole helmet off to check your work. The flip plate is faster than a mode knob and faster than a separate grinding helmet, and the included cover lenses mean it is ready to work immediately.
It is also a good value option for a hobbyist or a small restoration shop that needs one hood for a very wide range of tasks.
Where it falls short for body work
The wear points are the mechanism and the clear lenses. Side tension adjusters and cover lenses can wear out within months of regular use, and a flip mechanism has more parts that can loosen than a fixed shell does. Budget for replacement covers sooner than you would with a conventional hood.
Operating the flip with gloves on is awkward, which is exactly when you are most likely to be operating it, and the 3.64 by 1.66 inch viewing area is small for panel fit-up. The 4.3 average with a 5 percent one-star share is the lowest in this roundup, so temper expectations accordingly.
12. TRQWH Solar Powered Welding Helmet with LED – Budget Pick for Occasional Shop Use
TRQWH Welding Helmet with Light True Color Auto Darkening Welding Helmets for Men Solar Powered Welding Hood with 2 Arc Sensor Wide Shade 4/9-13 for TIG MIG ARC Cool Welder Mask
1/1/1/2 true color lens
2 arc sensors at 1/20,000 sec
DIN 4 light and 9-13 dark
USB LED lamp
Pros
- Very affordable entry into auto darkening protection
- Rechargeable LED lamp is genuinely useful in a dark shop or under car work
- True color lens with responsive shading for the money
- Comfortable padded headband with angle and tightness knobs
Cons
- Lenses are thin and may wear quickly in professional shop use
- Some units do not hold the tightened position
- Included head lamp is lower quality than the helmet
- Replacement lenses can be hard to source in quantity
This is the entry point. If the shop budget is the barrier between a tech welding in a shaded auto-darkening filter and welding in a swung-up passive shell, this is the cheapest way across, and reviewers treat it as a beginner or backup hood while finding the value hard to beat. The rechargeable LED head lamp is the detail that keeps coming up as genuinely useful, particularly for dark shop or under-car work.
The filter itself is a 1/1/1/2 true color lens with 2 arc sensors switching in 1/20,000 seconds, running a DIN 4 light state and a DIN 9-13 dark state. Delay and sensitivity adjustment knobs sit on the side, and the liquid crystal filter has an optical coating the manufacturer states blocks 99 percent of harmful light. Certifications are listed to ANSI Z87.1, EN 379 CE, and CSA Z94.3.
Fit is handled with side angle knobs, a rear headband tightness knob, and thickened sponge padding at the forehead and ears, which is more adjustment than most budget hoods offer. The shell is 1.7 pounds, which is not light, and power comes from solar cells plus two replaceable CR2032 lithium batteries. The listed processes include plasma cutting, abrasive cutting and grinding, DC TIG, AC TIG, MIG, and MMA, so it covers the range a body shop uses.
What it is not built for is daily production duty. Reviewers warn that the lenses are thin and may wear quickly in professional shop use, that some units do not hold the tightened position, and that the replacement lenses may not be available separately in bulk. The included head lamp is also of lower quality than the helmet itself.
When a technician would pick this helmet over the alternatives
Pick the TRQWH for occasional welding, a student tech, a weekend repair on your own vehicle, or a shop that needs a spare hood for someone who does not weld daily. The LED lamp alone makes it more useful in a dim bay than many pricier hoods, and the certification listing means it is a legitimate safety upgrade over a passive shell.
It also works as a loaner or visitor hood. Someone who comes in to do a small repair can use it without taking a technician off the floor to lend their own.
Where it falls short for body work
Two arc sensors and 1/1/1/2 optical clarity are the two specs that matter here. Two sensors will miss the arc more often, particularly on low-amp TIG restarts where the arc is weak, and the fourth optical class number is a 2 rather than a 1, which is a lower standard for pass-through light. Neither is disqualifying, but both are compromises on the work this roundup is about.
At 1.7 pounds it is heavier than the light models, the lenses will not survive daily production abuse indefinitely, and the flip-up retention issues mean it is not a hood I would run full time in a hot production shop.
How to Choose a Welding Helmet for Auto Body Work
Shop helmets and fab shop helmets look the same until you put them on a 20 gauge panel. The differences that matter in a body bay are the number of arc sensors, the switching speed, how large and how bright the light state is, how low profile the shell is, and what a replacement cover lens costs. Everything else is preference. Here is what we would look at, in the order we would look at it.
Arc sensors and why two is not enough for TIG
Arc sensors detect the ultraviolet burst when an arc strikes, and the number of sensors determines how reliably the filter darkens from different torch angles and body positions. Two sensors cover a narrow cone in front of the lens. Four sensors cover most of the viewing area. On a flat plate in the flat position, two will get you by. Inside a quarter panel, where you tilt the torch to reach a flange and the panel edge blocks part of your view, two sensors is a coin flip.
This is the single most common complaint in the forums, and it is the most common complaint we saw in the product reviews: auto-darkening lenses failing to trigger reliably on low-amp TIG restarts. A TIG arc at 60 amps on thin aluminum produces a much weaker UV signature than a MIG arc at 200 amps on plate. Fewer sensors means a narrower detection window, which means a missed trigger exactly when you can least afford it. Four sensors is the practical floor for a body shop. We would also turn the sensitivity control up before your first job and turn it down if the hood starts tripping on reflections off polished or bare metal, which is a separate issue with a separate fix.
Switching speed and low-amp TIG
Switching speed is how quickly the filter goes from light to dark state. Everything in this roundup sits between 1/20,000 and 1/30,000 of a second, with the ESAB listing 0.08 millisecond, and for most shop work the difference is academic. It stops being academic on a TIG root pass at low amperage, where a slower lens leaves a bright window at the start of the arc and you are effectively welding unfiltered while your torch is already moving.
Optical class matters as much as the number. A 1/1/1/1 rating means the filter passes acceptable light in all four measured conditions, and that fourth number is the one most people skip. If a budget lens drops to 1/1/1/2, it is passing more ambient light than the premium standard allows. In a hot shop doing long shifts, that difference shows up as eye strain months later rather than minutes later, which is why the eye strain comments in the reviews are not trivial.
Shade selection by process and gauge
Shade number controls how dark the filter gets during welding, and the shade 10 versus shade 11 question comes up constantly. The rule of thumb in a body shop is that thinner material and lower amperage need a lighter shade, because you need to see the puddle and the edges of the joint to control the bead. Thick material and high amperage need a darker shade for eye protection.
Every helmet in this roundup covers a working range that spans the processes a body shop uses, so the practical question is whether you can fine-tune within that range. Hoods that step in half-shade increments let you land on 10 or 11 rather than being forced to choose between two very different levels. Hoods with a grind mode and a cut mode save you from swapping lenses between welding a tab and shaping the filler around it.
Viewing area, light state, and confined spaces
Viewing area is the widest practical difference between the cheap and expensive helmets here. Small view areas of roughly 3.6 by 1.7 inches are fine for spot checks and simple MIG beads. Larger view areas around 3.9 by 3.6 inches let you see the puddle, the joint edges, and the surrounding panel at once, which is most of what panel welding actually is. Panoramic 180 degree shells go further but add bulk, and bulk is a real cost in a confined space.
The light state is the state you look at between passes, and it is where primer, filler, and bare metal get read. A bright, low-distortion light state lets you check panel gaps, spot a loose tack, and tell gray filler from red primer without lifting the hood. A dark or green-tinted resting state means constant hood lifting, which on a confined job is also a safety issue. If your work is mostly layout and inspection rather than long beads, weight the light state heavily in your decision.
For confined work, weigh the whole helmet rather than just the lens. A 6 ounce low profile shell like the Jackson Safety Insight fits inside spaces where a 2.55 pound panoramic hood physically will not go. Balance at the top of the head matters as much as total weight over a full shift, and sweat management in a hot shop is a real comfort factor that most spec sheets ignore.
Certification, replacement cost, and the rest of the safety system
Look for ANSI Z87.1 and CSA Z94.3 on the listing, and EN 379 or DIN EN 379 for the filter itself. A helmet with no printed standard is a gamble, and forum users are specific about this: certification printed on the product, not just claimed in a description. Welders lose their eyesight mainly through arc eye and long-term UV exposure, and the helmet is the single piece of PPE preventing both.
Replacement economics matter more in a body shop than in a hobby garage. Cover lenses get spatter-coated, scratched, and clouded constantly, and standard inexpensive covers cost far less than proprietary ones. The Lincoln Viking 3350 and the Jackson Safety Insight both use standard covers for exactly this reason. A shop that buys one hood per bay should treat the annual cover lens cost as part of the helmet’s price, and it is worth checking before you buy, especially if the brand is known for locking you into its own cartridges.
Finally, a helmet is one part of the system. Auto body work generates serious fume from e-coat, seam sealer, body filler, and coated panels, and welding fume is a serious respiratory hazard that deserves a proper extraction or respirator plan. A helmet that leaves room for a respirator underneath, and that works with a hard hat or bump cap, integrates into that system. A helmet that forces you to choose between eye protection and breathing protection does not. If you are still comparing general-purpose options, our beginner helmet guide covers the basics, and for the welding side of a panel repair setup our stud welder kit guide covers the other common body shop process.
Frequently Asked Questions
What is the best auto welding helmet?
The best auto welding helmet for body work is a true-color auto-darkening hood with at least four arc sensors, switching of 1/25,000 second or faster, a light low-profile shell, and a bright light state. The Lincoln Electric Viking 3350 leads this roundup for its 12.5 square inch 4C lens and balanced headgear, while the Jackson Safety Insight hood is better inside trunk floors and quarter panels.
How many arc sensors do I need for TIG?
Four arc sensors is the practical minimum for auto body work. Two sensors detect the arc across a narrow cone, and a low-amp TIG arc on thin aluminum produces a weaker signal than a heavy MIG arc. When you tilt the torch to reach a flange or a panel edge blocks part of the lens, a two-sensor helmet can miss the trigger and leave you looking at a live arc through a light filter.
Is shade 10 or 11 better for welding?
Shade 10 is usually the better starting point for thin automotive sheet metal and low-amperage TIG, because you need to see the puddle and the joint edges to keep the bead where you want it. Shade 11 suits slightly thicker material or a brighter bay. The best hoods in this roundup step in half-shade increments so you can choose between them rather than jumping from 9 to 13.
Which brand of welding helmet is considered the best?
Among professional body and fabrication shops, Lincoln Electric, Hobart, ESAB, and Jackson Safety carry the most weight for build quality, certification, and warranty coverage. On the value end, YESWELDER and ARCCAPTAIN hold the largest installed bases and the deepest pools of owner feedback. Working fabricators on forums consistently name the Lincoln Viking 3350 as a shop and field standard.
How often should I replace a welding helmet lens?
Replace the auto-darkening filter when it flickers, fails to darken reliably, or when the optics show haze and yellowing, and expect several years in production work. Replace the outer and inner cover lenses far more often, as soon as spatter pits and scratches obscure your view of the panel. The five year warranty on the Lincoln Viking 3350 is the longest offered among the helmets reviewed here.
Bottom Line: Which Auto Body Welding Helmet Should You Buy
The Lincoln Electric Viking 3350 is our pick for the best welding helmets for auto body work overall. The 12.5 square inch 4C lens gives you a wide, accurate view of the panel and the puddle, the 1/1/1/1 optical class holds up over a career, standard cover lenses keep the running cost low, and a five year warranty is rare in this category. It is the hood we would put on every tech in a new shop.
Buy the ESAB Sentinel A60 if TIG on thin aluminum is your main event, and the Jackson Safety Insight hood if most of your seams are inside a vehicle. For a budget or a spare hood, the YESWELDER LYG-L600A is hard to argue with, and the YESWELDER M800H covers large-view panel work for very little more. Check the latest options and current owner feedback before you commit, and whatever you choose, buy the cover lenses at the same time.
