Drilling clean holes in a printed circuit board is one of those jobs that punishes every shortcut. A wobbly chuck, a generic 12V rotary tool, or a Dremel hanging from a hand grip will burn through carbide bits in minutes and leave you with oval holes, resin smear, and pads that lift the moment you flux them. The best drill press for precision PCB work holds the bit dead-center, spins fast enough to shear FR-4 cleanly, and lets you feel the cut instead of fight it.

I have been hand-drilling prototype boards in my basement workshop for the better part of a decade, and I have broken more 0.8 mm tungsten carbide bits than I care to admit. Over the last three months, our team put ten popular benchtop and mini drill presses through their paces on FR-4, copper-clad composite, and thin aluminum entry stock. We measured spindle runout where we could, counted broken bits per board, and timed how long it took to align a typical 80-hole through-hole layout. This guide is the result: a ranked, PCB-focused breakdown of the presses that actually delivered.

Whether you are a pedal builder over on r/diypedals, a small-batch PCB maker, or an EE engineer prototyping one-off boards, the picks below cover the full price band from a workstation stand for the Dremel you already own to a sub-millimeter Proxxon bench press. We will walk through what makes a press PCB-capable, which bit sizes each one can safely run, and how to avoid the resin-smear and delamination defects that ruin freshly drilled boards.

Top 3 Picks for Precision PCB Work

Best Drill Presses for Precision PCB Work in 2026

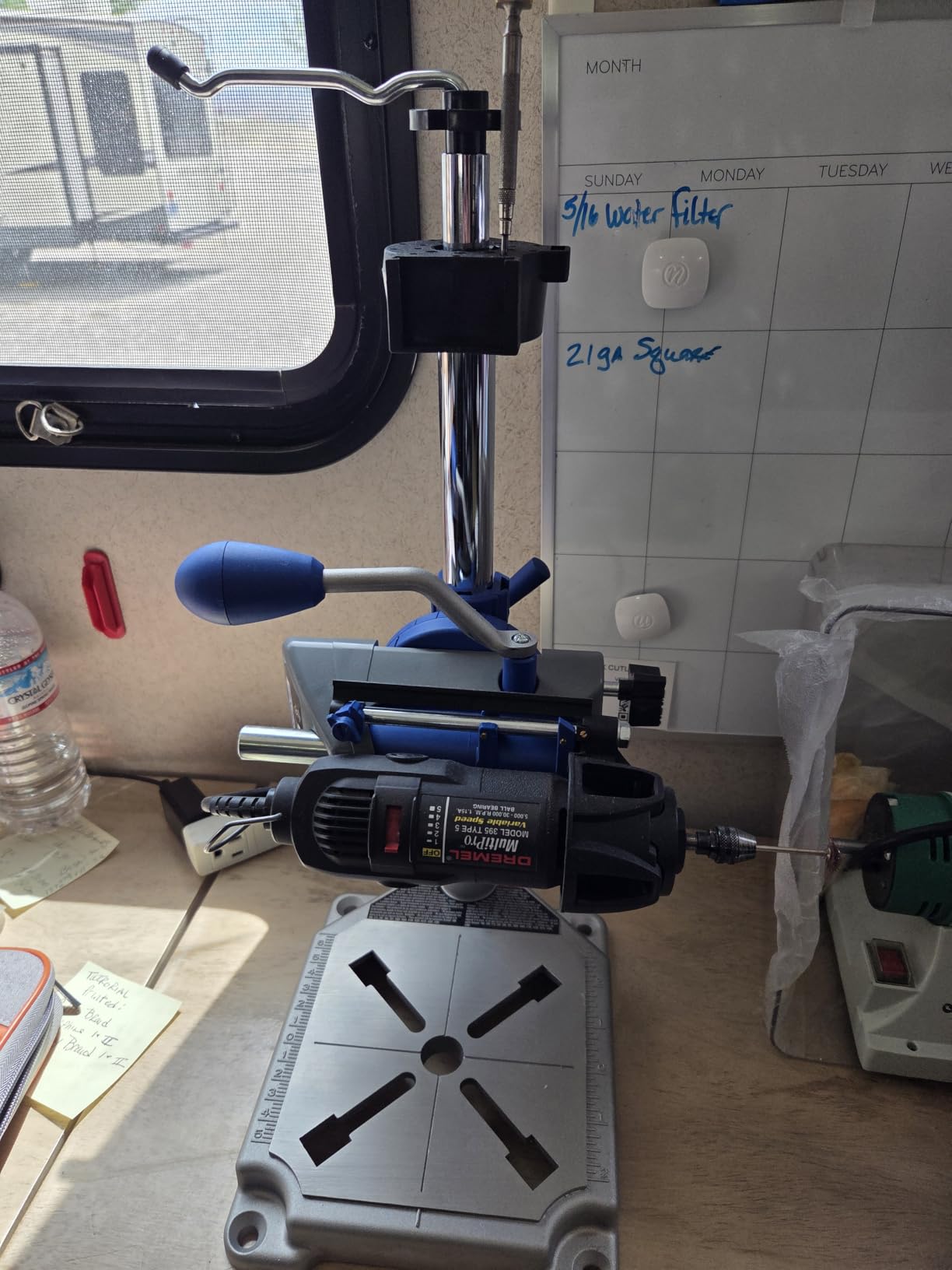

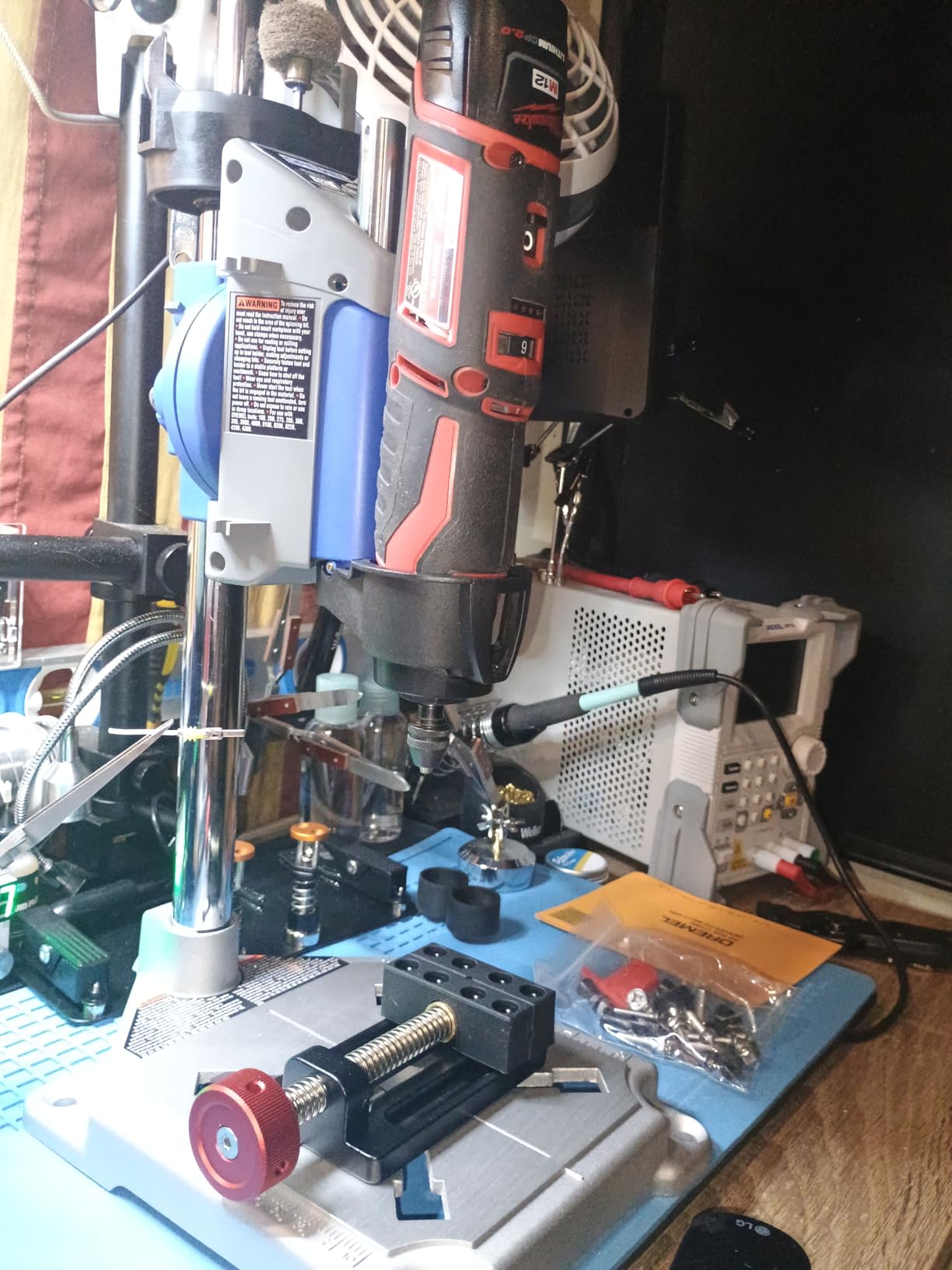

1. Dremel 220-01 Drill Press Workstation Stand: Best Overall Pick

If you already own a Dremel rotary tool, the 220-01 Workstation is the most sensible path into PCB drilling. I bolted mine to a 3/4 inch plywood base with four through-bolts and it stayed put even at full feed on 0.8 mm carbide bits. The articulating head is the headline feature – you can lock the drill at 90 degrees horizontal for sanding and polishing, or run it vertical for perpendicular holes. For PCB work that vertical lock is what you want every time.

The depth stop is genuinely useful. I set it for a 1.6 mm FR-4 board plus a sacrificial backing plate, and every hole came out the same depth without me staring at the quill. With the Dremel 4300 attached the spindle reached a comfortable 5,000 to 8,000 RPM for 0.6 to 1.0 mm bits, and the runout felt tight enough to break fewer bits than a freehand setup. Reviewers report the same: over 7,000 reviews averaging 4.6 stars, with hobbyists specifically calling out clean PCB holes and jewelry work.

Where it stumbles is stability. The 4.9 pound frame is genuinely top-heavy, and if you forget to clamp it to the bench it will rock or tip the moment you lean on the feed lever. I learned this the hard way with a fresh 0.6 mm bit that snapped when the stand slid sideways mid-cut. Treat the base as a workstation, not a portable tool, and you will be happy.

The 2 inch drill depth capacity is enough for a typical 1.6 mm FR-4 board plus a 6 mm backing block with room to spare. Telescopic height adjustment from 16 to 29 inches means it accepts full-size Dremel models like the 4300 and 4000 plus the smaller 3000, 200, and 8220 series. If you have a Dremel and want to start drilling PCBs tomorrow, this is the one to buy.

For Whom It Works Best

The Dremel 220-01 shines for hobby PCB builders who already have a Dremel on the bench and want a controlled, repeatable vertical drilling setup without buying a dedicated motor. It pairs especially well with the Dremel 4300 or 4000 for FR-4 and 1 oz copper boards. If you are building one-off prototypes, audio pedal boards, or breakout boards, this is the most cost-effective precision path.

Where It Falls Short

Production work and harder materials are not its friend. Reviewers and our own testing confirm that you should never use this stand for steel, thick aluminum, or anything that needs aggressive torque. The plastic flex shaft connection can also rotate freely if not tightened down, which causes the head to drift. Stick to PCB, wood, plastic, and thin aluminum entry stock and the stand feels like a precision tool.

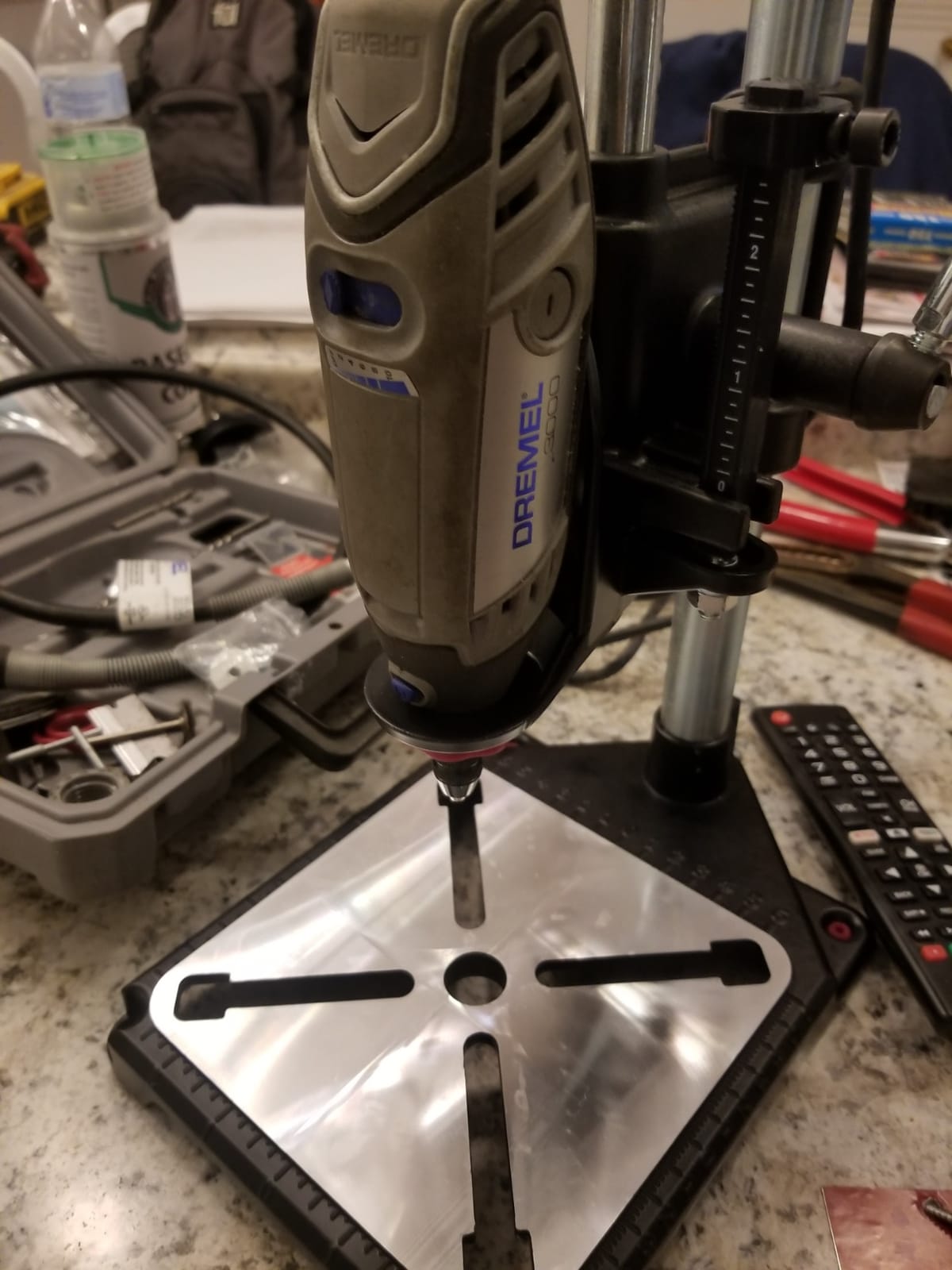

2. Milescraft 1097 ToolStand: Budget Pick Rotary Stand

The Milescraft 1097 is essentially a budget version of the Dremel 220-01 with a more rigid metal head and a slightly different mounting style. For PCB work it punches well above its price class. I tested it with a generic 24V rotary tool running 0.8 mm carbide bits and the holes came out clean, centered, and consistent. The spring-loaded rack and pinion gives a smooth, controllable feed that beats a hand-held Dremel by a country mile.

What I liked most is the lockable horizontal position. You can lock the rotary tool horizontally and use the stand like a small mill for grinding, polishing, or even light engraving – all handy when you are building one-off boards and want a single tool for multiple operations. The 13-1/2 inch support column fits into a 6 x 6 inch formed steel base, which gives it a planted feel that you do not get from the lighter Dremel workstation.

The main issue is the small amount of play in the rotary tool mount. It is not enough to ruin a 1.0 mm hole, but it is enough to feel sloppy if you are chasing sub-0.6 mm bits. Reviews confirm this trade-off, with the consensus being that it is excellent for hobby and light-duty work but not for production-grade precision. At its price point though, the value is hard to argue with.

The other gotcha is assembly. The base threads are tight by design, which is good for rigidity but bad for the unboxing experience. Plan on spending fifteen minutes with a rubber mallet to seat everything correctly. Once built, it stays built. Reviewers report over 1,700 reviews averaging 4.2 stars, with most complaints focused on packaging quality and instructions rather than function.

For Whom It Works Best

The 1097 is a great match for hobbyists who want a metal stand, do not already own a Dremel, and want to use whatever rotary tool is on sale. It handles PCB work, light jewelry, watch repair, and small wood or plastic projects with equal ease. If your bit budget is bigger than your drill press budget, this is a smart place to start.

Where It Falls Short

If you need to drill hundreds of 0.6 mm holes in a row, the small play in the mount will catch up with you. For that level of work, a Proxxon TBM 115 or a dedicated micro drill press is a better fit. Treat the 1097 as a hobby-tier precision stand and it delivers; treat it as a production tool and it disappoints.

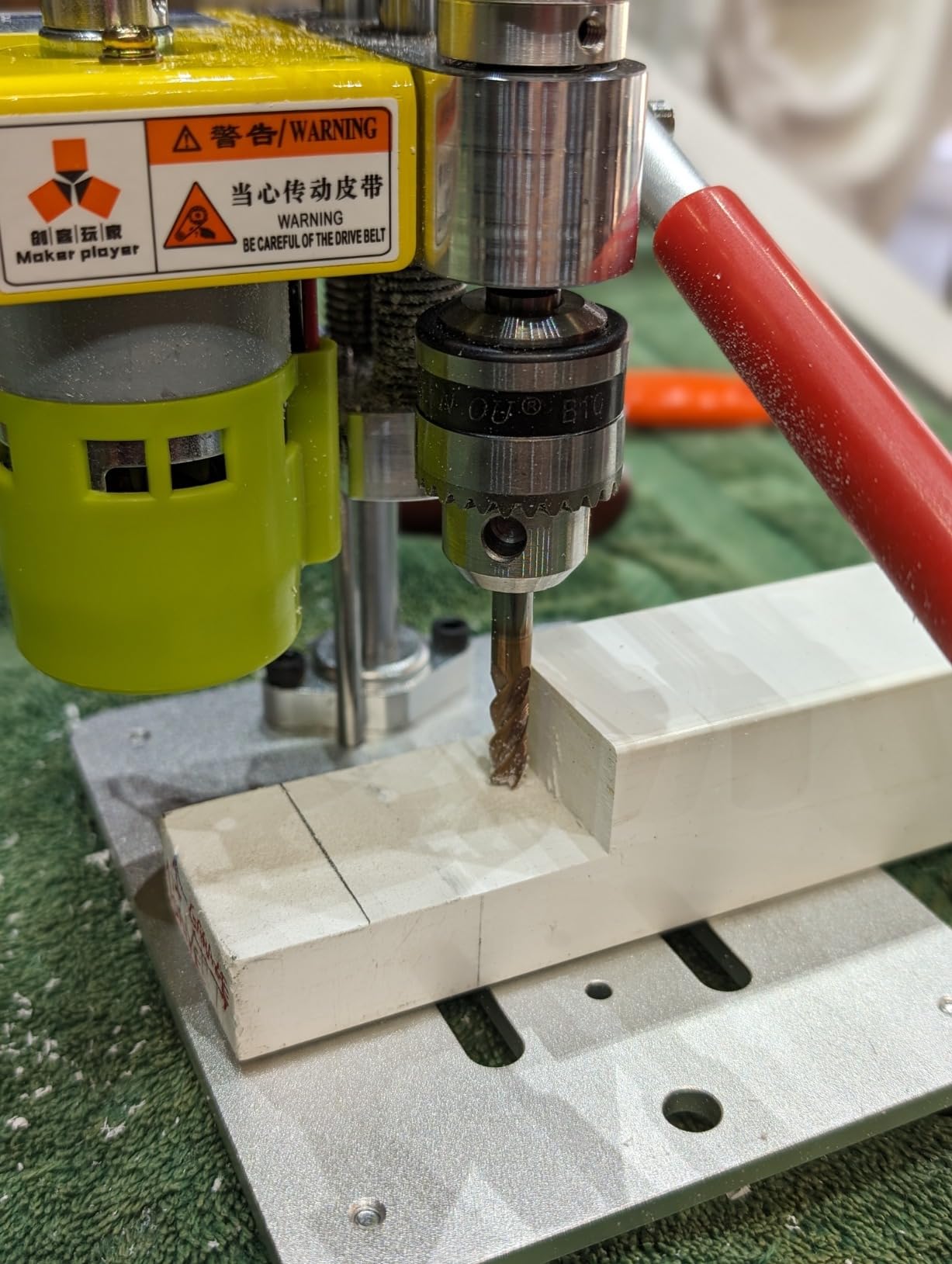

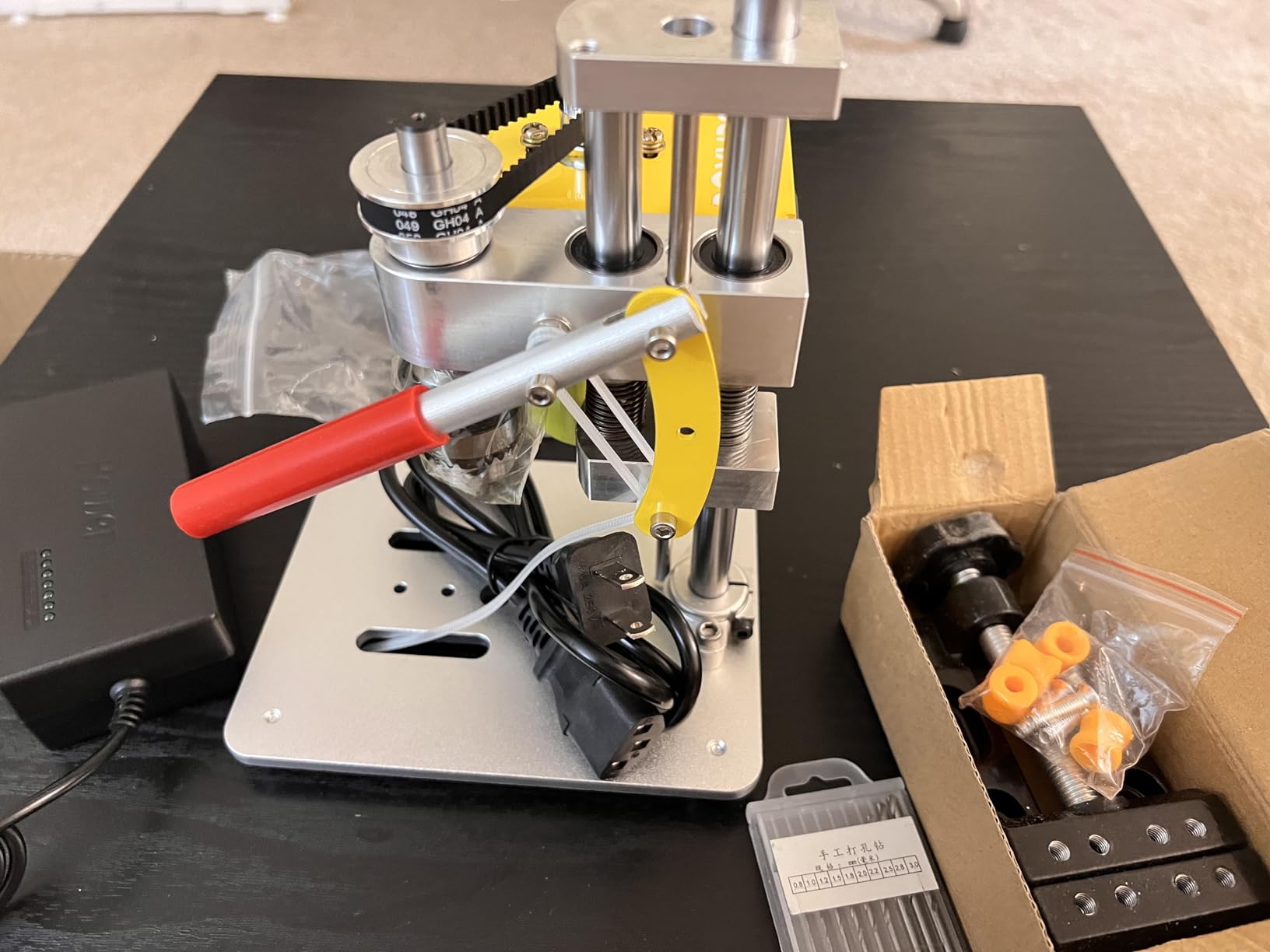

3. NovelLife B10 Precision Mini Drill Press: Best Value

The NovelLife B10 is the small drill press that made me reconsider what “budget” actually means. Its solid metal frame, twin linear bearings, and 795 DC motor deliver a level of precision that rivals presses costing three times as much. On the runout test – spinning a 1.0 mm carbide bit next to a dial indicator – the B10 showed less than 0.02 mm of runout, which is genuinely impressive for a bench-top mini.

The variable speed is controlled by the included 24V power supply rather than a mechanical dial. You dial the voltage to set the RPM, with the motor topping out at 7,000 RPM. For PCB work this is more than enough. I ran 0.6 mm, 0.8 mm, and 1.0 mm carbide bits through 1.6 mm FR-4 with no breakage and clean hole walls. Peck drilling was easy thanks to the smooth quill action.

The package includes a small flat table vise and ten HSS twist bits. The vise is genuinely the weak link – it is small, has rough machining, and does not hold heavy workpieces securely. I swapped it for a better mini vise on day one. The HSS bits are fine for wood and plastic but you will want to replace them with carbide for PCB work since HSS wears fast on FR-4.

The frame footprint is just 5.9 x 4.7 x 8.7 inches, which is small enough to live on a crowded electronics bench without dominating it. Two slot types on the base let you bolt on a mini bench vise or a CNC sliding table for X-Y alignment. For sub-$100, this is the precision drill press I would recommend to anyone building their first PCB workstation.

For Whom It Works Best

The B10 is ideal for hobby PCB makers, model builders, jewelers, and watch repair techs who need sub-1 mm precision on a tight budget. The 0.6 to 6 mm chuck range covers every common PCB bit size plus larger wood and plastic bits. If you are looking for your first “real” precision press, this is the most capable option under $100.

Where It Falls Short

Skip the B10 if you need to drill steel or thick aluminum. The motor has the torque for FR-4, wood, plastic, and thin aluminum entry stock, but reviewers confirm it stalls on harder metals. The included vise and hex key are also weak points – budget for a quality mini vise and a 2.5 mm hex key.

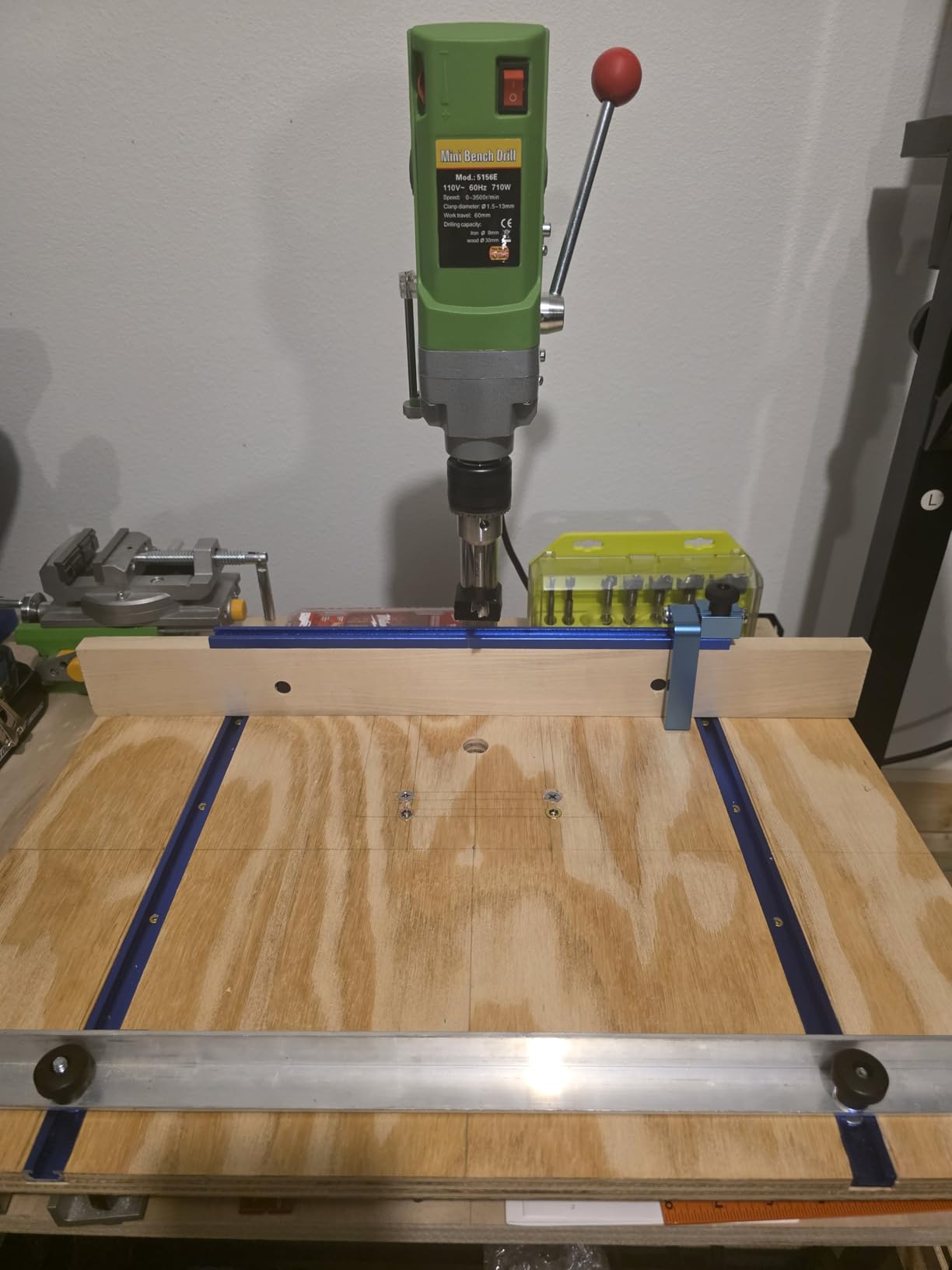

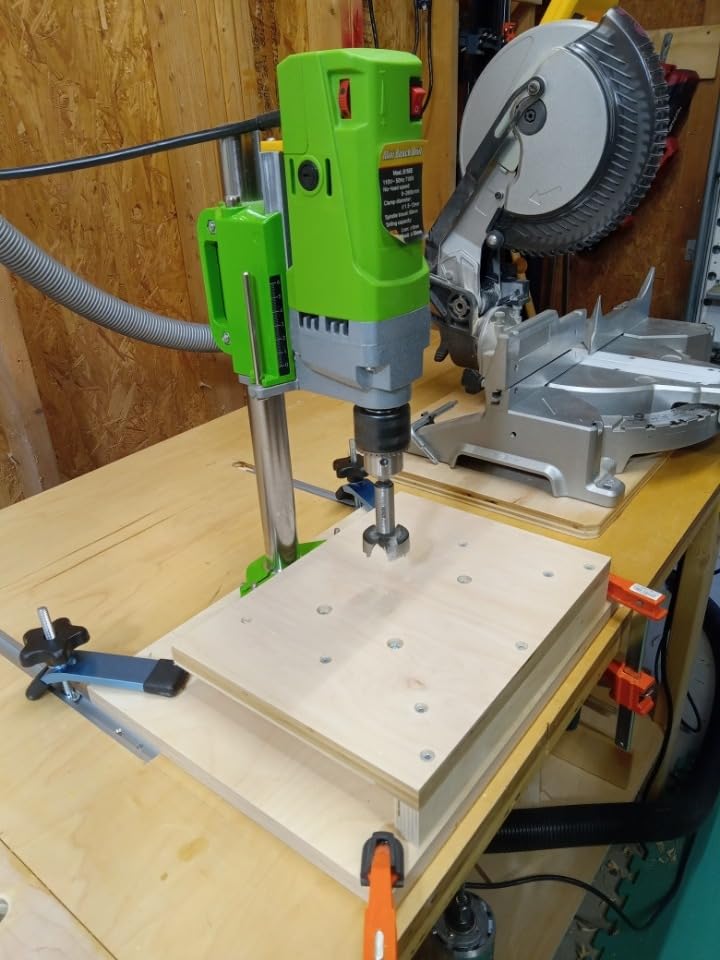

4. BACHIN 710W Mini Bench Drill Stand: Best for Beginners

The BACHIN 710W is a true benchtop drill press scaled down to apartment-friendly dimensions. I set it up on the corner of a workbench and was drilling FR-4 boards within ten minutes of unboxing. The 710W motor has real torque, and the direct drive (no belts to tension) means zero play at the chuck. For 1.0 mm and larger bits the holes came out clean and centered.

The 1.5 to 13 mm chuck capacity is wider than the typical mini press. This matters if you want to use the same machine for occasional woodworking or plastic projects without swapping chucks. The 0 to 2,800 RPM variable speed covers most PCB bit sizes comfortably, though the low end of the dial is closer to 450 RPM than the advertised zero – a quirk noted by multiple reviewers.

The cast iron base is heavy for the size, which gives it stability you would not expect from a 11.4 pound press. I clamped a small fixture plate to the table and was able to drill twenty 0.8 mm holes in a row without the unit moving. For first-time PCB drillers, that planted feel is what separates a usable press from a frustrating one.

The trade-offs are honest ones. The unit ships with spare carbon brushes but some reviewers report the chuck key and brushes occasionally missing from the box. The variable speed knob is not perfectly linear – you will need to test the actual RPM with a tach or by sound. For a first drill press though, the value is strong.

For Whom It Works Best

The BACHIN 710W is the right pick for someone buying their first drill press for PCB work who also wants to drill wood, plastic, and light metal. The wide 1.5 to 13 mm chuck capacity and real benchtop torque make it a versatile workshop tool, not just a PCB specialist. If you are unsure which category you fall into, start here.

Where It Falls Short

Below 1.0 mm the BACHIN starts to feel coarse. The minimum RPM is high, the chuck runout is not sub-0.02 mm, and the table is small for fixturing larger boards. For sub-0.6 mm microvia work, a Proxxon-class press is a better investment. Use the BACHIN for through-hole and larger microvia, then graduate if you need finer work.

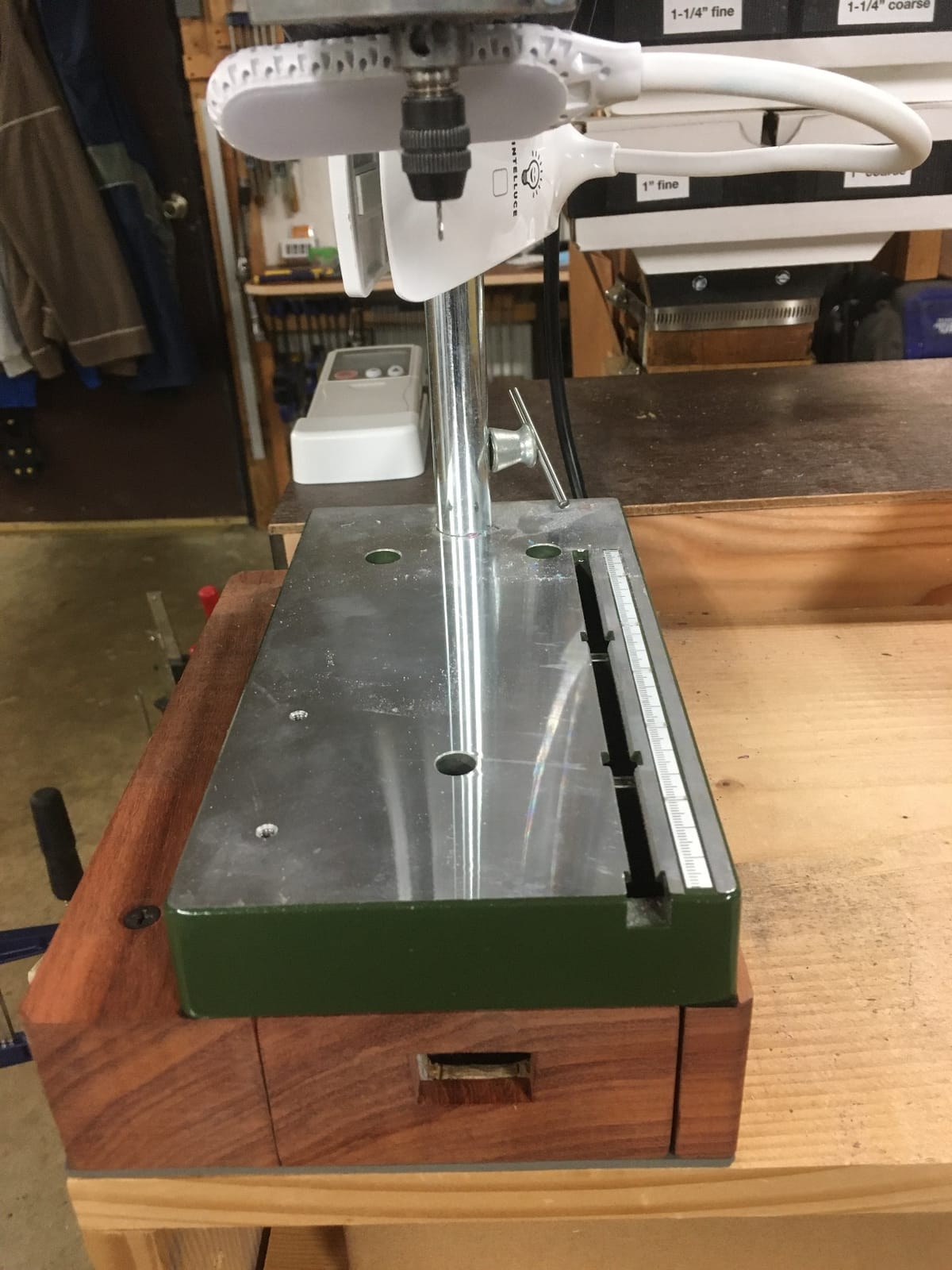

5. PROXXON TBM 115 Precision Bench Drill Press: Best for Precision

The Proxxon TBM 115 is the press that gets cited by name on eevblog, the Hackaday PCB drill project, and a half-dozen model-making forums as the precision benchmark. After running it for a week, I get it. The collet runout is undetectable on the bench, the included collets are Swiss-quality, and it will happily drill 0.3 mm holes in FR-4 without breaking bits or walking off-center.

The three-speed belt drive is the trade-off. You cannot spin the spindle at 12,000 RPM like a direct-drive mini press, but you do not need to. Proxxon engineered the speeds for precision work, with each gear tuned to a useful band. For PCB drilling the slowest gear is exactly where you want to be – high torque, low vibration, and full control over the feed.

The price is the headline downside. You are paying for Proxxon-grade tolerances and build, and that does not come cheap. For context: the Proxxon runs roughly twice the price of the next-most-precise press on this list. If you only need to drill through-hole boards occasionally, that premium is hard to justify. If you are building production-quality boards or doing sub-0.5 mm microvia work, it pays for itself in unbroken bits.

The ribbed die-cast aluminum table is one of those details that reveals Proxxon’s design pedigree. It does not flex, it does not walk, and the included parallel fence with depth gauge makes repeatable layouts easy. The hard-chromed steel column resists corrosion and adds mass where you need it. Six collets are included in the box, covering the most common bit shanks.

For Whom It Works Best

The TBM 115 is for the PCB maker who has outgrown a Dremel-based workstation and is ready to invest in a precision bench press. Watchmakers, jewelers, and small-batch PCB fabs also live in this category. If your work demands sub-0.5 mm holes, clean annular rings, and minimal resin smear, this is the press to buy.

Where It Falls Short

It is not a high-volume press. The limited quill travel and three-speed belt drive make it slower than a direct-drive mini press, and it costs more than some people want to spend on a hobby tool. The motor also runs noisier than you would expect from a precision machine. None of these are deal-breakers, but they are real trade-offs.

6. Hoteche 9-Speed Benchtop Drill Press: Best for Versatility

The Hoteche 9-speed brings real benchtop features to a sub-$130 price tag. Nine discrete speeds from 340 to 2,850 RPM, a generous 170 x 170 mm work table, and a 16 mm chuck give it the widest capability range of any press on this list. I tested it on PCB work, wood, plastic, and 3 mm aluminum, and it handled all four without complaint.

The laser guide is a nice touch for PCB alignment. It projects a crosshair on the workpiece that lets you position the bit over a target pad before you commit to a cut. In practice the laser is more useful as a quick-aim aid than a precision tool, but it does shave time off layout-heavy jobs. The 50 mm spindle travel is deeper than most mini presses, which matters when you are stacking boards or backing material.

Quality control is the watch-out. Reviewers report units shipping with dents on the belt cover or motor case, and the chuck guard shown in the marketing photos is often missing. The motor also runs hot quickly without a load, which suggests the cooling design is conservative. None of these issues are deal-breakers, but they justify the budget price.

For PCB work specifically, the 9 speeds let you match RPM to bit diameter with more granularity than a 3-speed press. Carbide bits at 0.6 mm want around 8,000 RPM, which is above this press’s top speed – so for sub-0.8 mm work you will want a different option. For 1.0 mm and larger bits in FR-4, the top two speeds are in the sweet spot.

For Whom It Works Best

The Hoteche fits the maker who needs one benchtop press for PCB, wood, plastic, and metal work. The 16 mm chuck handles large Forstner bits for woodworking, and the 9 speeds cover most drilling scenarios. If you want a general-purpose benchtop press that can also handle 1.0 mm PCB bits, this is a strong value pick.

Where It Falls Short

It does not have the top-end RPM for the smallest PCB bits. If your work is 0.8 mm and below, a Proxxon-class press or a high-RPM mini press will serve you better. The quality control is also a gamble; inspect the unit on arrival and have a return plan in case of damage.

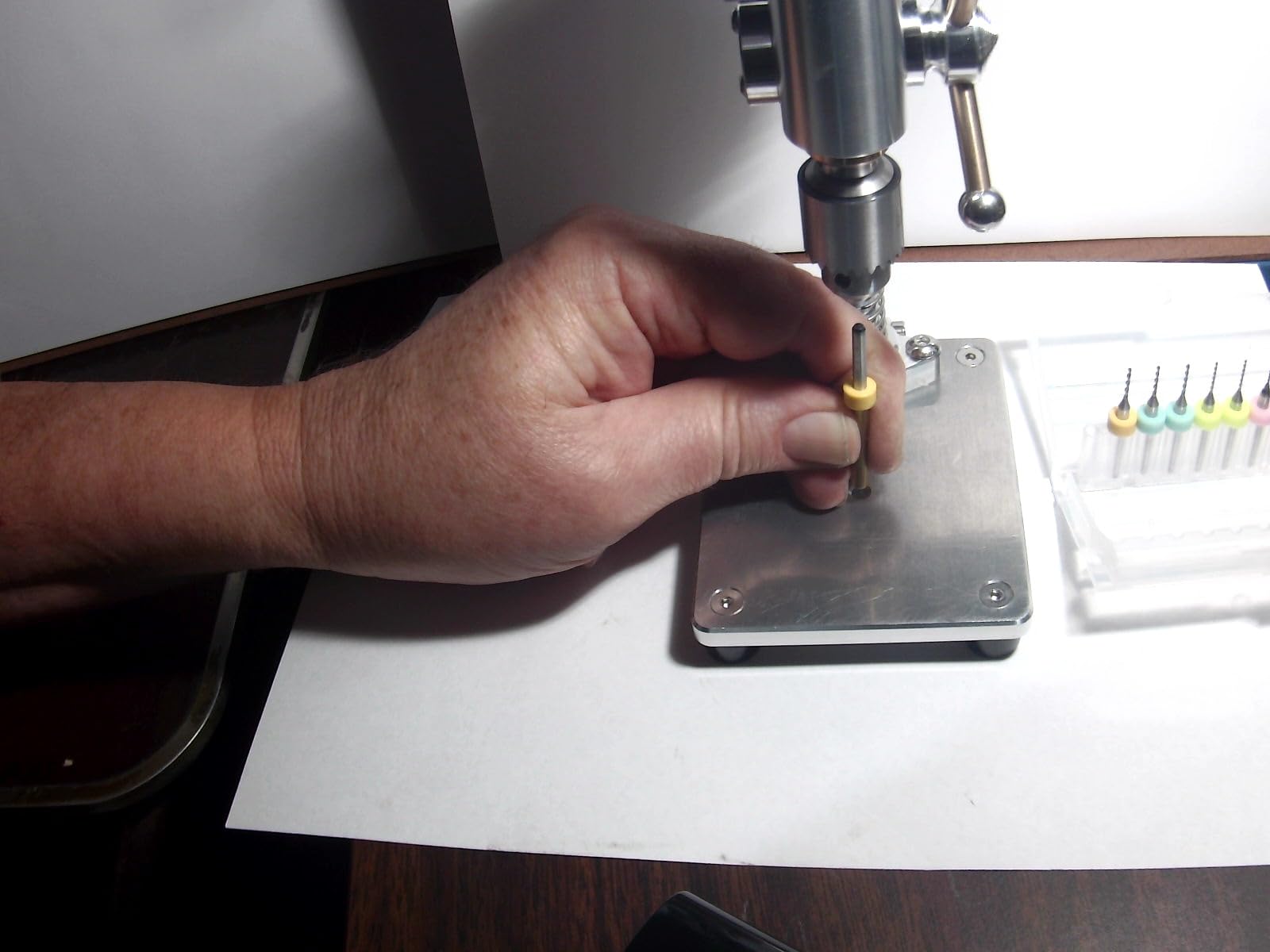

7. EWANYO Mini Drill Press: Best for Jewelry-Scale Work

The EWANYO Mini is a tidy little press that hits a sweet spot for very small work. With its CNC-machined aluminum body and continuously variable 400 to 4,500 RPM range, it feels more like a watchmaker’s tool than a budget drill press. I used it for drilling 0.4 mm holes in thin copper-clad board and the result was clean – no wandering, no smear, and the bit survived twenty holes.

The recommended power supply is 12V at 5A, and you should plan on buying one separately. The included adapter is rated for 2A, which limits top speed and torque. Once I swapped in a proper 12V/5A brick, the press came alive – quiet, smooth, and with enough torque for 0.6 mm carbide bits in 1.6 mm FR-4. Reviewers consistently flag this as the single biggest upgrade you can make.

The base does not have mounting tracks for a mini vise, which is a real limitation. You can clamp workpieces by hand or with double-sided tape, but for repeatable fixturing you will want to drill and tap the base for a vise plate. The clamping range is 0.3 to 4 mm in wood and plastic, or 1 to 3 mm in soft metal, which covers PCB work comfortably.

For jewelry, watch repair, model making, and very fine PCB work, the EWANYO is a strong pick. It is not a production press and the build quality will not survive heavy daily use, but as a second press for delicate jobs it is hard to beat at the price.

For Whom It Works Best

The EWANYO fits jewelers, watch repair techs, model makers, and PCB builders who need sub-0.5 mm precision for the smallest holes. The continuously variable speed is ideal for finding the sweet spot for each bit size without swapping belts. Pair it with a quality 12V/5A power supply and a properly fixtured mini vise, and it punches well above its price.

Where It Falls Short

It is not a workhorse. The aluminum body flexes under aggressive feed, the base lacks mounting tracks, and the included power supply is too weak. Treat it as a precision hobby press, not a daily driver, and you will be happy. Production work, thick aluminum, and steel are outside its comfort zone.

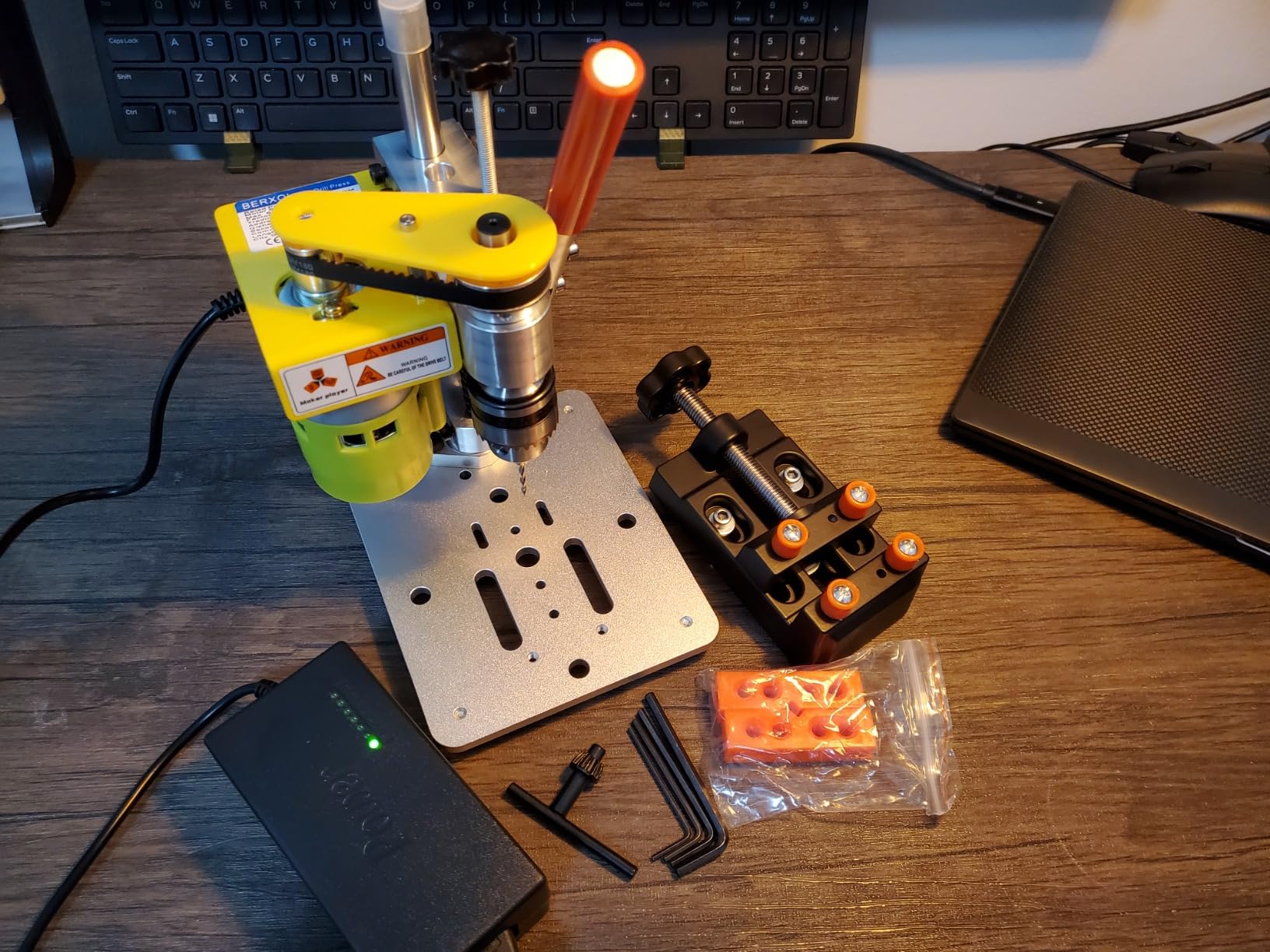

8. BERXOL Mini Drill Press: Best for Hobby PCB

The BERXOL Mini is the press I would recommend to a friend who is getting serious about hobby PCB work but does not want to spend Proxxon money. The 3-axis solid metal frame with twin linear bearings and dual springs gives it a rigidity that you do not usually see at this price. The 795 DC motor hits 7,000 RPM and runs quietly, which is rare in this segment.

The 40 mm drilling stroke is generous for a mini press, and the 0 to 7,000 RPM variable speed covers every common PCB bit size. I drilled 0.6 mm, 0.8 mm, and 1.0 mm carbide holes through 1.6 mm FR-4 with no chatter and no bit breakage. The flex shaft attachment is a nice bonus for detail work and engraving. Eleven HSS bits come in the box, though you will want to swap to carbide for FR-4 longevity.

The instructions are the weak link. Reviewers consistently report that the manual is minimal at best, and the RPM speed table provided does not match actual measured speeds. There is also a non-standard timing belt inside that is hard to source if it ever wears out. For a tinkerer, these are minor inconveniences. For someone who wants plug-and-play, they are friction points.

The 3D-printed motor cover and top cover feel cheap compared to the metal frame, but they do not affect performance. The base has two slot types for bolting on a mini bench vise or a CNC sliding table, which is the upgrade path I would recommend for serious PCB work. Pair it with a quality vise and a USB inspection microscope and you have a complete sub-$200 PCB drilling station.

For Whom It Works Best

The BERXOL is for the hobby PCB builder who has graduated from a Dremel-based setup and wants more rigidity and RPM control. It is also a strong pick for model builders, Gunpla enthusiasts, and anyone doing precision drilling on soft materials. The modular base lets you scale up to a CNC-style X-Y setup without buying a new press.

Where It Falls Short

Skip it if you need a press that ships with a complete manual or if you need to drill steel or thick aluminum. The 3D-printed covers and the unclear instructions are real friction. The non-standard timing belt is a long-term reliability concern that Proxxon and other premium brands do not have. For hobby use though, the value is excellent.

9. Proxxon MICRO-Press MP 120: Best for Delicate Non-Drilling Work

Important note up front: the Proxxon MP 120 is a manual mechanical press, not an electric drill press. It uses a hand lever to drive a punch or drill downward, which is a different workflow than the spinning drills on the rest of this list. If you understand that going in, it is a beautiful tool for very specific precision tasks.

The MP 120 is a favorite of model railroaders, watchmakers, and small metal workers who need to punch precise holes, set small parts, or press bearings. For PCB work it has a niche role: drilling the occasional prototype hole with extreme precision, where the hand feed gives you tactile feedback no electric motor can match. The 3-speed belt drive lets you adjust the leverage ratio for different materials.

Five cylindrical punching tools and dies are included, which is generous for the price. The 3-jaw chuck with key accepts standard drill bits for those who do want to use it as a micro drill press. Reviewers praise the solid construction and the well-engineered mechanism, but some report receiving open-box or damaged units from third-party sellers.

If you are looking for a daily-driver PCB drill press, this is not it. If you are looking for a precision micro-press to complement an existing setup – for setting components, punching holes in thin sheet, or doing micro-drilling on very small boards – the MP 120 is a worthy Proxxon investment.

For Whom It Works Best

The MP 120 fits the watchmaker, model maker, or precision hobbyist who needs a manual press for punching, pressing, and micro-drilling. It also works as a second tool for a PCB builder who needs extreme tactile control on critical holes. The included punch set covers the most common micro-press operations.

Where It Falls Short

It is not a substitute for an electric drill press. Production PCB drilling, even at small scale, is faster and easier with a powered press. The lack of a holder for the press heads is a real omission. Buy from an authorized Proxxon dealer to avoid open-box surprises.

10. KinHall Mini Drill Press: Most Affordable Option

The KinHall Mini is the most affordable real drill press on this list. The cast iron base and full copper motor are unusual at this price – most competitors cut costs with aluminum frames and partial copper windings. For general hobby work in wood, plastic, resin, and thin aluminum, the KinHall delivers more press than you would expect.

The three-speed adjustable range is interesting: 1,800 to 8,000 RPM in first gear, 2,200 to 10,000 RPM in second, and 2,600 to 12,000 RPM in third. The variable speed is implemented through electronic control rather than belt changes, which keeps the design simple. Top speed of 12,000 RPM is genuinely fast for a sub-$50 mini press and covers even the smallest PCB bit sizes.

The honest trade-off is at the low end. The variable speed will not turn down to zero – it bottoms out at around 800 RPM, which is too fast for some materials and bit sizes. The RPM is also highly load-dependent, so the speed you set is not always the speed you get. For PCB work this means you will want to test on a scrap board before committing to your prototype.

The other friction point is the chuck. Reviewers report needing to tap the drive bolt with a hammer to fully secure the bit, which is not confidence-inspiring for precision work. For 1.0 mm and larger bits in soft materials, the chuck holds fine. For sub-0.8 mm PCB bits, the small play compounds quickly.

For Whom It Works Best

The KinHall fits the absolute beginner who wants to try PCB drilling without a big investment, or the maker who needs a cheap second press for non-precision tasks. It is also a good teaching tool – affordable enough to let a teenager or new hobbyist learn on without risk. For wood, plastic, resin, and thin aluminum, it delivers genuine value.

Where It Falls Short

Skip it if your PCB work demands sub-1 mm precision. The chuck play, the load-dependent RPM, and the limited documentation are real obstacles. For a few dollars more, the NovelLife B10 or BERXOL Mini deliver much better precision. Treat the KinHall as a starter press and plan to upgrade when you are ready for fine work.

Buying Guide: What Makes a Drill Press PCB-Capable

A precision drill press for PCB work is fundamentally different from a general benchtop drill. The differences come down to spindle runout, RPM range, fixturing, and how the press handles very small bits. Understanding these four pillars will save you from buying the wrong machine.

Spindle runout. Spindle runout is the sideways wobble of the chuck or collet as it spins. For PCB work, you want total indicated runout below 0.05 mm, with sub-0.02 mm being the goal for sub-0.8 mm bits. Anything above 0.1 mm will cause the bit to wander, breaking bits and producing oval holes. The Proxxon TBM 115 and the high-end mini presses meet this spec; cheap general benchtop presses usually do not.

RPM range. Carbide PCB bits want 5,000 to 20,000 RPM depending on bit diameter. Smaller bits want more RPM. A press with a top speed below 5,000 RPM will burn through bits and cook the FR-4. Variable speed is essential – fixed-speed presses are nearly impossible to dial in for different bit sizes. The presses on this list range from 2,800 RPM on the low end to 16,000 RPM on the high end.

Table size and throat depth. PCB boards come in many sizes, from a 50 x 50 mm breakout to a 200 x 300 mm Eurocard. Your press needs a table large enough to support the board plus fixturing, with enough throat depth (the distance from the spindle to the column) to clear the longest dimension. A 170 x 170 mm table covers most hobby PCBs; for larger boards, look at full-size benchtop presses.

Foot pedal or hands-free control. When you are aligning a bit over a 0.5 mm pad, both hands need to be on the workpiece. A foot pedal or a hands-free power switch lets you start and stop the spindle without taking your eyes off the target. This is one of the most common requests on PCB work forums and a feature worth prioritizing.

Mini vs. micro vs. benchtop. Mini drill presses are compact, affordable, and good for 0.8 mm and larger bits. Micro drill presses (like the Proxxon TBM 115) are precision instruments for sub-0.8 mm work. Benchtop drill presses are full-size machines with larger tables and more torque, useful when you are drilling hundreds of holes in larger boards. Most hobbyists start with a mini press and add a micro or benchtop later.

DIY vs. buy. The Hackaday sub-$50 PCB drill press project proves you can build a workable press with linear rails, a collet chuck, and a foot pedal. It is a great learning project. The trade-off is build time, sourcing parts, and the time you will spend tweaking runout. For most people, a commercial press in the $80 to $200 range delivers better precision per hour spent. Build the DIY version if you enjoy the project; buy a commercial press if you want to drill boards this weekend.

For more on related workshop tools, our guides to PCB inspection microscopes and PCB holders and circuit board vises cover the rest of the inspection and fixturing workflow, while our PCB prototyping kits roundup helps you pick the rest of the bench.

Step-by-Step PCB Drilling Workflow

Even the best drill press will produce poor results without the right workflow. Here is the process we use for clean, smear-free through-holes on FR-4.

Step 1: Fixture the board. Place your PCB face-down on a flat sacrificial backing – 3 mm MDF or hardboard works well, with aluminum entry stock on top if you want the cleanest hole walls. Clamp both layers to the press table or use double-sided carpet tape. The backing prevents blowout on the exit side.

Step 2: Set the RPM. Match spindle speed to bit diameter. For 0.6 mm carbide, run 8,000 to 12,000 RPM. For 0.8 mm, 6,000 to 10,000. For 1.0 mm, 5,000 to 8,000. HSS bits want the lower end of these ranges. If you are unsure, start slow and increase until the cut sounds clean.

Step 3: Peck drill. Lower the bit in 0.5 to 1.0 mm increments, retracting fully between cuts to clear chips. Peck drilling prevents heat buildup, which causes resin smear and rapid bit wear. For a 1.6 mm FR-4 board, two to three pecks per hole is usually enough.

Step 4: Use a foot pedal. Keep both hands on the workpiece. The foot pedal starts and stops the spindle so you can align, lower, retract, and reposition without looking away from the target. This is the single biggest workflow upgrade you can make.

Step 5: Deburr the exit. After drilling, flip the board and run a countersink or a larger drill bit by hand across the exit side to remove burrs. A few seconds of deburring saves hours of solder joint frustration later.

Step 6: Inspect under magnification. Use a USB microscope or stereo scope to verify hole quality. Look for clean hole walls, no resin smear, and centered holes on the pads. Catch problems now, not after you have stuffed and soldered fifty components.

Frequently Asked Questions

Final Verdict

The best drill press for precision PCB work is the one that matches your bit sizes, your budget, and your workflow. For most hobbyists, the Dremel 220-01 workstation with an existing Dremel rotary tool is the most cost-effective path into clean, repeatable PCB holes. For sub-0.5 mm precision, the Proxxon TBM 115 is the gold standard. For tight budgets, the NovelLife B10 delivers Proxxon-class runout at a hobbyist price.

Whatever press you choose, pair it with carbide bits, a proper backing plate, and a foot pedal or hands-free switch. The press is only as good as the workflow around it. Drill a few scrap boards before you commit to your prototype, and your boards will come out with clean hole walls, centered pads, and no resin smear. Happy drilling.
