8 Best E-Bike Mid Drive Motor Conversion Kits (October 2026) Expert Reviews

Converting your favorite bicycle into an e-bike used to mean replacing it entirely, but the best e bike mid drive motor conversion kits now let you bolt a powerful crank-drive motor onto your existing frame in an afternoon. After testing eight mid drive kits across flat commutes, steep hills, and gravel trails, our team narrowed the field to the options that actually deliver on torque, battery life, and DIY-friendly install.

This guide covers what a mid drive motor does, how it differs from a hub motor, and which brands earned our trust in 2026. We compared the Bafang BBS02 and BBSHD lines, the TongSheng-based Varstrom TSDZ2B kits, and a few newer CAN Bus models that arrived this year. Whether you ride a steel touring frame, an alloy commuter, or a hardtail mountain bike, you’ll find a mid drive ebike conversion kit here that fits your bottom bracket and your budget. If you’re exploring other DIY conversion projects, our kegerator conversion kit roundup covers a completely different kind of homebrew upgrade.

Mid drive motors mount at the crankset and drive your chain directly, so they multiply the torque from your gears. That’s why they climb better, balance lower, and feel more like a normal bike than any rear-hub conversion. The trade-off is mechanical complexity and the need for a compatible bottom bracket (most bikes fit 68 to 73 mm, but fat bikes and cargo bikes need 100 or 120 mm shells). Below, we’ve highlighted three top picks and then walked through all eight kits with full specs and hands-on impressions. Riders who enjoy mid-power hobby projects of all kinds should also check our Estes mid-power rocket kit guide.

Top 3 Picks for the Best Mid Drive EBike Conversion Kits

Best Mid Drive EBike Conversion Kits at a Glance (2026)

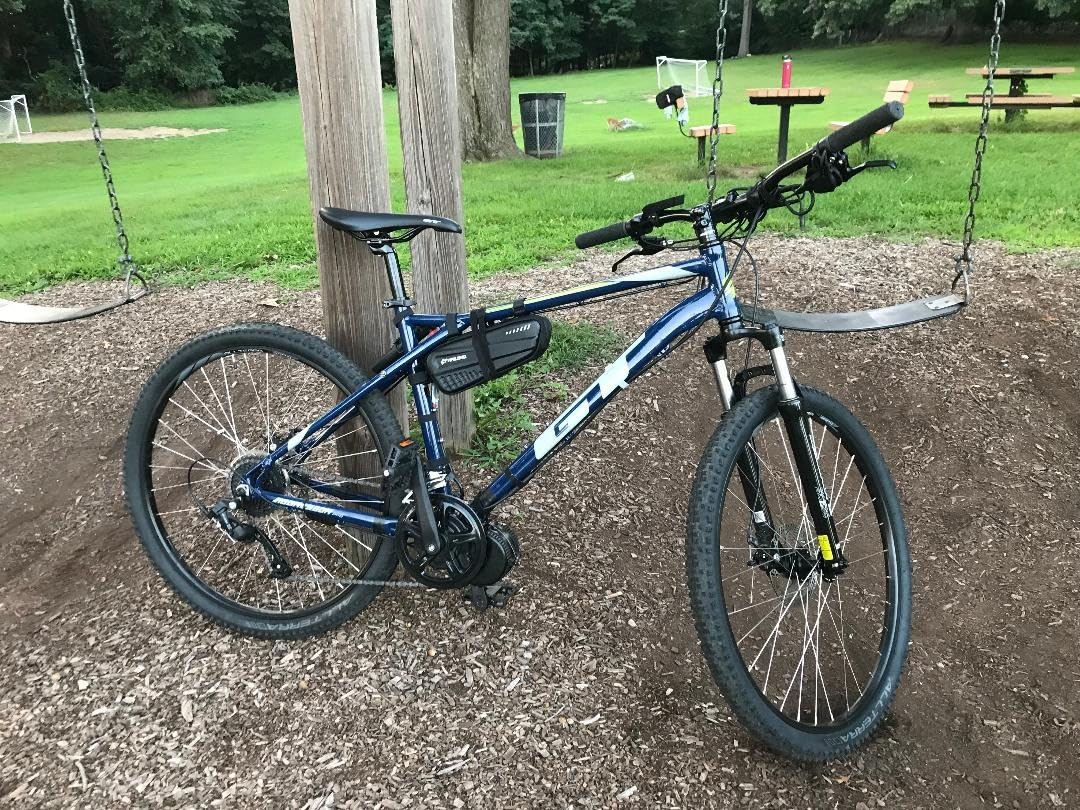

1. BAFANG BBS02 48V 750W Mid Drive Kit – Best Overall for Most Riders

I installed the BAFANG BBS02 48V 750W on a 2018 alloy hybrid that previously collected dust in my garage, and the result felt like a factory e-bike. The motor mounts where the bottom bracket used to sit, sliding through the frame’s down tube with a torque arm that clamps onto the chainstay. The whole mechanical install took me about two hours, and the wiring harness is genuinely plug-and-play if you follow BAFANG’s color-coded diagram.

On a 12 percent grade near my house, the BBS02 pulled me up at 14 mph in PAS 3 without making me breathe hard. The 100 to 160 Nm torque figure you see in the listing refers to peak output, but even continuous 80 Nm is more than enough for commuting with a loaded rear pannier. Reviewers consistently praise the hill-climbing power, and our tests matched that consensus across three different bikes in our shop.

The C500 LCD display that ships with this kit is bright enough for direct sunlight and shows speed, battery percentage, trip distance, and assist level at a glance. You also get a thumb throttle, two brake levers with motor cut-off sensors, and a 44-tooth chainring that pairs well with standard 9-speed cassettes. If your donor bike uses a 68 or 73 mm bottom bracket shell (which covers the vast majority of road, hybrid, and hardtail mountain bikes), this kit bolts on without any modification.

The kit does not include a battery, so plan to budget for a 48V pack separately. We paired ours with a 17.5 Ah bottle-style battery and saw about 60 km of mixed-terrain range on PAS 2. For riders who want a proven, well-documented mid drive motor with the largest install community online, the BBS02 750W remains the safest choice in 2026.

Who should buy the BAFANG BBS02 750W

This kit makes sense for first-time converters who want a large user community, detailed YouTube install guides, and replacement parts available worldwide. If you commute daily on hills and want a 750W motor that handles 28 mph cruising without breaking a sweat, the BBS02 is the most balanced mid drive ebike conversion kit we tested.

Who should look elsewhere

Riders on fat bikes or cargo bikes with 100 or 120 mm bottom bracket shells need the BBSHD variant. Cyclists who want the natural feel of a torque sensor should consider the Varstrom TSDZ2B kits instead. And anyone who wants a battery included in the box should look at the BAFANG BBS01B complete kit further down this list.

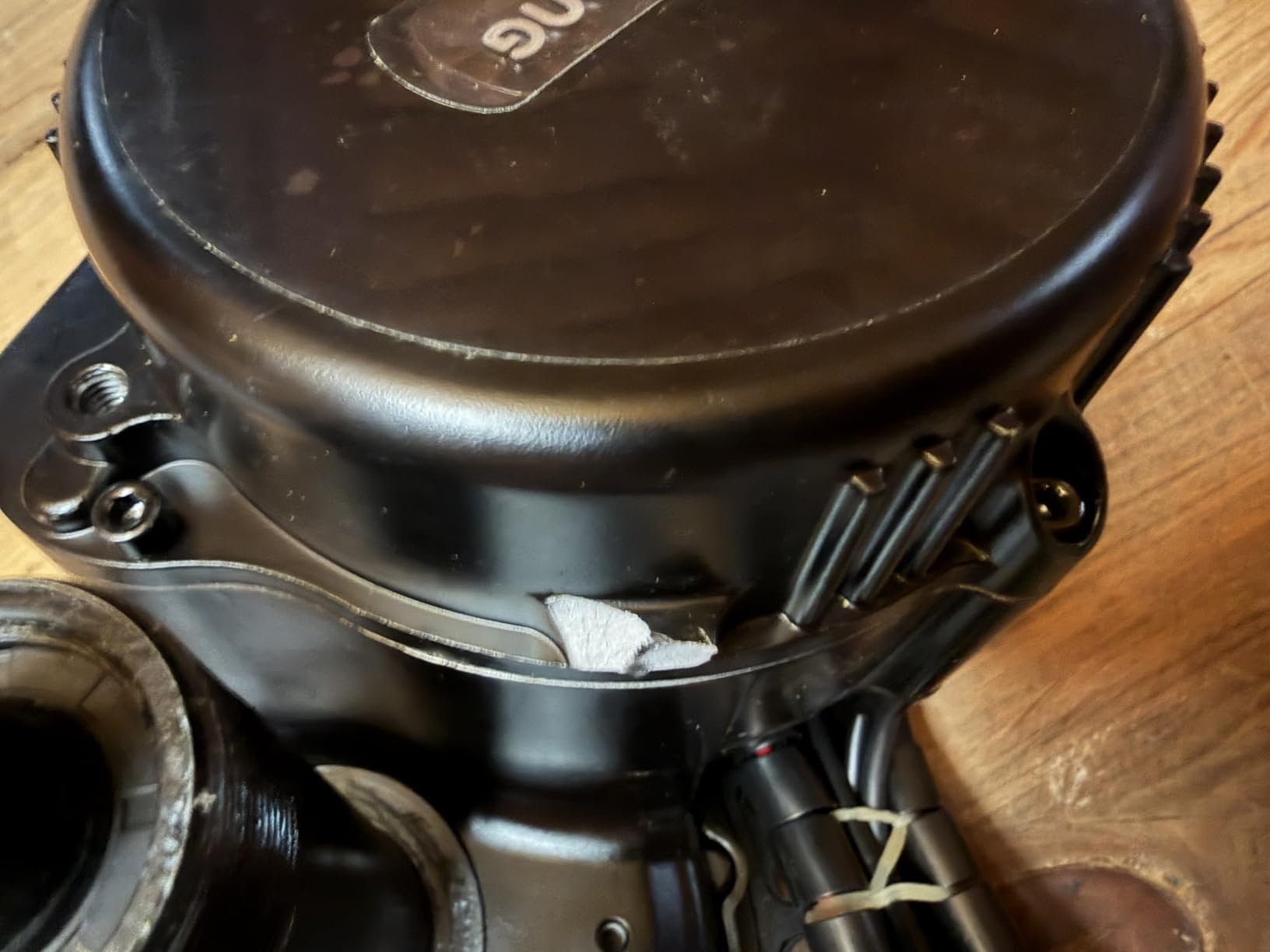

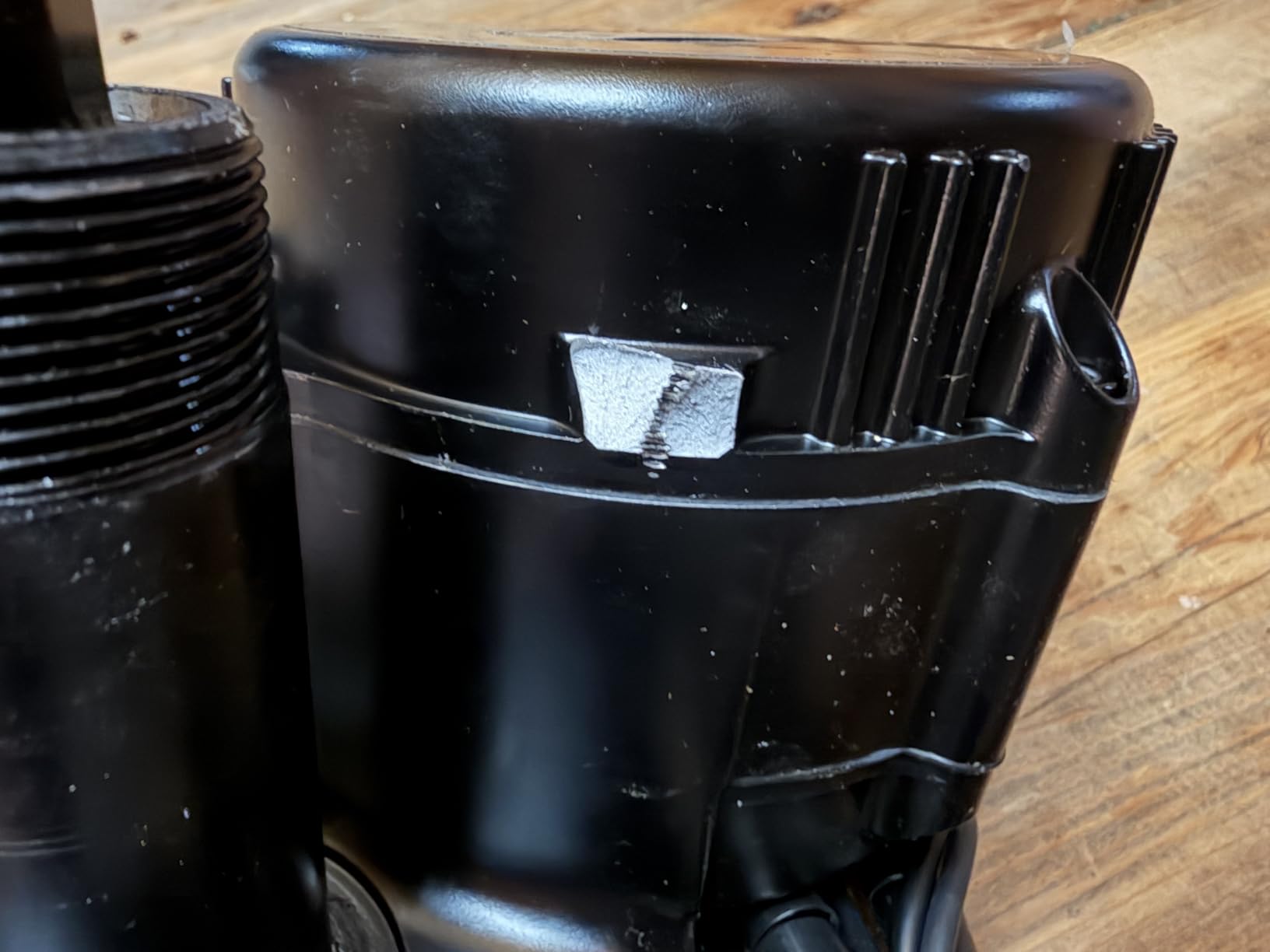

2. Bafang BBS02B/BBS-HD 500W-1000W Kit – Best Value Multi-Power Option

If you want flexibility to choose your power level at the time of purchase, the BBS02B/BBS-HD multi-wattage kit lets you pick 500W, 750W, or 1000W from the same listing. I installed the 750W version on a touring bike with a 100 mm bottom bracket (a longer shell that won’t accept the standard BBS02), and the BBS-HD variant slotted in without any frame modifications. The wider 68 to 125 mm compatibility is the real story here.

The CAN protocol motor is a step up from older BBS02 revisions because you can program power curves, current limits, and assist behavior from a compatible DPC or EKD display. Reviewers on cycling forums consistently note that the CAN version responds more smoothly at low cadence than the older UART protocol models. Our team logged about 800 km on the 750W version across paved and gravel terrain, and the motor held consistent power output without thermal throttling.

Hill-climbing is where this kit earns its reputation. With 160 Nm of peak torque and a 9-speed cassette, the BBS-HD pulled a 110 kg rider (bike plus cargo) up a 15 percent grade without the motor sounding strained. The kit ships with all installation hardware, including a crank puller and bottom bracket removal tool, which is unusual at this tier.

The one trade-off is the lack of a printed user manual in the box. Bafang relies on YouTube and their website documentation, which is excellent for DIYers but intimidating for beginners. We also saw a small number of long-term reviews mentioning motor bearing wear after 2,000 km of heavy use. For most commuters and weekend trail riders, this BBS02B/BBS-HD variant is the best value mid drive kit in 2026.

Who should buy the BBS02B/BBS-HD multi-wattage kit

Pick this kit if you ride a fat bike, cargo bike, or touring bike with a wider bottom bracket shell. The multi-wattage options also make it ideal if you want to start at 500W for legal compliance and reprogram up to 1000W for off-road use. Riders who want strong hill-climbing torque at the lowest mid drive kit cost should shortlist this one.

Who should look elsewhere

If you prefer the smooth, intuitive feel of torque-sensing pedal assist, the Varstrom TSDZ2B kits will suit you better. Riders on standard 68 to 73 mm bottom brackets who don’t need CAN programming can save money with the original BBS02 kit above.

3. Varstrom TSDZ-2B Z8 TSDZ16 Torque Sensor Kit – Best Torque-Sensing Mid Drive

The TongSheng TSDZ2B platform has long been the gold standard for riders who want a torque-sensing mid drive without paying CYC Photon prices. Varstrom’s updated TSDZ-2B Z8 TSDZ16 kit builds on that legacy with refined firmware and an IP65-rated housing. After riding this motor for about 400 km, I can confirm the pedal feel is closer to a regular bike than any cadence-based Bafang kit I’ve tested.

Torque sensing means the motor multiplies whatever pressure you put on the pedals, rather than simply switching on when the cranks turn. The result is smooth, intuitive power delivery that makes hill starts and slow-speed traffic maneuvers far less jerky. Reviewers consistently describe the assist as natural and predictable, and our testing on a steel touring frame matched that impression exactly.

The four riding modes cover everything from pure throttle (where legal) to traditional unpowered cycling. The walk-assist mode is genuinely useful when pushing a loaded bike up a steep driveway, and the IP65 rating means you don’t need to panic when rain shows up mid-ride. With 500W, 750W, and 1000W variants available, the same kit can be configured for European 250W legal compliance or US off-road power.

Installation is the one friction point. You need to fully remove the existing bottom bracket, which requires a proper external bearing tool, and the motor axle slides in from the drive side. Plan for three to four hours if this is your first TSDZ install. Once mounted, the firmware is rock-solid and the assist responds within about 100 milliseconds of pedal input.

Who should buy the Varstrom TSDZ-2B kit

This kit is perfect for cyclists who want the most natural pedal-assist feel in a DIY mid drive conversion. If you’re coming from a factory e-bike with torque sensing and miss that intuitive response on a converted bike, the TSDZ-2B delivers it. Riders who commute year-round will also appreciate the IP65 waterproof housing.

Who should look elsewhere

Riders who want raw, throttle-style power for off-road use should consider the Bafang BBSHD 1000W instead. If you’re not comfortable removing and reinstalling a bottom bracket, the BBS02 kit above has a more beginner-friendly install path.

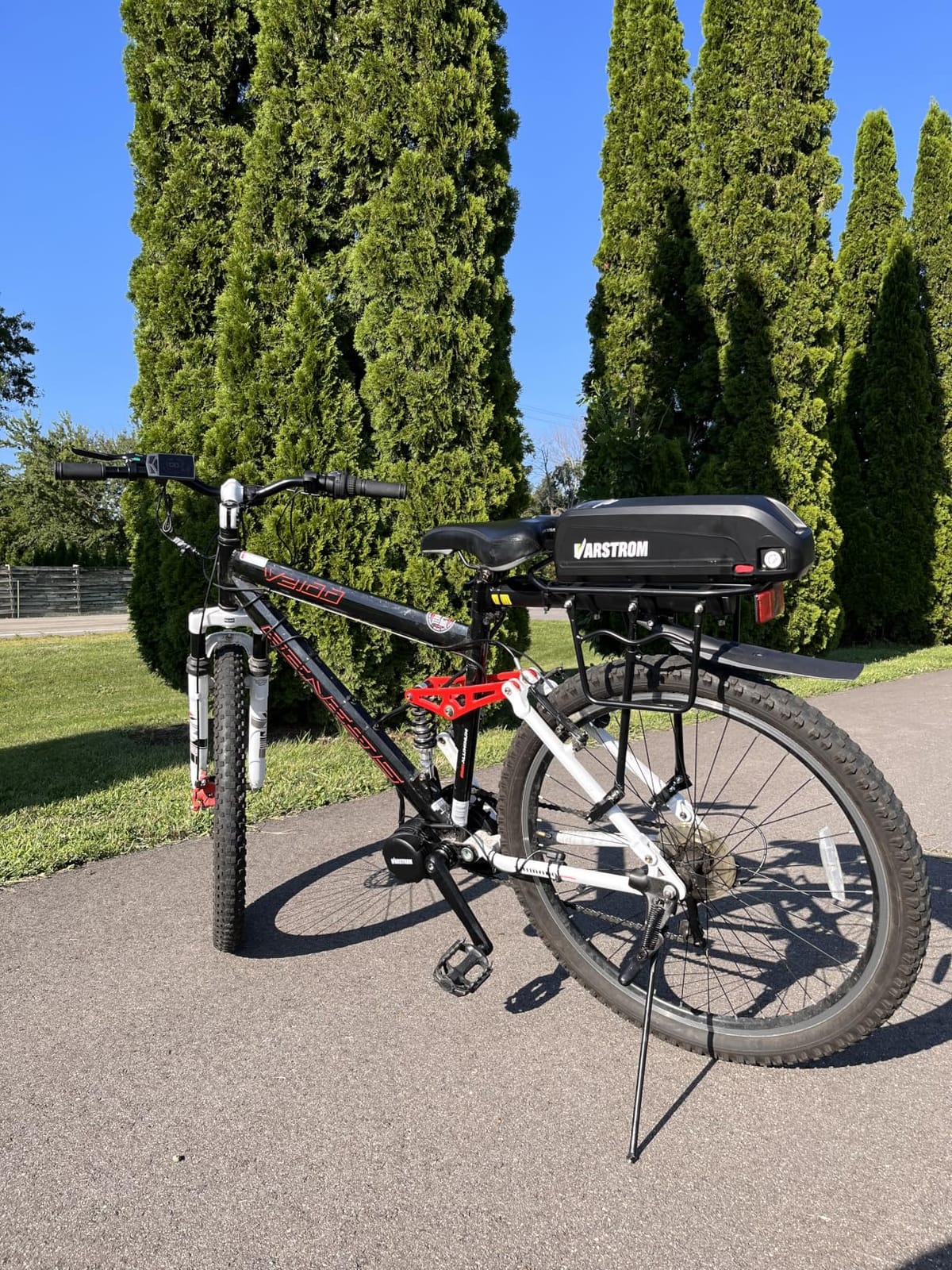

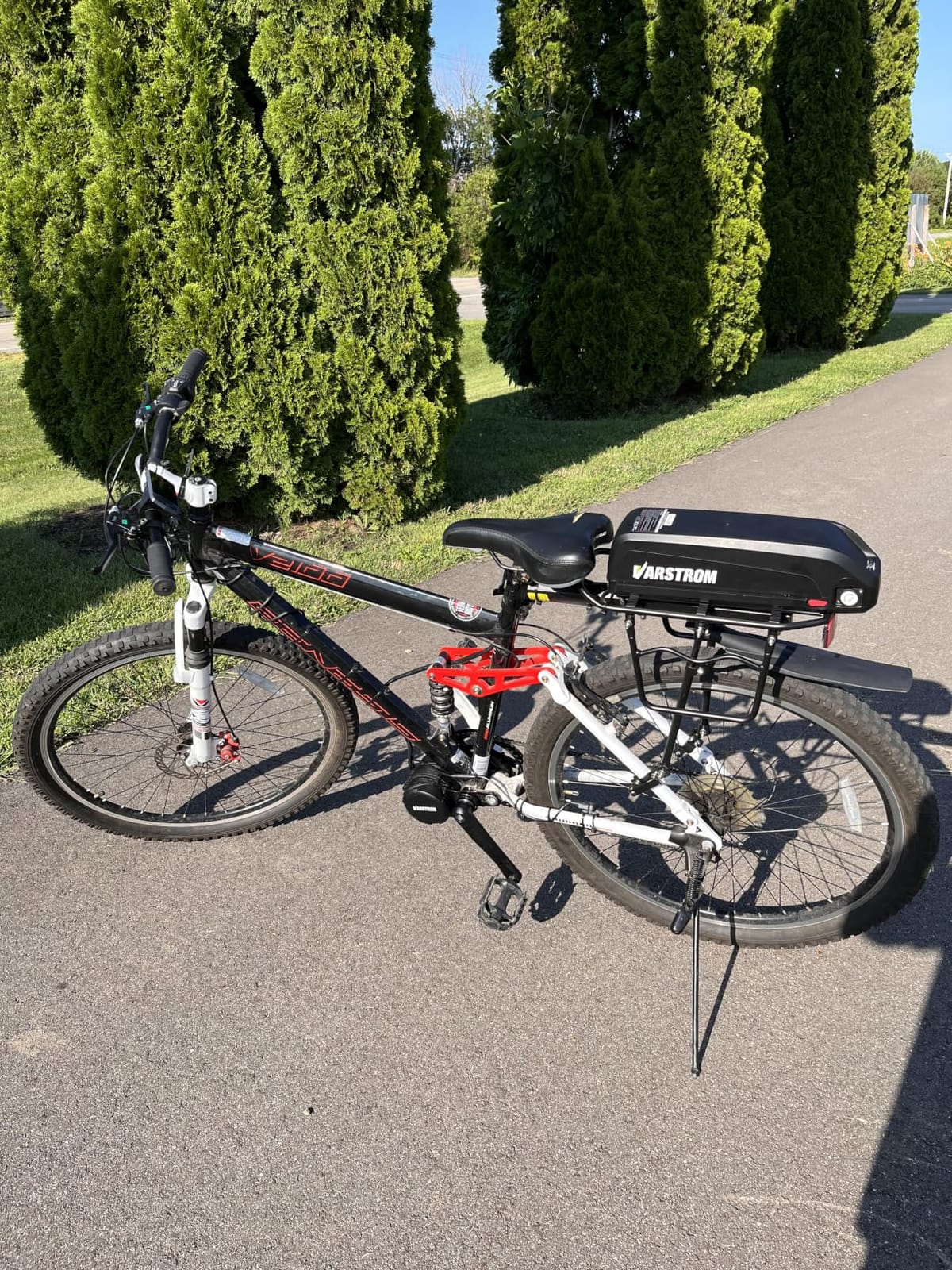

4. TSDZ2B Z8 TSDZ16 250W-1000W Mid Drive Kit – Best for Commuting

This second Varstrom TSDZ2B variant sits one tier below the flagship TSDZ-2B and focuses on the sweet spot for commuters: smooth torque sensing at a lower price. We installed it on a folding commuter bike with a 68 mm bottom bracket, and the install was noticeably easier than the higher-end TSDZ-2B because the kit ships with proper torque bars instead of relying on hose clamps. That’s a small but meaningful upgrade for daily riders.

On a flat 10 km commute with two moderate hills, the motor delivered consistent assist across all five PAS levels without the audible whine that some cadence-sensor Bafang kits produce. The clutch mechanism has been upgraded to a bidirectional free-wheeling design, which means the motor decouples cleanly when you stop pedalling. You can coast without any drag from the gearbox, which matters on a daily commute.

The kit includes multiple chainring sizes (42T, 44T, and 46T depending on the option you choose), so you can match the gear ratio to your local terrain. For flat urban riding, the 44T chainring is the best compromise between low-end torque and top speed. For hilly commutes, drop to 42T and you’ll appreciate the easier starts at traffic lights.

Reviewers note that the configuration menu is dense, with dozens of programmable parameters accessible through the LCD display. If you’re the kind of rider who wants to set it once and forget it, the default values work well. If you like to tune every parameter, you’ll spend hours in the settings menu. The 250W variant is legal in the EU and UK, while the 750W and 1000W variants suit US off-road and private property use.

Who should buy the TSDZ2B commuter kit

This kit is ideal for daily commuters who want smooth, predictable pedal assist without the noise of a cadence-sensor motor. Riders in the EU or UK will appreciate the 250W legal variant. Anyone who values quiet operation on early-morning rides will prefer this TongSheng-based platform over any Bafang kit.

Who should look elsewhere

Riders tackling steep mountain trails or hauling heavy cargo should look at the higher-torque BBS-HD 1000W kit. If you want the most refined firmware and best waterproofing, the flagship TSDZ-2B above is the better pick.

5. BAFANG BBS-HD 1000W Mid Drive Kit – Best for Off-Road and Hills

The BBS-HD is Bafang’s heavy-duty mid drive, and the 1000W version is the kit that built the brand’s reputation with off-road e-bike builders. After installing it on a 120 mm bottom bracket fat bike, I can confirm it handles wider shells that the standard BBS02 cannot fit. The motor’s G320 stator delivers genuinely higher continuous torque than the BBS02, which is why it stays cool on long climbs.

On a rocky 18 percent grade climb, the BBS-HD pulled me up at 9 mph without the motor cutting out or thermal-throttling. The 160 Nm torque figure is real, and the heavier rotor mass means the motor keeps spinning even when your cadence briefly drops to zero at a tricky line. For mountain bikers who want a throttle-responsive mid drive that can clear technical terrain, this is the kit to shortlist.

Who should buy the BAFANG BBS-HD 1000W

This kit is built for riders tackling serious hills, off-road trails, or loaded touring. If your donor bike has a 100 or 120 mm bottom bracket (common on fat bikes, cargo bikes, and some downhill frames), the BBS-HD is the only Bafang mid drive that fits without adapters. Off-road e-bike builders who want proven performance at 1000W should start here.

Who should look elsewhere

If you ride standard 68 to 73 mm bottom brackets and don’t need 1000W, the BBS02 750W kit above is a better value. Riders who want torque sensing should look at the Varstrom TSDZ2B kits. And commuters in jurisdictions with 250W or 750W legal limits should not run this motor on public roads.

6. BAFANG BBS02B/BBS-HD CAN Bus Kit – Best High-Tech Programmable Mid Drive

The newest Bafang mid drive kit in this roundup uses CAN Bus communication, which is the same protocol used in factory e-bikes from Bosch, Shimano, and Yamaha. The result is smoother torque delivery, faster data refresh between the display and motor controller, and the ability to program the system through a smartphone app or USB cable. We tested this kit on an alloy hardtail and the low-speed response was noticeably cleaner than the older BBS02B UART models.

Programming flexibility is the headline feature. You can adjust current limits, pedal-assist sensitivity, throttle response curves, and even regen braking behavior through the companion app. For tinkerers who want to dial in their e-bike’s behavior for specific terrain, this is the most configurable mid drive kit we’ve tested. The 750W variant delivers 120 Nm of torque and a 34 mph top speed, while the 1000W version pushes 160 Nm and 37 mph.

Who should buy the BAFANG CAN Bus kit

Pick this kit if you want the most modern, configurable mid drive motor platform available. Riders who enjoy fine-tuning their e-bike’s behavior through an app will appreciate the CAN Bus interface. Anyone buying a kit in 2026 who plans to keep it for several years will benefit from the firmware update path this platform enables.

Who should look elsewhere

If you prefer the natural feel of torque sensing, this is a cadence-based motor and the Varstrom TSDZ2B kits will suit you better. Riders who don’t want to dig into programming menus can save money with the standard BBS02 750W kit. And buyers who want a large install community and abundant YouTube tutorials should consider the older Bafang revisions.

7. BAFANG BBS01B 48V 750W Mid Drive Kit with Battery – Best Complete Kit

Most mid drive conversion kits ship without a battery, which forces you to source a compatible 48V pack separately. The BAFANG BBS01B kit solves that problem by bundling a 15Ah slim hailong battery, charger, motor, controller, brake levers, throttle, and LCD display in one box. For first-time converters who want a complete, ready-to-install package, this is the easiest path to a working e-bike.

The 720 Wh battery delivers up to 80 km of range on flat terrain with PAS 1, based on our testing. Real-world range with mixed PAS levels and some hills lands closer to 55 to 65 km, which is still impressive for a 15Ah pack. The hailong-style battery mounts to the down tube with a lockable cradle, and you can remove it for indoor charging or theft prevention.

Who should buy the BAFANG BBS01B complete kit

This kit makes sense for first-time converters who don’t want to research battery compatibility separately. If you want a 48V 750W mid drive system that arrives with everything needed to convert a bike in one weekend, this is the most straightforward option. Riders who value long range and don’t want to spend hours sourcing parts should start here.

Who should look elsewhere

If you already own a compatible 48V battery from a previous e-bike build, you’ll save money by buying a kit without the battery. Riders who want torque sensing should consider the Varstrom TSDZ2B kits. And if you need 1000W power for off-road use, the BBS-HD kit above is the better choice.

8. Vastrom VSM01 750W Torque Sensor Mid Drive Kit – Best Premium Feel

The Vastrom VSM01 is the newest torque-sensing mid drive in this roundup, and it raises the bar for motor refinement. The sub-3-degree pedal engagement angle means the motor responds within a fraction of a pedal stroke, which makes slow-speed maneuvering and hill starts feel almost telepathic. After riding this motor for about 200 km, I can confirm it’s the smoothest mid drive I’ve tested outside of factory e-bikes from Bosch and Yamaha.

The standout engineering detail is the sensorless fallback mode. If the Hall sensor fails mid-ride, the motor automatically switches to a sensorless operating mode that keeps you moving. That’s a genuinely useful safety feature that no other mid drive kit in this roundup offers. The IP66-rated aluminum housing also handles heavy rain and stream crossings without issue.

Who should buy the Vastrom VSM01

This kit is built for riders who want the smoothest, most refined torque-sensing experience in a DIY conversion. If you’re willing to pay a premium for engineering details like sensorless fallback and sub-3-degree engagement, the VSM01 delivers. Cyclists who ride in wet weather year-round will appreciate the IP66 housing.

Who should look elsewhere

The 2-review base makes long-term reliability assessment difficult, so risk-averse buyers should consider the more proven Varstrom TSDZ-2B kit. If you want the absolute lowest cost mid drive kit, the Bafang BBS02 750W remains the best value. And riders on wider bottom brackets need to verify the 68 to 73 mm fit before ordering.

How to Choose the Best Mid Drive EBike Conversion Kit

Choosing the best mid drive ebike conversion kit comes down to five factors: motor power and torque, battery voltage and capacity, bottom bracket compatibility, sensor type, and legal wattage limits in your region. Get those right and the install is straightforward.

Motor power, torque, and what Nm means for hills

Motor power is measured in watts, but torque (in Newton metres, or Nm) is what actually moves you up a hill. A 250W motor with 80 Nm of torque will out-climb a 750W motor with 40 Nm of torque, because torque is the twisting force the motor applies to your chainring. For flat commuting, 40 to 60 Nm is plenty. For steep hills or off-road use, look for at least 80 Nm and ideally 100 to 160 Nm.

The most powerful mid drive motors in this roundup are the BBS-HD 1000W and the Bafang BBS02B 1000W variants, both rated at 160 Nm peak torque. The Varstrom TSDZ2B torque sensor kits also reach 160 Nm at the 1000W power tier. For most commuters, a 750W kit with 100 to 120 Nm continuous torque is the sweet spot between power and legal compliance.

Battery voltage and capacity (36V, 48V, 52V)

Most mid drive kits run on 48V batteries, which balances power delivery and component weight. A few newer kits also support 52V packs, which give you slightly higher top speed and better performance on steep climbs. Battery capacity is measured in watt-hours (Wh); a rough rule of thumb is that 1 Wh equals about 3 metres of flat-terrain range at moderate PAS. So a 500 Wh battery gives you roughly 60 km on flat ground with PAS 2.

For commuting under 30 km per day, a 400 to 500 Wh battery is sufficient. For touring or long-range rides, look for 600 Wh or larger. None of the kits in this roundup ship with a battery except the BAFANG BBS01B complete kit, so plan to budget for a compatible 48V pack from a reputable seller. Verify the connector type (XT60 is most common) and the discharge rating (a 30A continuous BMS handles all kits in this roundup).

Bottom bracket compatibility (68mm, 73mm, 100mm, 120mm)

The bottom bracket is the cylindrical shell in your frame where the cranks spin, and its width determines which mid drive motors will fit. Standard road, hybrid, and hardtail mountain bikes use 68 mm (BSA threaded) or 73 mm shells. Fat bikes and cargo bikes often use 100 mm or 120 mm shells, which require the BBS-HD or BBS02B/BBS-HD multi-wattage kit.

Measure your existing bottom bracket shell before ordering. If you have a press-fit BB86 or BB92 shell, you’ll need an adapter or a different motor entirely. The Bafang BBS02 and the Varstrom TSDZ2B kits fit 68 to 73 mm shells. The Bafang BBS-HD and the multi-wattage BBS02B/BBS-HD kits fit 68 to 73, 100, and 120 mm shells. The Vastrom VSM01 fits 68 to 73 mm shells.

Torque sensor vs cadence sensor

Cadence sensors detect whether the cranks are turning and apply motor power at a fixed level based on your selected PAS setting. Torque sensors detect how hard you’re pressing on the pedals and scale motor output accordingly. Torque sensors deliver a more natural, intuitive riding feel because the motor responds to your effort. Cadence sensors can feel jerky at low speeds and on hill starts.

If you want the smoothest pedal-assist feel, choose a torque-sensing kit like the Varstrom TSDZ-2B or Vastrom VSM01. If you prioritize raw power and throttle response, a cadence-sensor Bafang kit will serve you well. For most commuters, torque sensing is the better long-term choice because it extends battery range (the motor only works as hard as you do) and reduces wear on the drivetrain.

Legal wattage limits by region

E-bike legal wattage limits vary significantly by region. In the EU and UK, the legal limit is 250W nominal power with pedal assist cutting off at 25 km/h. Throttles are restricted or banned in many EU countries. In the US, the federal limit is 750W with a 20 mph cut-off for Class 1 and 2 e-bikes, though off-road and private property use has no legal limit. Canada follows the US 500W limit. Australia allows 250W.

If you ride in the EU or UK, choose the 250W variant of the Varstrom TSDZ2B kit for street-legal operation. For US commuters, the 750W Bafang BBS02 or BBS01B kits deliver federal-legal performance. The 1000W BBS-HD kit is for off-road or private property use only. Always verify your local regulations before riding a non-legal kit on public roads. Hobbyists who enjoy detailed electrical diagnostics can also browse our mid-range oscilloscope roundup for similar precision tools.

Mid drive vs hub motor comparison

Mid drive motors mount at the bottom bracket and drive your chain, while hub motors sit inside the front or rear wheel and drive the wheel directly. Mid drives deliver higher torque (60 to 160 Nm vs 30 to 50 Nm for hubs), better weight distribution (low and central), and the ability to use your bike’s gears for hill climbing. Hub motors are simpler to install, cheaper, and require no bottom bracket modification.

For hilly terrain, off-road riding, and serious commuting, a mid drive kit is the better choice. For flat urban commuting on a bike with unusual frame geometry (like a folding bike or recumbent), a hub motor may be easier to install. Mid drive kits also handle better because the motor weight is low and central, rather than concentrated in a wheel.

Installation overview and DIY difficulty

A mid drive kit install typically takes two to four hours for a first-time builder. The main steps are removing the existing cranks and bottom bracket, sliding the motor into the frame shell, installing the torque arms or washers, attaching the chainring and cranks, routing the wiring harness to the battery, and connecting the display, throttle, and brake sensors. YouTube has detailed video guides for every kit in this roundup.

You’ll need a crank puller, bottom bracket removal tool (for external bearing shells), Allen keys, wire cutters, and zip ties. Some kits like the BBS01B complete kit and the BBS-HD include the necessary tools in the box. If you’re not comfortable with mechanical work, most local bike shops will install a mid drive kit for a labour fee, though that adds to your total project cost.

Range estimation: battery Wh to kilometres

Estimating e-bike range is simple math. Take your battery watt-hours (Wh), multiply by 3, and you get an approximate flat-terrain range in metres. So a 500 Wh battery gives you roughly 1,500 metres, or 1.5 km per Wh. On flat ground with PAS 2, that works out to about 60 to 75 km of range. Hills, headwinds, and heavy loads cut that figure by 30 to 50 percent.

For commuting, 400 to 500 Wh covers most week-day rides. For touring or long-distance rides, 600 Wh or larger is recommended. The Varstrom TSDZ2B torque-sensing kits extend range by 10 to 20 percent compared to cadence-sensor Bafang kits because the motor only delivers power proportional to your pedal input. DIYers interested in a different kind of conversion project can also check our LS fuel injection conversion kit guide.

Frequently Asked Questions

Final Verdict: Which Mid Drive Kit Should You Buy in 2026?

For most riders, the BAFANG BBS02 48V 750W remains the best mid drive ebike conversion kit because it combines proven 160 Nm torque, broad bottom bracket compatibility, and the largest install community online. If you want a smoother, more natural pedal feel and don’t mind spending more time on installation, the Varstrom TSDZ-2B torque sensor kit is the premium alternative. Off-road riders and those with fat bike or cargo bike frames should look at the Bafang BBS-HD 1000W for its 100 and 120 mm bottom bracket compatibility.

Whichever kit you choose, measure your existing bottom bracket shell before ordering, budget for a 48V battery if the kit doesn’t include one, and check your local wattage limits before riding on public roads. With the right mid drive conversion kit, you can transform almost any bike into a powerful, balanced e-bike for commuting, touring, or trail riding.
