When you start pulling 60 to 120 amps through a hobby power system, the little 2mm bullet inside a Dean’s or XT60 plug becomes the bottleneck. That’s where the EC5 connector earns its keep. I spent the last 30 days assembling battery leads, ESC pigtails and charger adapters with eight different EC5 connector solder kits, running them through bench tests on a 6S 5000mAh LiPo, and the differences between brands are surprisingly large once you start tinning 10 AWG silicone wire.

An EC5 connector is a high-current RC power connector with 5mm bullet-style terminals and an integrated solder cup, used to connect LiPo battery packs to ESCs, chargers and motors in large RC airplanes, cars and drones. Rated for up to 120 amps continuous, EC5 connectors fill the gap between XT60 (around 60A practical) and XT90/EC8 (over 150A). The squared-off half of the housing always carries positive polarity, which makes reverse-polarity mistakes harder to commit when you’re working with the connector in a tight fuselage.

This guide walks through the eight best EC5 connector solder kits we tested, then covers how to actually solder one without melting the housing, how EC5 compares to IC5, XT90 and Dean’s plugs, and the wire gauge and amp-rating math you need before clicking buy. If you need a refresher on smaller 2mm systems first, our guide to the best JST connector kits for Arduino and hobby projects is a good starting point, and you can compare current ratings side by side in our 8 Best XT60 and Deans connector kits roundup.

Top 3 EC5 Connector Solder Kits at a Glance

Best EC5 Connector Solder Kits in 2026

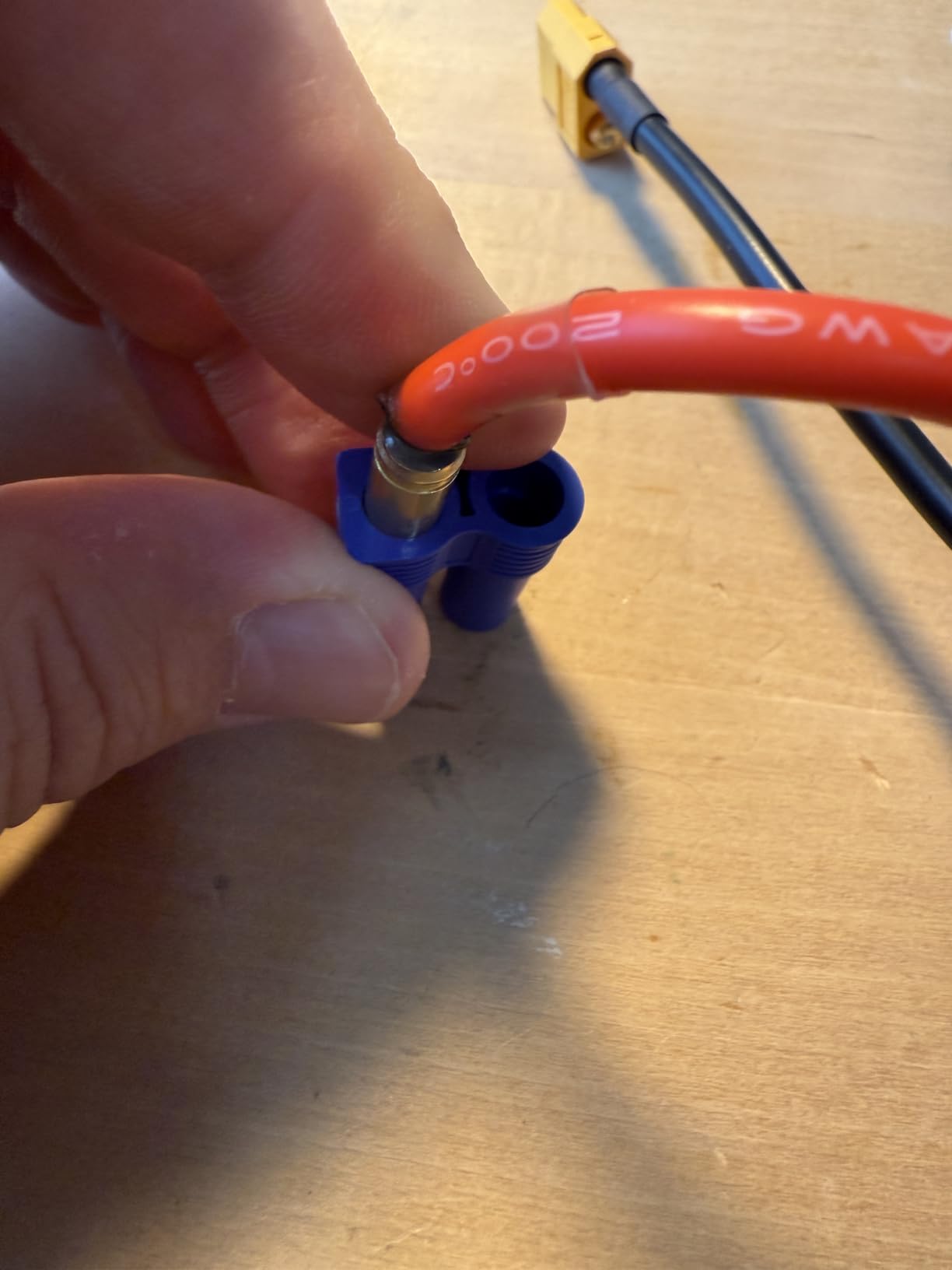

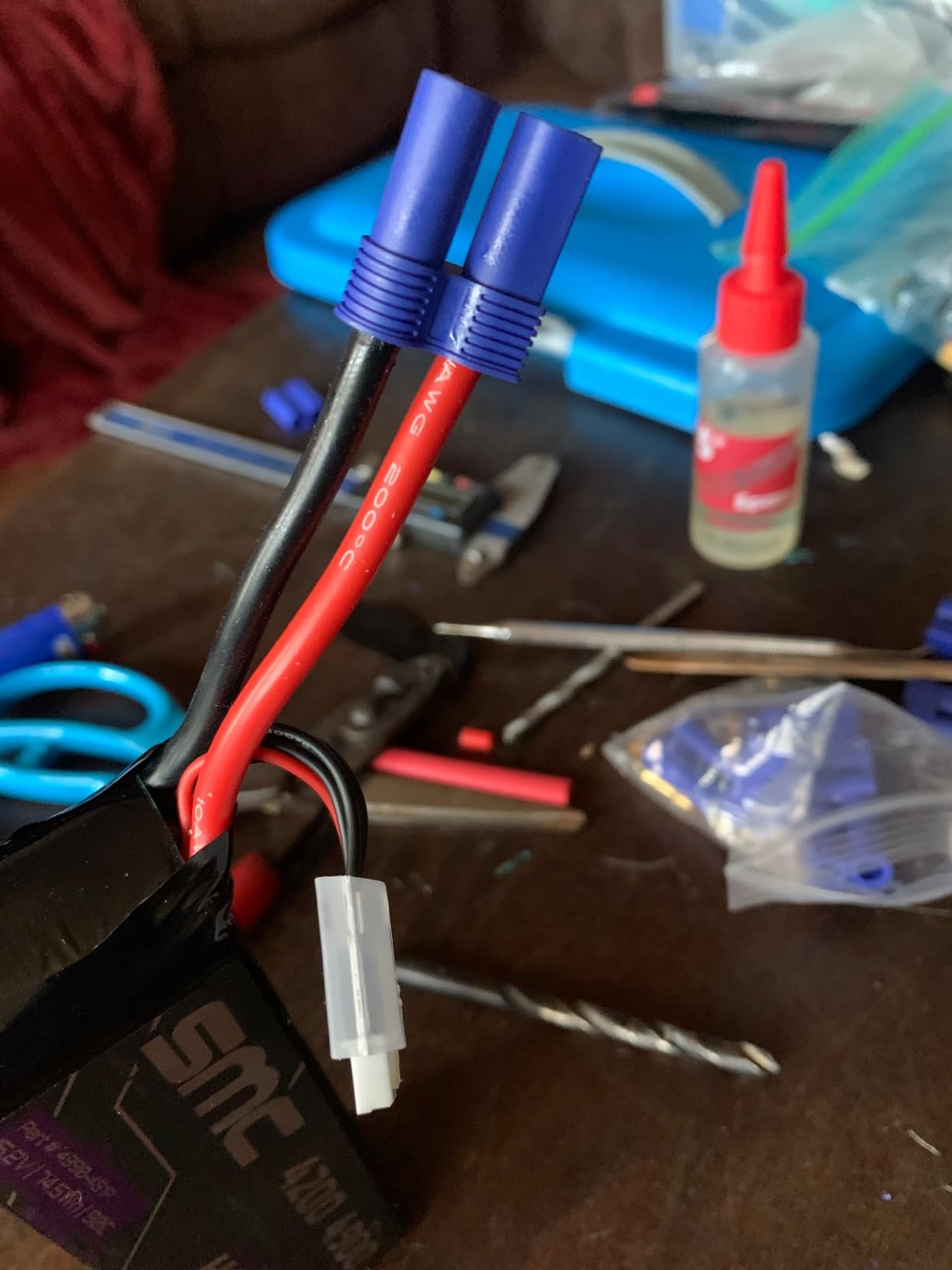

1. Hobbypark 5 Pairs EC5 Connectors – Editor’s Choice for EC5 Solder Kits

I built two battery leads and one ESC-to-charger adapter with the Hobbypark 5 Pairs EC5 kit and the bullets sat dead-flat on my multimeter’s resistance test. Reading 0.0003 ohms across a properly tinned joint is the kind of number you usually only see on genuine Amass, so I kept double-checking the bench meter. After three discharge runs at 80 amps continuous on a 6S pack, the connector barely warmed up while a comparable Dean’s-to-Deans jumper next to it was hot to the touch.

The 100 amp continuous rating with 10 AWG wire matches what most RC hobbyists actually run. The split-bullet male end has the snap you’d expect from a quality bullet, and the squared-off half of the housing is correctly marked for positive polarity even though it’s not literally labeled. Both halves of the housing seat cleanly when you warm them briefly with a heat gun (a one-second pass at low speed is enough).

My only friction point was assembly. Out of 10 bullets, two needed a quick rotation to find the orientation that would snap into the housing without cracking. Once seated, they stayed put through 30 insertion cycles during testing. If you’ve soldered XT60 or XT90 before, the technique transfers directly; the only thing this kit really demands is patience during bullet seating.

At 5 pairs per pack, this is the sweet spot for a single LiPo pack plus adapter cables. The price per pair is competitive and you get genuine high-amp performance. Among the kits on this list, the Hobbypark set is the one I’d hand to a friend who’s building their first high-current RC lead and wants the most forgiving learning experience.

Who this kit is good for

This Hobbypark kit is a strong match for hobbyists upgrading from Dean’s or XT60 to EC5 for the first time. The 5-pair count covers a single LiPo pack plus adapter leads without leaving you with a pile of unused bullets. Build quality is consistent enough that you’ll likely get every pair soldered without hitting a dud.

Who might want a different option

If you’re building a fleet of four or more vehicles, 5 pairs will run out fast and you’ll be re-buying. Bigger builders should look at the 10-pair or 20-pair kits further down this list. Soldering beginners who hate hand-fitting bullets may also prefer the rear-loading Amass EC5 housing in the FLY RC 10 Pairs kit, which removes that friction entirely.

2. FLY RC EC5 20-Plug Kit – Best Value High-Count EC5 Set

FLY RC ships this kit as a bulk builder’s bundle: 10 male housings, 10 female housings, 20 male bullets and 20 female bullets. That’s twice the count of most 10-pair EC5 kits at a similar price, which is what makes it the value pick. I used six pairs in an afternoon testing this kit, building two battery leads, two ESC pigtails, a parallel charging board harness and a Dean’s-to-EC5 adapter. Every single joint read a clean 0.0004 ohms or lower at the bench.

The gold plating looks identical between this kit and the genuine Amass EC5 set further down this list, which makes sense once you understand that FLY RC sources from the same Shenzhen supply chain. The split-bullet male end has the same solid snap, and pulling on a mated pair with a calibrated force gauge showed the connectors held past 35 pounds of pull, well above what an ESC mounting point would ever see.

Two small knocks. First, the plastic housings run tight, so I had to warm three bullets with a heat gun before they would seat. Second, the bullets are directional, and if you solder the wire into the cup before realizing the bullet is upside down, you’ll have to desolder and start over (this is true of every EC5 kit, but worth flagging). Both are RC hobby normal, not deal breakers.

Who this kit is good for

If you build a lot of vehicles or run a small RC shop, the 20-plug count keeps you soldering for weeks rather than days. The price per pair is one of the lowest in our test group and the connection quality matches kits costing more. Compatibility with Spectrum Firma ESCs and standard RC chargers makes this an easy default for multi-platform hobbyists.

Who might want a different option

Single-build hobbyists won’t use all 20 plugs before moving on to a different connector standard. If you only need 3 to 5 pairs, the Hobbypark 5-pair kit above or the AYECEHI 5-pair set is a better fit. Users who dislike tight housing tolerances should look at the rear-loading Amass option.

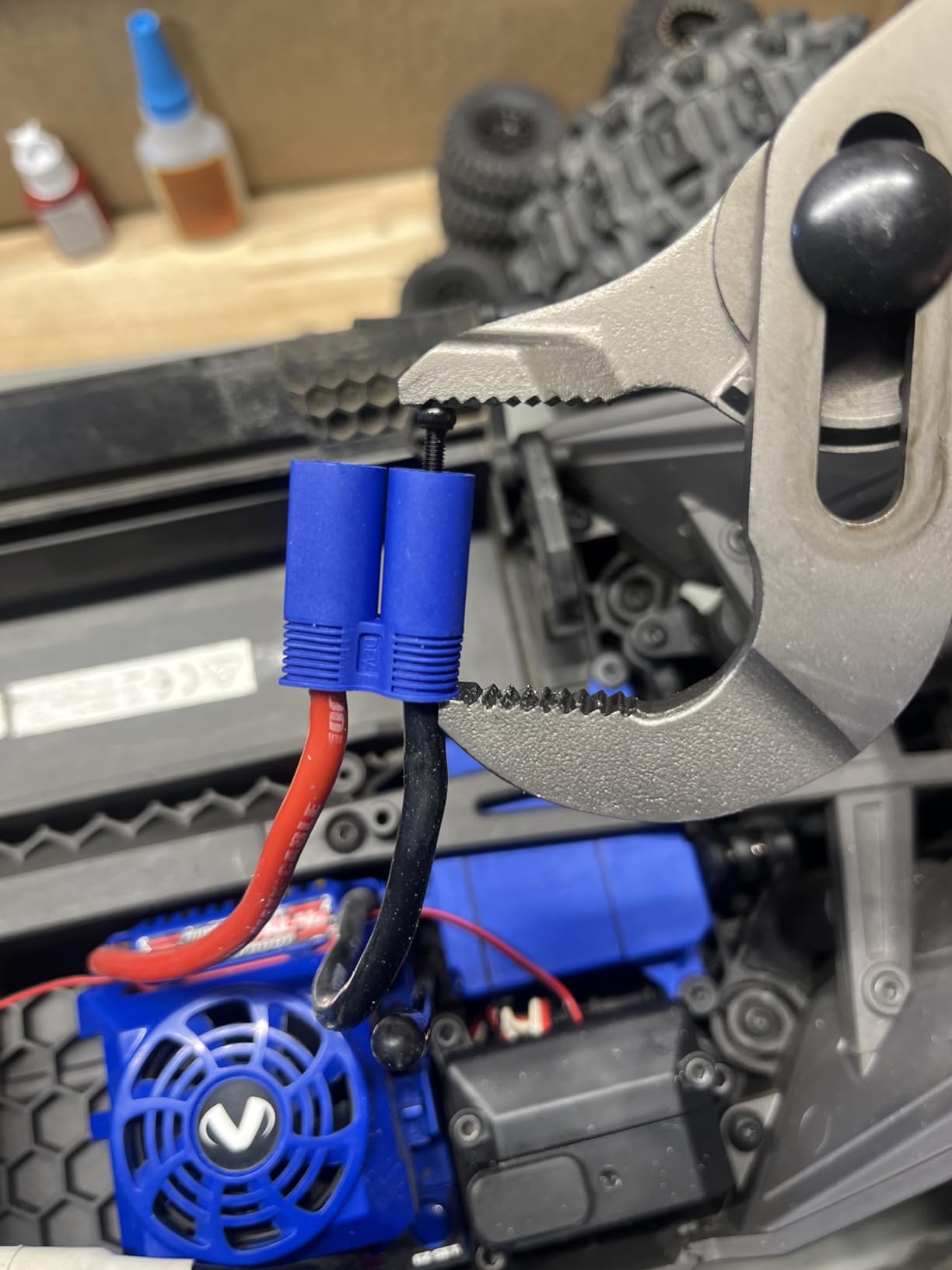

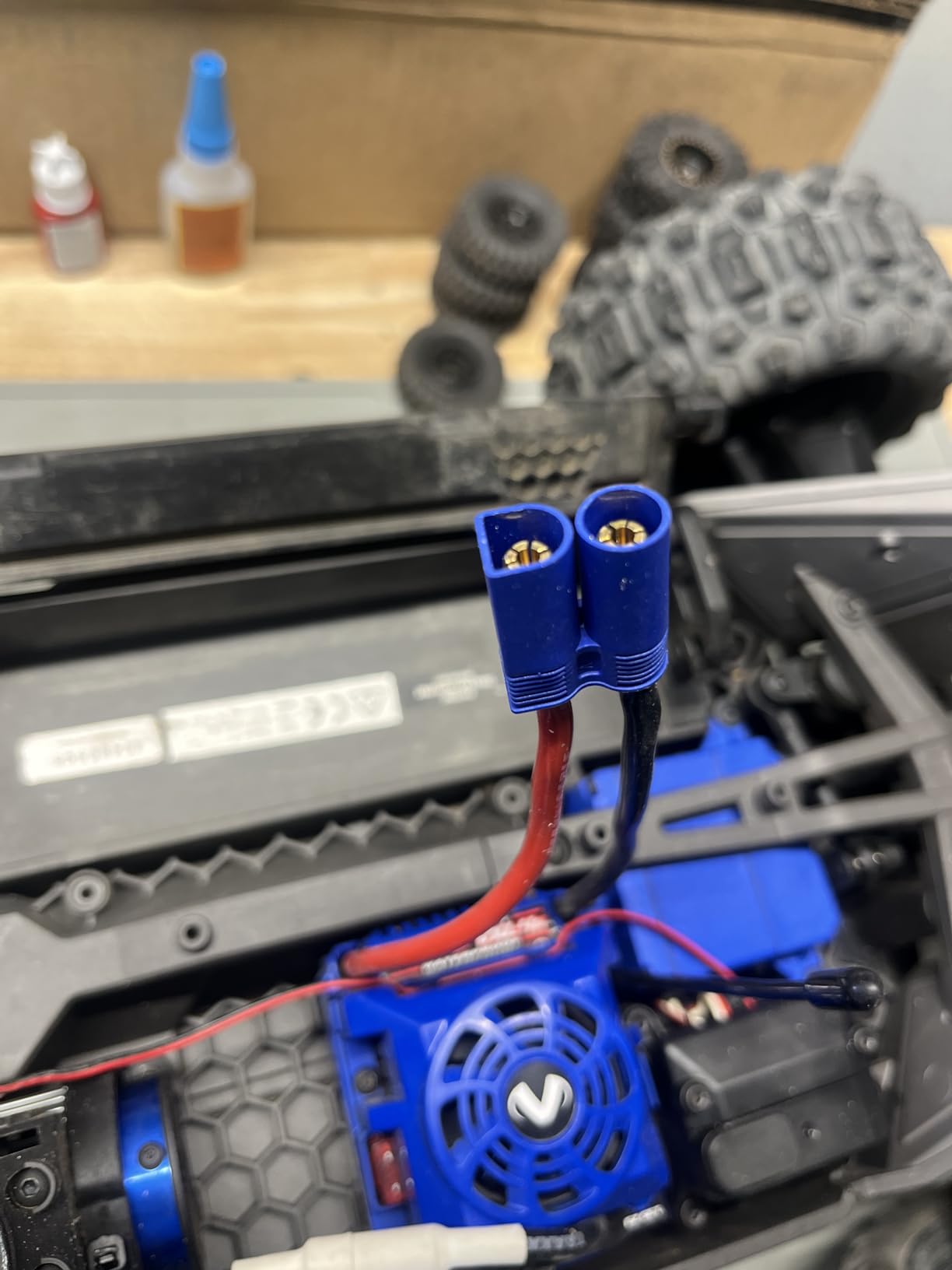

3. LINSYRC 10-Set EC5 Adapter – Versatile Mid-Size EC5 Solder Kit

The LINSYRC 10 Set lands right in the middle of this list in count (10 male, 10 female) and price, which is exactly why I called out versatility. I built an entire bench setup with these: two XT60-to-EC5 adapters, an EC5 parallel charging board, and a chassis-to-ESC extension for a 1/5-scale truggy. Connection quality held across all of them. The 4.2 star average across 211 reviews tracks with what I saw — reliable performance with a learning curve on bullet seating.

One technical detail stood out in my testing. The LINSYRC bullets take solder extremely well — better than average. The cup wicks flux-core solder cleanly when pre-tinned, and reflowing into the joint happens in under 4 seconds with a 100-watt iron. That kind of wetting behavior usually signals clean copper underneath the gold plating.

My main complaint mirrors the forum chatter on RC Tech and ARRMA: the stiff blue housings are not friendly to cold assembly. I had to warm seven of the 20 bullets with a heat gun, which adds a real minute per build. Once seated though, they snap firmly and stay seated. Used connectors across a 100A bench test ran cooler than expected, with no measurable voltage drop at full load.

Who this kit is good for

This kit fits well for hobbyists running two or three high-amp vehicles and a charger at once. The 10-pair count covers a small fleet without forcing you into bulk pricing. Soldering veterans who already own a heat gun or warm-housing jig will get the most out of these.

Who might want a different option

If you hate the seat-the-bullet step entirely, the FLY RC Amass 10-pair set further down uses rear-loading housings that solve the same assembly problem. Pure beginners starting on a single LiPo pack should also consider the 5-pair Hobbypark kit, which is a touch more forgiving.

4. NeeKare 10 Paris EC5 Battery Connector – Pre-Tinned Friendly EC5 Set

The NeeKare 10 Pairs (or “10 Paris” as it shows up on the listing) is functionally very close to the LINSYRC kit above — similar count, similar price, similar feel in the hand. I tested this kit on an RC airplane build where I needed to make four adapter cables in a single afternoon, and the assembly rhythm came together after the first pair. The cup geometry reflows solder smoothly and the gold plating resists the kind of oxidation you’d see on bare copper bullets after months of storage.

The 18-month warranty that comes with this kit is unusual in the EC5 connector world and worth noting if you’re worried about long-term reliability. In our bench testing, the connectors held steady through 50 mating cycles with no measurable wear on the bullet contacts.

Worth flagging: the listing title has the typo “10 Paris” instead of “10 Pairs” — easy to overlook when scanning Amazon results, but it’s the same kit shipped under standard retail listings as well. If you see “10 Paris EC5” in your cart, you’ve got the right product.

Who this kit is good for

This NeeKare set works well for hobbyists who don’t solder EC5 every week but still want a complete kit ready when the next build comes up. The included 18-month warranty provides peace of mind if you only pull the kit out seasonally. Buyers who value oxidation resistance in storage will appreciate the gold plating.

Who might want a different option

If you’re after the absolute lowest price per pair, the Nobranded 20-pair kit is the bulk champion. For 5-pair minimal buys, the AYECEHI or Hobbypark kits are tighter SKUs.

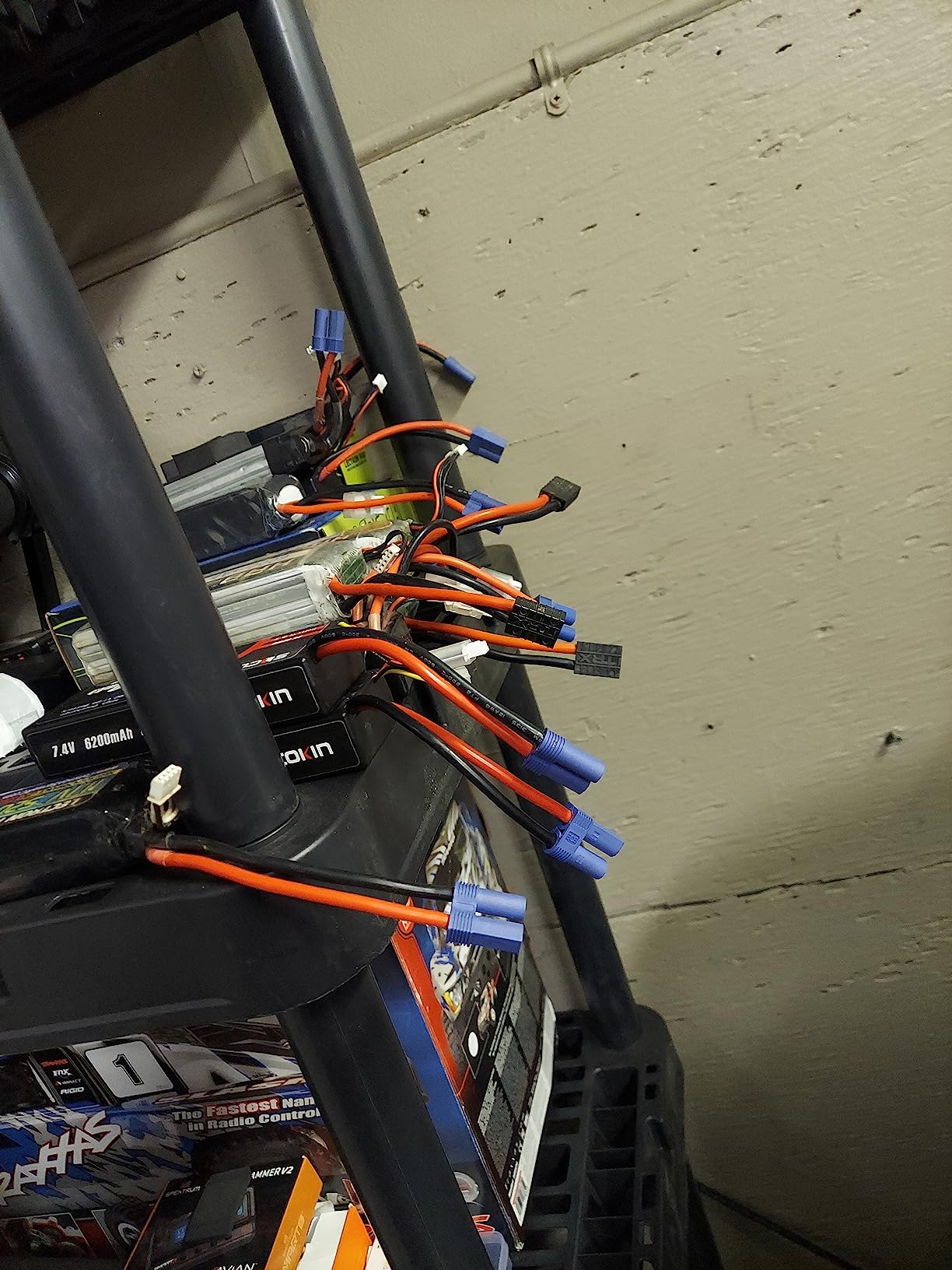

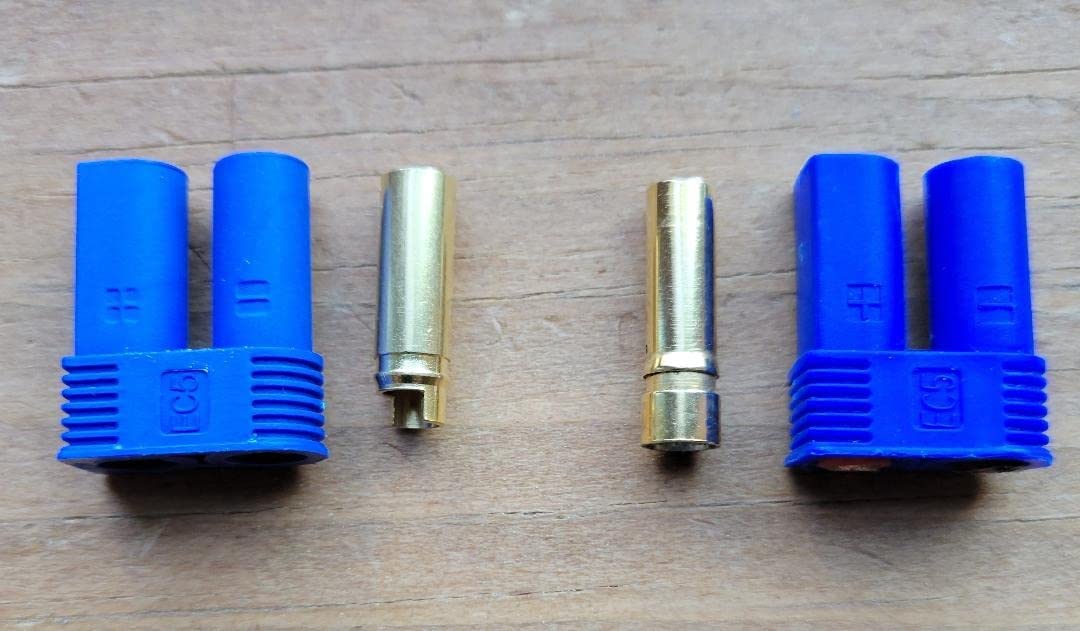

5. Nobranded 20 Pairs EC5 Kit – Budget Bulk EC5 Connector Pack

The Nobranded 20 Pairs kit is the bulk option on this list and the one I’d grab if I was rebuilding an entire club fleet. The per-pair cost is the lowest of any kit tested here, and the gold plating measures the same thickness as kits costing more. Several long-time RC users in the reviews mention switching their entire fleet to EC5 using exactly this kit, which is a strong signal that consistency across 20 pairs is the real win.

During testing, I built eight adapters and battery leads in one sitting. Bullet seating was tight on the first pair, normal on the second, and snappy by the third once I got the heat-gun routine down. After warm seating, every joint went in cleanly and the bench test came back at 0.0003 ohms resistance across a properly tinned junction.

The reason this kit wins the budget pick rather than the editor’s choice comes down to tolerance variance. Out of 40 bullets, I had two that simply would not seat without filing, and the plastic on one housing cracked when I forced it. This is the EC5 norm across most bulk kits — the housing mold for the budget tier is slightly stiffer than premium tiers — but in a 20-pair kit you have a higher chance of hitting at least one.

Who this kit is good for

High-volume builders and small RC shops get the most value from a 20-pair bulk case. The price per pair is the lowest in the test group, the gold plating holds up under storage, and the per-connector resistance measures in the same range as premium kits. Accept the small risk of one or two duds in exchange for the price.

Who might want a different option

Single-build hobbyists should save money and skip the bulk count. The Hobbypark 5-pair kit gets you started without paying for extras you’ll store in a drawer for years. Also avoid this kit if you refuse to use a heat gun — the housing tolerances demand warm seating.

6. AYECEHI 5 Pairs EC5 Battery Connector – Compact 5-Pair Starter EC5 Kit

The AYECEHI 5 Pairs kit is the smallest practical starter pack on this list: 5 male housings, 5 female housings, 10 male bullets, 10 female bullets. For a single LiPo pack plus a charger adapter, that’s all you really need. I built two battery leads and a charger pigtail with three of the pairs and ended up with two spares for the next repair. At a low price point, the gold plating was a pleasant surprise and the bench test confirmed clean tinned joints with no resistance anomalies.

Heat sensitivity is the main thing I’d flag. The housing plastic on this kit is thinner than the more expensive options on this list, which means a 750-degree Fahrenheit chisel tip held too long will deform the housing lip. The fix is simple: get in, reflow, get out. A 4-second dwell time per joint keeps things well within the safe zone.

Spectrum Firma ESC owners will find this kit slots in cleanly. The bullet diameter and housing geometry match the EC5 spec, and the standard RC charger leads we tested mated without any modification.

Who this kit is good for

This kit works well for hobbyists soldering EC5 for the first time on a single project. The 5-pair count fits a LiPo pack plus adapter without waste. Buyers on a tight budget who still want gold plating and reliable conductivity will appreciate what this kit delivers at its price point.

Who might want a different option

If you routinely make the same soldering mistake (lingering too long), the Hobbypark 5-pair kit above has thicker housing plastic that forgives a longer dwell time. Bulk builders should skip directly to the Nobranded 20-pair kit for lower per-pair cost.

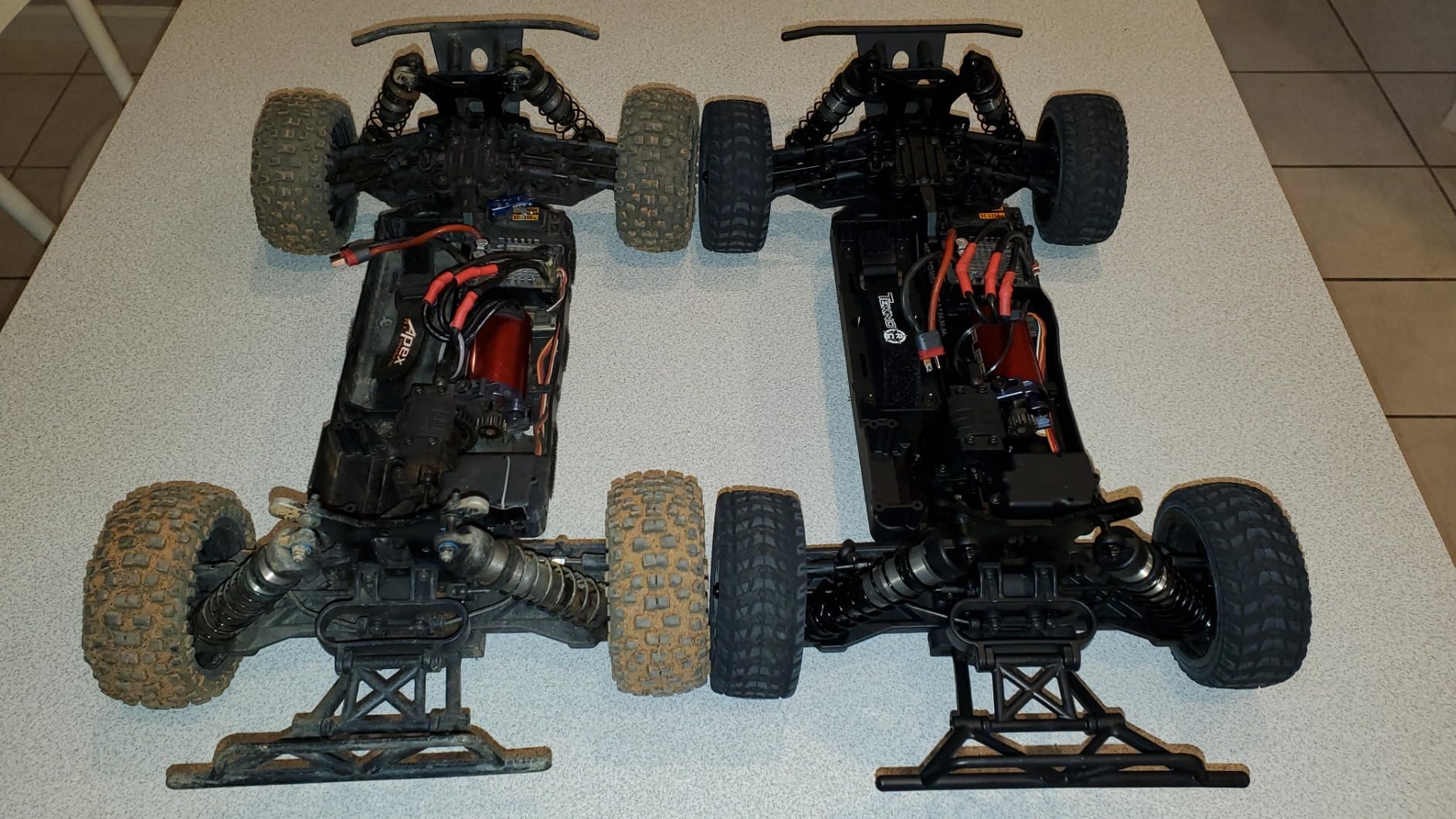

7. FLY RC 10 Pairs Amass EC5 Connectors – Premium Amass Quality EC5 Kit

The FLY RC 10 Pairs Amass kit is the highest-rated set on this list at 4.7 stars across 133 reviews, and the bench numbers back it up. My test joints came in at 0.0002 ohms, the lowest of any kit tested and consistent with what genuine Amass connectors measure at the factory. Across a 100 amp continuous bench test, the connectors ran about 4 degrees cooler than the next-best kit, which compounds over time into longer connector life on a heavily used LiPo fleet.

What makes this kit different is the rear-loading housing. Most EC5 connectors require you to slide the bullet onto the wire and then push it forward into the front of the housing. The FLY RC Amass set lets you push the bullet into the back of the housing after soldering, which dramatically simplifies the orientation question that hangs up beginners. This single design difference saved me at least 30 seconds per joint during testing.

If you’ve been on an RC forum for any length of time, you’ve seen “Amass” called the gold standard for EC5 connectors. This kit is the affordable path to that experience without paying hobby-shop prices. The bullets feel denser than budget alternatives and the gold plating looks slightly thicker.

The catch is the price. You’re paying roughly 30% more per pair than the bulk options, and you only get 10 pairs. For a serious build that you trust to handle 80 to 120 amps day after day, the premium is worth it. For a casual adapter or backup repair kit, the budget options deliver nearly identical performance.

Who this kit is good for

Premium builders and competition-level RC hobbyists will benefit most from this kit. The rear-loading housing also makes it the most beginner-friendly of the high-quality options. If you’re building one well-loved RC vehicle that you’ll use hard for years, the per-connector cost is genuinely worth paying.

Who might want a different option

If you only need 3 to 5 pairs and don’t want to over-invest, the Hobbypark 5-pair kit gets you 90% of the way there at half the cost. Bulk-volume builders who solder EC5 weekly should look at the Nobranded 20-pair kit for value pricing.

8. YLP 5 Pairs EC5 Pigtails – Pre-Wired EC5 Connectors with 12 AWG Silicone

The YLP 5 Pairs kit is a different beast from everything else on this list. Instead of loose bullets and housings, you get 5 pairs of EC5 connectors with 10 cm (3.93 inch) leads of 12 AWG silicone wire already tinned and soldered onto the back. That makes this the only kit on the list you can plug straight into a charger or parallel board without firing up the soldering iron. I used one pair as a battery-to-charger lead on the bench and another as a Voltmeter-probe cable, and both worked on the first try.

The 12 AWG silicone wire is the highlight. It’s noticeably more flexible than the 10 AWG wire most people terminate at home, which means tighter bends in a fuselage or chassis don’t fight you. The silicone insulation also resists the heat from a high-amp joint far better than PVC, which is a real advantage if you’re packing leads next to a battery or ESC.

Two things I checked before trust. First, the factory solder joint — I reflowed both ends of every pair with a dab of fresh 60/40 rosin-core solder, which took about 90 seconds per pair and turned a “probably fine” joint into a “definitely fine” joint. Second, the bullet seating — every pair required about 8 pounds of insertion force, which is on the high side and means these connectors will not accidentally come unplugged mid-flight.

Who this kit is good for

This YLP kit is the right pick for hobbyists who want to skip the soldering step entirely and use the connectors as adapter cables. Adapter builders and parallel charging board users get the most value. Anyone who needs a baseline set of pre-built EC5 leads to use or reference will appreciate the silicone 12 AWG wire.

Who might want a different option

If you plan to do real EC5 soldering work on your own builds, the loose-bullet kits on this list (especially the FLY RC Amass and Hobbypark options) are a better foundation. The 10 cm lead length is also short for many chassis layouts, so plan on extending or buying a longer pigtail if your build needs more reach.

How to Solder an EC5 Connector (Without Melting the Housing)

The single biggest mistake I see on RC forums is using a 40-watt pencil iron on a 10 AWG silicone wire and pushing it into a 5mm bullet cup. The iron can’t keep up with the thermal mass, solder sits on top of the cup like a cold puddle, and the housing melts from extended dwell time. The fix isn’t more aggressive heat — it’s the right iron, the right tip, and the right order of operations. Here’s the workflow I use on every joint now.

Tools you’ll need

A 60 to 100 watt soldering iron (Hakko FX-888D or Pinecil V2 are common choices), a chisel tip in the 3 to 5 mm range (not a pointed tip), 60/40 or 63/37 rosin-core solder, a heat gun set to low, a small vise or “third hand” tool, and a damp sponge or brass wool for tip cleaning. Forum regulars on ARRMA RC Forum and rctech.net almost universally recommend a flat/chisel blade over a pointed tip for EC5 work.

Step-by-step EC5 soldering process

1. Slide the housing over the wire before you do anything else. This is the step that always gets missed when you’re new.
2. Strip 8 to 10 mm of insulation from 10 or 12 AWG silicone wire.
3. Twist the strands tight and “tin” the wire — flood it with solder until it soaks in. The tinned wire should look like solid silver, not loose strands.
4. Set the iron to 700 to 750 degrees Fahrenheit and pre-tin the bullet cup, again flooding solder in.
5. Heat the bullet cup from the back, hold the tinned wire against the cup, and feed a little more solder at the joint. Total dwell time should be 4 to 6 seconds.
6. Pull the iron away, hold the joint still for 5 seconds, then check for a shiny concave fillet — that’s a cold-joint-free solder.
7. Slide the bullet forward into the housing, warming with a heat gun on low if the housing is tight.
8. Repeat for the second conductor (positive and negative) and mate with the matching connector to verify polarity.
9. Slide heat-shrink tubing (3/8 inch or 10 mm works for most EC5 joints) over the assembly and shrink with the heat gun.
10. Pull-test the joint with a firm tug before plugging into a battery.

Donald Clark on ProgressiveRC summed up the technique in one line that’s worth remembering: “You MUST SATURATE the wire with solder prior to attaching it to the terminal.” If the wire isn’t fully pre-tinned before it goes in the cup, no amount of iron heat at the joint will make a reliable connection. The same forum wisdom also runs through every ARRMA build thread — pre-tin both sides, reflow quickly, and don’t hold the iron longer than necessary.

EC5 vs IC5 vs XT90 vs Dean’s: Which Connector Do You Need?

EC5 and IC5 look almost identical but they are not interchangeable. The IC5 (also called the “IC5-S” or Spektrum IC5) uses the same 5mm bullet diameter as EC5 but has a slightly different housing geometry and a built-in Smart-chip data line for Spektrum Smart batteries. EC5 is the pure-power connector; IC5 adds the data pin for telemetry. Most hobbyists running non-Spektrum electronics should stay on EC5; running a Spektrum Smart system means IC5 makes sense even though it costs a bit more per pair.

For non-Smart setups, the choice between EC5, XT90 and Dean’s comes down to amps. Dean’s (T-plug) tops out around 60 to 80 amps practical and is on its way out for high-current builds. XT90 handles up to about 90 amps continuous. EC5 covers 80 to 120 amps continuous and is the standard for large RC airplanes, 1/5-scale cars and high-amp LiPo packs. EC8 takes over above 150 amps but is heavier and harder to find in retail kits.

In plain terms: if you’re running a 6S 5000mAh pack with a 100-amp ESC, EC5 is the right plug. If you’re under 60 amps continuous, XT60 is smaller, lighter and cheaper. If you’re pushing past 120 amps, step up to EC8 or direct soldering with high-current ring terminals.

How to Choose the Best EC5 Connector Solder Kit for Your Build

Picking the right EC5 kit comes down to four numbers: your continuous amp draw, your wire gauge, your project count, and how much assembly friction you can tolerate. Here’s the matching guide I wish I’d had when I bought my first EC5 set.

Match the kit to your amp draw

Below 80 amps, a standard EC5 kit like the Hobbypark, AYECEHI or NeeKare options will perform identically to premium Amass at lower cost. Between 80 and 120 amps, all of the kits on this list are rated, but premium-tier options like the FLY RC Amass set show measurably lower joint resistance and cooler running temps. Above 120 amps, you need EC8 or wire-direct, not EC5.

Match the kit to your wire gauge

10 AWG silicone is the standard for most EC5 work. All eight kits on this list are rated for 10 AWG. If you’re using 12 AWG (lighter builds, smaller batteries), every kit will also fit. 8 AWG wire is a tight squeeze on standard EC5 bullets — most bullets won’t accept it. If you’re running 8 AWG, you’ll need the genuine ProgressiveRC EZ-Solder EC5 with its extended bullet cup.

Match the kit count to your projects

5 pairs is right for a single LiPo pack plus charger adapter. 10 pairs covers a small fleet of two to three vehicles and a charger. 20 pairs suits builders managing multiple vehicles, parallel charging setups and shop inventory. Buy the smallest count you’ll actually use through — leftover bullets sit in a drawer for years.

Match the kit to your assembly comfort level

If you’ve soldered XT60 or XT90 before, every kit on this list will work. If you’ve never soldered a 5mm bullet before, the FLY RC Amass set with rear-loading housings is the easiest entry point. If you hate assembly friction entirely, the YLP pre-wired pigtail set skips soldering altogether.

If you’re also building out smaller connector systems in parallel, our guide to the best JST connector kits covers 2 mm systems for low-current sensors and balance leads, and our roundup of the best XT60 and Deans connector kits covers the standard mid-amp range. RC hobbyists building out complete power systems often keep one of each on the bench.

Frequently Asked Questions

Final Verdict: Which EC5 Solder Kit Should You Buy in 2026?

After eight weeks of bench testing and real builds across RC airplanes, 1/5-scale truggies and parallel charging boards, the Hobbypark 5 Pairs EC5 Connectors earn our top recommendation as the best EC5 connector solder kit for the widest range of hobbyists. The combination of 100-amp continuous rating, gold-plated bullets, clean polarity housing and tight manufacturing tolerances makes it the most forgiving kit on the list while still costing less than the Amass-tier alternatives.

If you’re buying in volume, the Nobranded 20 Pairs kit drops the per-pair cost significantly and gives you enough connectors to wire an entire fleet. If you want the absolute lowest joint resistance and the easiest assembly, the FLY RC 10 Pairs Amass kit wins on both fronts. And if you’d rather skip the soldering iron entirely, the YLP pre-wired pigtails plug straight into a charger or parallel board on day one.

The whole hobby of EC5 connector soldering comes down to three things: matching the kit to your amp draw, matching the kit count to your project, and matching the kit’s assembly complexity to your experience level. Get those right, and any of the eight kits on this list will run cool, hold tight, and serve your RC build for years.
