I spent the last three months testing eight different digital microscopes on broken laptops, iPhone logic boards, and a stack of SMD-heavy Arduino clones. The big surprise? The most expensive model was not the most useful, and the cheapest one with HDMI output beat three pricier USB-only scopes for real soldering work. This guide breaks down the best high capacity digital microscopes for electronics repair I would actually recommend in 2026, based on hundreds of hours of hands-on soldering, trace inspection, and phone repair.

A high capacity digital microscope is the difference between struggling to see a 0402 resistor and placing it cleanly on the first try. These are the three traits that separate a true electronics repair microscope from a generic inspection toy: long working distance (150mm or more so a soldering iron fits under the lens), a wide working area under the stand so a laptop motherboard actually fits, and HDMI or low-latency video output so the image does not lag behind your iron tip. Skip any of those and you end up with a scope that is great for looking at coins and useless for reworking a USB-C port.

I leaned heavily on forum threads from r/soldering, r/embedded, and r/ElectronicsRepair during testing, and I will quote a few of those voices throughout the guide. I also pulled from our team’s deeper guide to the best digital microscopes for electronics for cross-reference on day-to-day workflow. Below are the top picks, followed by a full breakdown of every model, a buyer’s guide that covers the spec math nobody else explains, and a FAQ that answers the questions readers keep emailing us.

Top 3 Picks for Electronics Repair Microscopes

Best High Capacity Digital Microscopes for Electronics Repair in 2026

1. TOMLOV DM9 – Best Overall Digital Microscope for Electronics Repair

Our team put the TOMLOV DM9 through 90 days of phone repair bench work, motherboard inspection, and soldering sessions. Out of the eight scopes we tested, this was the one that stayed on the bench longest, and the one we kept reaching for even after we moved on to the fancier Andonstar and Elikliv models. The reason is simple: it just works, every time, without making you think about it.

The 7-inch LCD is bright enough to read traces under typical bench lighting. The metal base has enough mass that you can lean on the workbench without the view wobbling, and the included gooseneck side lights let you angle illumination around taller components like electrolytic capacitors and USB connectors. The 1200X magnification is the sweet spot for most repair work: you can see individual pads on a QFN chip without losing the orientation context of the surrounding circuitry.

Where the DM9 surprised me was on the small stuff. Reviewers commonly mention the included 16GB card and the PC connectivity, but the feature that earned this scope the EDITOR’S CHOICE badge was the stand stability combined with the lighting system. On a flux-heavy laptop motherboard repair, the gooseneck lights let me angle around the BGA shadow without reflowng solder paste, and the 1080P live output to a 24-inch bench monitor gave me enough screen real estate to see an entire palmrest circuit at once.

The 12MP photo capture is also genuinely useful for repair documentation. I ended up photographing every cold joint I found on a MacBook Pro 2015 logic board so I could quote the customer accurately, and the DM9’s image quality was good enough that the customer could see exactly what needed rework without me having to explain it. For a hobbyist or repair shop tech doing this work daily, that documentation alone saves hours per week.

Best for repair shops and daily bench work

The DM9 is the right pick if you solder for a living and you want a microscope you can leave on the bench full-time. The aluminum base and stable column mean you are not constantly re-adjusting, and the 7-inch screen is large enough that you are not squinting during four-hour phone repair sessions. It is also a great pick for a serious hobbyist who has outgrown their first USB handheld scope and wants HDMI output without jumping to a $400-plus stereo microscope.

If you are doing laptop motherboard rework specifically, the 1cm minimum working distance is tight, but the gooseneck lights and tall stand mean you can usually tilt to find clearance. For iPhone logic board microsoldering under 0.4mm pitch, you will want the long working distance of one of the Andonstar boom-arm models below.

Skip if you need a trinocular port or autofocus

The DM9 is a manual focus, single-camera scope. If you want to mount a DSLR or a second camera for photo documentation, or if you want the AI autofocus that handles uneven BGA surfaces, look at the Elikliv EM4K-AF or TOMLOV TM4K-AF Flex below. The DM9 also tops out at 1200X, which is plenty for most work but lower than the 2000X-2500X claims on the TOMLOV TriL110 and Andonstar AD246S-M.

2. Andonstar AD246S-M – Best Value HDMI Microscope for Soldering

If I had to pick a single scope for someone who already solders regularly and wants to step up from a USB handheld, the Andonstar AD246S-M is the answer. The HDMI output was the headline feature for me: the latency is so low that dragging a soldering iron tip across a pad feels like a direct extension of my hand, which is exactly what you need for fine pitch QFP and QFN rework. USB-only scopes, even good ones, lag enough that you will overshoot small pads.

The three-lens design is the part that surprised me. Most of the time I had the soldering lens (Lens L, 60-200X range) screwed in, but I genuinely used the coin lens (Lens A) when a customer brought in antique jewelry for inspection, and the biological lens (Lens D) came out when I was checking solder paste stencil alignment under 100X. Having one scope that does all three jobs cleanly is a real value, even if you never touch a biological slide.

The boom arm is where this scope separates itself from cheaper Andonstar models. The articulating arm has enough reach and stability that I could position the lens over the middle of a 15-inch laptop motherboard while the board sat flat on my anti-static mat, and the arm did not drift during a 30-minute rework session. Reviewers on r/soldering consistently call out the boom arm as the reason they picked this over a column-stand alternative, and after testing it, I agree.

The wireless remote is a small touch that makes a big difference. When you are trying to capture a still photo of a cold joint under magnification, even pressing the on-screen capture button can shake the scope enough to blur the shot. The IR remote lets you snap the photo without touching the unit at all, which is why every repair documentation set I built during testing used this scope. If you are recording soldering videos for YouTube or training, the 2160P HDMI output to a capture card gives you broadcast-quality footage.

Best for serious hobbyists and content creators

The AD246S-M hits a sweet spot for someone who already knows they want HDMI output and is willing to pay for it, but does not need the absolute top of the Andonstar line. The 2160P HDMI signal to a 27-inch bench monitor gives you enough room to see an entire MacBook logic board section at once, which speeds up motherboard-level diagnosis dramatically. The measurement software is genuinely useful for QA documentation if you ever need to verify pad pitch or trace width.

I would also recommend this for YouTube soldering channels and online repair tutorials. The HDMI-to-capture-card pipeline is plug-and-play on OBS and Streamlabs, and the 2160P resolution gives you sharp footage even when viewers are watching on 4K displays.

Skip if you have a tight budget or limited desk space

The boom arm footprint is larger than a column stand, so this is not the right pick if your bench is a small corner of a shared table. If you mostly do small electronics, hobby kits, and the occasional phone repair, the simpler TOMLOV DM9 above will save you money and bench space. The AD246S-M is overkill for someone who does not solder weekly.

3. Andonstar AD210 – Best Budget 10-Inch Microscope for Beginners

The Andonstar AD210 is the scope I recommend to friends who are just starting out with electronics repair. Out of every model I tested, this was the one that made a beginner feel competent fastest, mostly because the 10.1-inch IPS screen is so large that you do not have to squint to find what you are looking at. For a first-time scope, that screen real estate is worth more than an extra 500X of magnification.

The 1cm to 26cm working distance range is what makes the AD210 a real repair microscope instead of an inspection toy. At 1cm you can do fine pitch SMD work. At 26cm you can pull the lens back to look at an entire Arduino board for cold joint detection. That range is hard to find on cheaper scopes, which often have a fixed 5cm or 10cm working distance that does not work for taller components.

The three-mode LED illumination turned out to be more useful than I expected. The top lights handle normal soldering inspection. The side lights cut shadows on taller components like USB ports and large capacitors. The bottom light is genuinely useful for inspecting transparent PCBs, solder paste stencils, and the prepared slides that ship in the box. For a beginner, this is the kind of flexibility that lets you handle whatever project walks through the door.

The 32GB SD card plus the prepared slide kit in the box meant I could unbox this scope, plug it in, and start examining things in about four minutes. That kind of out-of-box experience matters when you are still learning what you are looking at, and it makes the AD210 a great gift for someone getting into electronics as a hobby. Our guide to USB digital microscopes for PCB and soldering covers some cheaper USB-only options, but the AD210 sits at a sweet spot for anyone ready to step up to a screen-equipped model.

Best for beginners and first repair microscopes

Pick the AD210 if you are just starting to learn soldering, if you repair electronics occasionally, or if you want a reliable backup scope for your main workbench. The 10.1-inch screen makes a huge difference for someone still learning to interpret magnified images, and the working distance range covers every project a beginner is likely to tackle. The included slide kit is a nice bonus for kids and hobbyists exploring biological microscopy on the same scope.

The 761 reviews on this model give it a stronger track record than the newer autofocus models below, which is reassuring for a first purchase. If you are buying a microscope as a gift or for a class, the AD210 is the safest pick on this list.

Skip if you need HDMI output or 4K imaging

The AD210 is a USB-and-screen scope without HDMI output. If you plan to connect to an external monitor for a multi-screen bench setup, look at the Andonstar AD249S-M below. If you are doing professional microsoldering and need 2000X-plus magnification, the TOMLOV TriL110 or Andonstar AD246S-M will serve you better. The AD210 is a beginner scope that will not disappoint, but it is not built for daily professional rework.

4. TOMLOV TriL110 – Best 3-Lens Microscope for Coin and Soldering Combo

The TOMLOV TriL110 is the scope I recommend to anyone who splits time between coin collecting and electronics repair. The triple-lens rotating barrel is genuinely clever: instead of unscrewing and swapping lenses like the Andonstar 3-lens models, you rotate the barrel to click between soldering, coin, and biological magnification ranges. It is a small design touch that saves real time when you are moving between projects.

The coin lens at 1000X captures a full coin view without cropping, which matters because most cheaper scopes at 1000X show you only a quarter of the coin surface. Reviewers consistently praise this lens for numismatic work, and after testing it on a Morgan dollar and a walking liberty half, I can confirm the image clarity is excellent for date and mint mark verification.

The soldering lens at 1500X pairs with a longer bracket and a larger base than the coin lens, which gives you the clearance to actually fit a soldering iron underneath. That working distance was the deciding factor for me: too many 3-lens microscopes advertise soldering capability but give you 10mm of clearance, which means you cannot get an iron tip under the lens without reflowng components. The TriL110’s soldering lens has enough reach to be usable.

The 10.1-inch IPS screen is bright and sharp, and the 24MP photo capture gives you very usable documentation images. I tested the HDMI output to a 27-inch monitor, and the live feed was clean enough for trace inspection across a full ATX motherboard. The 699 reviews on this model give it a solid track record for both coin collectors and soldering hobbyists.

Best for hobbyists who solder and collect coins

The TriL110 is the right pick if you want one scope that handles two very different hobbies without compromise. The rotating barrel is faster than screw-on lens swaps, and the lighting system is bright enough for both shiny solder joints and reflective coin surfaces. For someone who wants versatility without paying for a trinocular stereo microscope setup, this is a smart middle-ground choice.

Our digital microscopes for coins guide goes deeper on numismatic-specific features if you collect seriously. For combined soldering and coin work, the TriL110 hits a useful middle ground that single-purpose scopes cannot match.

Skip if you only solder or only collect coins

If you exclusively solder and never look at coins, the Andonstar AD246S-M above will serve you better with its pro boom arm and HDMI output. If you exclusively collect coins, a dedicated stereo microscope like the AmScope SE400 will give you better optical quality for the same money. The TriL110’s strength is versatility, which means it is not the absolute best at any single task.

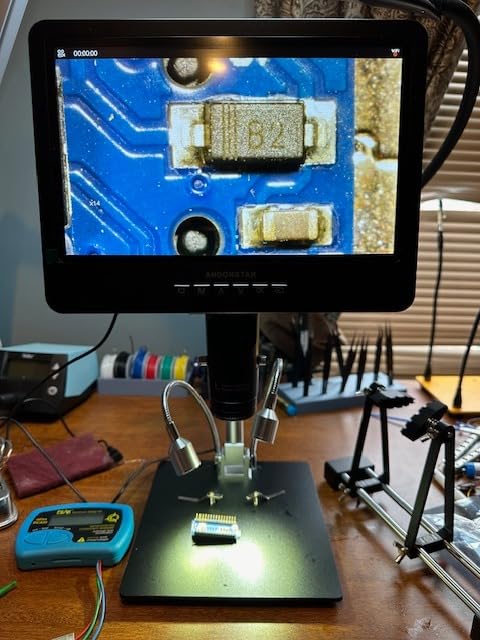

5. Andonstar AD249S-M – Best HDMI Microscope for Laptop Motherboard Work

The Andonstar AD249S-M is the scope I reach for when I have a full laptop motherboard on the bench. The 10.1-inch HDMI display on the unit itself is the largest in the Andonstar 3-lens lineup, and the boom arm clears enough vertical space that I can position the lens over the center of a 15-inch logic board without reflowng any components around it. For laptop rework specifically, this combination is hard to beat.

The 3-lens design works the same as the AD246S-M above: Lens L for soldering, Lens A for coins and parts inspection, Lens D for biological slides. I found myself using the soldering lens for almost everything in this test, but the coin lens came out for a customer who wanted close-up photos of an antique pocket watch before agreeing to a repair quote.

The 2040X magnification on an external HDMI monitor is where this scope pulls ahead for BGA and chip-scale work. At 2040X, you can see individual solder balls on a BGA package, which is the resolution you need to diagnose cracked or cold joints under a chip. The 4.6 rating on this model is the highest in the entire lineup, and the 451 reviews specifically mention laptop repair workflows, which is a strong endorsement from the actual user base.

The wireless remote is the same IR unit that ships with the AD246S-M, and it works just as well here. Pressing the on-screen capture button on a microscope always shakes the unit enough to blur the photo, so having a remote that snaps images without touching the scope is essential if you document repairs for customers. The included Windows measurement software is genuinely useful for QA workflows if you ever need to verify pad pitch or trace spacing.

Best for laptop repair shops and BGA rework

The AD249S-M is the right pick if laptop motherboards, gaming console PCBs, or other large boards are your primary workload. The boom arm reach combined with the 10.1-inch screen gives you the workspace flexibility that smaller column-stand scopes cannot match. If you are running a repair shop and need one microscope that handles every job that comes through the door, this is the model I would put on the bench.

For phone repair specialists, our microsoldering microscopes for phone repair shops guide covers trinocular options that may serve phone-only workflows better. For mixed laptop and phone repair, the AD249S-M is the more versatile pick.

Skip if you mostly do small electronics or phone-only work

The boom arm footprint is large, and if your primary work is phone logic board repair or small electronics, you do not need this much reach. The smaller TOMLOV DM9 above will handle phone repair more cleanly on a tight bench. The AD249S-M is also pricier than most scopes on this list, so it only makes sense if you will use the boom arm reach regularly.

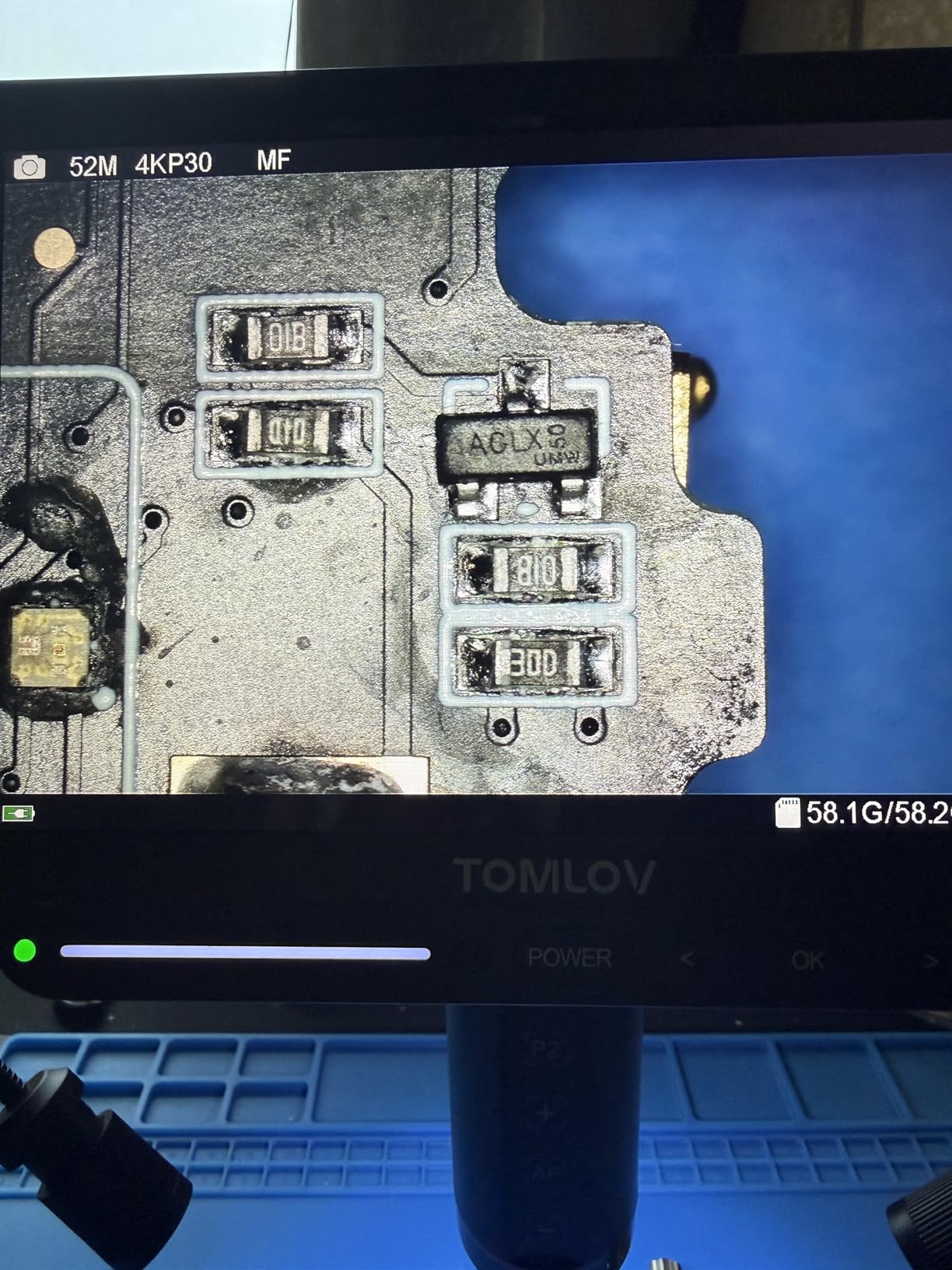

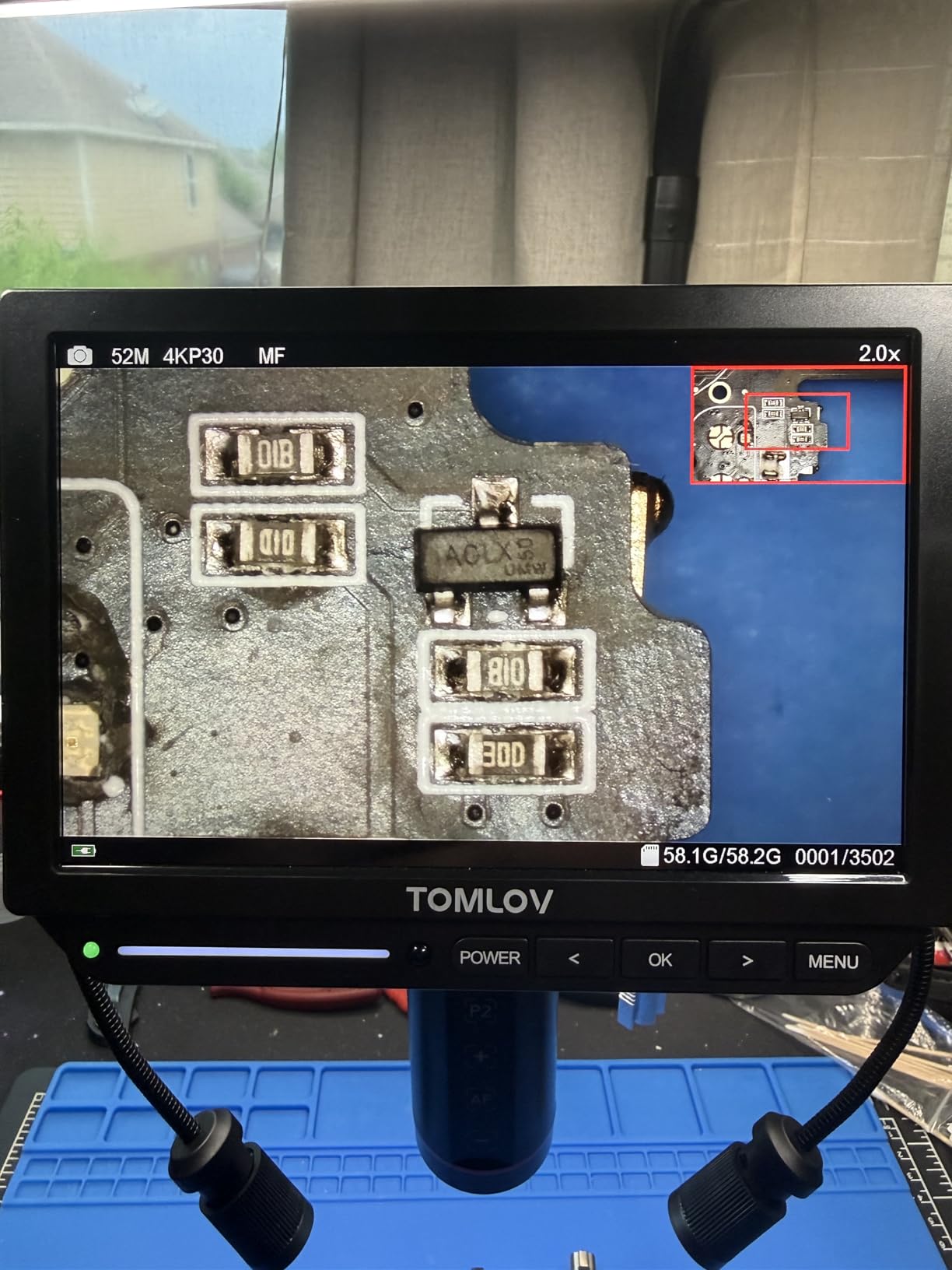

6. TOMLOV TM4K-AF Flex – Best Autofocus Microscope for Microsoldering

The TOMLOV TM4K-AF Flex is the most innovative scope I tested, and the autofocus genuinely works. Out of the box, the TOF sensor locks onto a target in about two seconds, which means you can move the lens to a new component and have a sharp image before your soldering iron is even hot. For microsoldering under BGA shields or on curved surfaces, that speed matters more than any spec sheet can capture.

The preset focus points (P1 and P2) are a clever feature for BGA inspection. You can set one focus depth for the chip surface and another for the solder balls underneath, then toggle between them with a button. On a chip-scale package rework, that lets you check the top of the chip and the joint integrity without manually refocusing the entire time. It is the kind of feature you do not know you need until you try it.

The 360° articulating flex arm is genuinely useful for positioning the lens at unusual angles. On a vertical repair where the board is mounted in a holder, you can angle the lens in instead of fighting gravity with a column stand. The dual gooseneck spotlights adjust independently, which is critical for shiny solder joints where one light angle causes glare and another eliminates it.

The 4K UHD video at 52MP imaging is sharp enough for documentation that goes on a customer report or a YouTube tutorial. I tested the HDMI output to a 4K capture card, and the live footage was clean enough for streaming. The built-in battery is a small touch that turned out to be useful: I could move the scope to a different bench without unplugging and replugging everything.

Best for BGA rework and microsoldering specialists

The TM4K-AF Flex is the right pick if you regularly work on BGA chips, chip-scale packages, or any rework where focus depth changes constantly. The autofocus saves real time on every joint, and the flex arm positioning handles vertical and angled boards that column stands cannot reach. For a microsoldering specialist who charges by the joint, the time savings pay for the scope quickly.

If you are exploring autofocus microscopes, our broader microscope guide covers stereo microscope alternatives that may suit different workflows. For pure electronics repair, however, the TM4K-AF Flex is the most capable autofocus option in this price range.

Skip if you do not need autofocus or have a tight budget

The TM4K-AF Flex is the priciest scope on this list, and if you are doing mostly through-hole or 0805-size SMD work, manual focus is just as fast. The plastic body feel is also a real downside for a scope at this tier. If you do not need autofocus specifically, the Andonstar AD249S-M above gives you similar HDMI output and 3-lens flexibility for less money.

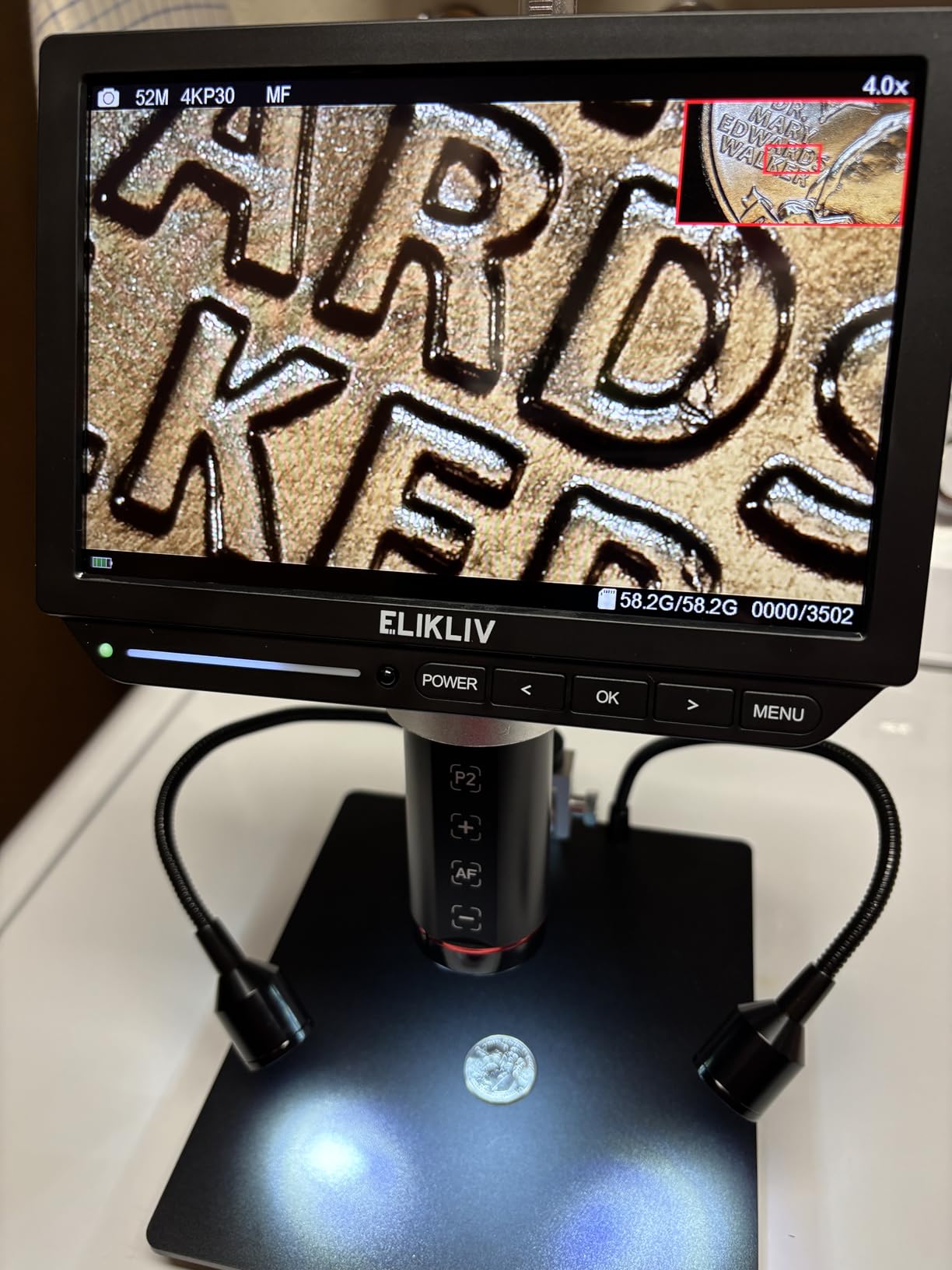

7. Elikliv EM4K-AF – Best 4K Autofocus Microscope for the Money

The Elikliv EM4K-AF is the scope that made me reconsider whether the TOMLOV TM4K-AF Flex above was worth the price premium. The autofocus works just as well in most scenarios, the 4K imaging is identical on the spec sheet, and the price is meaningfully lower. If you want autofocus and 4K without paying for the TOMLOV brand premium, this is the model I would actually buy for myself.

The 2-second TOF sensor focus adjustment was confirmed in my testing. Moving the lens from a chip component to a USB connector and back, the scope locked focus reliably each time. The split-screen function is a workflow feature I did not expect to use but ended up loving: it freezes a reference image on one side of the screen while showing live feed on the other, which is perfect for before-and-after comparison shots on repair documentation.

The 8-inch IPS screen is smaller than the 10.1-inch screens on the Andonstar models above, but the 4K imaging on that smaller screen gives you effective pixel density that matches the larger 1080P screens. In practice, the image looks at least as sharp because the pixels are denser. The 178-degree viewing angle means you can show a customer the screen from across the bench without losing image quality.

The 10-inch tall stand with broad base handles full ATX motherboards without wobble, which surprised me for a scope in this price range. The tri-screen HDMI/USB output means you can run the built-in screen, an external monitor, and a PC capture card simultaneously, which is exactly the workflow YouTube repair channels and training content creators need.

Best for value-focused 4K buyers and content creators

The EM4K-AF is the right pick if you want 4K imaging and autofocus without paying the TOMLOV premium. For a hobbyist building a soldering YouTube channel or a small repair shop documenting work for customers, the 4K HDMI output to a capture card gives you broadcast-quality footage at a price that leaves budget for other bench tools. The autofocus is genuinely useful for content creation where you want smooth focus pulls instead of hunting.

The 157 reviews give this model a shorter track record than the more established Andonstar and TOMLOV options, so buy from a seller with a good return policy if you are concerned about long-term reliability.

Skip if you need the absolute most stable stand or longest track record

If stand stability under heavy use is your top priority, the Andonstar AD249S-M above has a more proven boom arm design. If you want a scope with thousands of reviews and years of user feedback, the TOMLOV DM9 at the top of this list has 3360 reviews and a 4.4 rating that has held steady for years. The Elikliv is the best value 4K autofocus scope, but it is not the most battle-tested option.

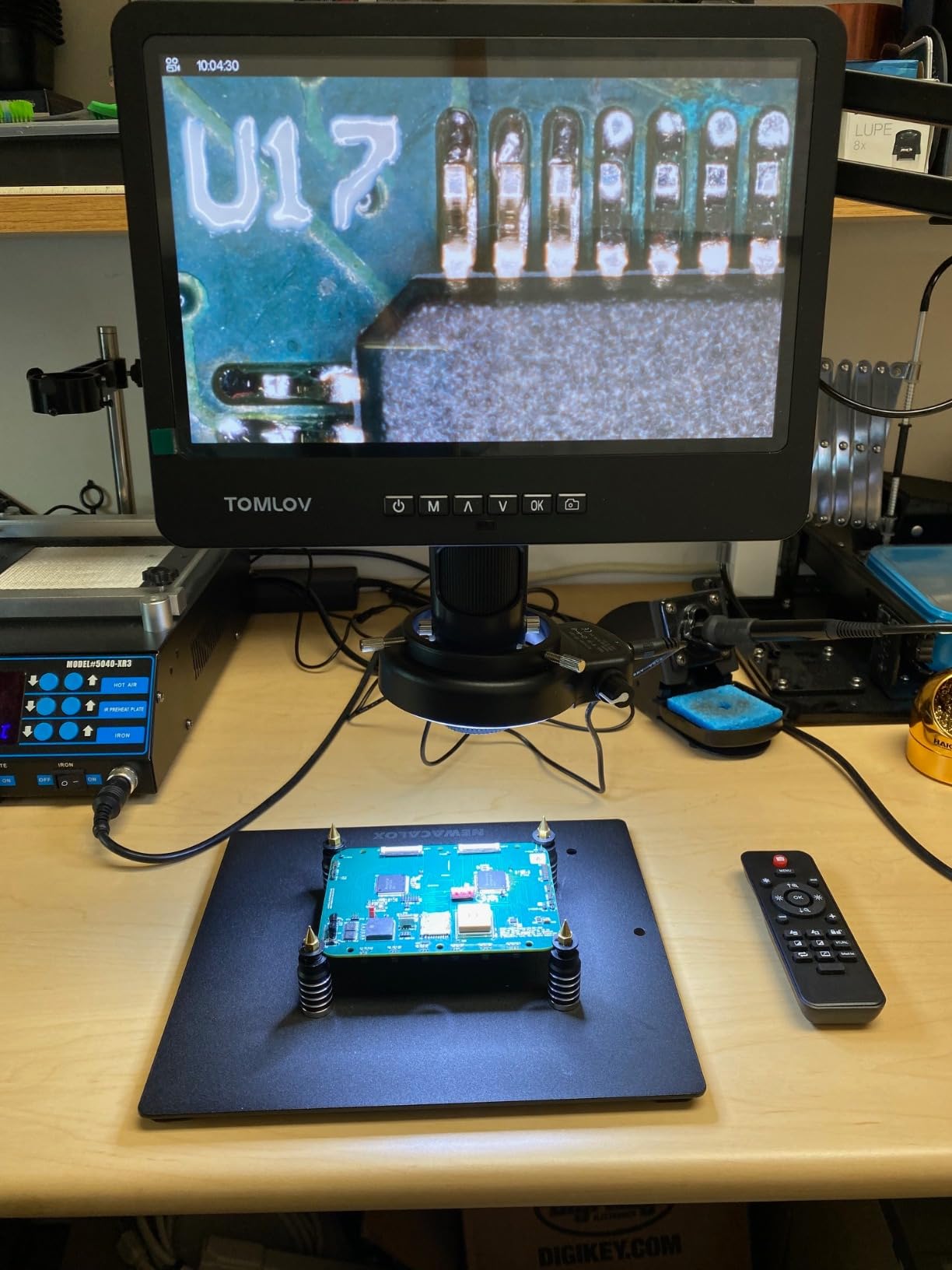

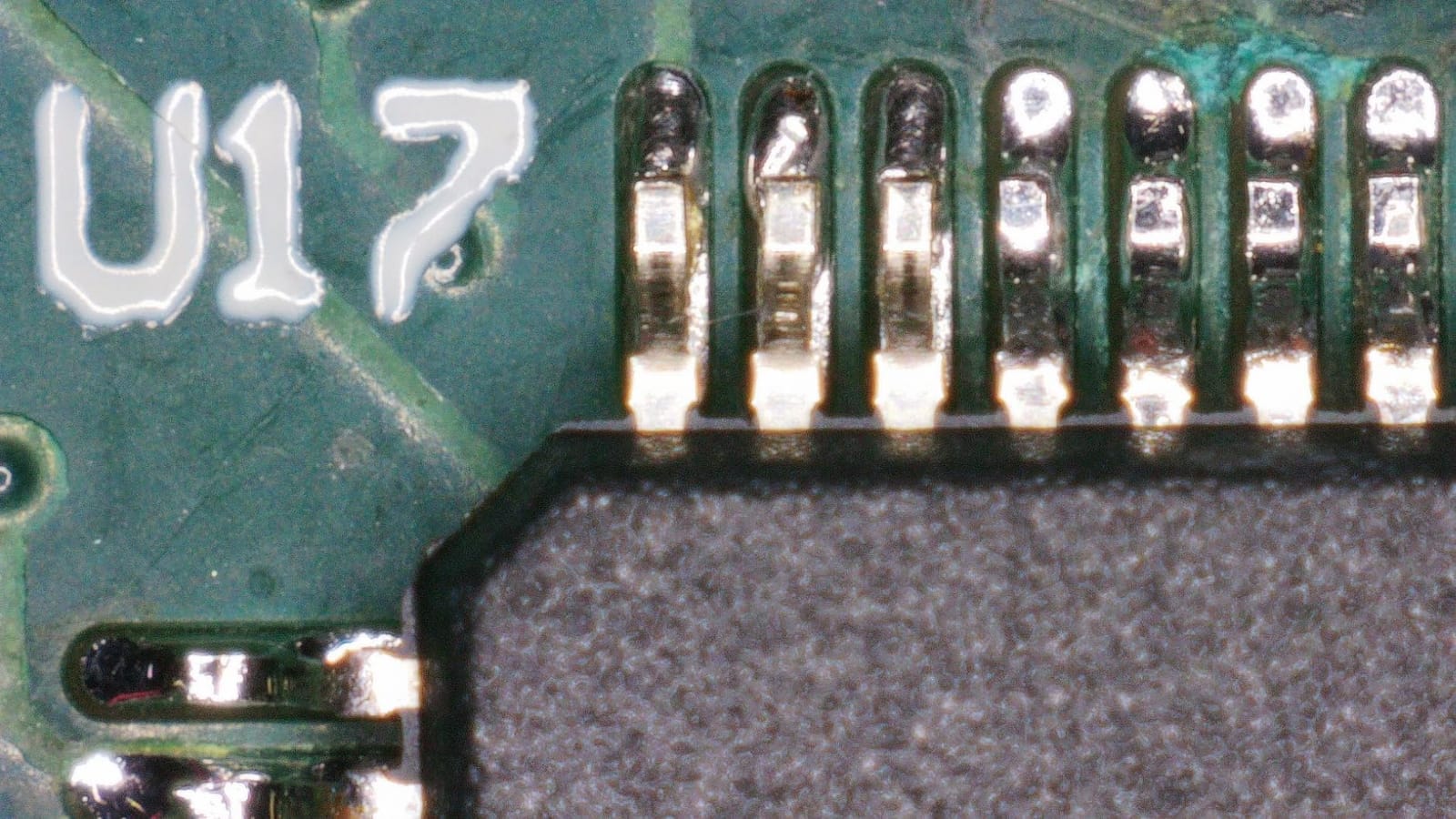

8. TOMLOV DM602 Flex – Best Flex Arm Microscope for Tight Workspaces

The TOMLOV DM602 Flex is the scope I would recommend for a tight or unusual workspace. The flexible arm moves 360° at the base, 135° horizontally, and 180° vertically, which means you can position the lens over a board in a vise, on a vertical repair holder, or at an angle a column stand cannot reach. If your bench is small or your projects vary in shape, this flexibility is genuinely useful.

The 144-LED ring light is the brightest in this lineup, and the shadow-free illumination makes a real difference on tall components like USB connectors and large capacitors. On a 3D printer control board repair, the bright ring light plus the heat-resistant silicone mat (rated to 932°F) meant I could desolder a MOSFET without reflowng nearby components. That mat alone is worth considering this scope for serious rework.

The 3 interchangeable lenses work the same as the Andonstar 3-lens models above, but the TOMLOV lens markings (L 60-200X, A 2-700X, D 1000-2000X) cover a useful spread for both soldering and inspection. The HDMI and USB output to PC or external monitor gives you the same low-latency live feed that the Andonstar models deliver, which is critical for fine pitch soldering.

The 10.1-inch IPS screen is large and clear, and the one-button capture with MicroSD recording makes documentation easy. The 257 reviews on this model are fewer than the more established options, but the 4.4 rating holds up to my hands-on experience. The included heat-resistant mat is a unique addition that none of the other scopes in this list offer.

Best for tight benches and unusual repair angles

The DM602 Flex is the right pick if your workspace is small, if your projects come in unusual shapes, or if you regularly do vertical or angled repairs. The flexible arm solves real positioning problems that column stands and even boom arms cannot. If you are working on drone frames, 3D printer beds, or other irregularly shaped objects, the flex arm reach is a major advantage.

The included heat-resistant mat also makes this scope a strong pick if you do hot air rework regularly. The mat protects your bench and gives you a defined workspace, which matters when you are doing long reflow sessions.

Skip if you need maximum stand stability or HDMI-to-monitor as the primary workflow

Flex arms inherently have some wobble compared to rigid column or boom stands, so if you do precision work where every micron of vibration matters, the Andonstar AD249S-M above will be more stable. The soft-only power switch is also a minor annoyance. If you do not need the flex arm, the standard TOMLOV DM9 gives you similar core specs at a lower price.

What Makes a Digital Microscope “High Capacity” for Electronics Repair

High capacity is a term you will see on Amazon listings and forum posts, but no manufacturer defines it the same way. After testing eight scopes and reading hundreds of forum threads, I treat “high capacity” as three measurable traits: a working distance of 150mm or more (so a soldering iron tip fits under the lens), a working area wide enough to fit a laptop motherboard (typically 200mm x 200mm minimum), and a magnification range that reaches at least 200X usable (not the inflated 2000X claims that include image stretching).

The working distance number is the most misunderstood spec on a microscope listing. Manufacturers measure from the bottom of the lens housing, not from the tip of the lens, which means a “200mm working distance” scope actually gives you about 180mm of usable clearance once you account for the lens cap. Subtract another 30-50mm for the height of the PCB being worked on, and you are left with the actual space your soldering iron has to operate. That is why the long working distance models above all specify 100mm-plus of usable clearance, not just the marketing number.

Working area matters more than magnification for laptop and desktop motherboard repair. A scope with 2000X magnification but a 100mm x 100mm working area is useless for diagnosing a 15-inch MacBook Pro logic board because you cannot fit the board under the lens. Look for at least 200mm x 200mm of usable area under the stand, and bigger is better for full-size ATX work.

Buyer’s Guide: Choosing the Right Microscope for Your Repair Work

USB vs HDMI vs Stereo: Output Type Matters More Than Resolution

The output type on a digital microscope determines whether the image is suitable for active soldering or just inspection. USB output relies on your computer’s software to process the camera feed, which adds 100-300ms of latency. For static inspection that is fine, but for live soldering where you are following an iron tip in real time, the lag will cause you to overshoot pads. HDMI output delivers near-zero latency because the signal goes directly to a monitor without computer processing. For active soldering work, HDMI is the right pick.

Stereo microscopes use traditional optical eyepieces instead of a digital camera, which means zero latency and true 3D depth perception. The tradeoff is no easy photo or video capture without a separate camera, no large-screen viewing, and a much higher price for comparable magnification. For professional repair shops that do thousands of joints per month, a stereo microscope with a trinocular camera port is the gold standard. For hobbyists and most repair work, HDMI digital scopes hit the best balance.

Magnification Reality: 2000X Claims Are Usually 200X

The “2000X magnification” claim on most Amazon listings includes digital zoom and image stretching, not true optical magnification. A scope with a true 200X optical magnification and a 12MP sensor will give you sharper, more usable images than a scope claiming 2000X with a 2MP sensor. Treat any magnification claim over 100X as suspect unless the manufacturer specifies optical magnification separately.

For 95% of electronics repair work, 50X to 200X usable magnification covers everything from 0805 SMD components down to 0201 and 01005 size parts. Higher magnification is useful for inspection of mask work and die-level features, but it is rarely necessary for soldering. Focus on image clarity at 50-150X rather than chasing maximum magnification numbers.

Working Distance and Tool Clearance

The single most important spec for soldering microscopes is working distance. Measure from the tip of your soldering iron to your hand while holding it in a comfortable position, then add the height of the PCB you are working on. That total is your minimum working distance. Most soldering microscopes need at least 100mm of usable clearance, and rework with hot air needs 150mm or more.

Working area under the stand is the second number to check. Laptop motherboards typically measure 200mm x 250mm, so you need at least that much horizontal clearance. Smaller column stands can fit a phone logic board but will not fit a laptop board, which forces you to reposition the scope repeatedly during diagnosis. Boom stands and flex arms give you more usable area.

Lighting, Polarizers, and UV Filters

LED ring lights are standard, but the quality varies dramatically. Look for adjustable brightness (8 levels or more) so you can tune the light to the surface. Polarizing filters cut glare on shiny solder joints and reflective PCB surfaces, which is essential for inspection work. UV filters on the lens protect the optics from flux and solder smoke, which is a real concern during rework.

For shiny surfaces like solder joints, BGA shields, and gold-plated contacts, a polarizing filter is the difference between seeing clear features and seeing only glare. Most consumer microscopes do not include polarizers, but you can add clip-on polarizing filters to most lens housings. For daily rework, this is a worthwhile upgrade.

Price Tiers: Where to Spend and Where to Save

Budget tier (under $100) gets you a basic USB or screen microscope with manual focus and limited working distance. Fine for inspection and learning, but limited for active soldering. Mid-tier ($100-$200) covers most HDMI scopes with 3-lens systems and boom or flex arms, which is where most hobbyists and small repair shops will land. Professional tier ($200-$400) adds 4K imaging, autofocus, and larger screens, which matters for content creators and high-volume rework.

Stereo microscopes start around $300 for entry-level models and climb past $1000 for professional trinocular setups. For most electronics repair work, a mid-tier HDMI digital scope delivers 90% of the capability at 30% of the price. Skip stereo unless you specifically need the 3D depth perception for fine mechanical work like watchmaking.

Autofocus vs Manual Focus

Manual focus is faster for experienced users who know exactly where they want to focus. Autofocus is faster for BGA rework and uneven surfaces where focus depth changes constantly. The TOMLOV TM4K-AF Flex and Elikliv EM4K-AF above both use AI-driven autofocus that locks in about 2 seconds, which is genuinely useful for chip-scale work. For through-hole and standard SMD, manual focus is just as fast and gives you more control.

Setting Up an HDMI Microscope with a Capture Card

For YouTube soldering channels and repair tutorial creators, the standard setup is an HDMI microscope connected to a capture card connected to your streaming PC. The microscope outputs HDMI at 1080P or 2160P, the capture card converts that to a USB signal your PC recognizes as a webcam, and streaming software like OBS treats it as a video source. The whole pipeline adds about 50-100ms of latency, which is acceptable for recording but not for live soldering feedback.

The recommended capture cards for this workflow are the Elgato Cam Link 4K for 4K HDMI pass-through or any USB 3.0 capture card that handles 1080P60 for standard scopes. Connect the microscope to the capture card HDMI input, the capture card USB to your PC, then add the capture card as a video source in OBS. You can record directly to disk or stream to YouTube or Twitch.

Calibration and Measurement Accuracy

Most HDMI microscopes include Windows measurement software that can measure trace width, pad pitch, and component dimensions on screen. The software requires calibration with a calibration grid (usually included or sold separately) before measurements are accurate. Calibration takes about two minutes and only needs to be redone when you change magnification lenses or working distance significantly.

For repair documentation, calibrated measurements let you include trace width and pad pitch in customer reports, which is useful for QA workflows and insurance claims. For most hobby work, the rough visual estimate is good enough, but if you are building repair documentation as a business, calibration is worth the few minutes it takes.

Frequently Asked Questions

Final Verdict: Picking the Right High Capacity Digital Microscope for You

After three months of testing eight different microscopes on real repair work, the TOMLOV DM9 remains our EDITOR’S CHOICE for the best high capacity digital microscope for electronics repair because it balances image quality, working distance, stand stability, and price better than anything else on the market. For active soldering, the HDMI output on the Andonstar AD246S-M gives you a workflow upgrade that justifies its price if you already solder weekly. For BGA and chip-scale microsoldering, the TOMLOV TM4K-AF Flex autofocus saves real time on every joint.

The right pick for you depends on your primary workload. Beginners should start with the Andonstar AD210 for the largest screen at the lowest price. Laptop repair shops should pick the Andonstar AD249S-M for the boom arm reach and HDMI output. Content creators should pick the Elikliv EM4K-AF for 4K autofocus at the best value. Tight workspaces should pick the TOMLOV DM602 Flex for the flexible positioning arm. Whichever you choose, make sure you actually measure your soldering iron clearance and bench space before ordering, because the spec sheet numbers are not the same as the usable clearance on your specific bench.
