The best transmission jack depends on whether you are working under a vehicle raised on jack stands in a home garage or under a vehicle sitting on a two-post lift in a shop. In a home garage, ground clearance rules the decision, so a low-profile jack that fits under a lowered car beats any tall telescopic model. Under a lift, height is not the constraint, so capacity, saddle tilt control and how fast you can reposition become the deciding factors.
That distinction shapes everything in this guide. We looked at eight transmission jacks spanning the full range, from a 450 lb scissor jack for a small manual-transmission car to a 4,400 lb wishbone jack built for semi-truck drivetrains. Each one came with a manufacturer capacity rating, a published height range and a real owner feedback pool, and we used all three to judge them.
A transmission jack is a low hydraulic lifting frame with an adjustable saddle that rolls under a vehicle to raise, support and position a transmission, transaxle or differential during removal or installation. Transmissions typically weigh between 100 and 300 pounds or more, and they sit in places a floor jack cannot reach. A jack that tilts its saddle is the only practical way to bring one out from under a car without dropping it or cracking the housing.
If you also want a general-purpose lifter for tire work and axle jobs, our floor jack roundup for home garages covers that side of the aisle. This one stays on drivetrain work only.
Table of Contents
Top 3 Best Transmission Jacks For Garage Use (October 2026)
Three picks cover most people reading this page. The Sunex 7793B is the one to buy when you want a shop-grade unit that reaches high and holds a heavy transfer case steady. The VEVOR 1322 gives you more capacity per pound spent than anything else here. The KAFLLA 1660 lb model is the reach-per-dollar winner for tall frame rails.
Sunex Tools 7793B 1,000 lb Telescopic
- 1000 lb capacity
- 74.2 in max height
- Foot pump with tilt saddle and chain tie-down
- Overload protection valve
VEVOR 1,322 lb Telescoping Jack
- 1322 lb capacity
- 32 in to 68.5 in range
- 30 degree tilt-adjustable saddle
- Foot pedal with four swivel wheels
KAFLLA 1,660 lb High Lift Jack
- 1600 lb rated capacity
- 35 in to 72 in two-stage range
- 30 degree tilt saddle
- Retaining chain and swivel casters
All 8 Transmission Jacks Compared Side by Side in 2026
Here is the comparison of floor transmission jacks in one place, because no retail page on the search results will put these side by side for you. The three numbers that decide the purchase are collapsed height (does it fit under your car), extended height (can it reach the transmission bell housing), and whether the saddle genuinely tilts in both directions.
| Product | Specifications | Action |
|---|---|---|
| Sunex Tools 7793B 1,000 lb Telescopic Transmission Jack |
|
Check Latest Price |
| VEVOR 1,322 lb Telescoping Transmission Jack |
|
Check Latest Price |
| KAFLLA 1,660 lb High Lift Transmission Jack |
|
Check Latest Price |
 MOTOOS 1,100 lb Low Profile Transmission Jack |
|
Check Latest Price |
 OTC 1521A 1,000 lb Low-Lift Transmission Jack |
|
Check Latest Price |
 AFF 4,400 lb Heavy Duty Transmission Jack |
|
Check Latest Price |
 AFF 450 lb Manual Scissor Transmission Jack |
|
Check Latest Price |
 Garvee 450 lb Low Profile Transmission Jack |
|
Check Latest Price |
Capacity maps to vehicle class more predictably than most buyers expect. A 450 lb jack handles small manual transmissions, transaxles and fuel tanks on compact cars. The 1,000 to 1,322 lb band covers most automatic transmissions and light truck drivetrains. Anything at 1,600 lb and above is for transfer cases, full-size truck transmissions and heavy differentials. The 4,400 lb wishbone jack is the only one here rated for semi-truck and construction-equipment drivetrain work.
Height is the harder filter. Anything with a collapsed height above 30 inches simply will not go under a lowered car, a crossover with a plastic belly pan, or a car with a low front subframe. That is why the two low-profile hydraulic jacks and the scissor design sit on this list at all, even though their maximum lift is modest by comparison.

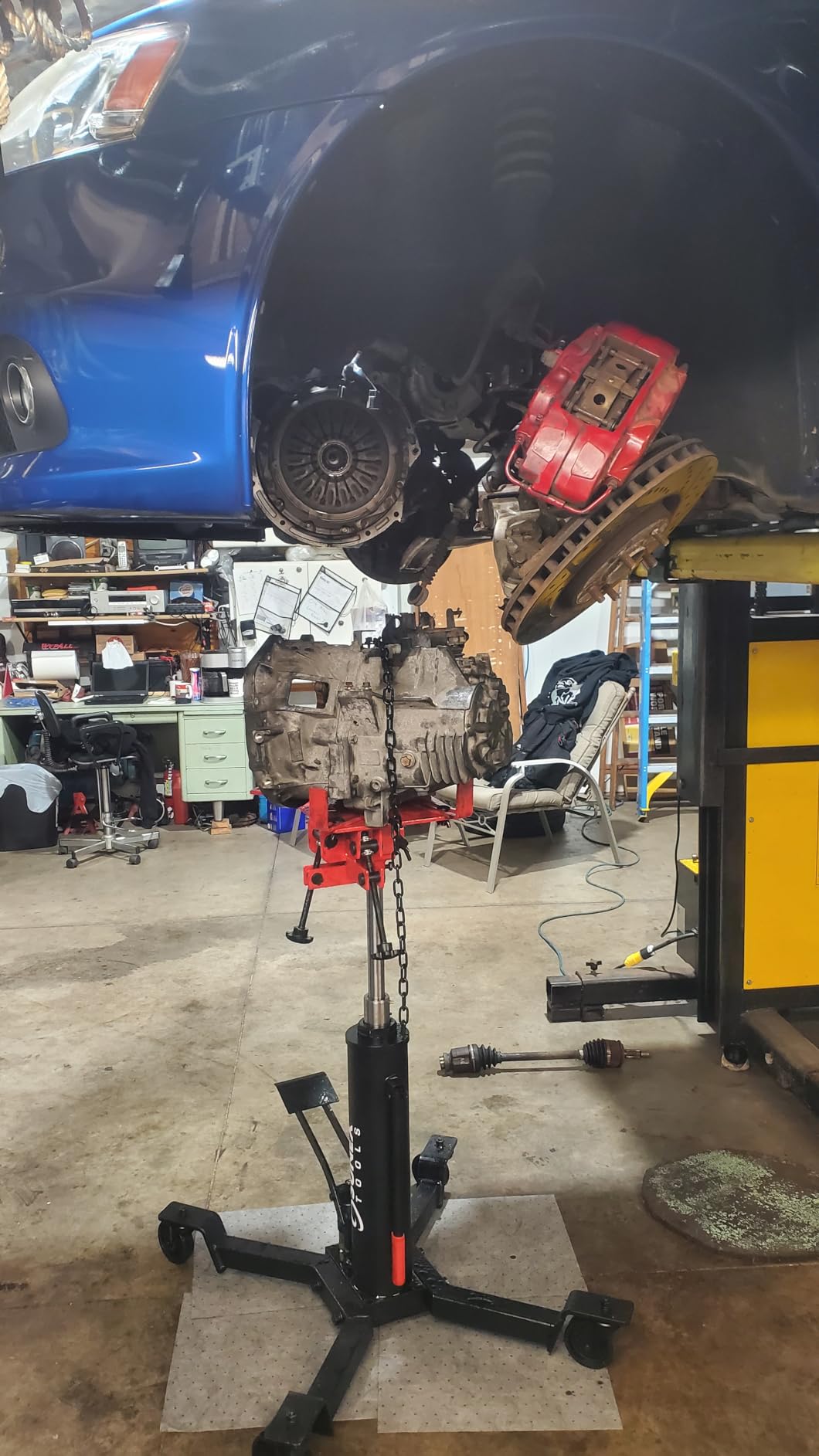

1. Sunex Tools 7793B 1,000 lb Telescopic Transmission Jack
Sunex Tools 7793B 1,000 lb Telescopic Transmission Jack, Hydraulic, Foot Pump Operated, Tilt Saddle with Chain Tie-Down, 74.2 in Max Height
1,000 lb capacity
35 in collapsed to 74 in raised
Foot pump, tilt saddle with chain, overload valve
163 lb
Pros
- Reaches 74 in
- tall enough for deep frame rails and high-lift trucks
- 163 lb build weight holds heavy loads without wobble
- Tilt saddle accommodates irregular transfer case shapes
- Fine foot-pedal and twist-knob control for delicate unbolting
- Reported leak-free over multi-year daily shop use
Cons
- Slow to lower with no load on the saddle
- Supplied tie-down chains are flimsy and may need replacing
- Assembly relies on an exploded diagram
- Isolated report of hydraulic binding on a replacement unit
This is the jack I would put in a garage that does real drivetrain work rather than occasional emergencies. At 163 pounds it is the heaviest unit in this group apart from the heavy-duty AFF, and that mass is the point: it does not tip when you roll it under a loaded transmission and start unbolting.
The 74.2 inch maximum height is the headline number. Most jacks in this roundup top out between 24 and 32 inches, which is fine for a car on stands but useless when the transmission sits six feet up between tall frame rails. The telescoping column on the Sunex gets you there, and the foot pedal gives you hands-free raising so one hand stays on the transmission bell housing.

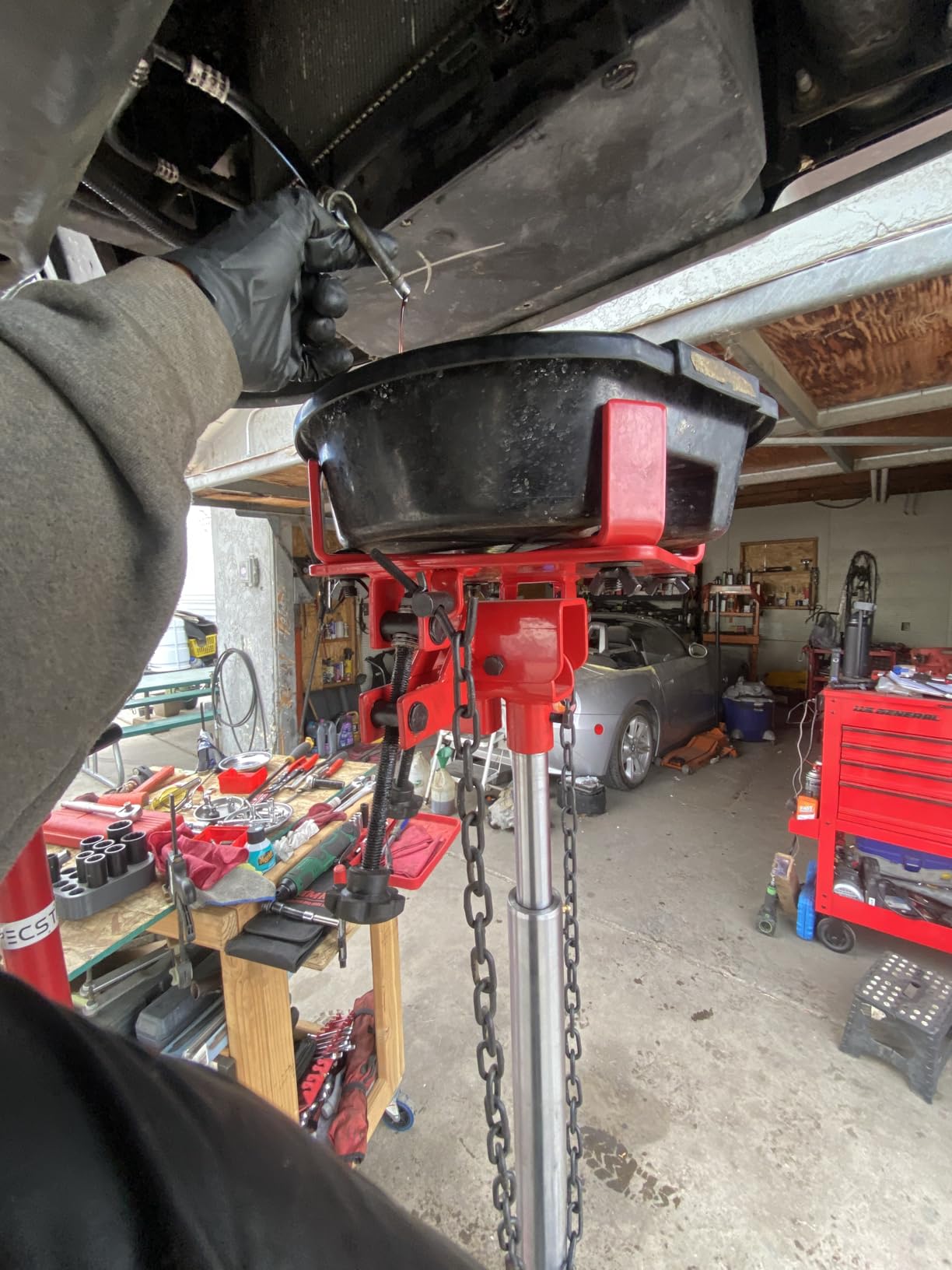

Owners use this jack well beyond transmissions. Reviewers report running fuel tanks, subframes, exhaust assemblies and transfer cases on it, and the tilt saddle is repeatedly singled out as the reason those odd-shaped parts stay balanced. The saddle articulates through multiple directions rather than a single pivot, which is exactly what you need when the engine is leaning on one bank and the pan is not level.
The thread on the handle gives you fine control, which matters at the moment the last bolts come out and the transmission is hanging by two threads. Several reviewers describe that slow-speed control as the feature that made the job safe rather than lucky. It is also why this is the transmission jack for garage use we recommend above all the others here.
What the extra weight buys you in a home garage?
A jack this heavy does not get shuffled around casually, which is a feature in a two-car garage. Once you position it, it stays where you put it, and the four-caster base gives you enough roll to fine-tune alignment after it is loaded. Under a vehicle on stands you have room to maneuver. Under a lift on a tight column you would not, and this is where the 43-inch-footprint pro models win instead.
At 163 pounds, one person can move it across a concrete floor but should not try to carry it up a ramp or over a floor joist. Budget for two people if your access is anything other than level.
Where it falls short?
Lowering it with nothing on the saddle is slow, because the cylinder has no weight to drive it down. Owners who lift transmissions for a living are used to this. First-time users sometimes assume the jack is stuck and start pumping again, which is a good way to force fluid past the seals.
The supplied chains are the other recurring complaint. They are adequate for keeping a transmission from walking on a level floor, but owners who move their loads across a shop consistently replace them with proper load-rated tie-downs. The manual is also an exploded diagram rather than a step-by-step sequence, so set aside an unhurried hour for assembly.
2. VEVOR 1,322 lb Telescoping Transmission Jack
VEVOR Transmission Jack, 1322 LBS Hydraulic Telescoping Transmission Jack, 32″-67″ High Lift Transmission Jack Stand with Foot Pedal, 360° Swivel Wheel
1,322 lb capacity
32 in collapsed to 68.5 in raised
Alloy steel, foot pedal with handle release
96 lb
Pros
- 1322 lb capacity at a fraction of pro-tier cost
- Reaches 68.5 in for tall trucks and deep frames
- Quick simple assembly with no cylinder bleeding needed
- Solid steel construction and protective packaging
- Two braked casters hold position under load
Cons
- Caster mounting and casters widely criticized as flimsy
- Tilt head only articulates one direction
- Plastic T-handle knobs strip near full extension
- Wheels spaced too closely so it feels tippy at full height
For a home garage doing transmission work on a truck or a tall SUV, this is the capacity-per-dollar answer. The 1,322 lb rating sits above every 1,000 lb jack in this roundup while staying firmly in the value tier, and the 68.5 inch reach handles a raised drivetrain without a lift.
It is also lighter to move than the Sunex at 96 pounds, which matters when you are dragging it across a garage floor on casters to reach the underside of a car. Assembly is straightforward, and most owners report not needing to bleed the cylinder before first use, which is not always true on imported hydraulic equipment.
The foot pedal raises the load and the handle releases pressure to lower it, which is a two-handed operation but gives you precise metering. Owners who use this with a 2-post lift to pull heavy transmissions report minimal struggle. The tilt saddle is bolted in with adjustable bolts allowing up to 30 degrees of tilt, and that range is enough to seat most transmission pans.
It is worth reading the tilt specification carefully here, though. Reviewers consistently describe this head as articulating in one direction only, which means when a transmission leans the other way the load shifts toward the edge of the saddle rather than centering itself. If your engine sits at an angle, plan to compensate with the arm position or with a strap.
Whether the capacity figure is real
1,322 lb is a genuine rating and it covers everything from a front-wheel-drive transaxle to most full-size truck transmissions with room to spare. Several owners mention using it for 4L60E-class automatics and for transfer cases without drama. Where the number stops being useful is very heavy commercial drivetrains, and for those you should be looking at the 1,660 lb and 4,400 lb models instead.
The footprint is the other factor. The four wheels are not spread far enough apart to make full-height work feel planted, and reviewers who use it at maximum extension on an uneven floor describe the sensation as tippy. With a car on the ground and a jack at 20 inches, it feels fine. Plan accordingly.
Plan on replacing the casters
This is the single most repeated criticism in the owner feedback, and it comes with practical advice attached: several buyers replace the caster set right after purchase. The mounting points accept better hardware and the original wheels are the component most likely to fail under repeated rolling loads.
The plastic T-handle adjustment knobs are the second known weak point. They strip or spin when you try to make fine saddle adjustments near full extension, so do the coarse positioning early and save the small adjustments for when the load is down.
3. KAFLLA 1,660 lb High Lift Transmission Jack
KAFLLA High Lift Hydraulic Transmission Jack, 1660 lb with Foot Pedal
1,600 lb rated capacity
35 in collapsed to 72 in raised
90 day warranty, 100 lb unit
Alloy steel, foot pedal, retaining chain
Pros
- 72 in reach at a fraction of the cost of pro telescopic jacks
- Capacity covers transfer cases and heavy truck transmissions
- Straightforward out-of-the-box assembly
- Reported not to leak down under repeated load
- Useful for exhausts and suspension arms too
Cons
- Retaining brackets included are awkward and get in the way
- Owners wish the adjustable arms extended farther
- Only a 90 day manufacturer warranty
Read the capacity line carefully here. The listing markets this jack at 1,660 lb while the manufacturer specification sheet lists 1,600 lb. Either way it carries the most capacity of any jack in the value tier of this roundup, and it reaches 72 inches, which is taller than anything else in the group.
That combination is unusual. Most jacks that reach 72 inches are 1,000 lb units, and most 1,600 lb jacks stop around 30 inches. If you are working on a full-size truck or a transfer case under a raised vehicle, this is the one that solves both problems at once.
Owners include professional mechanics who report successful 4L80E and transfer-case work with it, which is not a light-duty application. They also report it not leaking down under load across repeated jobs, which is the single most important hydraulic quality in a transmission jack. A jack that bleeds down means the transmission descends while you are unbolting it.
The two-stage telescopic column and the 30 degree tilt saddle are standard here, and the four 360 degree swivel casters make it easy to roll into position. Reviewers also use it for exhaust sections, suspension arms and other parts, so the reach is not wasted if you are not swapping a gearbox this month.
One note on the warranty: this comes with a 90 day manufacturer warranty, which is noticeably shorter than the two-year coverage on the OTC in this list. That is worth weighing against the extra capacity and reach, but it is the reason we would not put this under a vehicle for a first-time beginner with no fallback equipment.
How to use the reach without losing stability?
At 72 inches the saddle is high enough that the load is far above the base, so the base footprint matters more than usual. Roll it into place with the pedal rather than lifting, and make sure the casters are locked before you start unbolting anything. If you cannot get the base fully under the vehicle, widen your working position with jack stands rather than stretching the jack.
The 30 degree tilt is measured from the saddle’s neutral position, and in practice you will use far less than that. Set it just enough to bring the pan into contact, then strap the load before you raise further.
What the 90 day warranty means for you?
A short warranty is a signal that the manufacturer expects occasional hardware failure, and the owner feedback bears that out mildly: the complaints are about the retaining brackets and wishful arm extension, not the hydraulics or the steel. Keep your receipt, and check the saddle hardware for play after the first few jobs.
The included retaining brackets are the most disliked part. They mount awkwardly and interfere with the tilt adjustment on some setups, so many owners simply run their own straps. The chain does the job once it is sized correctly.

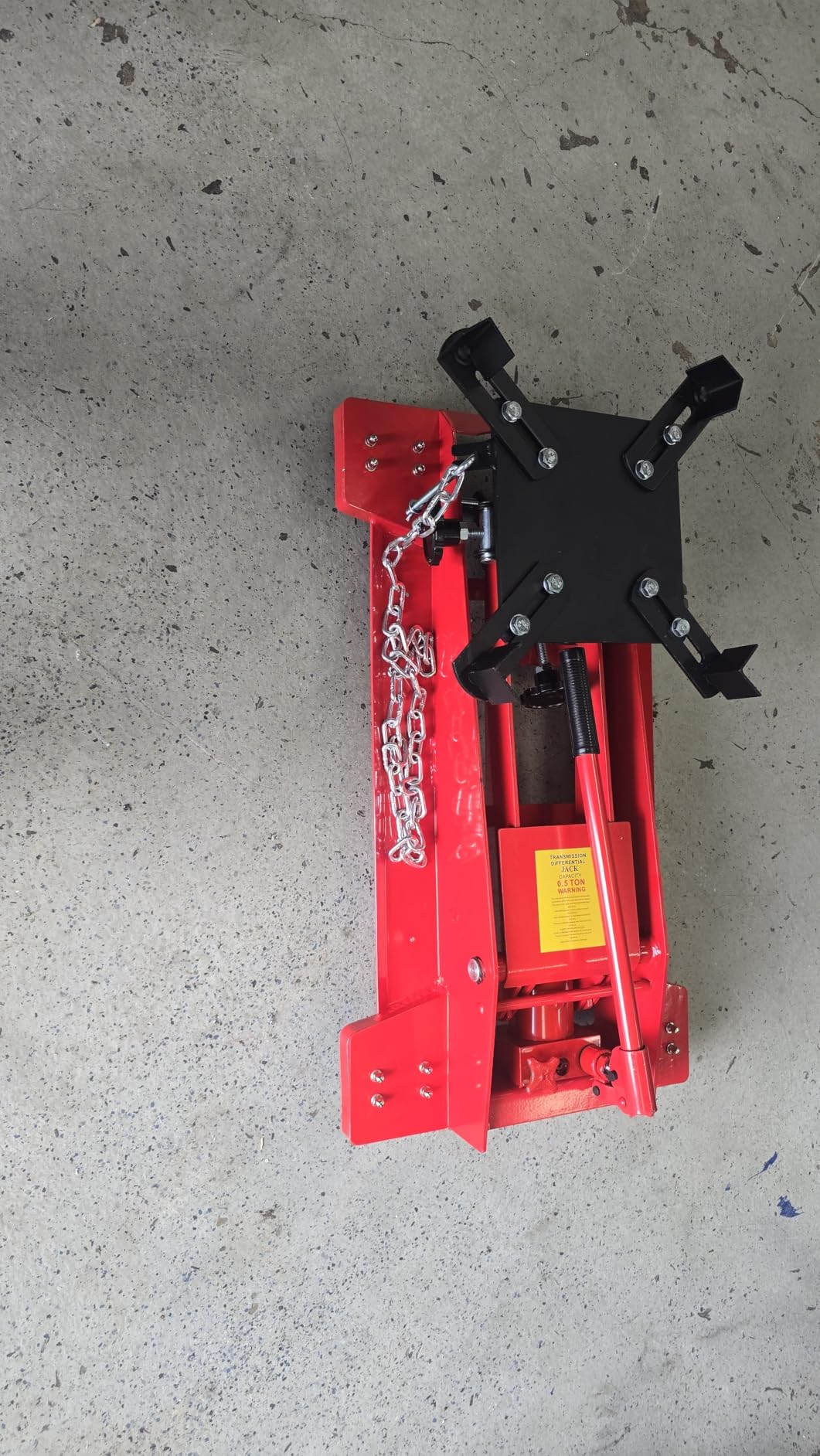

4. MOTOOS 1,100 lb Low Profile Transmission Jack
MOTOOS 1100 lb Hydraulic Transmission Jack, 7.68″-24.8″ Low Profile Lift
1,100 lb capacity
7.68 in collapsed to 24.8 in raised
99 lb, alloy steel
Forward and backward tilt saddle
Pros
- 1100 lb capacity with a genuinely low 7.68 in approach height
- Adjustable saddle tilts to match an engine that leans
- Works on uneven floors where sturdier jacks are hard to level
- Also handles skid plates and exhaust hangers
- Four swivel casters roll easily in a tight garage
Cons
- One report of weld and frame failure well below rated load
- Included chain and brackets get replaced with own straps
- Plastic washers on the adjustment bolt strip
- Customer support is limited when something fails
This is the one to look at if your car is lowered, has a low front subframe, or sits with a transaxle tucked close to the ground. A 7.68 inch approach height with 1,100 lb of capacity is a combination very few jacks in this roundup can match, and it opens up transaxle work that tall telescopic models simply cannot reach.
The saddle adjusts for forward and backward tilt, which matters on front-wheel-drive cars where the transaxle sits at an angle to the engine. Owners specifically praise being able to match the lean of the engine so the load centers on the saddle instead of sliding to one edge.
Because it is a low-lift design, the 24.8 inch maximum is the limiting number. On a car sitting on the ground with the transaxle near the oil pan you will clear it easily. On a truck with the drivetrain 30 inches up you will not, and you need one of the telescopic models instead.
The uneven-floor advantage
Owners working in real home garages rather than shops mention that this jack sits well on sloped or uneven concrete. The low, wide base does not rock the way a tall narrow column does, so the saddle stays at a predictable height while you are aligning it with the pan. For a driveway job rather than a flat shop floor, that is a real advantage.

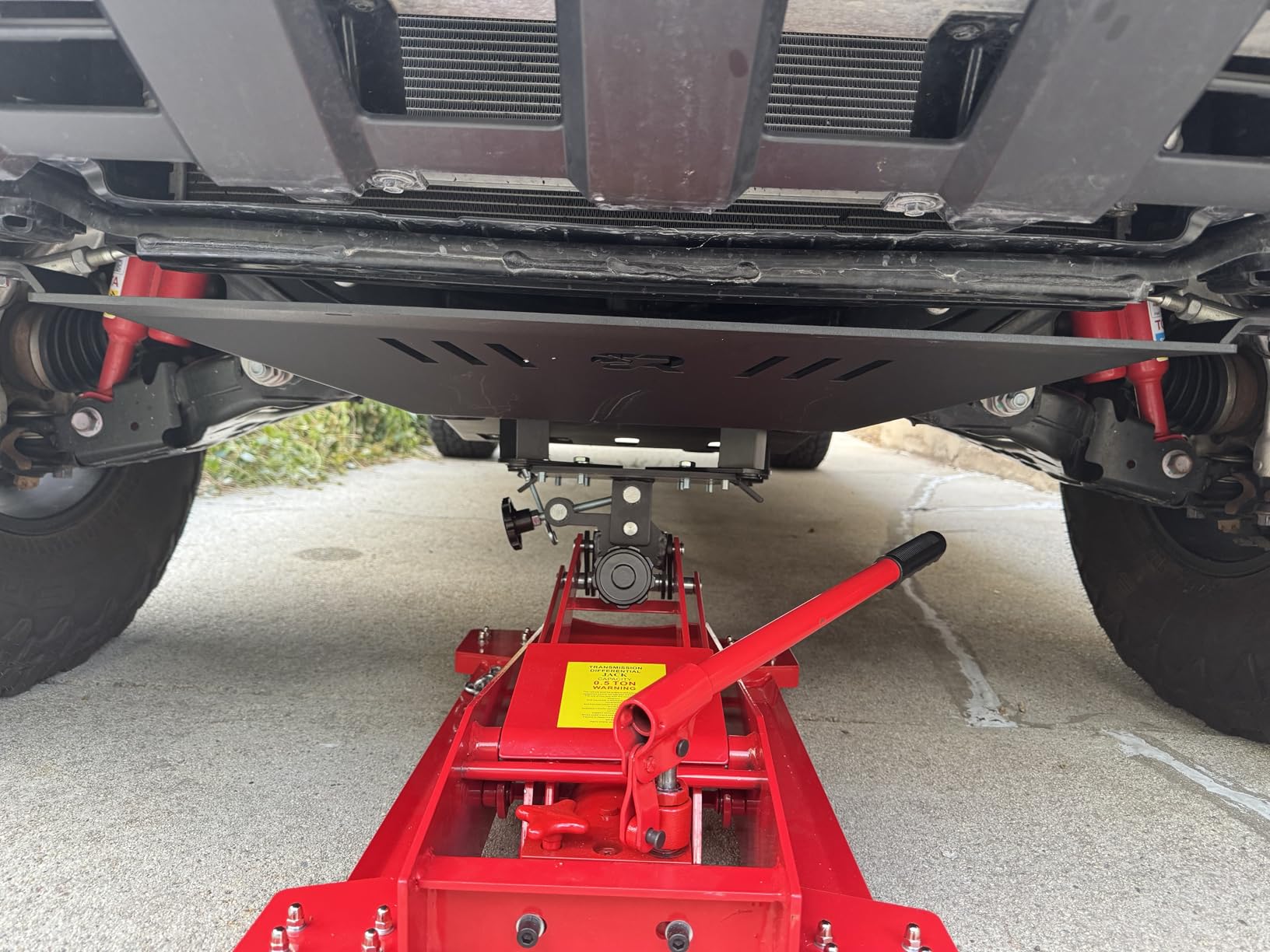

Beyond transmissions, the low profile makes it useful for skid plates, exhaust sections and exhaust hangers, jobs that need to get in and out of a cramped underbody. Reviewers use it that way frequently.
The failure report you should read
There is a single serious one-star review describing a weld and frame failure well below the rated 1,100 lb. One report is not a pattern, and the rating distribution is otherwise strongly positive, but this is a structural failure rather than a cosmetic one, and it is worth knowing about before you rely on the unit for a heavy transfer case.
Lower on the list, the included chain and brackets are frequently swapped for owner-supplied straps, and the plastic washers on the adjustment bolt strip. Adding a lock nut at that bolt is a five-minute fix that several owners recommend to everyone.

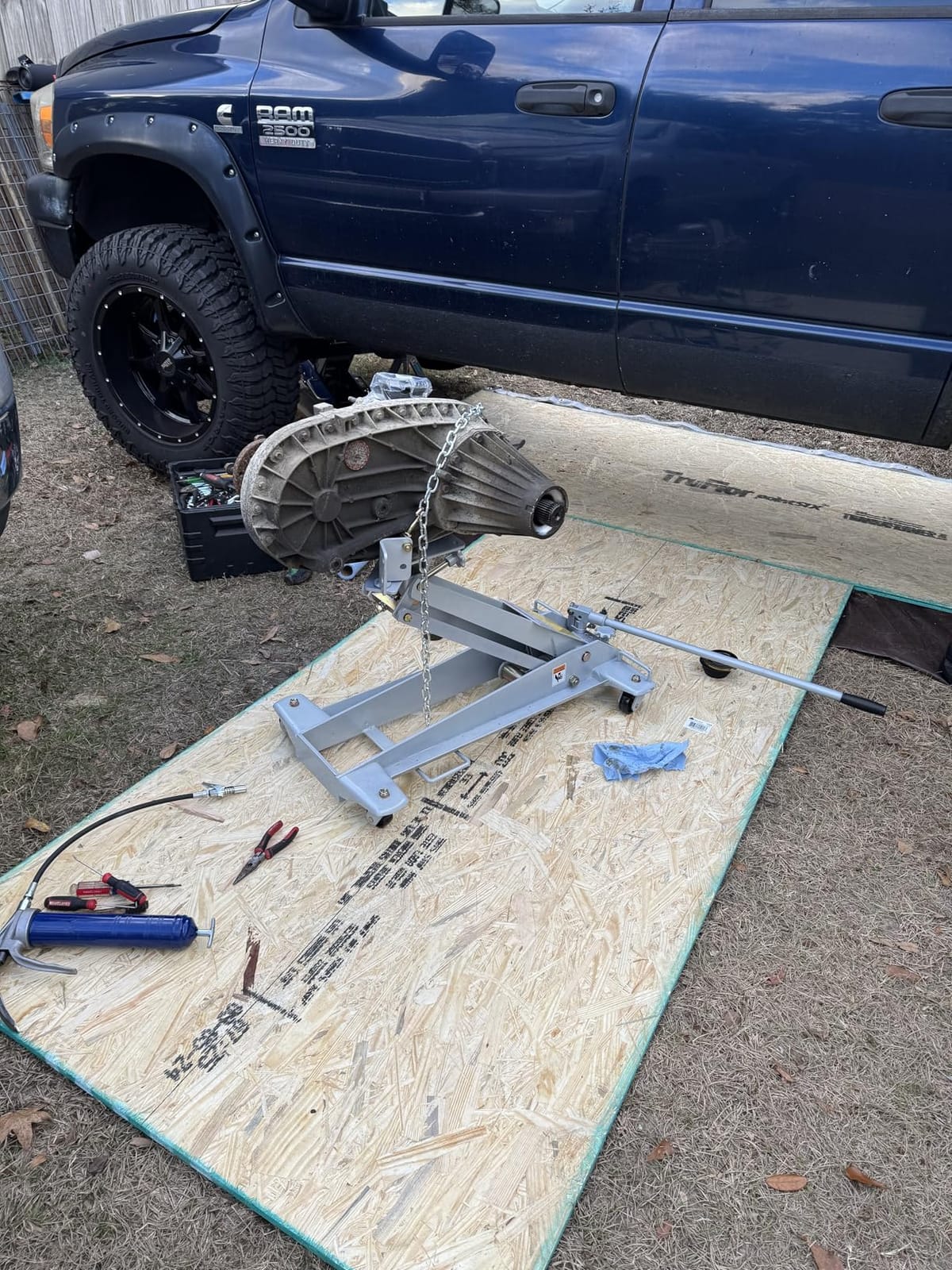

5. OTC 1521A 1,000 lb Low-Lift Transmission Jack
OTC 1521A 1,000 lb. Low-Lift Transmission Jack – 6.5″ to 29.5″ Lift Range
1,000 lb capacity
6.5 in collapsed to 29.5 in raised
135 lb, two year limited warranty
Universal head tilting front-to-back and side-to-side
Pros
- Pro-grade build backed by a two year limited warranty
- Lowest starting height of the hydraulic jacks here at 6.5 in
- Mounting head tilts front-to-back and side-to-side
- Wide wheel base and rotating handle for easy positioning
- Safety chains and overload protection included
Cons
- 43 in by 42 in floor footprint takes significant space
- 29.5 in maximum lift is modest for tall trucks
- Only 31 reviews
- so long-term data is thin
The OTC 1521A is what a professional shop looks like, and the details that separate it from everything else in this list are visible within a minute of unboxing it. The base is a wide square frame rather than a narrow column, the handle rotates so you can pump it from any position, and there are two separate grips for pushing it around the floor.
The 6.5 inch collapsed height is the lowest figure of any hydraulic jack in this group. Combined with 1,000 lb of capacity, it is a genuinely capable shop tool for low-clearance work, and the two-year limited warranty is double what most competitors offer.
The tilting head is the reason pros buy it
This head tilts front-to-back and side-to-side with adjustable brackets, which is the real two-way tilt that budget jacks only pretend to offer. When a transmission is off-axis, the head lets you bring the pan into full contact across its length rather than touching on one edge. That means the load stays centered and the operator is not compensating with chains at every step.
Combined with the safety chains and the overload protection, this is the most complete safety package here. The overload feature prevents the jack from being pushed beyond its rated capacity rather than leaving that to operator judgment.
Where a shop-grade jack stops paying for itself?
The footprint is 43 by 42 inches, and it is the largest in this roundup. Shops with tight bay spacing will feel that every day. The 29.5 inch maximum lift is also the shortest of the pro options, so tall truck work is not what this jack is for.
With only 31 reviews, the long-term durability picture is thinner than the other picks here. Buyers are relying on the OTC name and the warranty rather than a deep pool of owner history, and that is a real difference in confidence between this and the Sunex.
6. AFF 4,400 lb Heavy Duty Wishbone Transmission Jack
AFF Manual Hydraulic Low Profile Transmission Jack – 4,400 lbs Capacity
4,400 lb capacity
8.5 in collapsed to 32 in raised
297 lb, alloy steel wishbone
32 in rotating handle, safety overload, chain
Pros
- Highest rated capacity here for semi-truck and heavy equipment drivetrains
- Wishbone low-profile design clears deep frame rails
- 32 in handle rotates 360 degrees for pumping under load
- Owners doing semi-truck work endorse it as an entry point
- PU-covered industrial casters roll smoothly loaded
Cons
- Very heavy at roughly 297 lb
- so it takes two people to move
- Saddle plate may not reach low enough for very tall frame rails
- 48 in by 28 in footprint occupies a lot of floor
- Only 39 reviews limits long-term data
At 4,400 lb this is the only jack in the roundup rated for semi-truck transmissions, bus drivetrains and construction equipment, and it holds the top star rating of the group at 4.7. The wishbone layout is the reason it can get so close to the ground at that capacity: the load spreads across a wide arm rather than concentrating on a narrow column.
Owners working on semi-truck transmissions describe it as a solid first heavy-duty jack, and the international review spread suggests the design holds up outside North American shop conditions too. The 32 inch pump handle rotates a full 360 degrees around the pump, which sounds like a small detail until you are under a raised trailer trying to get leverage on a loaded pedal.
There are four grab handles in addition to the rotating pump handle, and the industrial-grade PU-covered casters are built to roll while fully loaded. Those are details you notice after a long day of moving transmissions across a shop floor.
Is it overkill for a home garage?
For almost every home garage, yes. The 297 pound weight means two people to move it, and the 48 by 28 inch footprint will consume a large part of a single-car bay. If your work is passenger vehicles, the 1,000 lb class is the sensible ceiling.
It earns its place for RV differential work, one-ton truck drivetrains, and anyone who services commercial equipment. The same manufacturer also offers this design in 1,000, 2,000 and 3,000 lb capacities, which is the more realistic entry point for a serious home shop.
The one substantive complaint
Several owners note that although the specification lists an 8.5 inch minimum, the saddle plate itself does not travel low enough to clear very tall frame rails on the heaviest trucks. One user describes having to dump and drag a transmission out rather than lift it clear. If your heaviest work is very tall trucks, verify clearance with the saddle at its lowest before committing.
Otherwise, the feedback is strongly favorable, with 83 percent five-star and only 2 percent one-star across the 39 reviews. The small sample is the main reason this does not take our top spot despite the highest rating.

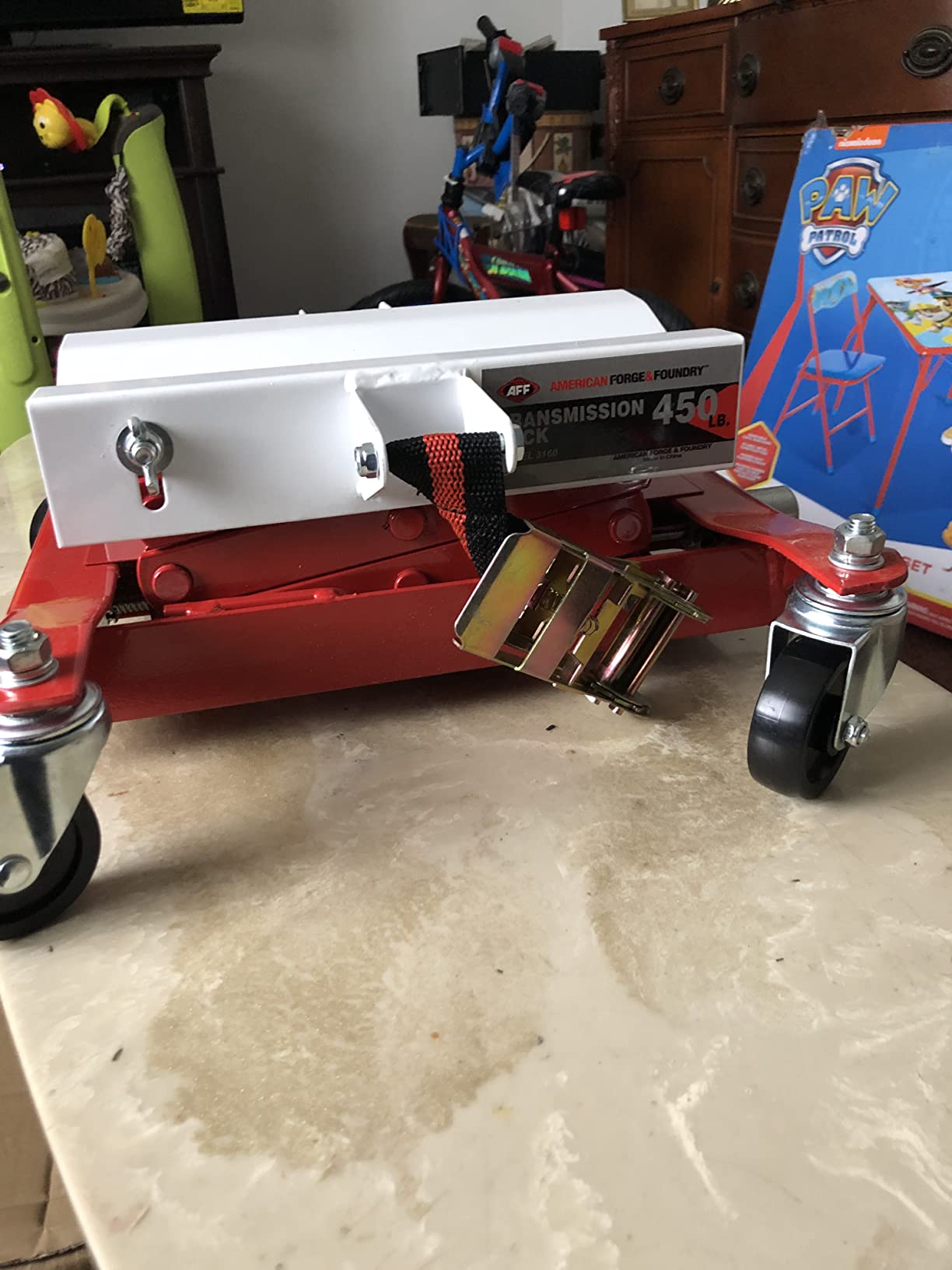

7. AFF 450 lb Manual Scissor Transmission Jack
AFF Manual Transmission Jack – 450 lbs Capacity – for Smaller Vehicles
450 lb capacity
7.25 in collapsed to 22.5 in raised
41 lb, alloy steel and nylon
Scissor design, 1/2 in drive ratchet operation
Pros
- Very low 7.25 in approach height for tight-clearance cars
- Light 41 lb weight is easy to reposition by hand
- Tilt saddle helps align awkward transmission shapes
- Ball bearing swivel casters roll well when confined
- Nylon safety strap keeps the load from shifting
Cons
- 450 lb capacity is well below larger transmissions and differentials
- Requires a separate 1/2 in drive ratchet that is not included
- Manual operation is slower and harder than hydraulic
- Highest one-star share in the group at 12 percent
This is the manual scissor design rather than a hydraulic jack, and for a small manual-transmission car it is genuinely the right tool. At 7.25 inches collapsed and 41 pounds, it goes places nothing else here goes and it can be moved by hand without dragging a crane out.
Operation is a 1/2 inch drive ratchet, and the ratchet is not included. Budget for that before you find yourself with the jack in the driveway and nothing to turn it with. Several owners describe the manual pumping as slower and more effort than a foot pedal, but also as completely controllable.
What 450 lb actually covers?
It covers small manual transmissions, transaxles in compact front-wheel-drive cars, and lighter fuel tanks. It does not cover most automatic transmissions, transfer cases or differentials, and attempting those jobs is the single biggest driver of the 12 percent one-star share in this jack’s reviews.
Know your part weight before you buy. If your transmission is over 400 pounds dry, this is the wrong tool, and no amount of careful technique changes that.
Why the scissor layout still earns a place?
The scissor mechanism trades reach for approach height, and that is exactly the right trade when you are under a lowered hatchback or a compact with a scraped subframe. The four ball-bearing swivel casters roll smoothly in confined spaces, where a wide four-wheel base from a hydraulic jack would not fit at all.
The tilt saddle adjusts to help align awkward shapes, and the nylon strap keeps the load from walking. The retailer guidance that scissor jacks suit specific low-profile applications rather than general transmission removal is worth heeding: this is a light-duty, clearance-first tool.

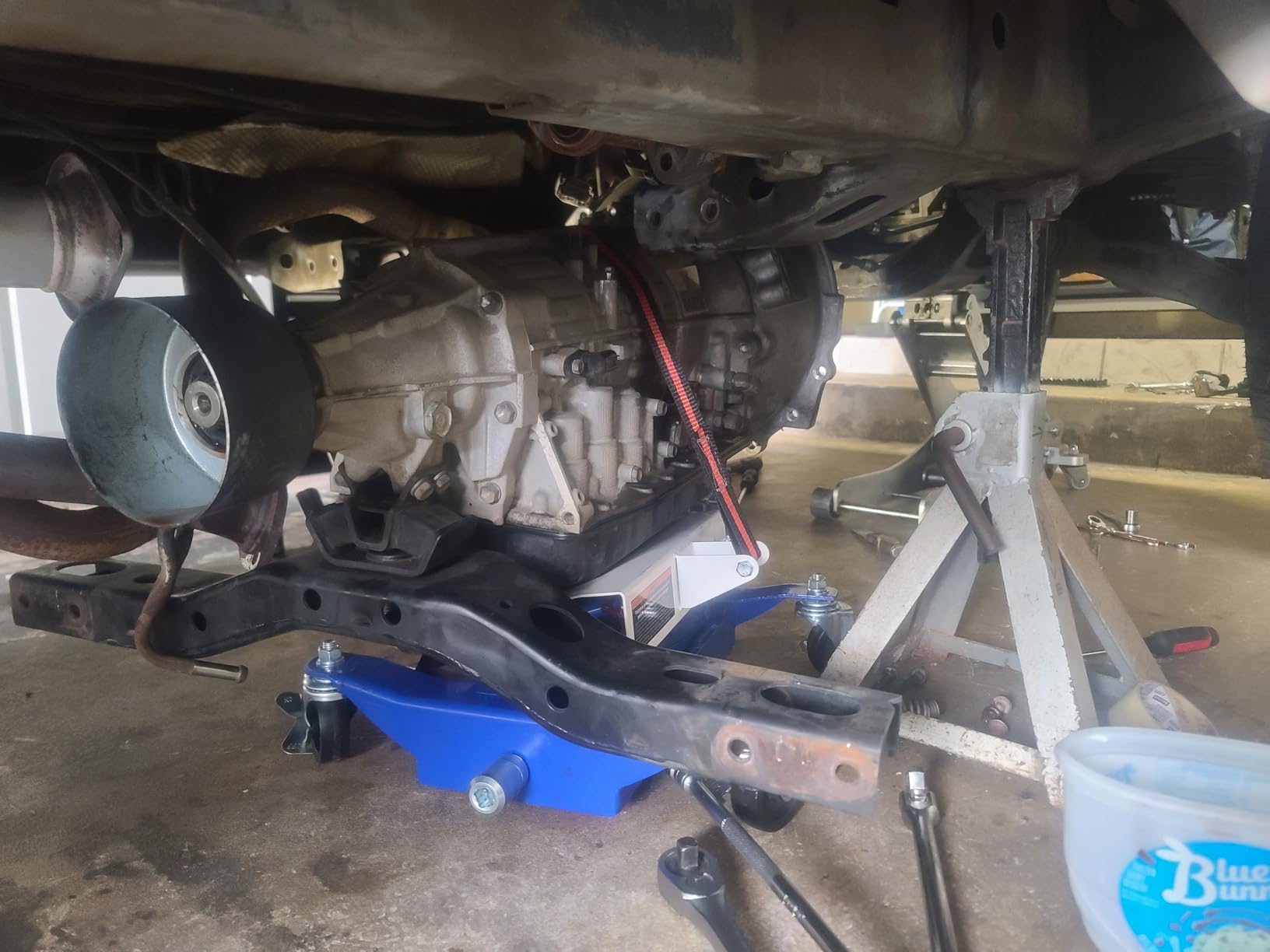

8. Garvee 450 lb Low Profile Transmission Jack
Garvee Transmission Jack 450 LBS Capacity: Low Profile Lift with 2M Safety Straps & 4 Brake Wheels, 7-23 Inch Range for Car & Truck Repair (Red)
450 lb capacity
7 in collapsed to 23 in raised
45 lb, alloy steel
Two 2M safety straps, four braked casters
Pros
- Entry price point while still carrying a 450 lb rating
- 7 in starting height fits low-clearance cars and small trucks
- All four wheels brake
- which is unusual in this class
- Included 2M straps give more security than a bare saddle
- Light enough to move around a garage without help
Cons
- 450 lb capacity limits it to lighter transmissions and fuel tanks
- 23 in maximum lift is modest against telescoping models
- 11 percent one-star share reflects fit and finish issues
The Garvee is the entry point in this roundup and ranks at the top of the Amazon Transmission Jacks category by sales volume, which tells you how many people start here. For fuel tanks, small transmissions and differentials in a compact car, it does the job without hydraulics.
What separates it from most of its class is the caster package. All four wheels brake, where a single jack in this group gives you only two braked wheels, and all four swivel, so you can position it under a vehicle without dragging it sideways. The two included 2M safety straps also add real load security for the price.
Like the AFF scissor jack, the 450 lb rating is the defining limit. It is a capacity for light components, not for automatics with torque converters or for anything with a bell housing hanging off the back.
What 7 inches of clearance actually unlocks?
A 7 inch approach height fits under lowered compacts, small crossovers and small trucks where a 30-plus inch collapsed height is a non-starter. Paired with the 45 pound weight, it is also easy to reposition by hand, which matters in a one-car garage where you are constantly getting it out of the way.
The 23 inch maximum lift is the trade. Once the transmission is out of the vehicle, you can raise it to bench height and roll it to a work table, but you cannot raise a transmission that is already mounted high in a truck.
What the one-star reviews say?
At 11 percent one-star, this jack sits in the middle of this group on dissatisfaction, which is respectable for the entry tier. The complaints cluster around fit and finish: hardware not seating properly, paint and weld quality, and small assembly issues rather than hydraulic failure.
That distinction matters. Hydraulic problems are the ones that drop transmissions, and they are not what owners report here. If you want the cheapest usable jack for tank and small-transmission work, this is it. If you want a jack you can grow with, step up a class.
How to Choose the Right Transmission Jack for Your Garage?
Choosing well comes down to eight decisions, and the first two eliminate most of the field before you look at any other feature.
1. Match capacity to the actual component weight, with margin. Find the weight of your specific transmission rather than the weight of the vehicle. A 1,000 lb jack handles most automatic transmissions; a 450 lb jack handles small manuals and tanks. For heavy transfer cases and truck drivetrains you want 1,600 lb or more. Stay under about 70 percent of the published rating for routine work, because a jack that is lifting at its limit has no margin left for shifting loads.
2. Measure your clearance before anything else. Two numbers matter: how low the collapsed saddle sits, and how high it goes. Measure the height of your transmission pan in the vehicle with the vehicle supported, and compare. Any jack with a collapsed height above 30 inches will not go under most lowered cars or crossovers.
3. Decide between single-stage and 2-stage telescoping. Telescoping means a low collapsed height and a high extended height in one unit, which is the most versatile option. The cost is more moving parts and more chances for a leak. A single-stage design is simpler but its collapsed height is high. Forum users who measured their units report collapsed heights of roughly 34.5 inches for a 2-stage design against about 44.75 inches for a comparable single-stage model.
4. Confirm the saddle genuinely tilts in two directions. A real two-way tilt head articulates on two axes, so it can match a transmission that is both leaning and offset. Many budget jacks advertise a tilt saddle where the head tilts one way and the second knob merely slides the platform forward and back. We cover how to check this below.
5. Choose the pump type. Foot-operated hydraulic pumps are the standard and work well. Air-over-hydraulic uses your shop compressor to drive the ram, giving faster cycles, no pump to service and hands-free control at the handle. Shops buying one unit a year are usually better served by a foot pump. A shop running transmissions daily is the audience for air-over-hydraulic.
6. Look at the base and casters. Wider is more stable, especially at full height. Braked casters matter enormously because a loaded jack that rolls while you unbolt is the failure mode that puts a transmission on the floor. Check how many wheels actually lock.
7. Check the safety hardware. An overload protection valve stops the jack from being pushed past its rating, which is a real safety feature rather than a convenience. Load-rated chains or a proper strap keep the transmission from walking while you move it. The OTC and Sunex both include overload protection, which is a meaningful difference between them and the value tier.
8. Account for warranty and support as durability data. A one or two year warranty tells you what the manufacturer expects to last. Service life data from owners is the better signal: shop users report that budget trans jacks can last about a year in real service, while a mid-range unit in daily use has been reported running roughly five years before replacement. Plan on replacing a cheap jack rather than expecting it to be permanent.
Our broader home mechanics transmission jack guide goes deeper on matching a jack to specific vehicle classes if you want to shortcut the capacity question.
The Two-Way Tilt Trap and How to Check Your Saddle
The most expensive mistake in this category is buying a jack that advertises a tilting platform and gives you a sliding one instead. It comes up repeatedly in owner discussions because the listings read exactly the same and the difference only shows up with a transmission on the saddle.
A real two-way tilt head rocks on two perpendicular axes. A fake one rocks on a single axis, and the second knob on the head only slides the platform forward and back to reach different saddle widths. Forum users describe that second knob as a feature added to make the jack look better on a spec sheet, and buyers in the thread agree they were fooled by it.
Here is how to check in about five minutes, before you ever get under a vehicle with it.
1. Load the saddle with something and lean on it. Put a heavy, awkward object on the platform so you can feel how it responds. Tilt the head forward and back, then left and right. If it articulates in both directions, you have a real two-way tilt.
2. Try the second knob and watch what moves. If a knob moves the whole platform forward and back rather than tilting the head, that is a width adjuster, not a tilt. The saddle will not roll with a transmission that leans the other way.
3. Read the tilt specification literally. A stated 30 degree tilt tells you the range, not the number of axes. A one-way head that tilts 30 degrees still leaves you compensating by hand for the other direction.
There is a second failure mode worth knowing, and it is a safety issue rather than a convenience one. Owners on hobby-machinist describe hearing an overhardened, brittle thrust bearing race snap in a budget tilt mechanism while under a car with a transmission on the saddle. When a thrust bearing fails in a loaded tilt head, the saddle can drop and rotate without warning. If your jack has a tilting head that feels rough, gritty or notchy when you move it under load, stop using it until the mechanism is inspected.
The forum-originated workaround for the factory chain-and-hook saddle is worth borrowing: bolt a piece of plywood to the platform and use that as a broad, flat, strap-friendly surface. Owners report it is more stable than the supplied hardware, and it gives you somewhere solid to attach a proper load strap instead of relying on hooks.
Is a Transmission Jack the Right Tool for Your Job?
Sometimes it is not, and choosing the wrong tool wastes a weekend. A transmission jack is the right answer when the component is in the vehicle, is heavy but manageable by two people, and can be rolled out along the floor.
Use a transmission jack for transmissions, transaxles, transfer cases, differentials, fuel tanks and sewer tanks, particularly on low-clearance vehicles where a hoist cannot reach. It is also the fastest way to reposition a part at bench height after it is out of the car.
Use an engine hoist when the component is already out and needs to travel further than a jack can roll, or when the weight is beyond what two people can safely tip off a saddle. A hoist lets you swing the load and set it down on a bench or a stand, which a jack cannot do.
Use a floor jack for tires, exhaust, subframes and general underbody work, not for transmissions. A floor jack’s saddle is a narrow strip designed for a frame or axle, and a transmission pan sitting on it is an unstable pairing. Our floor jack guide covers the right picks for that job.
Use scissor jacks carefully. They suit specific low-clearance, light-duty applications and are not a general answer for transmission removal under a vehicle. The scissor jack in this roundup is a 450 lb manual unit for small cars, and its 12 percent one-star share comes largely from people using it beyond its envelope.
And if the component weighs more than your jack can safely hold, the honest answer is a crane or a rated engine hoist, not a bigger gamble with a cheap jack. For motorcycles and two-wheel work, our motorcycle jack roundup covers the light end of the lifting market.
How to Use a Transmission Jack Safely?
A transmission jack supports a component. It does not support a vehicle. Every safety point below follows from that one distinction.
1. Support the vehicle properly before the transmission comes loose. Use jack stands at the manufacturer-specified support points, or a properly rated lift. Never work under a vehicle held only by a floor jack, and never place a stand on a pinch weld or a seam that is not designed for it.
2. Never use the transmission jack as a vehicle support. This is the single most dangerous misuse in the category. A trans jack is designed to hold a component’s weight on a saddle, not to carry a vehicle. If you need to get under the car, use stands or a lift.
3. Support the subframe as well as the transmission. On many front-wheel-drive cars, removing the transaxle unloads the subframe. A jack stand under the specified subframe point keeps the geometry correct and prevents the subframe from dropping onto the exhaust or the oil pan.
4. Treat the printed capacity as a ceiling, not a working load. A 1,000 lb jack is not a 1,000 lb working jack. Plan to stay well under the rating, because drivetrain loads shift as you unbolt, tilt and roll. A transfer case that starts at 900 lb will put more than that into the saddle as it tips.
5. Strap the load before you raise or roll. Use the supplied chains or, better, a proper load strap. A transmission that slides off a tilted saddle while you are under the vehicle is how expensive damage happens.
6. Check the tilt mechanism before you trust it. Move the saddle through its full range under light load. Grinding, notching or a rough feel means a worn thrust bearing. Replace the jack rather than working around it.
7. Lower it before you move it, and never ride the saddle down. To lower, release pressure slowly and let the load descend under control. If you cannot lower it with the weight of the load alone, the jack needs servicing, and forcing it risks a seal failure.
8. Bleed and store it properly. Keep the hydraulics clean, retract the ram fully before storage to protect the seals, and address any weeping oil before it becomes a failure under load.
Frequently Asked Questions
What is the best-rated transmission jack?
Among the jacks we reviewed, the AFF 4,400 lb Heavy Duty model holds the highest average rating at 4.7 stars, and the Sunex 7793B and KAFLLA 1660 lb models follow at 4.6. Highest rated is not the same as best. The Sunex carries far more owner history at 216 reviews than the AFF’s 39, and it is the pick we recommend for garage use because of its reach, weight and saddle control.
How do I choose the right transmission jack?
Start with capacity matched to the real component weight, then confirm the collapsed height fits under your vehicle. Choose a 2-stage telescoping model for versatility, a real two-way tilting saddle over a sliding one, braked casters, and an overload protection valve if the jack will be used by anyone learning in your garage. A foot pump suits most people; air-over-hydraulic suits a shop doing daily work.
What is the best car jack for a home garage?
It depends on the job. A low-profile floor jack handles tires, exhaust and subframe work, while a low-profile transmission jack is what you need for transmissions and transaxles on a lowered or low-clearance car. For lifting the vehicle itself, use rated jack stands at the manufacturer support points, never a jack alone. We cover both in our floor jack and transmission jack guides.
What is the 3/4 rule for floor jacks?
The 3/4 rule means using a floor jack rated for at least three-quarters of your vehicle’s weight. A more important rule sits next to it: support the car at the manufacturer-specified points on rated jack stands, never on a pinch weld. A transmission jack cannot support a vehicle at all, which is why it is a component tool and not a vehicle support.
What are the best brands for transmission jacks?
Pro-grade names such as OTC, BendPak, ESCO, OEMTOOLS and Sunex build for shop duty with stronger saddles, overload protection and longer warranties. Mid-range options from Summit Racing, JEGS and Strongway suit serious home shops. Value brands including VEVOR, MOTOOS, Garvee and Pittsburgh cover light and mid drivetrain work well, with casters and adjustment hardware as the usual first failure points.
Is an air-over-hydraulic transmission jack worth it?
For a home garage, no. Air-over-hydraulic drives the hydraulic ram with shop air, giving faster cycles and no pump to service, at a higher cost and with a compressor as a dependency. For a shop removing transmissions every day it is a genuine upgrade. Shop owners also note that air-over-hydraulic can leave a lighter duty rating than its price implies, so check the capacity before buying.
Are scissor transmission jacks safe for transmission work?
Within their envelope, yes. A scissor transmission jack suits specific low-clearance, light-duty applications because it reaches a low approach height that hydraulic columns cannot. It is not a general answer for removing a heavy automatic from under a car. The scissor jack in this roundup is rated at 450 lb, and most dissatisfaction with it comes from exceeding that limit.
Which Transmission Jack Should You Buy in 2026?
For most home garages, the best transmission jack for garage use is the Sunex 7793B. It reaches 74 inches, weighs enough to stay planted under load, has a saddle that tilts in multiple directions, and carries 216 reviews from owners who used it on transmissions, transfer cases, fuel tanks and exhausts. It is the pick we would buy first and stop researching.
Choose differently for a specific reason. Pick the VEVOR 1,322 lb if you want more capacity without moving up a price tier. Pick the KAFLLA 1,660 lb if your work is full-size trucks or transfer cases and you need both height and capacity. Pick the MOTOOS 1,100 lb if your car is lowered or has a tight subframe. Pick the OTC 1521A if you have shop space and want a true two-way tilting head with overload protection. Pick the AFF 4,400 lb only if you service heavy commercial drivetrains, and the 450 lb scissor or Garvee models if you work on small manual-transmission cars and fuel tanks.
Two things will decide whether you enjoy the job: whether the saddle genuinely tilts in two directions, and whether the collapsed height fits under your vehicle. Check both before you buy, and the rest is capacity. Our trailer jack guide covers lighter lifting tasks, and if you are planning a full workshop layout, our garage floor tile guide is worth reading before the jack finds a home.
